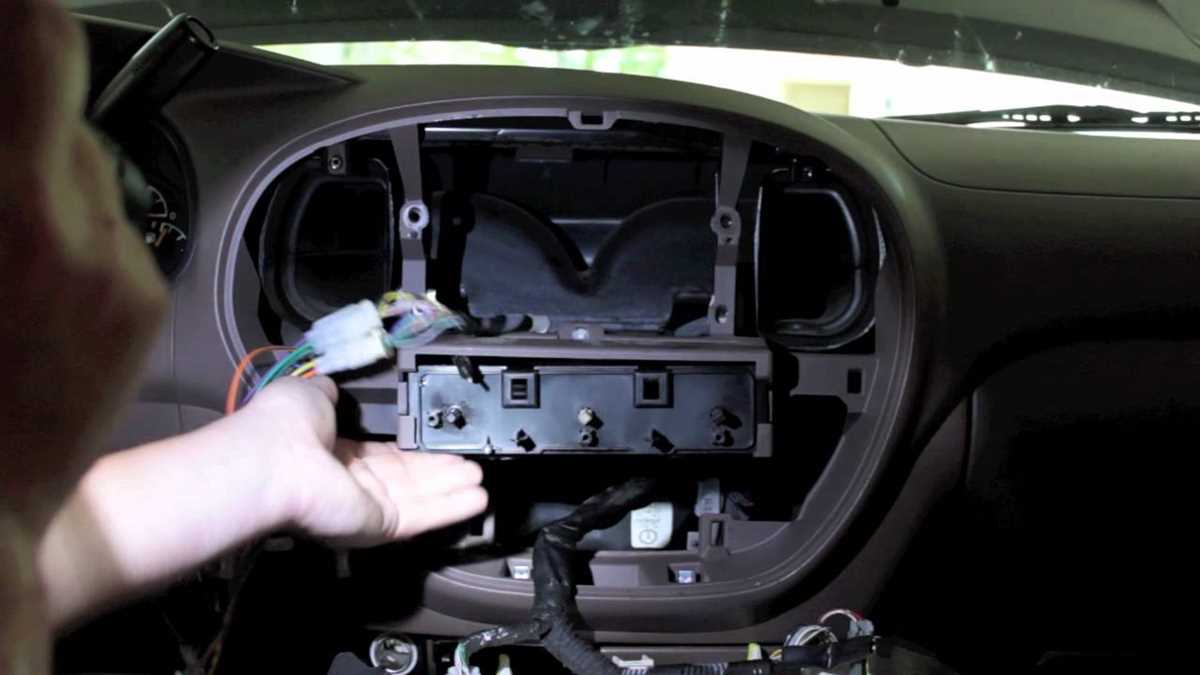

To replace or upgrade the sound system in your 2005 model-year crew cab, begin by disconnecting the negative terminal from the battery. A 10mm wrench removes the terminal clamp without damaging the post. Next, remove the center dash panel by prying outward with a plastic trim tool–start at the bottom near the gear shifter and work upward. Four clips secure the panel; two additional screws behind the climate control knobs must be unscrewed before the panel fully detaches.
The factory harness consists of 14 wires: six for speaker outputs (front and rear, left and right), two for constant 12V power (red and pink), two ignition-switched leads (yellow and black/white stripe), one illumination wire (gray), one ground (black), and two antenna triggers (blue/white and blue). Use a multimeter set to DC voltage to verify each wire’s function before splicing–red should show 12V at all times, yellow only when the key is in the ACC or ON position, and gray dims with the dashboard lights.

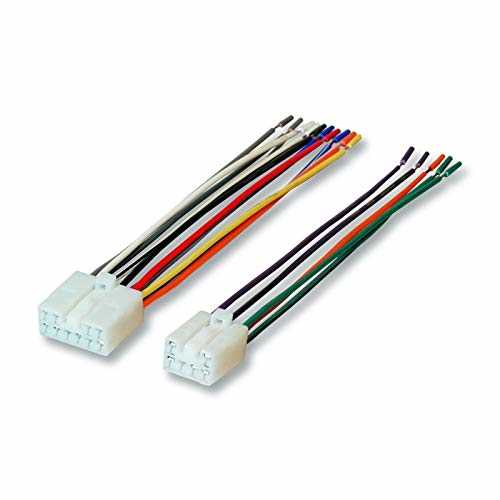

The speaker wires follow this color code: front left positive is light green, front left negative is dark blue; front right positive is pink, front right negative is violet; rear left positive is gray, rear left negative is brown; rear right positive is dark green, rear right negative is black. Crimp connectors should be avoided–solder each joint and insulate with heat-shrink tubing to prevent corrosion or short circuits. If adding an aftermarket head unit, match the harness with a Metra 70-1761 adapter, which includes a pigtail for direct plug-in compatibility.
For models equipped with the JBL premium audio system, an amplifier is integrated beneath the rear seat. Its power and signal wires are thicker–16-gauge for speakers, 12-gauge for power. Disconnecting this unit requires removing the rear seat cushion and unbolting the amp’s mounting bracket. Reinstallation demands reconnecting the harness in the exact original configuration; reversing the positive and negative speaker wires on any channel will cause phase cancellation, reducing sound clarity.
Ground connections are critical–attach the head unit’s chassis ground to a bare metal surface on the vehicle’s frame, not the dashboard substructure. Use star washers between the ground lug and metal to ensure a solid electrical path. If static or alternator whine occurs after installation, reroute the power wire away from the spark plug wires and relocate the FM antenna lead farther from the ignition coil.
Understanding the Electrical Layout for Your Pickup’s Sound System
Begin by locating the factory harness behind the dashboard cluster–specifically the 16-pin connector labeled “C” on the back of the original head unit. Pin assignments follow this structure: constant power (yellow, 12V), ignition-switched lead (red, 12V), ground (black), illumination dimmer (orange), left front speaker (gray and gray/black), right front speaker (white and white/black), left rear speaker (green and green/black), and right rear speaker (purple and purple/black). These color codes remain consistent across base and premium trim variants.
To prevent blown fuses, always disconnect the negative battery terminal before splicing or probing wires. Use a multimeter set to DC voltage to verify each circuit: yellow should register battery voltage (12-14V) regardless of ignition state, red activates only when the key is in the “ACC” or “ON” position, and ground should show negligible resistance to the chassis. Illumination wires adjust brightness in sync with dash lights–test this function separately with a 10k ohm potentiometer if retrofitting aftermarket components.
Avoid tapping into accessory circuits like power windows or heated seats for additional voltage sources–these share fragile 10A fuses that’ll trip under the added load of an amplifier. Instead, run a dedicated 8-gauge power cable directly to the battery, fused within 18 inches of the terminal. Route this cable through the firewall grommet adjacent to the brake master cylinder, securing it with nylon ties every 12 inches to prevent chafing against sharp edges. For amplifer installations, pair this with an RCA harness adapter (Metra 70-8112) to bridge factory speaker wires to preamp outputs.
Rear speaker outputs on the stock connector often lack sufficient wattage for aftermarket upgrades–verify impedance with a milliohm meter before connecting. If readings fall below 3 ohms, insert an impedance-matching adapter to prevent damage to the replacement unit’s amplifier section. For vehicles equipped with JBL premium audio, note the presence of inline crossovers on mid-range and tweeter wires–these require bypassing (using bypass modules like Metra 95-8228) to maintain full frequency response when upgrading to a third-party signal processor.
For troubleshooting static or no audio on specific channels, measure voltage drop across speaker wires–acceptable values are under 0.5V per 10 feet of cable. If fluctuations occur, inspect for corroded connections at door jamb switches or exposed wiring near the tailgate hinge. Use dielectric grease on all splice points exposed to moisture, particularly ground connections near the driver-side kick panel where water drainage channels tend to accumulate condensation.
Retain the original theft-deterrent circuitry by splicing the pink data wire (pin 11 on the 16-pin connector) into aftermarket security modules–this ensures compatibility with factory key-fob functions. When reconnecting the battery, a temporary error code on the instrument cluster (typically “ERR 7”) will clear after two ignition cycles; this is normal and requires no further intervention unless persistent.
How to Locate the OEM Audio System Harness Pin Configuration
Begin by disconnecting the vehicle’s battery to prevent short circuits. Locate the stock head unit at the center dashboard–it typically secures with a trim panel held by clips or screws. Remove the trim carefully using a plastic pry tool to avoid damaging the fascia.

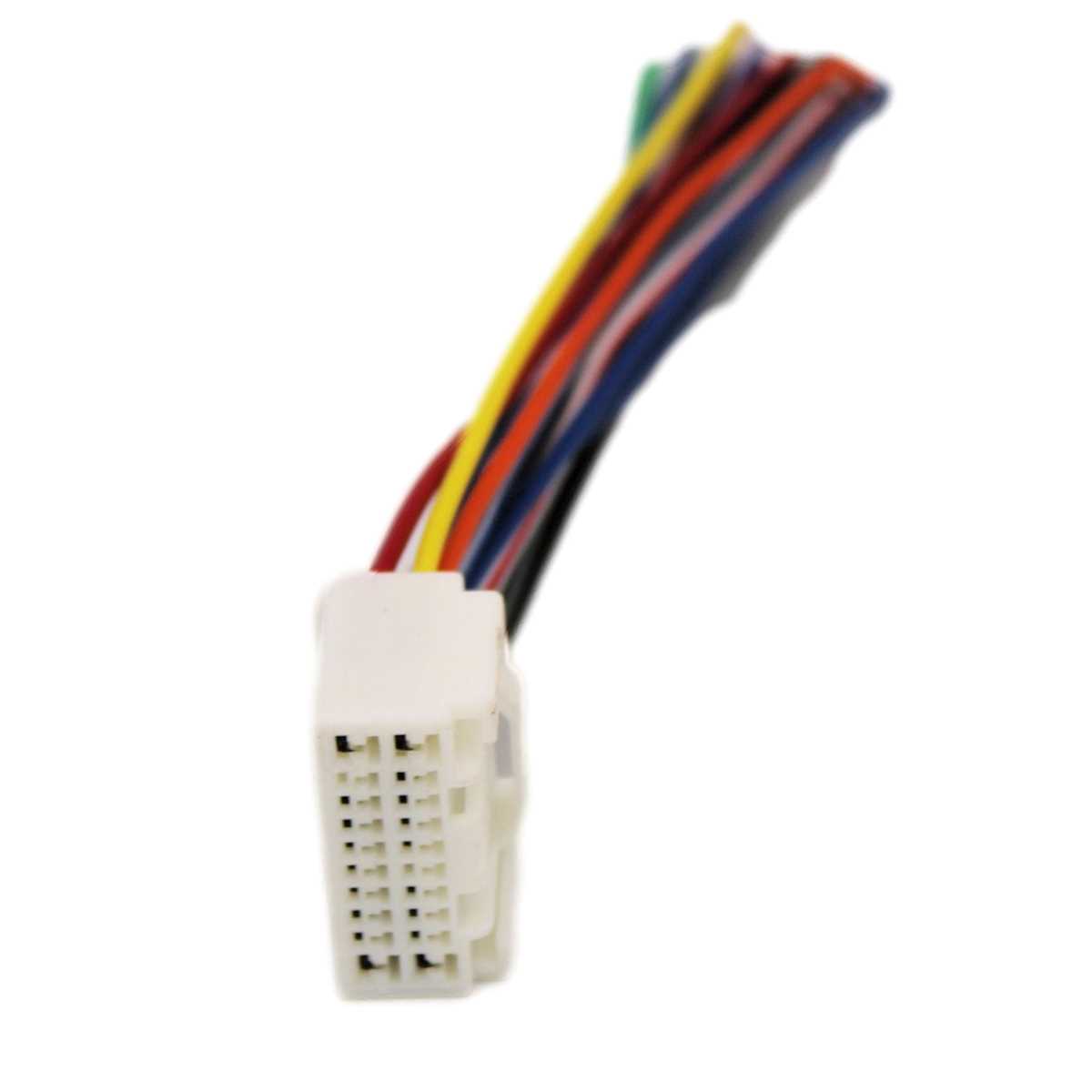

The original equipment connector is a 20-pin rectangular plug, usually white or gray, positioned at the rear of the stereo. Use a multimeter set to continuity mode to identify each pin’s function. Probe the connector’s terminal side against the vehicle’s chassis ground to verify ground pins first–these will register near-zero resistance.
- Ground: Pins 12 and 18 register continuous connection to chassis.
- Power (constant 12V): Pin 4 supplies uninterrupted voltage, critical for memory retention–test with ignition off.
- Switched power (12V): Pin 7 activates with ignition key in ACC or ON position.
- Illumination: Pin 16 dims with headlight activation, often purple with a white stripe.
- Left front speaker: Pins 5 (+) and 6 (-), typically gray and gray/black.
- Right front speaker: Pins 1 (+) and 2 (-), usually white and white/black.
- Left rear speaker: Pins 9 (+) and 10 (-), brown and brown/black.
- Right rear speaker: Pins 13 (+) and 14 (-), green and green/black.
- Antena trigger: Pin 3 delivers a 12V signal to power motorized antennas.
Label each wire with masking tape immediately after verification. Misidentifying pins risks damaging aftermarket components–crossing power and speaker wires can fry amplifiers or the head unit itself. Use a wiring diagram specific to the vehicle’s trim if discrepancies arise; variants exist between Double Cab and standard models.
Tools Required for Precise Pinout Confirmation
- Digital multimeter (with continuity and DC voltage modes).
- Plastic pry tools (avoid metal to prevent scratches or shorting).
- Wire strippers and crimp connectors for temporary testing.
- Needle-nose pliers for bending stubborn connector tabs.
- Small flashlight–cavities behind the dash are poorly lit.
If the harness lacks labels or has been modified, trace wires back to their origin at the fuse box or speaker terminals. Each speaker wire pair shares a common color with a contrasting stripe for +/– polarity. For example, the left rear’s positive wire is solid brown, while the negative is brown with a black stripe. Never assume pin functions–always verify with a meter before connecting new devices.
Common Pitfalls When Mapping the Connector
Factory harnesses sometimes combine multiple functions into single pins. Pin 8, for instance, may carry both the vehicle speed signal (VSS) and parking brake wire in certain configurations–consult the vehicle service manual for exact details. Avoid cutting wires unless necessary; use adapter harnesses or solderless connectors for reversible modifications. If the stock plug is damaged, replacement connectors can be sourced from salvage yards or reputable auto electronics suppliers.
Step-by-Step Guide for Aftermarket Audio System Integration
Disconnect the vehicle’s negative battery terminal first to prevent shorts. Locate the factory harness behind the dashboard–typically a 16-pin connector with wires color-coded for speaker outputs, power feeds, and ground. Use a voltmeter to confirm constant 12V (yellow), switched 12V (red), and ground (black) before cutting or splicing.
Match aftermarket unit leads precisely: blue/white for amplifier trigger, orange/white for illumination dimming, and purple/green for reverse signal if needed. For OEM speaker retention, splice new wires directly to the factory harness–avoid butt connectors; crimp and solder for durability. Test each connection with the battery reconnected before finalizing panels.
Secure the chassis ground to bare metal, not painted surfaces, using a star washer for optimal conductivity. Route RCA cables away from power wires to minimize interference, bundling them with zip ties where they pass near the vehicle’s frame. Recheck all fuses in the new system–standard in-line fuse size for 12V accessory circuits is 10A.
