For a seamless upgrade, start by locating the factory harness behind the dashboard–it’s pinned for direct compatibility with most aftermarket head units. The primary power lead (constant 12V) is typically a yellow wire with a 10-gauge thickness, while the switched ignition source (red) carries a fuse-rated 15A. Ground connections (black) should terminate at a bare metal chassis point, ideally near the original radio’s mounting bracket, to prevent interference.
Speaker outputs follow a consistent color code: front left (+) light blue/black, (-) light blue; front right (+) gray/black, (-) gray; rear left (+) white/black, (-) white; rear right (+) green/black, (-) green. Use a multimeter to verify voltages–speakers should read 4-8 ohms with no shorts. If resistance exceeds this range, check for corroded connectors or frayed wiring behind the kick panels.
For amplified systems, the blue/white remote turn-on wire must connect to the aftermarket head unit’s corresponding lead. Without this, external amplifiers won’t power on. If retaining factory features like steering wheel controls, splice in an ASWC-1 adapter between the original harness and new stereo. Avoid cutting the data bus wires (orange and pink)–they handle climate controls and instrument cluster interactions.
Testing should precede final installation. Power on the stereo briefly to confirm display functionality, then check each speaker for balanced output. If distortion occurs, re-examine grounding points–poor connections often cause alternator whine or popping in low volumes. For persistent issues, use a noise filter on the power input or relocate the ground to an unused bolt behind the glovebox.

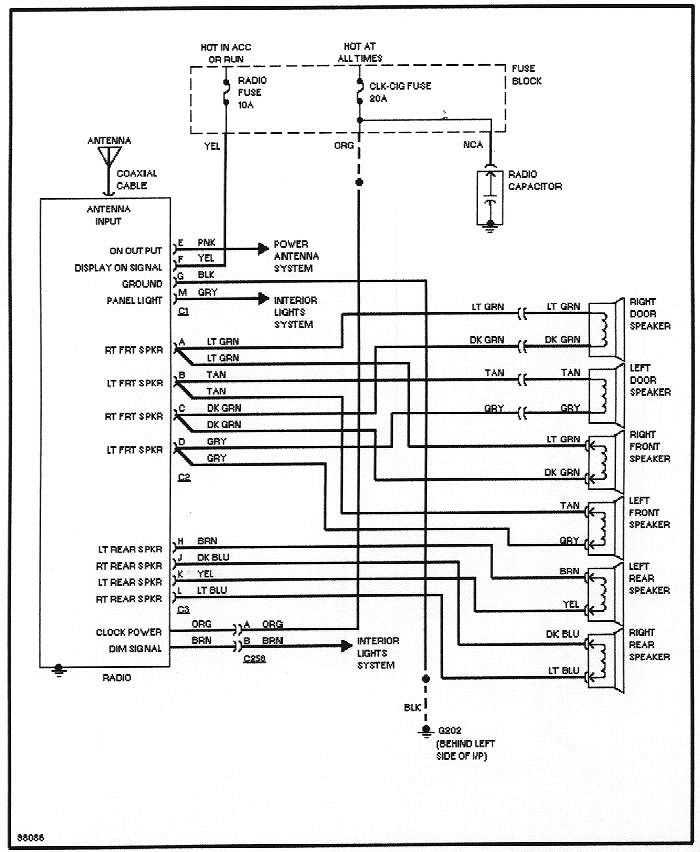

Electric Schematic for GM Full-Size Pickup Audio Integration
Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits during installation. Locate the factory harness behind the dashboard’s center panel; it will have a 12-pin white connector paired with an 8-pin orange one. The power lead is the solid yellow wire from the larger plug–verify with a multimeter (12V constant). Ground reference uses the black wire in the same bundle, secured to unpainted chassis metal.
Speaker outputs follow a uniform color code across GM trucks of this era. Front left: gray (positive) and gray/black (negative); front right: light green and light green/black. Rear channels use purple/purple-black for left and dark blue/dark blue-black for right. Avoid splicing into the amplifier bypass wire (pink) unless retaining factory chime retention is unnecessary.
Connector Pinout Verification
Match each wire gauge before crimping; improper connections lead to blown fuses or weak sound output. Use a wiring harness adapter designed for Delco stereos, which simplifies alignment with aftermarket units. If bypassing the stock unit entirely, isolate the dimmer wire (light brown) to prevent inconsistent illumination of new controls.
For steering wheel control compatibility, trace the gray/black wire from the column connector–this carries resistive signals for button presses. An inline resistor box (22kΩ typical) adjusts voltage ranges if direct connection fails. Test with a multimeter set to resistance mode before permanent installation.
Subwoofer integration requires tapping into the existing RCA-compatible wires (purple/white striped) if the factory system included amplified outputs. Otherwise, splice directly into the rear speaker wires with 16-gauge oxygen-free copper cable to reduce signal degradation. Secure all connections with heat shrink tubing, not electrical tape, for durability under temperature fluctuations.
If retaining the factory theft deterrent, note the data bus (orange/white stripe) links to the key cylinder sensor. Cutting this wire disables security notification sounds, so use a bypass module if needed. Always reconnect the battery last and test all functions–volume, balance, fade, and source switching–before reassembling dash trim.
Troubleshooting Common Issues
Static or distorted audio often stems from poor grounding. Recheck the black wire’s connection near the dashboard’s firewall grommet. If speakers pop during power cycles, add a diode (1N4007) to the power lead to suppress transient voltage spikes. Flickering display indicates insufficient fuse amperage; upgrade from the stock 10A to 15A if using high-current aftermarket equipment.
For vehicles with OnStar, preserve the blue/white telemetry wire unless overriding the system entirely. Incorrect handling may trigger false collision alerts or disable hands-free features. Label every disconnected wire during removal to expedite reinstallation or future diagnostics–use masking tape and permanent markers for clarity.
Identifying the Correct Audio Head Unit Harness Plugs
Locate the factory stereo connector behind the dashboard panel–typically a 12-pin rectangular plug for GM models, marked with color-coded wires: yellow (constant 12V), red (accessory), black (ground), orange (illumination), and purple/white stripes (left rear speaker). Verify voltages with a multimeter–yellow should maintain 12V even with the ignition off, while red drops to 0V when the key is removed. Mismatches here indicate a damaged fuse or aftermarket interference.
Matching Aftermarket Adapters

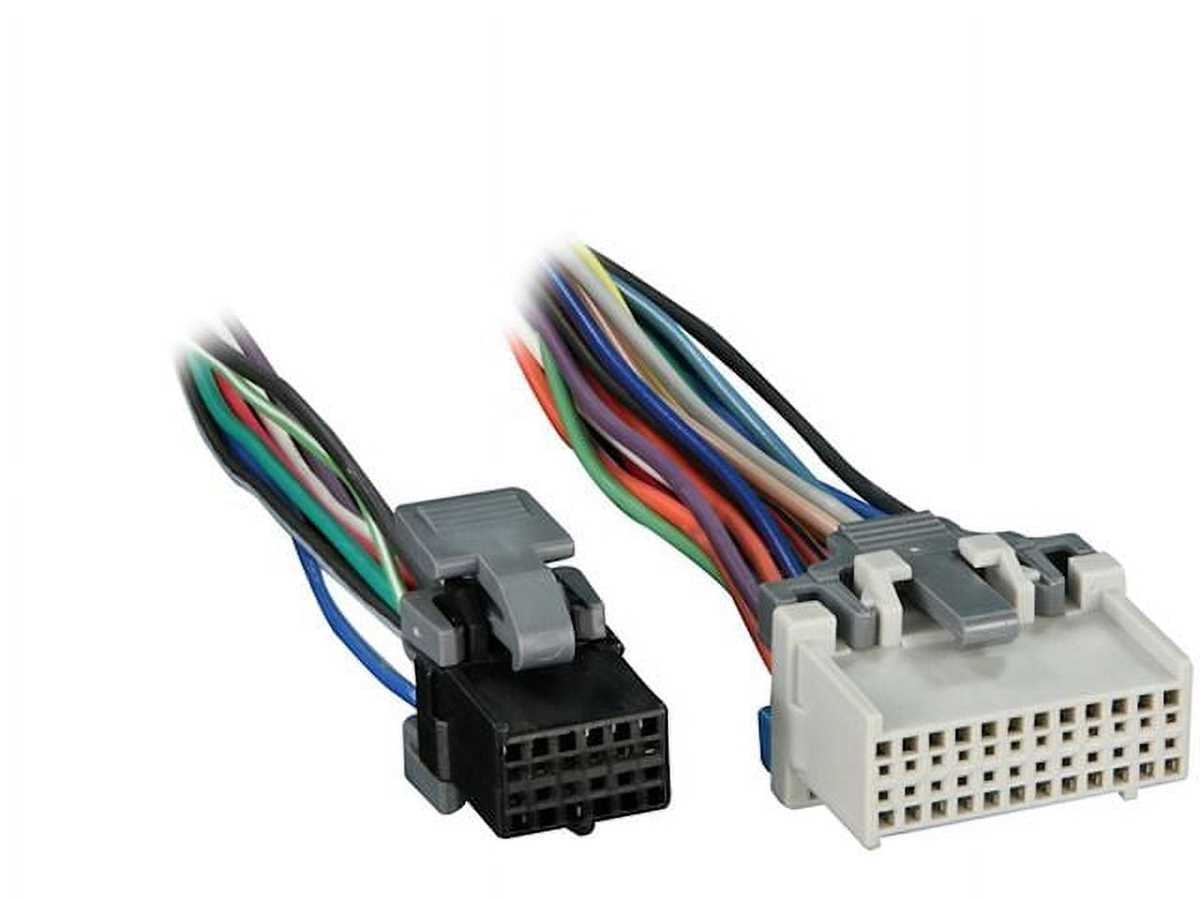

Select a harness adapter based on the vehicle’s OEM connector type–Metra 70-2003 or Scosche GM20B work for most late-90s to mid-2000s trucks. Compare the pinout diagrams: factory plugs use a specific sequence (e.g., pin 1: yellow, pin 4: black), while universal adapters may rearrange signals. Crimp or solder connections directly to avoid signal degradation; twist-and-tape methods lead to intermittent failures under vibration.
Test speaker wires during installation–left front (gray/light blue), right front (white/dark blue), left rear (purple), right rear (green). A tone generator or 9V battery can confirm polarity: touch leads to speaker wires, positive deflection on the cone indicates correct phase. Reverse connections cause cancellation, resulting in weak or absent low frequencies.
Step-by-Step Wire Color Coding for Aftermarket Head Unit Installation
Identify the vehicle’s factory harness connector first–focus on the 12-pin plug behind the dash. Match the aftermarket adapter harness to these pins using the table below. Verify each connection with a multimeter before powering the system to prevent short circuits or speaker damage. Ground wires must terminate directly to bare metal, ideally within 12 inches of the head unit’s mounting location.
| Function | Factory Wire Color | Aftermarket Wire Color |
|---|---|---|
| Constant 12V | Orange | Yellow |
| Switched 12V | Gray | Red |
| Ground | Black | Black |
| Front Left (+) | Light Green | Gray |
| Front Left (-) | Dark Green | Gray/Black |
| Front Right (+) | Tan | White |
| Front Right (-) | Dark Blue | White/Black |
| Rear Left (+) | White | Green |
| Rear Left (-) | Brown | Green/Black |
| Rear Right (+) | Violet | Purple |
| Rear Right (-) | Pink | Purple/Black |
| Illumination | Light Blue | Orange/White |
| Dimmer | Dark Gray | Orange |
| Antenna Trigger | Pink/Black | Blue |
Trim excess wire length to avoid interference with climate controls or airbag deployment zones. Use crimp connectors or solder joints–never twist-and-tape–to secure connections. Test all audio channels with a 1 kHz tone before reinstalling dashboard panels. For vehicles with OnStar or factory amplifiers, locate the data bus wire (typically tan/white) and isolate it from aftermarket harnesses to avoid system conflicts.
Finding Power and Ground Leads in the Original Electrical Schematic
Start by identifying the main fusebox layout in the vehicle’s service manual. The constant 12V feed for the audio system typically originates from fuse slot 3 (10A) or 30 (20A), labeled “Radio” or “ACC.” Trace the colored conductor from the fuse output–usually purple or pink–to the harness behind the dashboard cluster. Verify continuity with a multimeter before splicing.
Auxiliary ground points are often overlooked. The primary earth connection is usually a thick black wire terminating at the chassis near the firewall, marked “G200” or “G400” in schematics. For secondary stabilization, locate a nearby metal attachment bolt under the dash; clean it to bare metal before securing a new ring terminal.
Color Codes and Pin Assignments
Most OEM harnesses follow a strict color protocol: yellow (constant power), red (switched ignition), black (ground), and orange (illumination). The head unit’s connector will have 12-16 pins–pin 4 (ground) and pin 10 (switched 12V) are critical. Cross-reference with the manufacturer’s pinout chart if colors deviate.
For aftermarket installations, avoid assumptions–use a test light to confirm which conductors remain live when the key is off. Switched power leads should drop to zero volts when the ignition is turned to “LOCK.” Any residual voltage indicates an incorrect tap, risking battery drain.
Troubleshooting Common Errors
If the sound system powers on but cuts out intermittently, check for loose chassis grounds. Corrosion on the G200 stud is a frequent culprit; remove the nut, sand the surface, and apply dielectric grease before reassembling. For dimming or flickering displays, inspect the orange/white dimmer wire–it should match the brightness of the instrument cluster when adjusted.
Never splice into the yellow “memory” lead for amplifier triggers–this line is fused at 10A and cannot handle additional load. Instead, source switched power from the accessory relay (pin 85 on the under-hood relay box) or the cigar lighter circuit, both rated at 20A.
