Begin by obtaining the factory service manual for the specific vehicle variant. Official manufacturer documentation remains the most dependable source, containing verified connectors, wire gauges, and pinouts for the premium sound system. Aftermarket repair guides often omit critical details, such as color-coding variations between build years or region-specific configurations. If the manual is unavailable, identify the exact trim level–base, L, or Ultimate–to avoid mismatched schematics.
Avoid generic online forums where unverified wire diagrams circulate. Instead, cross-reference at least three authoritative sources: the official service portal, a reputable auto repair database subscription (like ALLDATA or Mitchell 1), and a specialized wiring harness supplier. Pay attention to fuse locations and ground points, as these frequently differ from assumptions. For example, the rear amplifier’s power feed typically routes through a dedicated relay under the passenger kick panel, not directly from the battery.
Inspect the existing harness for modifications before proceeding. Previous owners may have spliced aftermarket components, bypassing the factory connector or altering the audio signal path. Use a multimeter to confirm continuity between pins–resistance readings should match OEM specifications. If values deviate, test for corroded terminals or insufficient crimp connections, common issues in high-humidity climates.
For replacement parts, use only heater-treated copper wiring. Aluminum-core cables, often found in budget harness kits, degrade signal integrity over time, particularly in systems with active noise cancellation. If integrating non-factory components (e.g., subwoofers or DSP units), isolate power circuits from audio lines to prevent interference–use a Faraday cage or shielded braided cable for the RCA inputs.
When reassembling, label every connector with masking tape immediately after disconnecting. Factory plugs include microscopic tabs or asymmetrical keying; forcing mismatched pairs risks destroying the pin housing. For vehicles with navigation, the GPS antenna wiring must remain uninterrupted–even a brief disconnection can reset calibration, requiring a dealer reprogramming tool.
Wiring Guide for Your Full-Size SUV Audio System Upgrade
Locate the factory harness behind the dashboard’s lower trim panel–press the release tabs near the glove compartment to access the connector block. Disconnect the battery’s negative terminal before handling wires to prevent short circuits. Use a multimeter to verify color-coded leads against the pinout below; mismatched connections cause blown fuses or amplifier damage.
| Wire Color | Function | Pin (Harness A) |
|---|---|---|
| Yellow/Black | Battery Constant (+12V) | 6 |
| Gray/Violet | Left Front Speaker (+) | 12 |
| White/Brown | Right Front Speaker (-) | 3 |
| Dark Blue | Remote Turn-On | 7 |
| Light Blue/Yellow | Rear Subwoofer (+) | 10 |
Splice new harnesses using crimp connectors rated for 20-gauge wire–avoid solder unless installing in a dry, vibration-free environment. Secure all joints with heat-shrink tubing; electrical tape degrades under dashboard temperatures. Test each speaker individually by sending a 1 kHz tone through the aftermarket unit before finalizing trim reassembly.
For vehicles equipped with factory amplification, bypass the built-in module by connecting the new head unit’s RCA outputs directly to the speaker wires at the door harness junction. Retain the purple/white ground lead from the original setup to maintain noise cancellation; omitting this link introduces alternator whine.
Matching Audio System Power and Ground Wire Colors
Locate the yellow cable–it delivers constant 12V power from the fuse box, bypassing ignition switches, ensuring memory retention for presets and clock. Pair this with the black ground lead, usually the thickest wire in the harness, terminating at a chassis bolt near the firewall or kick panel. Verify continuity with a multimeter before securing connections; resistance above 0.5 ohms indicates corrosion or inadequate contact.
Ignition-Controlled and Illumination Wires
Trace the red wire–it supplies switched 12V when the key turns to “ACC” or “ON,” powering the head unit during operation. The orange (or orange/white stripe) wire typically handles dimmer-controlled lighting; connect this only if dashboard illumination synchronization is required. Miswiring these may trip fuses or cause erratic dimming–cross-check against a factory service manual for variant models.
For amplified systems, identify the blue (or blue/white) remote turn-on lead–this activates external amplifiers when the unit powers on. Avoid splicing directly into speaker wires (often gray/gray-black, white/white-black, etc.) for power; these carry low-level signals and will distort under load. Label all wires with heat-shrink tubing before soldering to prevent shorts during reassembly.
Step-by-Step Guide to Locating the Factory Audio System Harness Connector

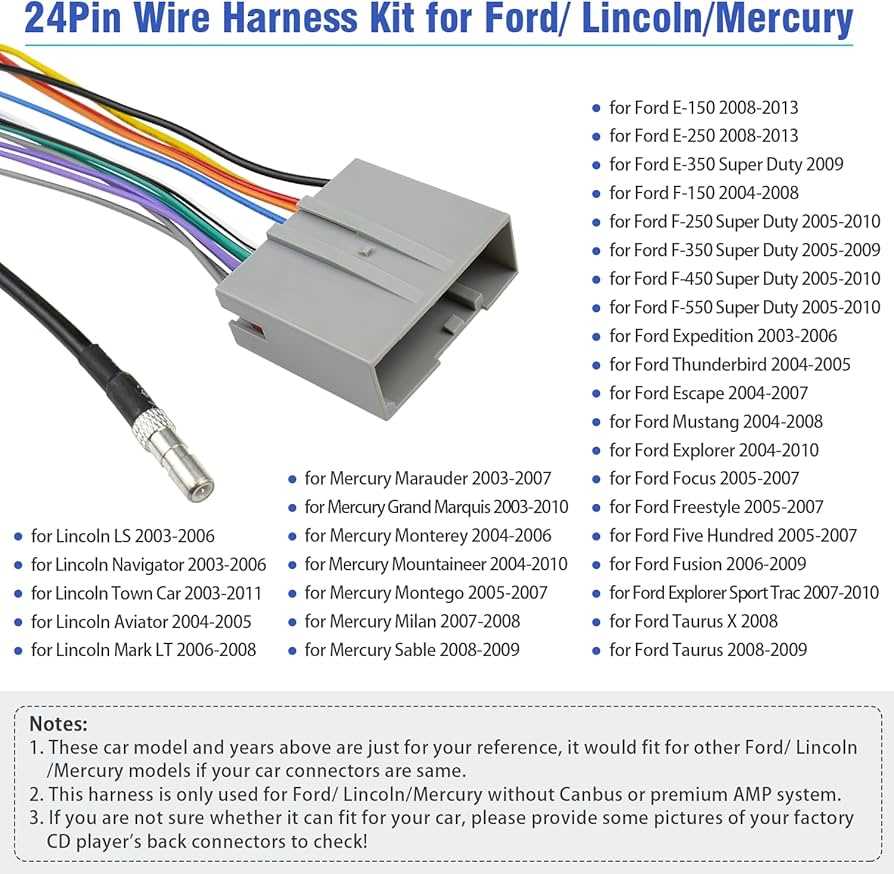

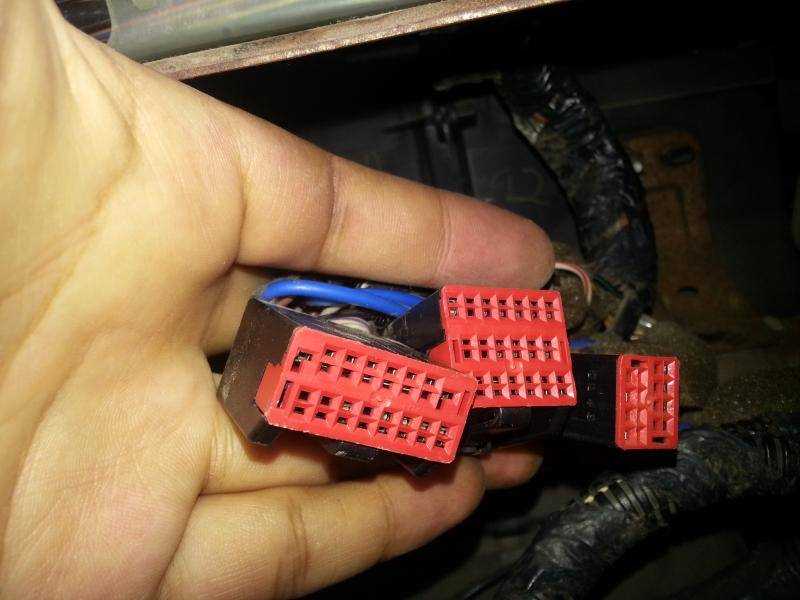

Begin by removing the lower dashboard trim panel beneath the climate controls. Use a plastic trim removal tool to pry off the snap clips securing the panel in place–apply firm but controlled pressure to avoid breaking the retaining tabs. Once the panel is detached, you’ll expose the rear of the head unit and its connected harnesses. The primary connector you need is the rectangular 24-pin plug, typically colored gray or tan, secured by a locking tab on the top edge.
If the connector isn’t immediately visible, trace the wiring bundle leading from the back of the entertainment module. The harness often routes downward and to the left, bundled with adjacent climate control or fuse box cables. Gently pull back any foam insulation or protective loom to reveal the full length of the wires–check for a secondary retaining clip near the firewall, as some models include an additional anchor point here.
Verify the connector by cross-referencing the pin layout: pins 1-12 (left column) handle speaker outputs and illumination, while pins 13-24 (right column) deliver power, ground, and data signals. Use a multimeter to test for +12V at pin 16 (constant) and pin 12 (switched) before proceeding–this confirms the harness’s active circuits.
Integrating Factory-Compatible Audio Electronics with Your Luxury SUV’s Harness
Begin by identifying the vehicle’s OEM connector pins using a multimeter set to DC voltage. The main harness behind the factory stereo typically includes:
- Constant 12V (yellow) – powers memory functions.
- Switched 12V (red) – activates with ignition.
- Ground (black) – verify resistance below 0.5 ohms.
- Amplifier turn-on (blue/white) – triggers external amp.
- Speaker wires (front/rear, left/right) – polarity-critical; test with a 9V battery before connecting.
Strip 1/4 inch of insulation from aftermarket harness wires, then crimp or solder to matching factory wires. Use heat shrink tubing to insulate joints–electrical tape degrades over time. For retained accessory power (RAP), bridge yellow and red wires with a 1A fuse inline to prevent battery drain.
Locate the CAN bus interface behind the glovebox or under the dash; it handles chime signals and steering wheel controls. Aftermarket adapters like Metra ASWC-1 or PAC RP4-LM11 preserve these functions–connect the adapter’s data wires (green/white-striped) to the vehicle’s communication line (pink/light blue). If chimes persist after installation, verify ground continuity and ensure no power wires short to chassis.
- Disconnect battery negative terminal before handling any circuits.
- Route new cables away from moving parts and sharp edges.
- Test each speaker for distortion at 50% volume before finalizing connections.
- Secure harnesses with zip ties every 8 inches to prevent rattling.
Troubleshooting Common Issues with Speaker Wire Connections
Check for loose terminals first–corrosion or improper crimping often mimics dead channels. Strip 3-5mm of insulation from the conductor, then twist the strands tightly before inserting into push or spring-loaded connectors. Multimeters set to continuity mode should register near-zero resistance when probing the positive and negative leads of a properly terminated pair.
Intermittent sound typically stems from partial breaks in the conductor. Flex suspect cables near connectors while monitoring audio output–cracks invisible under insulation reveal themselves through sudden dropouts. Replace the entire segment rather than splicing, as even minor repairs introduce impedance mismatches that degrade high-frequency response.
Verify polarity with a 9V battery: touch leads to speaker terminals and listen for a click. Reversed connections cancel bass frequencies, making vocals sound distant. Mark positive wires with red nail polish or heat-shrink tubing to prevent future errors during reinstallation.
Ground loops manifest as a low hum proportional to engine RPM. Isolate the head unit’s ground by relocating it to an unpainted chassis point at least 18 inches from other grounds. Use star washers under ring terminals to pierce surface oxidation for reliable contact.
Identifying Hidden Damage
Inspect wires running through door hinges or trunk lids for fraying–rubber grommets rarely protect against repeated bending. Slit the outer jacket lengthwise with a razor, spread the insulation, and repair individual conductors with rosin-core solder before wrapping with electrical tape and heat-shrink tubing.
Water ingress turns copper green or white; remove oxidation with fine-grit sandpaper, then coat terminals with dielectric grease. Silicone-based compounds prevent future corrosion while maintaining conductivity. Avoid petroleum-based products, which attract dust and degrade plastics.
Test for shorts by disconnecting all tweeters–distorted mids indicate a bridged connection between positive and negative leads. Probe with a multimeter in resistance mode: values below 1 ohm suggest a short, while open circuits read OL. Trace the route with a tone generator, replacing any wire that passes near sharp edges or moving parts.
Factory harness adapters sometimes mislabel pinouts–compare the color code on the vehicle-side plug with the aftermarket unit’s datasheet. Swap any incorrectly assigned channels, but leave +12V accessory and ground wires unchanged to avoid blowing fuses or damaging internal amplifiers.
