For accurate troubleshooting of electrical faults in this generation of minivans, begin with the underhood fuse box schematic. Locate relay positions R2 (A/C clutch), R3 (cooling fan), and R5 (ignition relay), as these are common failure points causing intermittent accessory malfunctions. Verify continuity across the 10A fusible link (red wire, pin C76) leading to the powertrain control module–corrosion here disrupts fuel pump operation and sensor signals.
Examine the central junction block behind the driver’s kick panel. Focus on the yellow/black-striped wires (pins D14 and D15) feeding the instrument cluster; voltage drops here manifest as gauge inaccuracies or warning lamp failures. Use a multimeter set to DC 20V to check for 12V across these terminals with the ignition ON–readings below 11V indicate a failing ignition switch or corroded connector.
When diagnosing rear wiper or power sliding door issues, trace the purple/green wire from the rear fuse panel (pin K23) back to the body control module. This circuit controls both functions; a short often triggers the 7.5A fuse (labelled “RR WIPER/BODY ECU”). Inspect the ground strap beneath the rear seat (bolt G903)–poor connection here causes sporadic electrical gremlins across multiple systems.
For interior lighting problems, refer to the interior harness overlay. The dome light circuit uses a shared bus (white/orange-striped wires feeding the front and rear lamps), requiring only a single 15A fuse. A blown fuse typically accompanies a short in the overhead console wiring or faulty door jamb switches–test switch continuity with a probe before replacing components.
Download the manufacturer-issued PDF schematic indexed by system (e.g., “Engine Electrical,” “Chassis Harness”) rather than generic aftermarket diagrams. Factory documentation includes color-coded wiring, pin assignments, and torque specs for ground studs–critical for preventing voltage drops that mimic sensor faults.
Electrical Layout Guide for 2005 Minivan Model
Locate the main fuse box under the dashboard near the driver’s side kick panel. Remove the protective cover to access terminal identifiers labeled F1 through F30. Pin F12 connects the cooling fan relay, while F21 supplies power to the instrument cluster. Verify continuity with a multimeter set to 200 ohms before testing live circuits.
Trace the vehicle’s harness routing from the engine bay to the cabin through the firewall grommet located beside the brake master cylinder. The bundle splits into three sub-harnesses: one feeds the transmission control module (TCM), another powers the audio system, and the third routes to the passenger compartment fuse block. Secure connections with dielectric grease to prevent corrosion in high-humidity environments.
Component-Specific Circuit Analysis
Examine the power sliding door motor wiring by following the purple/orange wire (pin 3) from the control switch to the door actuator. This wire carries 12V trigger signals for open/close functions. If doors fail to operate, check for 0.5-amp fuse integrity in the under-seat relay box before assuming motor failure.
For the HVAC blower resistor, follow the gray/yellow wire from the climate control head to the resistor pack mounted behind the glovebox. The pack contains four resistance stages; resistance values typically range from 0.2 ohms (high speed) to 3.5 ohms (low speed). Replace the resistor if measured resistance deviates by more than 15% from these benchmarks.
Diagnostic Shortcuts for Common Issues
When troubleshooting intermittent brake light failures, probe the white/black wire at the brake pedal switch connector. Voltage should toggle from 0V to 12V when the pedal is depressed. If readings remain flat, inspect the pinout at the central junction box (CJB) where this circuit merges with turn signal inputs before reaching the rear lamps.
For parasitic battery drain, disconnect the negative terminal and insert an ammeter in series. Current draw shouldn’t exceed 50 milliamps. If readings spike, remove fuses sequentially starting with circuit 15 (radio memory) and 9 (ECM), as these frequently retain microcurrent after ignition off. Document all readings to isolate the faulty branch.
Locating the Authorized Electrical Schematic for Your Van Model

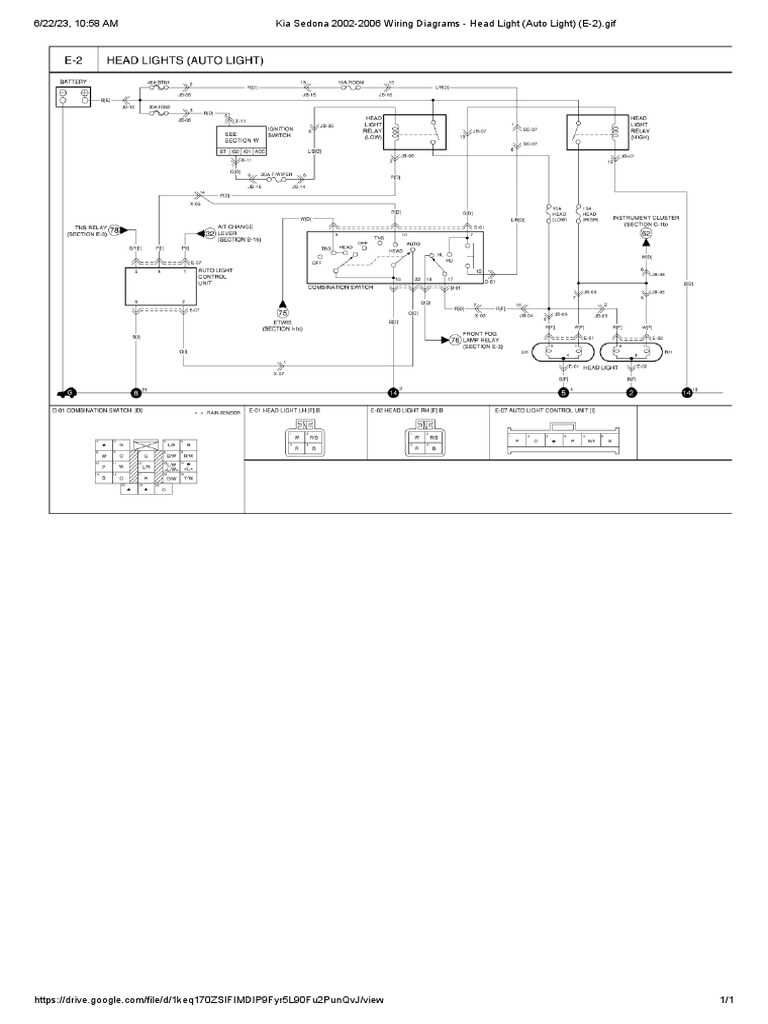

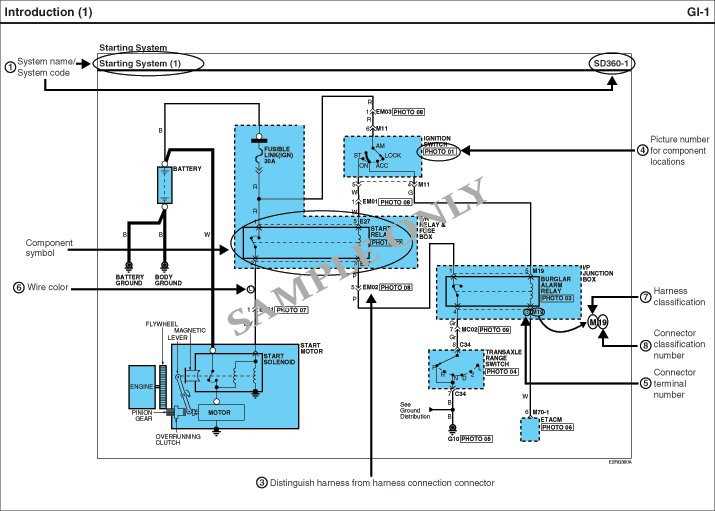

Obtain the certified electrical blueprint from the manufacturer’s technical portal. Visit service.kia.com and log in with a registered account. Select “Vehicle Documentation” under the commercial vehicles section, then filter by minivan and production year. The document is listed as “Electrical System Layout” in the PDF repository. Requires a valid subscription for dealer-level access.
- Alternative source: third-party manual repositories like ManualsLib or AutoZone Repair Guides. Search for “full wiring schematic” alongside the exact trim code (e.g., LX, EX). Verify file authenticity by cross-referencing connector pinouts with the vehicle’s fuse box legend.
- Avoid unofficial forums–many links redirect to incomplete scans or misleading schematics.
- Local dealership workshops maintain printed archives; request a single-page photocopy of the relevant harness layout.

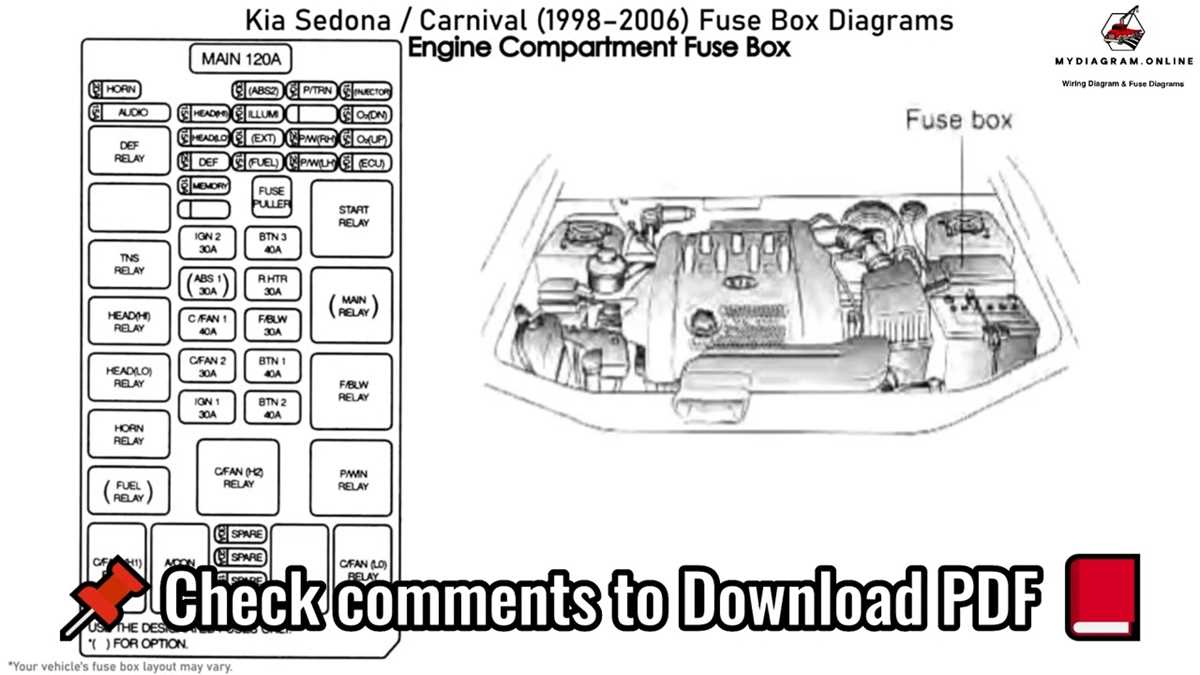

Decoding the Fuse Panel Layout for Your Minivan
Locate the primary fuse block beneath the dashboard on the driver’s side–it’s concealed by a snap-off cover. Remove the panel by squeezing the tabs at the edges; avoid prying with tools to prevent cracking the plastic. Each slot is labeled with a number and function on the back of the cover, but corrosion or wear may obscure these markings. Use a flashlight to verify the imprint against your vehicle’s repair manual, noting discrepancies caused by factory updates.
Identify relays and mini-fuses by their shape and amperage rating stamped on the top. Blade-type fuses come in three sizes: micro2 (5–30A, blue/purple), mini (2–40A, red/yellow/clear), and standard (5–50A, green/amber). Relays often handle high-current circuits like cooling fans or headlights–swap a suspect relay with a known-good one (e.g., the horn relay) to test functionality. Never replace a blown fuse with one of higher amperage; it risks damaging wiring or triggering a fire.
| Color Code | Amperage Range | Common Circuit Assignments |
|---|---|---|
| Brown | 7.5A | Radio memory, instrument cluster |
| Red | 10A | Brake lights, power windows |
| Blue | 15A | HVAC blower motor, interior lamps |
| Yellow | 20A | Power outlets, seat heaters |
| Amber/Green | 30A | Rear defroster, ABS module |
Trace circuits using a multimeter set to continuity mode. Probe both fuse terminals while the key is off–if one side shows 12V and the other doesn’t, the fuse is intact but the downstream circuit may be open. For relays, check pin 85 (ground) and 86 (switched power) for voltage; a clicking sound when activated confirms coil function. If power is absent, inspect the under-hood fuse box (near the battery) for larger maxi-fuses, which protect the alternator and starter systems–these are labeled with higher ratings (40–100A).
Label each connection with masking tape and a permanent marker before disassembly to avoid misplacement. Corroded fuse clips can mimic blown fuses–clean contacts with electrical cleaner and a wire brush, then apply dielectric grease to prevent future oxidation. For fusible links (thin wires near the battery), a melted link requires splicing new wire of identical gauge (typically 12–14 AWG for 20–40A circuits) using heat-shrink terminals. Always disconnect the negative battery terminal before working on any high-current components.
Step-by-Step Guide to Tracing Engine Compartment Wiring Harnesses
Begin by locating the primary junction block beneath the hood, typically secured near the battery or firewall. Use a multimeter set to continuity mode to verify connections without removing the harness–probe each terminal against the corresponding schematics to identify live circuits. Label every branch with masking tape and a fine-tip marker, noting voltage levels (e.g., 12V, 5V, or signal) to streamline troubleshooting.
Isolating Faulty Segments
Disconnect the vehicle’s power source before handling any connectors to prevent short circuits. Gently flex suspected sections of the cable loom while observing for intermittent failures–corrosion or frayed insulation often hides beneath plastic conduit. Apply dielectric grease to reattach connections after inspection, ensuring a moisture-resistant seal.
Trace individual wires back to their origin using an automotive test light or a tone generator for buried circuits. Focus on high-stress areas like engine mounts or exhaust manifolds, where heat and vibration degrade insulation faster. Cross-reference colors with the manufacturer’s color-coding scheme (e.g., black for ground, red for power) to avoid misdiagnosis.
For complex branches, split the loom into manageable sections–work from the fuse box outward. Document each step in a notebook or digital diagram, including connector types (e.g., blade, bullet, or Weather-Pack) and pin configurations. Replace damaged segments with OEM-grade wire of identical gauge to maintain circuit integrity.
Troubleshooting Frequent Electrical Faults in the Minivan’s Circuitry
Check the fuse box for corroded connections, particularly under the dashboard on the driver’s side. Remove each fuse and inspect terminals for white or green oxidation–common around the HVAC controls and power sliding doors. Replace blown fuses with identical amperage ratings; higher ratings risk overheating wiring harnesses near the battery junction block, especially the 10A circuits linked to the instrument cluster and fuel pump relay.
Test for parasitic drain by disconnecting the negative battery cable and placing a multimeter in series. Readings above 50mA indicate a short; isolate circuits by pulling fuses one by one. The rear power distribution module often houses faulty relays for the defroster grid and heated seats–tap relays gently while monitoring the meter to confirm intermittent failures.
Inspect ground connections at G201 (driver-side kick panel) and G301 (near the rear liftgate hinge). Scrape paint from bare metal, tighten bolts to 10Nm, and apply dielectric grease to prevent moisture intrusion. Loose grounds manifest as flickering dash lights or erratic radio behavior, mimicking failed alternator diodes–verify charging voltage at the battery (13.8-14.4V with engine running) before condemning the voltage regulator.
Replace cracked door jamb switches and frayed tailgate harnesses if power locks cycle unpredictably. Route new wiring through original clips to avoid pinching; use heat-shrink tubing over splices near the fuel filler neck, where vibration accelerates insulation breakdown. For blower motor issues, probe the resistor pack’s three-pin connector–open circuits at the medium-speed resistor cause blower operation only on high, while a failed diode inside the control module triggers intermittent shutdowns.
