Start by locating the fuse box under the dashboard on the driver’s side–this is where the primary power feed for the sound system originates. Use a multimeter to verify a 12V reading at fuse #18 (10A) before proceeding; this confirms the head unit’s constant power source. If readings are absent, inspect the fuse for corrosion or replace it with an identical rating to avoid damaging the receiver’s memory settings.

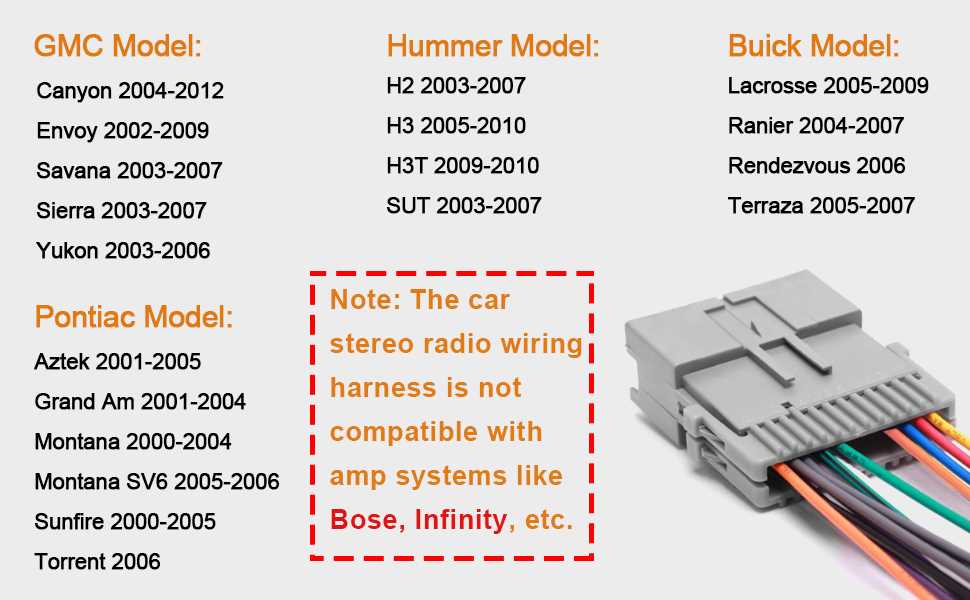

Trace the wiring harness behind the instrument panel–look for a 16-pin connector labeled “C1” in the service manual. This interface bridges the factory sound module to the vehicle’s electrical network. The yellow wire delivers continuous power, while the orange wire with a white stripe handles illumination control, adjusting display brightness in sync with the headlights. Cross-referencing these colors with an aftermarket wiring guide can prevent mismatches during upgrades.
Ground connections require special attention. The black wire at pin 11 of connector C1 must terminate at a bare metal surface free of paint or rust. Use a dedicated grounding point near the radio’s mounting bracket for optimal performance–poor grounding is a leading cause of static, signal dropouts, and intermittent functionality. Scrape the metal clean and secure the connection with a star washer to ensure a solid bond.
For amplified systems, the purple wire at pin 5 supplies power to the remote turn-on lead. This signal activates external amplifiers when the sound module powers up. If installing aftermarket components, splice this wire carefully–accidental shorts here can drain the battery or disable the entire audio setup. Always use a relay for high-current accessories to protect the factory harness from overload.
Speaker wires follow a consistent coding in this model: gray (front left positive), gray/black (front left negative), white (front right positive), white/black (front right negative), green (rear left positive), green/black (rear left negative), violet (rear right positive), and violet/black (rear right negative). Verify each connection with an ohmmeter to confirm continuity before finalizing installations–reversing polarity damages speakers and degrades audio quality.
If troubleshooting no-power issues, focus on the pink wire at pin 7. This wire carries a switched 12V signal from the ignition switch. A break here–often caused by chafing near the steering column–prevents the stereo from turning on. Route this wire away from moving parts and secure it with loom tape to prevent future failures.
Electrical Connections for Your Truck’s Infotainment System
Begin by locating the C1 harness connector behind the factory stereo–pin 1 delivers constant 12V from the battery, while pin 2 supplies switched power via the ignition circuit. Use 18-gauge stranded wire with crimp connectors for secure, corrosion-resistant splices. Avoid twisting wires; instead, stagger joints by at least 2 inches to prevent signal interference, especially near the antenna lead (pin 5) and speaker outputs (pins 6-13).
Ground connections demand bare metal contact–clean the mounting point with a wire brush and apply dielectric grease before securing the ring terminal under a 10mm bolt near the unit’s mounting bracket. For aftermarket installations, verify the illumination lead (pin 4) links to the dimmer circuit; failure here causes backlighting issues. Test each wire with a multimeter before finalizing connections–resistance above 0.5 ohms indicates a poor ground or corroded terminal.
Label every wire with heat-shrink tubing or color-coded tags to streamline future troubleshooting. If integrating Bluetooth or satellite modules, prioritize fused power taps from the fuse box rather than daisy-chaining from the head unit. Keep harnesses bundled with zip ties every 4 inches but leave slack near hinge points to prevent stress fractures.

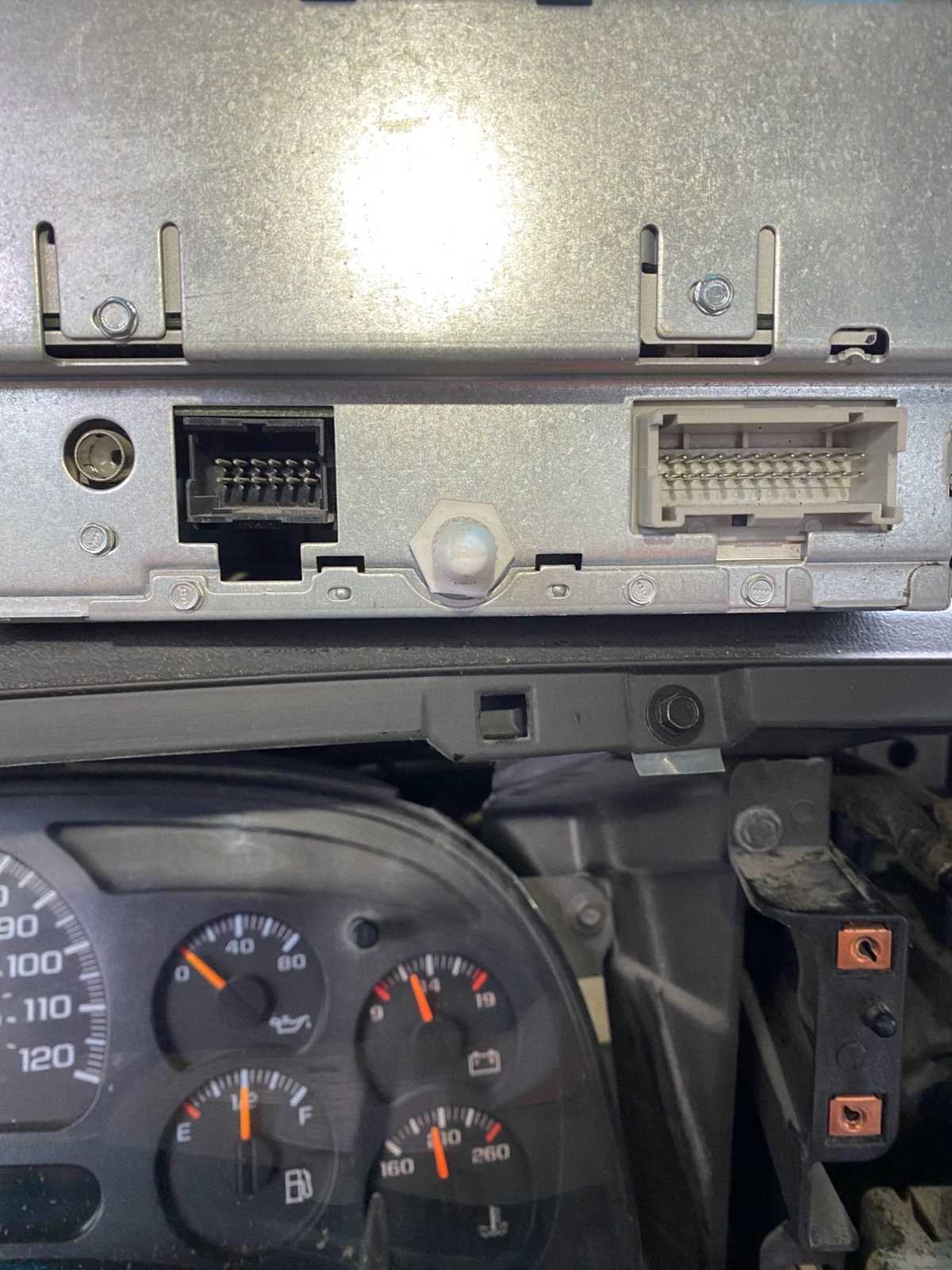

Pinpointing the Audio System Connector Behind the Instrument Panel
Begin by removing the lower dashtrim panel beneath the steering column–it’s secured with three 7mm bolts and four plastic clips. Disconnect the cigarette lighter harness by pressing the release tab before pulling it free. The harness you need sits left of the climate control module, partially obscured by a black plastic cover held by two T20 Torx screws. After removal, the 24-pin connector for the head unit is visible, color-coded as follows:
| Position | Wire Color | Function |
|---|---|---|
| 1 | Yellow (20A fuse) | Constant 12V |
| 6 | Purple/White | Right rear speaker (+) |
| 12 | Gray | Left front speaker (+) |
| 18 | Pink | Illumination dimmer (variable) |
| 24 | Black | Ground |
Trace the bundle upward–it routes behind the HVAC ductwork and terminates at a secondary 8-pin connector for the optional CD changer. If the vehicle lacks this feature, the wires are capped with heat-shrink tubing; ignore them unless retrofitting aftermarket equipment. The main harness splits into two harnesses–the upper 12-pin branch feeds the amplifier (if so equipped), while the lower 12-pin branch interfaces directly with the factory stereo. Label each connector with masking tape before unplugging to avoid confusion during reassembly.
For precision, use a digital multimeter set to DC voltage; probe each terminal with the key in the ACC position. The constant 12V wire (yellow) should read 12.6V battery voltage, while the accessory wire (red) drops to 0V when the ignition is off. Speaker wires alternate between +12V and -12V when tested with a 1kHz tone; verify polarity by reversing the probes. Avoid back-probing with a test light–it can damage the delicate pins.

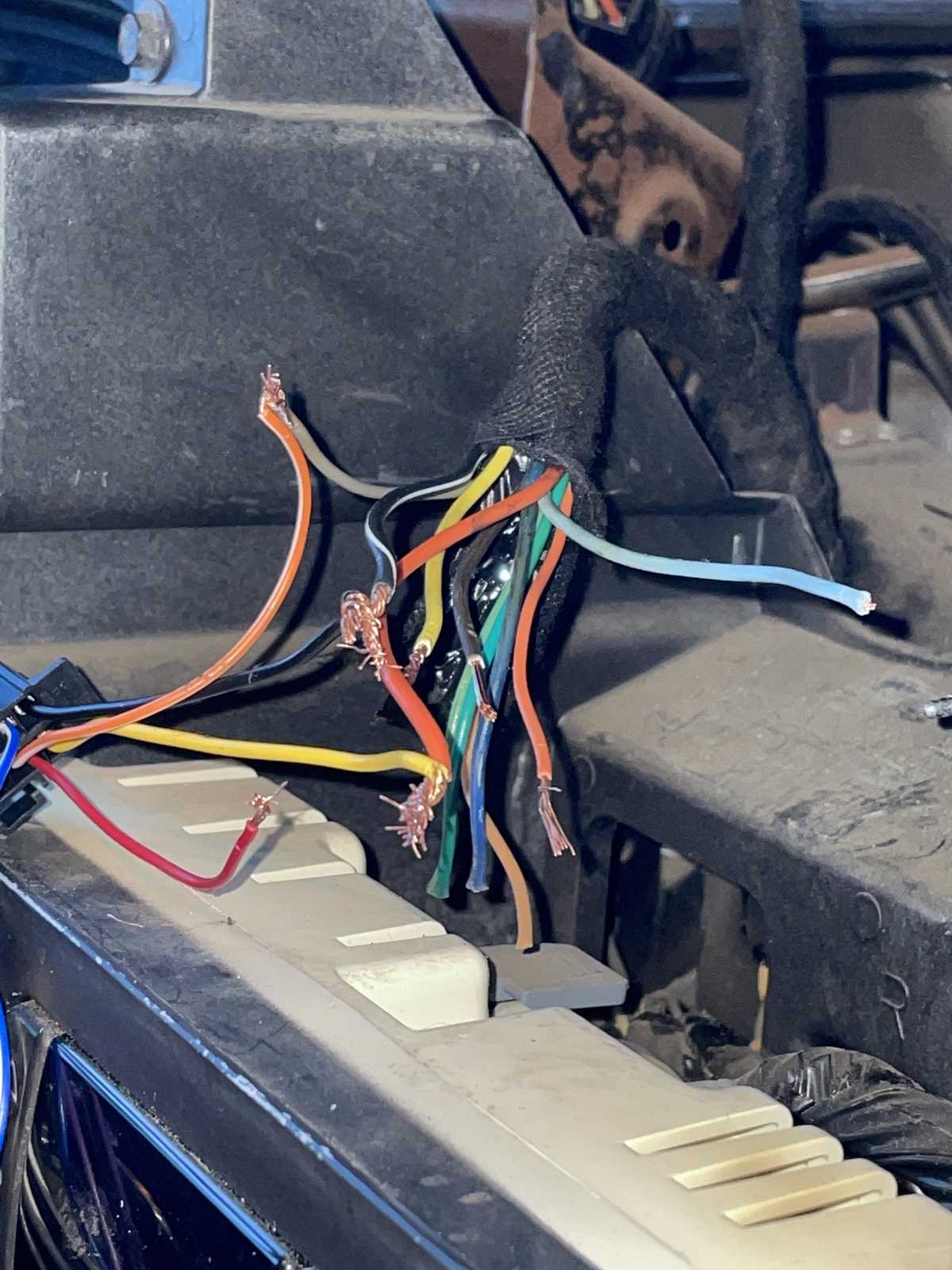

Identifying Power and Ground Wire Colors for Aftermarket Stereo Installation
Locate the constant 12V power wire first–it is typically yellow. This lead supplies uninterrupted power to maintain settings such as presets and clock time. Verify with a multimeter; voltage should remain steady even when the ignition is off. If the wire reads below 11V, inspect the fuse box or wiring harness for corrosion or loose connections.
Find the switched 12V wire next, usually red. This conductor activates the stereo only when the ignition is turned to ACC or ON. Test by cycling the key: voltage should rise to 12V in ACC/ON and drop to 0V in OFF. If inconsistent, trace back to the harness or ignition switch for possible short circuits.
The ground connection is almost always black. Secure this wire directly to bare metal on the vehicle’s chassis using a ring terminal. Avoid painting, rust, or undercoating where the terminal attaches–any resistance here causes noise, weak bass, or erratic behavior. Scrape the mounting point clean if needed and tighten the screw firmly.
Check the illumination wire, often orange or with a colored stripe. This line adjusts display brightness in sync with dashboard lights. Confirm functionality by turning on headlights–stereo brightness should dim automatically. If not, splice into the corresponding wire behind the dashboard light switch.
Handling Alternate Wire Configurations
Some trucks use light brown for constant power instead of yellow. Others may combine switched and accessory functions into a single pink or violet lead. Always cross-reference vehicle-specific schematics; aftermarket adapters often label wires inconsistently. When in doubt, probe with a multimeter before making permanent connections.
Use a crimp connector or solder joint for secure ties–twist-and-tape methods eventually loosen, introducing intermittent faults. Heat-shrink tubing prevents corrosion on exposed connections. Label every wire immediately after identifying to avoid confusion during final installation.

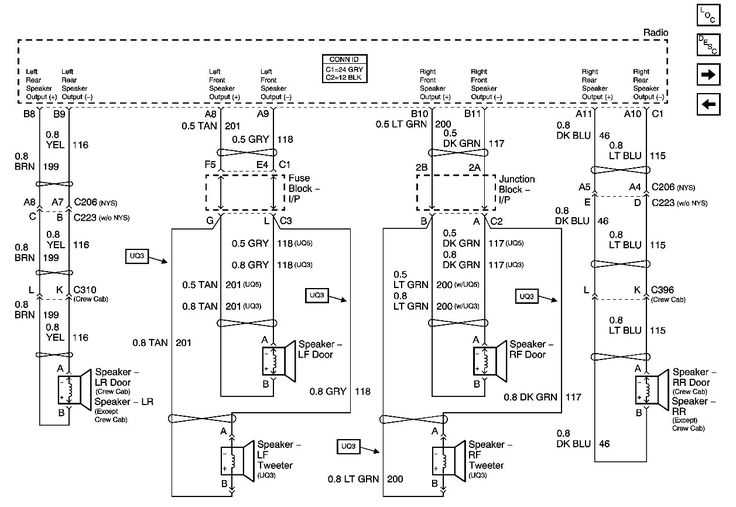

Connecting Speaker Wires: Color Codes and Correct Polarity for Factory Sound
Match the front left positive terminal to the light green wire and pair it with its dark green ground–reverse polarity here distorts mids and muddies bass. The front right channel uses grey for positive and dark grey for negative; swapping these inverts stereo imaging, pushing vocals off-center. For rear speakers, purple connects to positive and light purple to negative–crossing these wires flips phase, canceling out frequencies below 200Hz and thinning the soundstage.
Verify connections with a 9V battery: momentarily touch positive to the speaker wire’s colored lead and negative to its mate. A clear click confirms correct polarity; no sound or a weak pop signals a wiring error. Factory harnesses often use thin-gauge wires–solder joints or crimp connectors rated for 18AWG prevent resistance-induced signal loss at higher volumes. Avoid twisting bare wires; exposed copper oxidizes, degrading conductivity within weeks.
Check impedance matches: 4-ohm aftermarket speakers paired with stock 2-ohm wiring risks overheating the head unit’s amplifier. Use a multimeter to confirm resistance–measure between the positive and negative wires at the speaker terminals; readings below 3.6 ohms trigger protection circuits, muting output. Subwoofer setups demand separate consideration: brown (positive) and yellow (negative) must link to an amplifier’s low-level inputs–mismatching these can fry crossovers or produce unintelligible bass.
