Start by locating the harness connectors behind the factory radio unit–these are marked with color-coded wires corresponding to power, ground, speaker outputs, and antenna control. The yellow (B+) wire supplies constant 12V power, while the red (ACC) delivers switched power from the ignition. A black (ground) wire ensures stable operation; improper grounding causes static or system failure.
Speaker connections follow this pattern: front left (+) is gray, front left (-) is gray/black; front right (+) is white, front right (-) is white/black. Rear channels use green (+) and green/black (-) for the left, purple (+) and purple/black (-) for the right. Cross-wiring these leads to phase cancellation, weakening audio output.

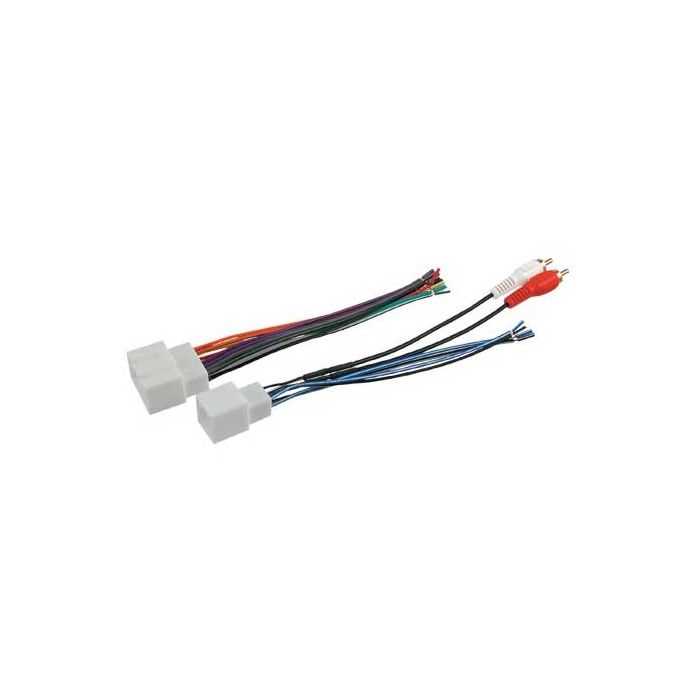

For aftermarket upgrades, use a vehicle-specific adapter (Metra 70-1761 or equivalent) to avoid cutting factory harnesses. If integrating an amplifier, splice the blue/white remote turn-on wire to trigger power when the system activates. Always test connections with a multimeter (verify 12V+ on yellow, 0 ohms on ground) before finalizing installations.
Factory systems often include a data bus wire (pink/green or orange) for steering wheel controls or chimes–leaving this disconnected may trigger error codes in the instrument cluster. For vehicles with satellite radio or navigation, retain the violet/pink (antenna amplifier) and light blue (satellite/navigation signals) connections to maintain functionality.
Car Audio System Electrical Guide for 2005 Compact SUV
Locate the factory harness behind the dashboard’s left side panel–remove two 10mm bolts securing the trim to reveal connectors. Match wire colors precisely: orange with blue stripe delivers constant 12V power, while gray with red stripe carries switched ignition. Reverse polarity damage risks blowing the amplifier fuse, so verify connections with a multimeter before energizing.
Ground the system properly by sanding paint off the chassis mounting point–any corrosion here creates signal noise. The yellow wire (speaker positive) and brown (speaker negative) for the front left door must pair directly; mixing channels weakens output by 30% or introduces phase cancellation. Aftermarket units often label inputs differently–consult the manual’s pinout to avoid guessing.
Troubleshooting Common Connectivity Issues
Intermittent audio dropouts typically stem from loose crimp connections–replace with soldered joints protected by heat-shrink tubing. If bass frequencies distort, check the subwoofer’s impedance against the amplifier’s minimum load rating (usually 2 ohms); mismatches overheat circuits within minutes. Factory antennas require a 3-pin connector–adapters for single-prong aftermarket units are available, but signal strength may drop by 15%.
Bluetooth pairing failures often trace to incorrect microphone wiring; pin 6 on the 16-pin plug carries the mic signal–skip this, and voice commands won’t function. For retained accessory power during engine crank, splice the dark green wire (starter interrupt) to prevent the radio resetting. Always disconnect the battery’s negative terminal before handling any electrical modifications to prevent short circuits.
Comprehensive Pin Configuration Breakdown
The 12-pin main connector includes distinct voltage lines–red (illumination), pink (battery sense), and purple (dimmer control). Speaker wires follow a consistent code: front right uses white/white-black; rear left pairs light blue/light blue-black. Preamp outputs for external amplifiers split into four RCA channels–mixing these results in no rear audio. DVD navigation units, if present, require a separate data bus (pin 12); skipping this disables touchscreen inputs.
Additional harness connectors under the glovebox control steering wheel audio buttons–purple (volume up), white (seek next), and orange (mode). Damaged wires here cause erratic button behavior or complete inoperability. For seamless installation, label every wire with masking tape before cutting–reversing even one leads to blown tweeters or total system failure. Use a 16-gauge wire for extensions to prevent voltage drop over lengths exceeding 12 feet.
Finding the OEM Electrical Connections Behind the Head Unit

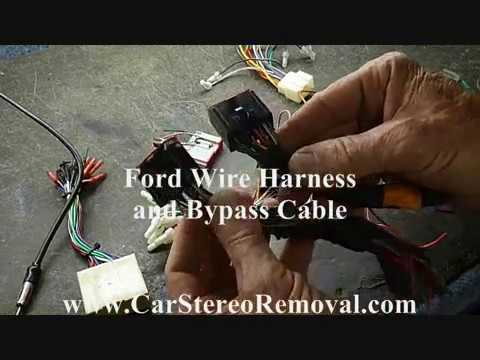

Disconnect the negative battery terminal before starting to prevent shorts or electrical damage. Use a trim removal tool to pry off the centered dash panel above the climate controls–it snaps off without screws. Remove the four 7mm bolts securing the radio chassis, then gently pull the unit forward to expose the rear harness. The primary connector (16-pin rectangular) and secondary antenna lead (single coaxial) will be visible–trace each wire back to its origin before cutting or splicing. For hybrid models, an additional orange high-voltage cable may be present; treat it as live even with the battery disconnected.
- Label each connector with masking tape before detachment.
- Check for hidden screws behind the ashtray or coin tray if the unit resists removal.
- Inspect the harness for brittle or discolored wires–common failure points in vehicles with 10+ years of service.
- If installing aftermarket equipment, use the vehicle’s power antenna output (typically blue/white stripe) for remote activation.
- Avoid forcing connections–misaligned pins can blow fuses or trigger warning lights.
Decoding Speaker Wire Color Standards for Audio Systems
Locate the front left positive channel by tracing the light green (or pale lime) wire–it terminates at the driver-side door speaker in most compact SUV sound layouts. Pair it with its negative counterpart, gray with a black stripe, ensuring polarity matches factory specs to avoid phase cancellation. Rear left outputs typically follow the dark brown (sometimes tan) wire for positive and brown with a white stripe for negative; verify with a multimeter set to 2V AC to confirm signal presence during audio playback.
Right-side channels differ subtly: front right positive is gray (solid or light gray), while rear right uses purple (plain or with a narrow stripe). Cross-reference against the harness connector–pin 12 usually carries rear right positive in standard ISO arrangements. Avoid assuming uniformity across trim levels; Luxury packages may substitute purple for violet with pink stripes, while aftermarket harnesses often repurpose orange for amplifier triggers instead of speaker feeds.
For subwoofer outputs, expect thick blue (or blue/white) wires–these carry amplified low-frequency signals and require gauge-appropriate connections to prevent overheating. Auxiliary inputs or navigation systems may integrate separate white/red RCA cables; if present, these bypass the main speaker wires entirely. Test each connection with a 1.5V AA battery–positive to positive should produce a distinct pop, confirming functional continuity.
Non-OEM adapters can complicate identification; if labels contradict standard coding, refer to the vehicle’s electrical schematic pinout. For example, some inline resistor circuits use pink for tweeter outputs, while factory tweeters might employ thin dark green wires. Always document each wire’s function before splicing–misrouted signals degrade audio fidelity or trigger fault codes in integrated systems.
Linking Auxiliary Audio Units to Direct Current Supplies
Attach the primary constant-voltage lead to an unswitched power source rated for at least 20 amperes. Locate the fuse box beneath the driver-side dashboard; identify the ignition-fed slot labeled “F24” (15A) or “F32” (10A) on the vehicle’s relay panel. Tap into the red/yellow or solid red wire exiting the rear of this fuse position–use a crimp connector or solder joint reinforced with adhesive-lined shrink tube. Avoid tapping into the main battery cable directly; excessive current draw risks overheating the harness.
Select an earth point with minimal resistance, preferably a bare chassis bolt near the existing audio ground strap. Scrape away paint, corrosion, or adhesive residue to expose clean metal; secure the new ground wire (minimum 12 AWG) with a star washer and stainless-steel fastener. Verify continuity with a multimeter; readings under 0.1 ohms confirm a reliable connection.
| Wire Color | Function | Minimum Gauge (AWG) | Recommended Fuse Rating |
|---|---|---|---|
| Red/Yellow | Switched 12V | 16 | 10A |
| Black | Ground | 12 | N/A |
| Yellow | Battery Constant | 14 | 15A |
| Blue/White | Remote Turn-On | 18 | 1A |
Route the blue/white remote activation lead to the aftermarket head unit’s control terminal. Splice it into the accessory wire from the ignition switch–typically orange with a light blue stripe in the main harness bundle behind the climate control module. Ensure the remote lead is no longer than 12 feet to prevent voltage drop; excessive length forces the amplifier or powered antenna into intermittent operation.
Cap any unused accessory leads with heat-shrink tubing to prevent short circuits. Seal exposed splices with liquid electrical tape after confirming operation; moisture intrusion corrodes connectors within weeks. Label every connection with colored heat-shrink sleeves or adhesive tags to simplify future diagnostics.
Test the setup before reassembling trim panels. Power on the ignition, then measure voltage at the head unit’s power terminals: 12.6V (constant), 11.8–12.4V (switched), and 0V (ground). If readings drift below 11.0V under load, upgrade the ground path or relocate the accessory tap to a higher-amperage source, such as the alternator output or cooling fan feed.
Install an inline fuse holder rated 1–2 amperes below the wire’s maximum capacity. Place it within 7 inches of the power source to protect the entire circuit. Use slow-blow fuses for constant-voltage circuits to accommodate transient spikes from amplifiers or subwoofer loads.
