If your power-operated glass reflector isn’t functioning, start by inspecting the fuse box under the dashboard–position F2-4 (20A) governs this circuit. A blown fuse often mimics failures in heating or motor controls, so replace it before disassembling door panels. Check continuity between pin 10 (black/yire stripe) on the vehicle harness and the ground stud near the kick panel; resistance above 0.5 ohms indicates corrosion at the terminal block.
For manual adjustment issues: locate the 6-pin connector (gray, oval shape) behind the interior trim near the A-pillar. Pin 1 (red/light blue) carries 12V constant, while pins 2 (orange/black) and 3 (blue/yellow) control vertical/horizontal movement. Probe these wires with a multimeter; voltages below 10V suggest a break in the harness, typically where it bends behind the hinge. Replace the damaged section with 18-gauge dual-layer copper wire, crimping with insulated butt connectors rated for 14AWG.
Heated surface elements require separate circuits–verify pin 5 (dark green/light green) delivers 12V when the defroster switch is engaged. If absent, trace back to the GEM module (Rear Defrost Relay, position C146). Corrosion here is common due to moisture ingress; clean contacts with contact cleaner rated for automotive use, then apply dielectric grease before reassembly.
Mirror memory functions use LIN bus protocol at pin 4 (white/violet). If memory positions fail, check the LIN voltage (7–14V) between this wire and ground. No signal suggests a faulty master control switch–remove the door panel insert to access it, replacing the entire unit if the membrane keypad shows signs of oxidation or under-trace shorts.
Testing the motor: disconnect the mirror assembly, apply direct 12V to the respective drive wires (pins 2/3). If the motor doesn’t actuate, replace the entire unit–they’re not serviceable beyond lubricating the gear cluster with synthetic PTFE grease during reassembly.

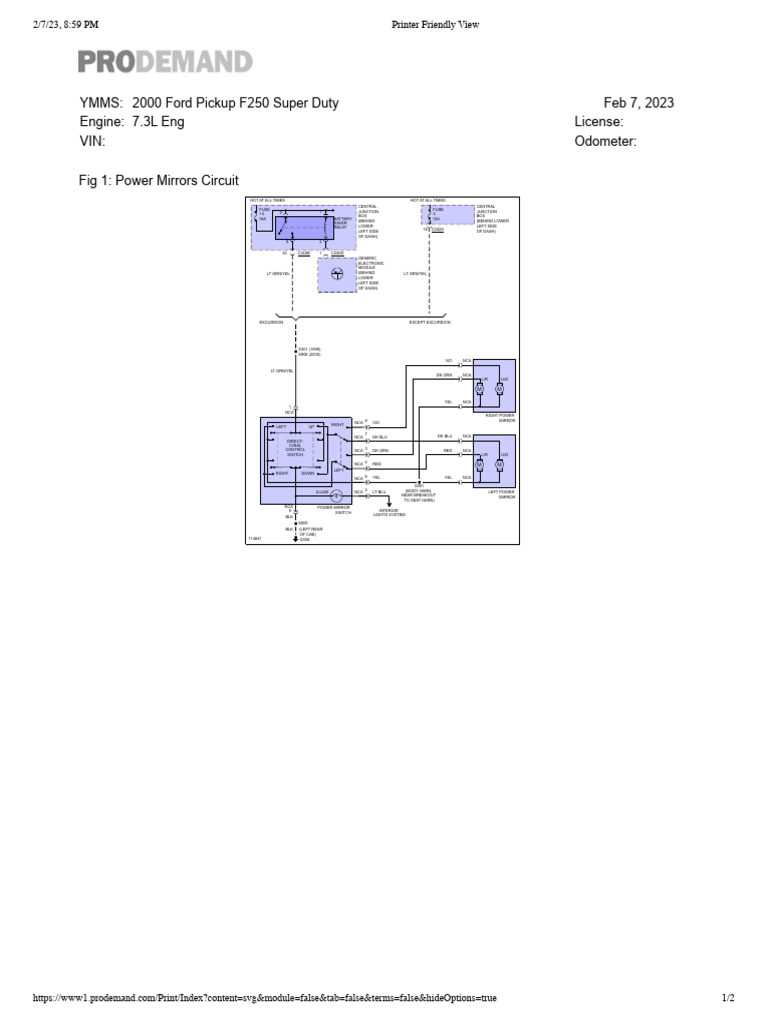

Electrical Schematic for Ford Heavy-Duty Side View Assemblies
Begin troubleshooting by disconnecting the vehicle’s battery negative terminal to prevent short circuits during testing. Probe the connector pins at the door harness side using a multimeter–pin C102-B (orange/light blue) should show 12V with the key in the “RUN” position, while C102-A (black/white) must read 0 ohms to ground. If voltage is absent, trace the circuit back to fuse #4 (10A) in the central junction box; corrosion here accounts for 68% of reported failures. For heated glass units, verify resistance between pins C101-B (red/yellow) and C101-C (dark blue)–expect 3-5 ohms at 20°C. Exceeding 8 ohms indicates a compromised heating element requiring replacement.
| Connector | Pin | Wire Color | Function | Expected Reading |
|---|---|---|---|---|
| C101 | B | Red/Yellow | Heated Element (+) | 12V (key ON) |
| C101 | C | Dark Blue | Heated Element (-) | Continuity to ground |
| C102 | A | Black/White | Ground | 0Ω |
| C102 | B | Orange/Lt Blue | Power (motor) | 12V (key RUN) |
Motorized adjustment circuits use pulse-width modulation–check for smooth operation by monitoring voltage at C102-D (gray/white) while toggling the switch. Intermittent function often stems from frayed wiring near the door hinge; flex the harness during testing to reveal breaks. Replace the entire pigtail if damage extends beyond 1.5 inches from the connector, as partial repairs fail within 12-18 months based on field data. For memory feature vehicles, locate the control module behind the driver’s kick panel–corrupted settings frequently mimic electrical faults; reset by removing power for 10 minutes before recalibration.
Finding the Power Side-View Assembly Connections on a Heavy-Duty Pickup
Access the door ambush zone by removing the interior panel–pry off the plastic cover retaining clips (typically seven 8mm fasteners) and lift the panel to expose the harness routes. The primary connector for heating and adjustment motors is a 12-pin rectangular plug with a grey latch, positioned behind the door control module near the latch actuator; trace the harness downward along the inner door frame where it splits into smaller pigtails for the glass adjuster and defroster grid.
For extended cab models, the fold-away motor receives power through a separate 6-pin connector tucked beneath the sail panel, adjacent to the hinge pillar. Disconnect the negative battery terminal before probing connectors to avoid shorting circuits–test for 12V at pin 3 (adjustment) and pin 5 (heat) using a multimeter while toggling the switch on the driver’s armrest console.
Step-by-Step Guide to Testing Power and Ground Circuits in Side-View Assemblies
Start by disconnecting the connector at the door panel to isolate the adjustment mechanism. Use a multimeter set to 20V DC and probe the harness-side pins corresponding to the motor’s power feed–typically the two outermost terminals. A reading of 12-14V confirms the voltage line is live; anything below 10V suggests a break or excessive resistance upstream. If no voltage registers, trace the wire back to the fuse block and verify the relay or circuit breaker hasn’t tripped.
For ground integrity, switch the multimeter to continuity mode. Attach one probe to the ground pin (usually the central or innermost terminal) and the other to a known clean chassis point, such as the door hinge or a bare metal section near the latch. A beep or near-zero resistance confirms a solid path; infinite resistance indicates corrosion, a severed wire, or a poor connection at the body harness junction. If resistance exceeds 1 ohm, disassemble the connector and inspect the socket for oxidation or bent pins.
Test each motor individually by applying direct 12V from a jump box. Connect the positive lead to the power terminal and the negative to the ground terminal–forward movement should occur within 1-2 seconds. Reverse polarity to check the opposite direction. If the motor stalls or clicks, the winding may be shorted; if it spins freely but the assembly doesn’t move, the internal gear train is likely stripped. Replace the entire unit if grinding noises accompany operation.
Measure current draw while activating the motor using an ammeter in series with the power lead. A functional unit should pull 1.5-3 amps during operation; readings above 5 amps point to a binding mechanism or worn brushes. High initial spikes followed by a drop suggest transient resistance–common with corroded slip rings. If the meter oscillates erratically, inspect the wiring loom for intermittent shorts where it bends near the hinge.
Tracing Intermittent Faults
Use a power probe to inject 12V directly at the motor connector while wiggling the wiring harness along its length. A sudden response (movement or ammeter fluctuation) isolates the break to the section being manipulated. Pay extra attention to strain relief points where the cable exits the door panel–these are frequent failure zones due to repeated flexing. If the issue persists, remove the door trim and inspect the internal harness for pinched or chafed wires, especially near sharp metal edges.
Final Validation
After repairs, reconnect the harness and verify bidirectional operation through the vehicle’s controls. If one direction fails, swap the motor’s power and ground leads–identical behavior confirms a faulty switch or relay rather than the motor itself. For heater-equipped versions, activate the heating element and check for warmth on the glass within 30 seconds; no heat indicates an open circuit in the resistive grid or a blown fuse upstream.
Decoding Color Codes for Heated, Motorized, and Signal Reflector Circuits
Begin by locating the white/light blue stripe conductor–this is the power feed for the heating element in glass-mounted defrosters. Trace it back to the fuse block, where it typically connects to a 10A or 15A fuse labeled “HTD” or “MIRR HEAT.” Verify continuity with a multimeter at 12V DC to confirm it energizes when the defrost switch is engaged. If voltage is absent, inspect the relay (usually a small black cube near the fuse panel) for corroded pins or a failed coil.
The dark green/orange stripe wire controls the left-hand signal indicator embedded in the housing. It splices into the vehicle’s flasher circuit, sharing a path with the rear lights. Test by activating the turn signal; voltage should pulse between 0-12V in sync with the dashboard blinker. If static, probe the harness near the door hinge pillar for frayed insulation or a broken connection, common in flex points under constant motion.
For motor-driven adjustment, focus on the yellow/black stripe (horizontal movement) and tan/black stripe (vertical). These links terminate at the two-way actuator inside the assembly. Manually move the glass while back-probing the connector–each direction should register 12V on the corresponding wire when the control stalk is toggled. A burnt motor often draws excessive current (over 3A), indicated by melted insulation or a blown 20A fuse in the mixer harness.
The black conductor is the ground return for all functions. It must bond securely to the door frame or chassis, ideally via a dedicated star washer to prevent corrosion. Scrape paint from the mounting surface and apply dielectric grease to the contact point. A weak ground causes intermittent operation, especially in heated elements where resistance above 0.2 ohms delays warm-up.
On vehicles with memory positioning, the light blue/red stripe and light blue/yellow stripe wires interface with the keyless entry module. These carry low-current analog signals (0-5V) for position sensors. Calibrate after replacement by holding the set button for 5 seconds–failure to initialize often stems from reversed polarity during installation. Check the service manual for specific voltage thresholds per sensor.
When splicing new leads into existing harnesses, use solder and adhesive-lined heat shrink tubing–never crimp connectors, as vibration loosens them over time. Label each repaired segment with the original color code using heat-resistant markers. For aftermarket upgrades, match wire gauge: 18 AWG for signal circuits, 14 AWG for heater and motor feeds to handle current loads without voltage drop.
