Begin troubleshooting by isolating the fuse box under the driver’s side dashboard–common failure points include the 40-amp ignition fuse and the 30-amp trailer tow relay. Check continuity across these components first; resistance exceeding 0.5 ohms signals corrosion or a broken connection.
Focus on the integrated power module (IPM) wiring harness next. The dark green/white stripe wire (pin 32) and tan/black stripe wire (pin 28) control critical functions: the former links to the instrument cluster, the latter to the fuel pump relay. Use a multimeter to verify voltage at these pins–12V should register with the key in the ON position. Deviations indicate a short or degraded ground, typically traced to the left kick panel or engine bay grounds.
For cabin electronics, the data bus wiring (yellow/gray and gray/black) connects to the front control module. If the radio, HVAC, or gauges malfunction, probe these wires for 5V reference signals. A complete lack of signal suggests a failed totally integrated power module (TIPM), but first rule out corroded connectors–common at the passenger side A-pillar.
Trace the engine bay harness for splices near the battery tray. The orange/dark blue wire (primary ignition feed) often frays where it passes through the right fender. Repair with solder and adhesive-lined heat shrink, not crimp connectors–these degrade under vibration. For sensors, prioritize the camshaft and crankshaft position circuits (gray/black and brown/yellow wires); intermittent PCM dropout is frequently linked to these.
Download the official factory schematics from the manufacturer’s portal–third-party diagrams often omit pinouts for the CAN bus or mislabel ground paths. Cross-reference wire colors with the as-built notes for your VIN; color codes vary between early and late production models. Keep a jump wire kit (22–18 AWG) on hand for bypass testing, but avoid using solid-core wire–it accelerates conductor fatigue.
Electrical Schematic Manual for 2005 Dodge SUV Models
Locate the primary power distribution box under the hood–label F19 marks the 40A fuse for the ignition system. Trace the red/orange (R/O) wire from the fuse directly to the automatic shutdown relay (ASD) found at position K7 on the internal fuse panel. Verify continuity using a multimeter set to 200 ohms; resistance should not exceed 0.5 ohms. If readings exceed this threshold, inspect the wiring harness between the relay and the powertrain control module (PCM) for chafing near the left frame rail.
For auxiliary circuits, follow the dark blue/yellow (Dk Blu/Yel) wire from the trailer tow connector (C1) to pin 32 on the instrument cluster. Cross-reference with the vehicle’s build sheet to confirm factory trailer brake controller installation–if absent, bypass this wire entirely to prevent false fault codes. The rear defroster grid connects via a light green/black (Lt Grn/Blk) wire tied to pin 8 of the body control module (BCM), but corrosion at the liftgate hinge often disrupts signal; clean terminals with electrical contact cleaner rated for PVC insulation.
Splice repairs demand ISO-standard crimp connectors (part #1946234) and heat-shrink tubing with adhesive lining. Replace any brittle wiring near the exhaust manifold with cross-linked polyethylene (XLPE) cable; standard PVC degrades at 125°C. For the Sentry Key Immobilizer System, access the gray 16-pin connector (T30) behind the steering column–pins 2 (violet) and 7 (yellow) must show 5V reference voltage; deviations indicate a faulty totem pole output in the wireless control module.
Locating the Authorized Electrical Blueprint for Your Chrysler SUV
The most reliable source for the factory electrical schematic is the manufacturer’s service manual. For this model, the Chrysler Service Manual (often labeled as the “Factory Service Manual” or “FSM”) includes the complete set of official diagrams. These manuals are typically sold through authorized dealerships or reputable aftermarket publishers like Haynes or Chilton. Avoid third-party scan tools or generic PDFs, as they may omit critical details like wire gauge specifications, connector pinouts, or fuse block layouts.
Factory Documentation Portals
Chrysler’s official technical resource site, TechAuthority (techauthority.com), hosts digital copies of the original schematics. Access requires a paid subscription, but it grants unrestricted downloads of the exact diagrams used by certified mechanics. Another secure option is ALLDATA Repair (alldata.com), which mirrors OEM data with hyperlinked circuit references. Both platforms update fuse box layouts, ground locations, and harness routing–details often absent in pirated copies.

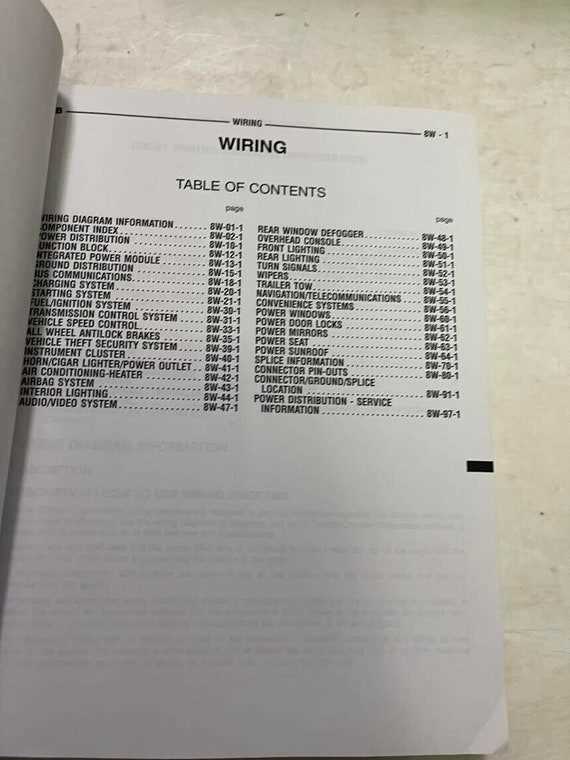

For those preferring physical copies, select salvage yards or automotive forums may sell intact service manuals pulled from decommissioned dealership libraries. Ensure the edition matches the vehicle’s build date, as mid-year revisions introduced minor but critical changes to the powertrain control module (PCM) or body control module (BCM) circuits. Ebay listings for “factory shop manual” often bundle wiring sections, but scrutinize seller ratings and verify the included pages cover section 8W-40 (the electrical troubleshooting chapter).
Alternate Verified Sources
The Motor Age Reference Library archives high-resolution scans of OEM schematics, searchable by VIN-specific variants. This is especially useful for identifying factory-installed accessory circuits, such as the trailer brake controller or navigation system, which differ from base models. Another niche but precise resource is the International Automotive Technicians’ Network (iATN) (iatn.net), where members share annotated diagrams from real repair cases. Free previews are available, but full-resolution files require a professional mechanics’ membership.
Certain aftermarket repair databases–like Mitchell1 ProDemand–aggregate OEM data alongside troubleshooting flowcharts. While not identical to the manufacturer’s diagrams, they include color-coded wire paths and splice locations, which are invaluable for tracing intermittent faults. Note that counterfeit manuals from dubious sellers frequently mislabel ground points (e.g., G101 vs. G201) or omit relay coil diode polarities, leading to diagnostic errors. Always cross-reference with the vehicle’s build sheet (usually affixed to the spare tire well) to confirm factory options.
Community-driven platforms like Dodge Durango Forum (durangoforums.com) occasionally host user-uploaded schematic snippets, but these lack QC and may include transcription errors. Only use these as a last resort, and verify against a known-good source like the Chrysler StarScan tool’s on-screen diagrams, which are derived directly from the OEM programming. For ABS, airbag, or HVAC systems, rely exclusively on the F03-F06 (body systems) sections of the manufacturer’s manual–aftermarket equivalents often simplify these complex circuits.
Decoding Color Codes in Your SUV’s Circuit Schematics
Begin by isolating the primary color groups: solid hues indicate main power or ground routes, while striped wires mark secondary circuits, sensors, or switched feeds. For instance, an orange lead with a white stripe (O/W) typically carries a fused ignition-switched voltage, whereas a black cable with a yellow stripe (B/Y) grounds components like the powertrain control module. Cross-reference these codes with the legend at the bottom of the schematic–every color combination corresponds to a precise function, such as:
- Purple/Orange (P/O): Mileage cluster illumination
- Dark Blue/White (D/BW): Front fog lamp control
- Light Green/Red (L/GR): A/C clutch relay output
Trace each wire’s path vertically through the diagram, noting splice points (marked as “S” followed by a number, e.g., S100) where multiple circuits converge. Verify continuity with a multimeter set to ohms; probe between the wire’s origin and its termination at a component or splice. If resistance exceeds 0.5 ohms, inspect for corroded connectors or chafed insulation–common at harness bends near the fuse box or under the hood. For mixed-color wires, confirm the stripe orientation: the secondary color should appear as a thin line along the primary; reversed stripes (e.g., W/O vs. O/W) denote entirely different circuits, often leading to misdiagnosis if misread.
Sensor Circuit Fixes for Dodge SUV Electrical Faults
Disconnect the negative battery terminal before inspecting any harness connections to prevent short circuits. Locate the oxygen sensor connectors near the exhaust manifold–typically beneath the vehicle on the driver’s side. Check for corroded pins or frayed insulation using a multimeter set to continuity mode. If resistance exceeds 0.5 ohms, replace the pigtail connector rather than splicing wires, as factory seals are critical for moisture resistance.
For throttle position sensor errors, trace the harness from the sensor to the main engine control module (ECM) plug. Use a wiring schematic to identify the correct pinouts–often labeled TPS1 and TPS2. Probe the signal wire with a voltmeter while slowly opening the throttle; readings should smoothly increase from 0.5V to 4.5V. If voltage spikes or drops, inspect the ECM plug for bent pins or oxidation, which can disrupt the signal loop.
Testing Crankshaft and Camshaft Position Circuits
Examine the crankshaft position sensor wiring by following the harness from the sensor to the transmission bellhousing. These wires are vulnerable to chafing against the transmission case. Peel back the protective loom and look for exposed copper strands. If damage is found, strip the affected section, twist the strands tightly, and apply heat-shrink tubing with adhesive lining–ordinary electrical tape will degrade under engine bay temperatures.
Camshaft position sensor issues often mimic crankshaft failures. Verify the 5V reference voltage at the sensor plug; a missing reference points to a broken wire or faulty ECM output. Back-probe the signal wire while cranking the engine–consistent 0-5V pulses should appear. If pulses are erratic, check the ground circuit at the engine block near the sensor mount; loose or corroded grounds are a common failure point.
Coolant temperature sensor circuits can trigger false misfire codes. Locate the sensor on the thermostat housing and disconnect its two-wire plug. Measure resistance across the sensor terminals–values should drop from 5k ohms at 0°C to 250 ohms at 100°C. If readings are out of spec, test the wiring harness for shorts to ground by probing each wire with the ignition off; any continuity indicates insulation failure requiring harness replacement.
Vehicle Speed Sensor (VSS) and ABS Signal Repairs
VSS signal loss often causes speedometer failure. Access the sensor at the transmission tail shaft and inspect the connector for accumulation of transmission fluid, which corrodes terminals. Clean contacts with CRC Electrical Cleaner and a small wire brush. If the speedometer still doesn’t function, check the ECM’s VSS input pin for signal pulses with an oscilloscope–expect a clean square wave between 0V and 12V at 30-50Hz when driving at 30 mph.
For intermittent ABS light faults, follow the wheel speed sensor harness along the wheel well, checking for pinched wires near suspension components. Each sensor has two wires–one 12V reference, one signal return. Probe the reference wire at the ABS module while rotating the wheel by hand; voltage should remain steady. If it fluctuates, the ABS module may be faulty, but first verify all ground connections at the module’s mounting location.
