Start by locating the main fuse panel under the dashboard near the driver’s side–this is critical for diagnosing power distribution issues. The IQ system models follow a distinct color-coded sequence: red for constant battery voltage, orange for key-switched circuits, and yellow for lighting. Use a multimeter set to 20V DC to verify connections at the solenoid before proceeding; voltage below 12.4V indicates a weak battery or faulty ground.
Inspect the onboard computer harness (pinout labeled “J1” on most schematics) for corrosion or frayed wires–this component controls solenoid engagement and speed sensor signals. If the vehicle fails to accelerate, trace the wiring from the throttle position sensor (TPS) to the controller; a broken grey wire will disrupt signal transmission. Replace damaged terminals with 18-gauge tinned copper connectors rated for 30A to prevent oxidation.
For DS models, focus on the run/tow switch–its wiring differs from later versions. The green wire should carry 48V to the motor in “run” mode; if absent, check the microswitch or relay contacts for pitting. Ground points near the rear axle must be sanded bare and secured with star washers; improper grounding causes intermittent power loss. Always disconnect the battery before working on high-amperage circuits to avoid arcing.
Refer to section 3.2-B in the service manual for the exact resistance values of the motor field coils–readings outside 0.5–1.5 ohms require coil replacement. When repairing lighting circuits, use waterproof heat-shrink tubing over splices; standard electrical tape degrades in 18–24 months under UV exposure. Store all schematics in a moisture-resistant case–humidity causes ink bleed on paper diagrams, making them illegible.
Electrical Schematic for Precedent DS Golf Utility: Hands-On Reference

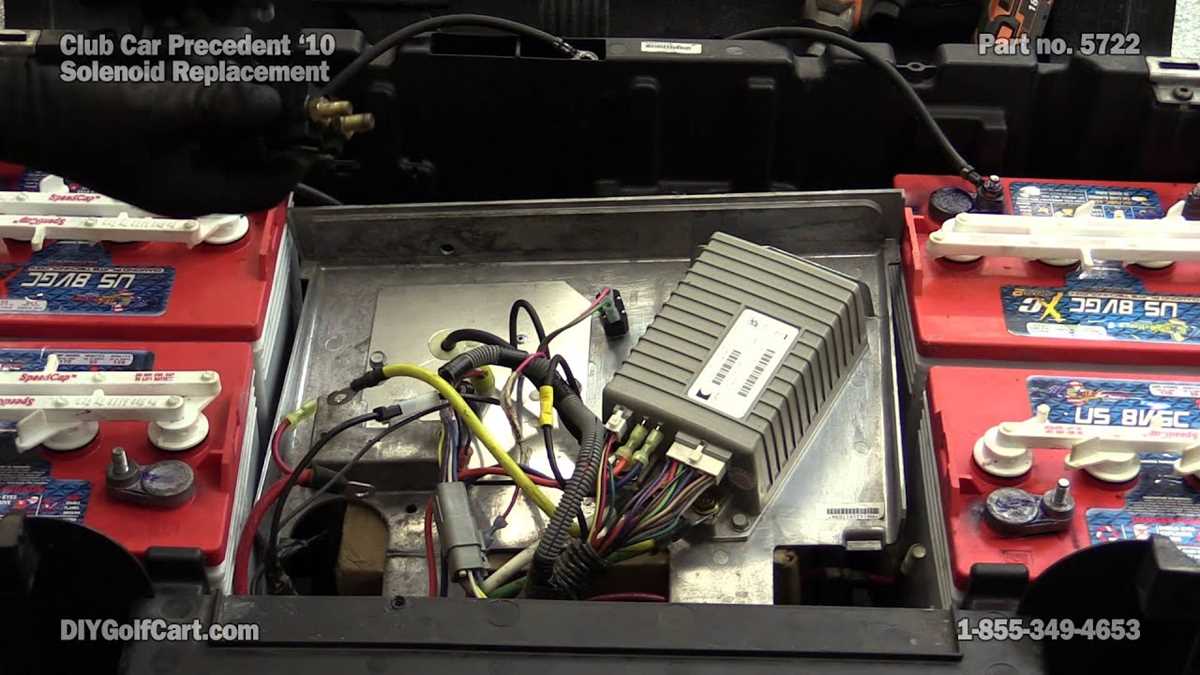

Locate the primary power solenoid beneath the seat frame–labelled with a red arrow in official service manuals–then verify continuity across its 3/8″ terminals using a multimeter set to 200 ohms. Readings below 0.5Ω confirm intact internal contacts; anything above 2.0Ω indicates corrosion or pitted surfaces requiring replacement.
Trace the recharge circuitry from the onboard charger receptacle (AMP 17-pin circular connector) to the battery pack positive post. Pin assignments generally follow: pins 1-4 supply 48VDC, pin 13 carries ground, and pins 15-17 serve as signal lines for temperature sensors. Swap the 10A fuse located inside the charger housing if the LED status light remains dark after plugging in.
| Component | Wire Gauge (AWG) | Color Code Standard |
|---|---|---|
| Main solenoid coil | 12 | Yellow/Red stripe |
| Key switch output | 14 | Black |
| Motor field excitation | 10 | Blue/White stripe |
| Accessory branch | 16 | Green |
Disconnect the negative battery cable first when servicing any segment of the low-voltage network. This prevents accidental shorting across exposed terminals during removal of dashboard panels or pedal assemblies. Reconnect the negative lead only after securing all harness connectors back into their molded sockets.
Inspect the OBC (Onboard Controller) communication wires–thin twisted pairs terminating near the dash-mounted display–for nicks or insulation breakdown. Use a non-contact voltage tester to confirm absence of stray current before handling; unexpected surges often stem from damaged insulation rubbing against chassis ground.
Replace the entire accelerator potentiometer if pedal response exhibits hysteresis or dead-spot behavior. The potentiometer sled slides along a carbon track rated for 5kΩ; partial disassembly to access the track rarely resolves intermittent resistance deviations.
Voltage Drop Test Procedure
Set multimeter probes directly on battery posts, then activate headlights and horn simultaneously. Drop exceeding 0.5Vdc suggests corroded interconnecting straps or undersized cabling between pack and front controller bay. Repeat the test after cleaning all terminal surfaces with a stainless-steel brush and reapplying dielectric grease.
Adhere to wire loom color consistency: solid white wires universally denote accessory feeds, whereas striped patterns indicate switched circuits. Redesigns occasionally introduce purple traces for CAN communication; retrofits must splice into existing harness rather than overlaying new wires to maintain EMI shielding.
Identifying Key Power Line Junctions in Preceding-Year Electric Carts
Start at the rear cargo bed–remove the under-seat storage or battery compartment cover to expose the central nerve bundle. The primary loom splits into three distinct trunks here: a red-sleeved bundle (battery positive lead), a black sheath (ground return), and a white-orange multi-conductor run (controller and accessory feeds). Trace the red trunk upward to the solenoid–it terminates in a 6mm stud nut secured with a lockwasher and a 10mm socket-sized fastener. Rotate the nut counterclockwise with an 8-point socket to disconnect, revealing a brass terminal labeled “B+”. Cross-reference this junction with maintenance schematics labeled DS-19540.
Controller Interface Points
Slide the forward seat base forward–two main connector blocks are visible: a 4-pin white plug (key switch circuit) and a 6-pin grey connector (throttle and brake micro-switches). The grey harness nests into the speed governor assembly via a friction-fit clip; pry the retaining ears outward with a flat-blade screwdriver to release. Inspect the female sockets for corrosion; clean with electric contact spray and a wire brush if resistance exceeds 0.2 ohms when tested with a multimeter. Reattach by pressing firmly until the ears snap into place.
Directly beneath the driver-side dashboard, accessed by removing two Phillips-head screws, lies the fuse block. The main power relay mounts adjacent, identifiable by a cylindrical casing with an embossed “I” symbol. Disconnect the relay by lifting the tab and pulling upward–verify continuity between terminals 85 and 86 before reinstalling, ensuring the replacement matches part number 1016534-03. Misalignment here results in intermittent accessory failure, particularly affecting headlights and turn indicators.
Step-by-Step Schematic for Replacing the 48V Battery Pack Cables
Disconnect the main power switch located under the seat or near the battery compartment. Label each existing cable with masking tape to record their original positions–mark both the terminal and corresponding connection point on the control module. Use a multimeter set to DC voltage to confirm zero load before proceeding; verify readings on all terminals to prevent accidental shorts.
Preparing the New Cabling
Select 6-gauge tinned copper cables with heat-resistant silicone jackets, rated for at least 200A continuous current. Cut each segment to exact lengths: 12 inches for inter-battery links, 18 inches for controller connections, and 24 inches for the solenoid. Crimp ring terminals with a hydraulic crimping tool–ensure crimps are flush and free of burrs. Apply heat-shrink tubing over each terminal and use a heat gun to seal completely, preventing moisture ingress.
Reattach cables in reverse order of removal: start with the solenoid’s B+ terminal, followed by series links between batteries, ending with the controller’s positive and negative inputs. Torque each terminal to 10-12 ft-lbs using a calibrated wrench–over-tightening can strip threads, while under-tightening risks high-resistance connections. Recheck each joint with the multimeter; ideal voltage drop across a connection should not exceed 0.1V under load.
Install a 150A fuse holder inline with the B+ cable, positioning it within 6 inches of the first battery terminal. Before re-energizing, coat all exposed terminals with dielectric grease to inhibit corrosion. Reconnect the main power switch and test under load by engaging the accelerator while monitoring voltage stability–drops below 42V indicate faulty connections requiring rework.
Diagnosing Solenoid Circuit Issues in a Pre-Owned Electric Utility Vehicle
Locate the solenoid on the electrical system near the battery pack–typically mounted on the frame within a protective housing. Use a multimeter set to continuity mode to verify the internal contacts: probe the large terminals while activating the accelerator. A functional unit will emit a distinct click and register near-zero resistance; absence of either indicates a failed component.
Inspect the small control terminals for corrosion or loose connections–common failure points. Disconnect the wires and clean terminals with a wire brush, then retest voltage delivery from the ignition switch. Expect 36–48 volts on the input terminal when engaged; readings below 30 volts suggest a weak battery or wiring deterioration upstream. If voltage is present but the solenoid doesn’t engage, replace the unit.
Step-by-Step Voltage Testing
- Ensure the key switch is in the “off” position before probing.
- Set multimeter to DC voltage, 50V range.
- Measure across the large solenoid terminals: zero volts expected when idle, full battery voltage when activated.
- Check control terminal voltage with key “on”: should match battery voltage within 1V.
- If voltage drops significantly during engagement, inspect fuse, ignition switch, and battery connections.
Bypass testing reveals hidden faults: jumper the small terminal directly to the battery positive briefly. A healthy solenoid will engage with a loud click; if not, internal coil failure is confirmed. Never hold the jumper longer than 3 seconds–excessive current can damage the starter relay or controller. For models with microswitch activation, inspect the accelerator pedal linkage for proper adjustment before condemning the solenoid.
Common failure modes include:
- Burnt contacts–visible pitting or discoloration on the copper discs.
- Open coil–multimeter shows OL across control terminals.
- Intermittent engagement–usually traced to loose wire crimps or corroded battery terminals.
- Stuck plunger–test by manually pushing the solenoid lever; binding indicates internal wear.
Replace the entire solenoid assembly if any of these are present–repair attempts often result in inconsistent performance.
