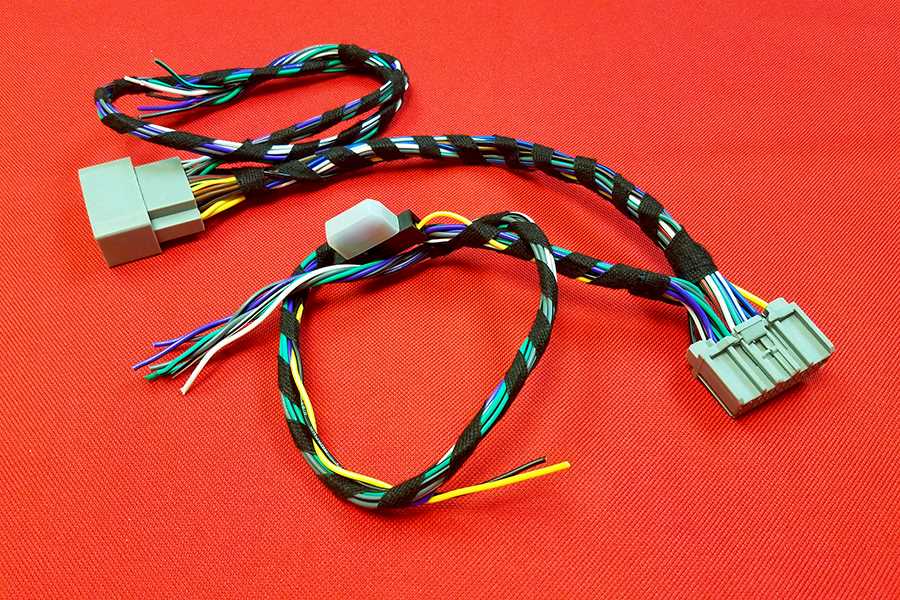

For immediate installation or troubleshooting, locate the aftermarket harness adapter matching the sedan’s premium variant. Metra 70-1817 or Axxess AX-AdChr2 interfaces integrate directly with the factory 10-speaker amplifier, bypassing the need to splice into the main loom. Connectors C1 and C2 (white and gray 40-pin blocks) carry the amplified signals–pinouts follow a red/white (constant 12V), yellow/black (switched 12V), and purple/white (dimmer-controlled illumination) layout. Verify ground points at the chassis rail beneath the driver’s seat; corrosion here disrupts bass response in the subwoofer channel.
Remove the lower dashboard trim panel using a trim removal tool–avoid prying near the climate control vents. The factory amplifier resides behind the center console, secured by three Torx T-20 screws. Disconnect the battery’s negative terminal before handling any connectors to prevent short circuits. The rear door speakers receive signal through the door harness (light blue/green and tan/light blue wires); resistance should measure 4 ohms ±0.5 ohms when tested with a multimeter. If flickering occurs in the head unit display, inspect the purple/white wire for voltage drop–replace the 15A fuse in the junction box if necessary.
Upgrade paths vary by budget. For OEM-level fidelity, retain the DSP module but substitute the head unit with a Pioneer AVH-2400NEX or Alpine iLX-F509. These units auto-detect the CAN bus protocol, preserving steering wheel controls without additional modules. For a full custom setup, reroute RCA pre-outs from the amplifier to an external Rockford Fosgate Punch P1000X5–this handles the 300W RMS load without clipping. Secure RCA cables with cable ties along the transmission tunnel to prevent interference from the vehicle’s ABS system.
Common pitfalls include misrouted power cables and improper grounding. Run all new wiring above the factory loom to avoid pinching during seat adjustment. Use heat-shrink tubing on splices–electrical tape degrades within 18 months under heat cycling. If static persists in the front door tweeters, check the door jamb harness for frayed yellow/black wires; these carry the high-frequency signal and are prone to damage from repeated opening/closing.
Audio System Color Codes and Pin Configuration for 2005 Luxury Sedan
Begin by disconnecting the negative battery terminal to prevent short circuits before handling any connectors. The factory harness uses a 12-pin rectangular plug (Molex-style) for the primary interface, with these color-coded wires mapped to specific functions:
| Wire Color | Function | Voltage/Notes |
|---|---|---|
| Dark Green/Orange Stripe | Right Rear Speaker (+) | 4Ω impedance, 10W RMS |
| Dark Green/White Stripe | Right Rear Speaker (−) | Chassis ground reference |
| Brown/Violet Stripe | Left Rear Speaker (+) | Matched to right channel |
| Brown/Yellow Stripe | Left Rear Speaker (−) | Polarity critical for phase |
| Gray/Black Stripe | Front Right Speaker (+) | Twisted pair with return |
| Gray/Tan Stripe | Front Right Speaker (−) | Solder joints for durability |
| White/Black Stripe | Front Left Speaker (+) | 20-gauge wire |
| White/Light Blue Stripe | Front Left Speaker (−) | Heat-shrink all splices |
| Yellow/Red Stripe | Battery Constant (+12V) | 20A fuse inline |
| Black/Light Blue Stripe | Ground | Terminate to bolt near unit |
| Orange | Illumination (+) | Dims with dash lights |
| Pink/Light Blue Stripe | Antenna Trigger | 12V out for powered mast |
For amplified systems, locate the wiring behind the glovebox that feeds the optional subwoofer harness. This bundle includes a purple wire delivering +12V to the amplifier turn-on lead and two thicker cables–dark gray (ground) and dark blue with a light blue stripe–carrying low-level preamp signals to the amp. Verify continuity with a multimeter; resistance should read below 0.5Ω between the subwoofer outputs and the amp’s input terminals.
Troubleshooting Common Errors
If the head unit powers on but produces no sound, check for blown fuses F42 (10A) behind the instrument panel or a broken pink/light-blue-striped antenna wire. Static through all speakers often traces to a poor ground at terminal G102 behind the left kick panel. For rear-seat DVD audio, the violet wire in the trunk harness must be connected to the auxiliary RCA inputs on aftermarket decks; factory decks require a CANbus adapter to retain steering-wheel controls.
Finding the Audio System Plug Behind the Instrument Panel
Start by disconnecting the negative battery terminal to prevent short circuits. The plug for the sound system is typically positioned near the climate control module, secured by a single 10mm bolt. Remove the lower dash trim panel beneath the steering column–this requires releasing three plastic clips and two screws near the driver’s side kick plate.
The harness connector sits directly behind the factory radio slot, often obscured by a protective black cover. Use a small flathead screwdriver to pry the cover loose; it snaps into place without clips. Behind it, you’ll find a 24-pin rectangular plug, color-coded for compatibility with aftermarket units–white wires for front speakers, gray for rears, and purple for the amplifier trigger.
If the connector isn’t immediately visible, trace the bundled cables from the back of the original head unit. They route upward through a narrow channel, merging with the vehicle’s main harness near the fuse box. Gentle tugging on the wires can help expose the plug’s location if it’s tucked deeper behind insulation or structural supports.
Critical note: Avoid pulling cables forcefully. The plug uses a fragile locking tab; depress it with a pick tool while wiggling the connector free. Damaging the tab will require splicing repairs. Check for corrosion on the pins–common in older setups–and clean with electrical contact spray if needed.
For models with navigation, an additional 8-pin mini plug hides behind the climate control unit. After removing the radio bezel (four Torx screws), slide the climate module outward to access it. The mini plug handles data lines and requires a specific adapter for upgrades.
Pro Tips for Hidden Mounts
Use a flashlight and dental mirror to inspect tight spaces. Some variants have the harness wrapped in foam padding to reduce rattles–do not discard this, as reattaching it prevents wire chafing. If the plug refuses to budge, check for secondary brackets securing it to the chassis; one 7mm bolt is often overlooked.
Decoding Wire Colors for Aftermarket Audio System Integration
The primary power feed–typically a yellow cable–must connect directly to the battery’s positive terminal through a 15-20 amp fuse, positioned no farther than 18 inches from the battery. This wire supplies constant 12V power, ensuring memory retention for presets and clock settings, even when the ignition is off. Avoid splicing into accessory circuits, as voltage drops under load can corrupt settings or trigger system resets.
Locate the red ignition-controlled wire, which delivers power only when the key is in the “ACC” or “ON” position. This lead prevents parasitic drain and should tie into the vehicle’s fuse box using an add-a-circuit adapter–specifically, fuse slot #28 (10A) for harness models with a CAN bus interface. Verify the circuit with a multimeter; voltage should drop to 0V when the key is removed.
Ground and Speaker Wire Identification
The black ground wire demands a bare-metal connection to the chassis, preferably within 12 inches of the head unit. Scrape away paint, rust, or undercoating to expose clean metal, then secure with a star washer and serrated nut. A poor ground introduces engine noise, signal distortion, or erratic behavior–common issues in factory-installed head units with degraded grounds.
Speaker outputs follow a standardized color-coding: gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), purple (rear right positive), purple/black (rear right negative), green (rear left positive), and green/black (rear left negative). Strip 1/4 inch of insulation, twist strands tightly, and crimp with gold-plated connectors to prevent oxidation. Never rely on solder alone; use heat-shrink tubing to seal connections against moisture.
Amplifier remote turn-on uses a blue/white wire, delivering a 12V signal when the head unit activates. This lead connects to aftermarket amplifiers but should not exceed 300mA total draw. For factory amplifiers, the corresponding wire may be light blue/violet–trace it carefully, as incorrect splicing can trigger error codes in CAN bus systems or disable features like steering wheel controls.
Illumination control–the orange wire–adjusts display brightness in sync with dashboard lights. Connect it to the vehicle’s dimmer circuit for automatic brightness matching. If the system lacks a dimmer-compatible display, cap this wire with electrical tape. For LED retrofits, a 5V-1KΩ resistor in series prevents flickering; never connect it directly to accessory power.
Integrating New Audio Equipment with OEM Speaker Connections
Locate the factory harness behind the stock radio slot–typically a 10-to-16-pin connector with colored leads matching the vehicle’s original audio system. Identify the paired wires for each channel: front left (+) is light blue, front right (+) is gray, rear left (+) is violet, and rear right (+) is dark green. Ground wires are usually black or brown and may share a common terminal. Verify these against a verified pinout chart before cutting; a multimeter set to DC voltage (20V range) helps confirm active circuits by probing for +12V on positive leads when the ignition is on.
Use a wiring adapter (often labeled “Chrysler/Dodge” or “6-to-4 channel”) to bridge the aftermarket head unit’s harness to the vehicle’s existing loom. These adapters map the factory amplifier outputs directly to the replacement unit’s speaker wires, preserving fade/balance settings and avoiding impedance mismatches that cause distortion. If no adapter exists, strip 1/4 inch of insulation from each wire, twist matching colors tightly, and secure with solderless connectors before crimping. Avoid Scotch locks–heat-shrink tubing with adhesive liner prevents corrosion and short circuits.
For amplified systems (common in luxury models), the factory harness includes separate low-level RCA-type outputs. Bypass the built-in amp by connecting the aftermarket unit’s preamp outputs to the adapter’s RCA leads, or retain the stock amplifier by splicing into the high-level speaker wires with a line-output converter. This converter steps down the 4-8V speaker signals to 2-4V RCA levels, preventing damage to the new device’s inputs. Set the converter’s input impedances to match the factory amp’s output (typically 200-500 ohms) using the dip switches or potentiometers.
Test each channel sequentially with a 50Hz sine wave at 80% volume. Listen for symmetry–uneven volume indicates reversed polarity, while static suggests a loose connection. Secure all splices with automotive-grade loom tape (not electrical tape) and route wires away from moving parts or heat sources. Label each wire with heat-shrink markers to simplify future troubleshooting. If the system includes a subwoofer, confirm the factory wiring carries a dedicated low-frequency signal (often orange or pink) and match it to the head unit’s sub-out or bridge two channels for 4-ohm stability.
Finalize by reassembling the dash trims without pinching wires. Reconnect the battery and verify all functions: volume, tone, and power antennas (if equipped). If the new unit displays “speaker fault,” recheck all grounds–factory chassis grounds often use a single bolt near the unit’s mounting bracket. For premium sound systems with active crossovers, retain these components inline between the head unit and speakers to maintain tuning curves, or replace them with aftermarket passive crossovers if the factory ones are fused into the harness.
