Locate the fuse box behind the driver’s kick panel to identify the constant 12V power source (labelled “BATT” or “Memory”). This yellow or red wire must connect directly to the head unit’s power input to maintain presets when the ignition is off. Avoid tapping into the ignition-switched circuit (typically red), as it will reset settings each time the engine restarts.
Ground connection demands bare metal–scratch off paint at the mounting location near the vehicle’s chassis to ensure zero resistance. A black wire from the harness should attach here using a 10-gauge ring terminal. Skipping this step risks intermittent operation, signal noise, or blown fuses.

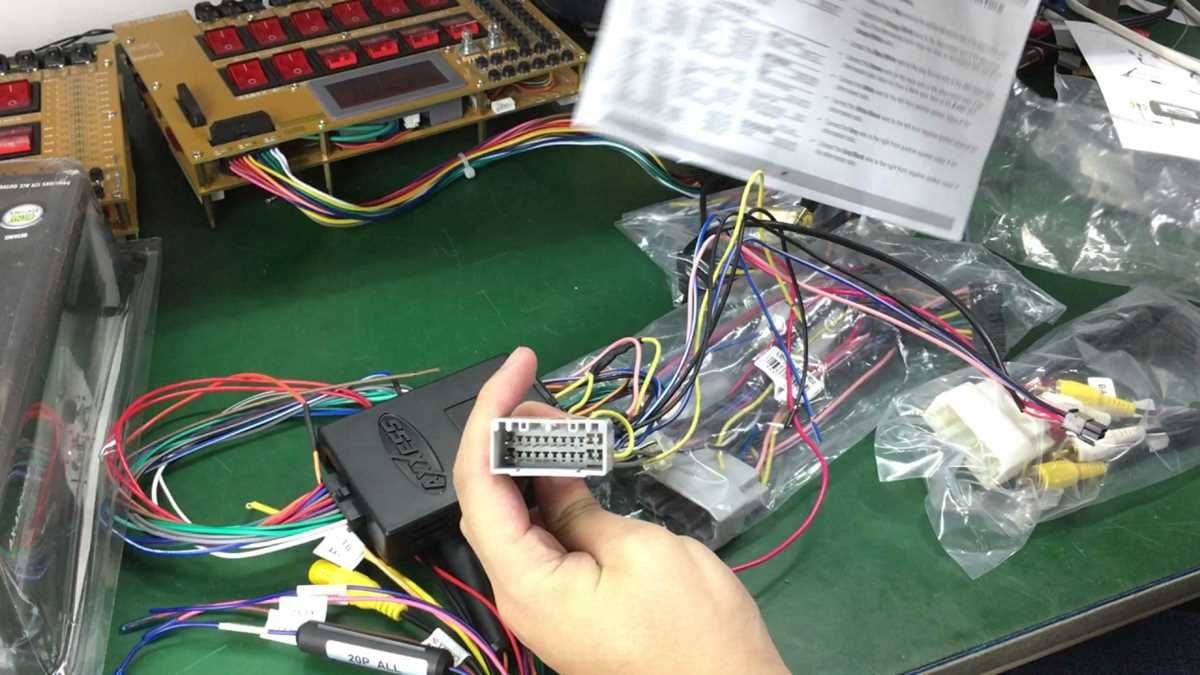

The aftermarket harness adapter (Metra 70-1817 or equivalent) simplifies splicing. Match colors precisely: gray (front right +), gray/black (front right -), green (rear right +), and so on. Factory amplifiers (if present) require bypassing–remove the fused jumper at pin 17 (AMP CONT) on the ISO connector to prevent distortion.
Speaker polarity follows positive to positive, negative to negative. Swapping wires diminishes bass response and sound staging. For steering wheel controls, integrate a PAC RP4-CH11 module between the head unit and original harness–manual programming via the vehicle’s menu is required.
Navigation systems use a separate pink/black wire for speed-signal input. Connect this to the vehicle’s VSS (vehicle speed sensor) behind the instrument cluster if retaining GPS functionality. Failing to link this causes incorrect distance calculations.
Test each connection with a multimeter before mounting the head unit. Voltage checks at power leads should read 12V steady (constant) and 12V switched (ignition). Speaker wires must show ~4 ohms resistance when probed. Secure all connections with solder or crimp caps–electrical tape alone degrades over time.
Aftermarket Head Unit Wiring Guide for the 2006 LX Sedan
Connect the new receiver’s constant 12V wire (typically yellow) to the vehicle’s battery feed (solid orange cable in the factory harness). Use a 15-amp fuse within 6 inches of the connection to prevent fire hazards. The switched 12V (red) splices into the accessory lead (violet/pink stripe), ensuring power cuts when the ignition is off. Ground the black wire (or black/white stripe) to bare metal–scrape paint from the mounting point near the original radio location for a solid bond.
Speaker Wire Identification
Front left (+) routes to the tan/white wire; front left (-) matches gray/black. Front right (+) uses light blue/violet; front right (-) pairs with violet/black. Rear left (+) pulls from brown/white; rear left (-) connects to brown/yellow. Rear right (+) traces back to dark green/violet, while its (-) counterpart is dark green/yellow. Confirm polarity with a 9V battery–positive speaker movement indicates correct pairing. Twist wires together before soldering or using high-quality butt connectors to avoid interference.
For amplifier integration, locate the pink/light blue wire (remote turn-on) in the factory plug. This triggers aftermarket amps when the head unit powers on. If retaining the factory amplifier, maintain the data bus wires (tan/light blue and tan/light green) intact–cutting these disrupts chimes and steering wheel controls. For models with navigation, preserve the light green/red wire (mute signal) to avoid audio cutoff during voice prompts.
Finding the OEM Audio System Plug Under the Instrument Panel
Remove the lower dashboard trim panel on the driver’s side first; it is held by three 7 mm screws located under the steering column, one behind the release lever, and two inside the coin tray recess. Slide the panel downward to release the clips along the top edge, then pull it free without forcing it past the accelerator pedal assembly.
The factory harness connector sits directly behind the climate control module’s rear bracket, secured to the steel crossmember with a single T-20 Torx bolt. Disconnect the negative battery terminal before touching any wires–Chrysler’s body computer retains power for up to 15 minutes and can reset adaptive memory settings.
Trace the bundle of wires exiting the back of the head unit; you will see a 24-pin rectangular plug with color-coded terminals. The upper row typically carries power feeds (yellow for constant 12 V, red for accessory), while the lower row handles speaker outputs (gray/light gray for front right positive/negative, white/white-black for front left). Ground is a black wire with a ring terminal screwed to the chassis.
If the connector is missing, check the kick panel behind the driver’s footwell; sometimes the harness is routed there during aftermarket radio removal. Look for any taped stubs or bare wires–these are often the remnants of the original plug chopped by a hasty installer.
Use a digital multimeter set to DC volts to verify pin function before connecting any new device. Probe between each terminal and chassis ground while cycling the key from off to accessory; you should see 12 V jump on the yellow wire immediately and on the red wire after the key is turned. No voltage on either wire indicates a blown fuse (check fuses 18 and 27 in the interior fuse block) or a severed run behind the firewall grommet.
Label each wire with masking tape before cutting or splicing; Chrysler’s color codes seldom match aftermarket standards, and guessing will likely blow the amplifier or trigger theft-deterrent errors. A pinout reference from a factory service manual–available online as a PDF–will save hours of trial and error.
When reinstalling the trim, snap it into place before tightening screws; overtightened screws strip threads in the plastic mounts, and forced alignment damages clip tangs, causing rattles later.
Decoding Cable Hues and Their Roles in Audio System Connections
Begin by locating the constant power feed–typically a yellow conductor–delivering uninterrupted 12V supply to maintain memory settings. Pair this with the red accessory lead, which activates only when the ignition is engaged. Verify voltage levels with a multimeter: yellow should read 12V at all times, while red should drop to 0V when the key is off. Ground connections (black or brown) must be secure; use a star-point method to minimize interference.
Speaker outputs follow a dual-color scheme for each channel:
- Front left: gray (+) and gray/black (-)
- Front right: white (+) and white/black (-)
- Rear left: green (+) and green/black (-)
- Rear right: purple (+) and purple/black (-)
Strip 6-8mm of insulation, twist strands tightly, and crimp with copper connectors. Avoid daisy-chaining grounds–each speaker’s negative lead should terminate directly to chassis ground. For amplified systems, check for a blue/white remote turn-on wire, which carries a 12V signal to activate external amps when the unit powers up.
Troubleshooting Mismatched Colors
If documentation conflicts with observed hues:
- Trace each cable back to its source–head unit or harness adapter.
- Use a tone generator on suspected speaker wires; the audible signal confirms function.
- Label splices with heat-shrink tubing or color-coded tape to prevent future confusion.
Orange or orange/white wires often denote dimmer controls; isolate these during aftermarket installations to preserve dashboard illumination sync. For factory integration, leave these disconnected unless the replacement unit supports variable voltage dimming.
Anticipate pink (brake pedal switch) or light green (reverse gear signal) wires in proximity to the harness–these are unrelated to audio but critical for auxiliary functions. Cut, tape, or reroute these away from your installation zone to prevent shorts. For optic-fiber systems, look for a transparent jacket with a single silver conductor; never strip or bend this beyond a 2-inch radius to avoid signal degradation.
Step-by-Step Guide to Installing an Aftermarket Audio System
Locate the vehicle’s factory harness behind the dash panel on the driver’s side. Match the aftermarket unit’s color-coded leads to the corresponding wires in the harness using a multimeter to verify voltage and continuity. Secure connections with solder and heat shrink tubing–never twist-and-tape–to prevent corrosion and signal loss.
Wire Function Reference Table
| Factory Wire Color | Aftermarket Lead | Purpose | Voltage Check |
|---|---|---|---|
| Yellow | Yellow (constant 12V) | Memory/Power | 12V when key off |
| Red | Red (switched 12V) | Accessory Power | 12V only in ACC/ON |
| Black | Black (ground) | Chassis Ground | 0 ohms to metal |
| Blue/White | Blue/White (remote) | Amplifier Turn-On | 12V when unit on |
Route RCA cables away from power wires and engine components to minimize interference. Connect the ground wire directly to bare metal chassis–avoid paint or coatings–using a self-tapping screw for optimal conductivity. Test all functions (radio, aux input, tone controls) before reassembling the dash panel to confirm proper signal flow and no backfeed issues.
Fixing Silent Audio or Missing Power in Vehicle Infotainment Systems
Check the fuse first–locate the panel under the dash or near the battery box. Remove the fuse marked “radio” or “audio” using pliers, then inspect the filament for breaks. Replace with an identical amp rating (typically 10A–15A) if damaged. Verify power at the back of the unit by probing the red (constant) and yellow (ignition-switched) terminals with a multimeter: 12V–14V indicates proper input. If voltage is absent, trace the harness to the ignition switch or fusebox, testing for continuity at each connection point.
- Test the ground wire (black) by attaching a jumper to bare metal on the chassis–if audio returns, clean the original grounding point with sandpaper or relocate it.
- Inspect speaker wires for fraying where they pass through door hinges or seat tracks; use a tone generator to identify shorts or open circuits.
- Disconnect the head unit and check for bent pins in the harness connector–straighten with a needle-tip probe if misaligned.
- Swap the unit with a known-working replacement to isolate faults between hardware and circuitry.
- For intermittent power loss, wiggle the harness while monitoring voltage–loose crimps cause erratic behavior and require soldering.
