Start by locating the factory radio connector behind the dashboard unit–it’s a 20-pin plug labeled GM Part #12161996. Pinout configuration follows a standardized color code: orange/black delivers 12V constant power, yellow carries switched ignition (+ACC), and black grounds the circuit. Speaker outputs split across four pairs: front left (gray/gray-black), front right (white/white-black), rear left (green/green-black), and rear right (violet/violet-black). Verify each wire with a multimeter before connecting to avoid damaging aftermarket amplifiers.

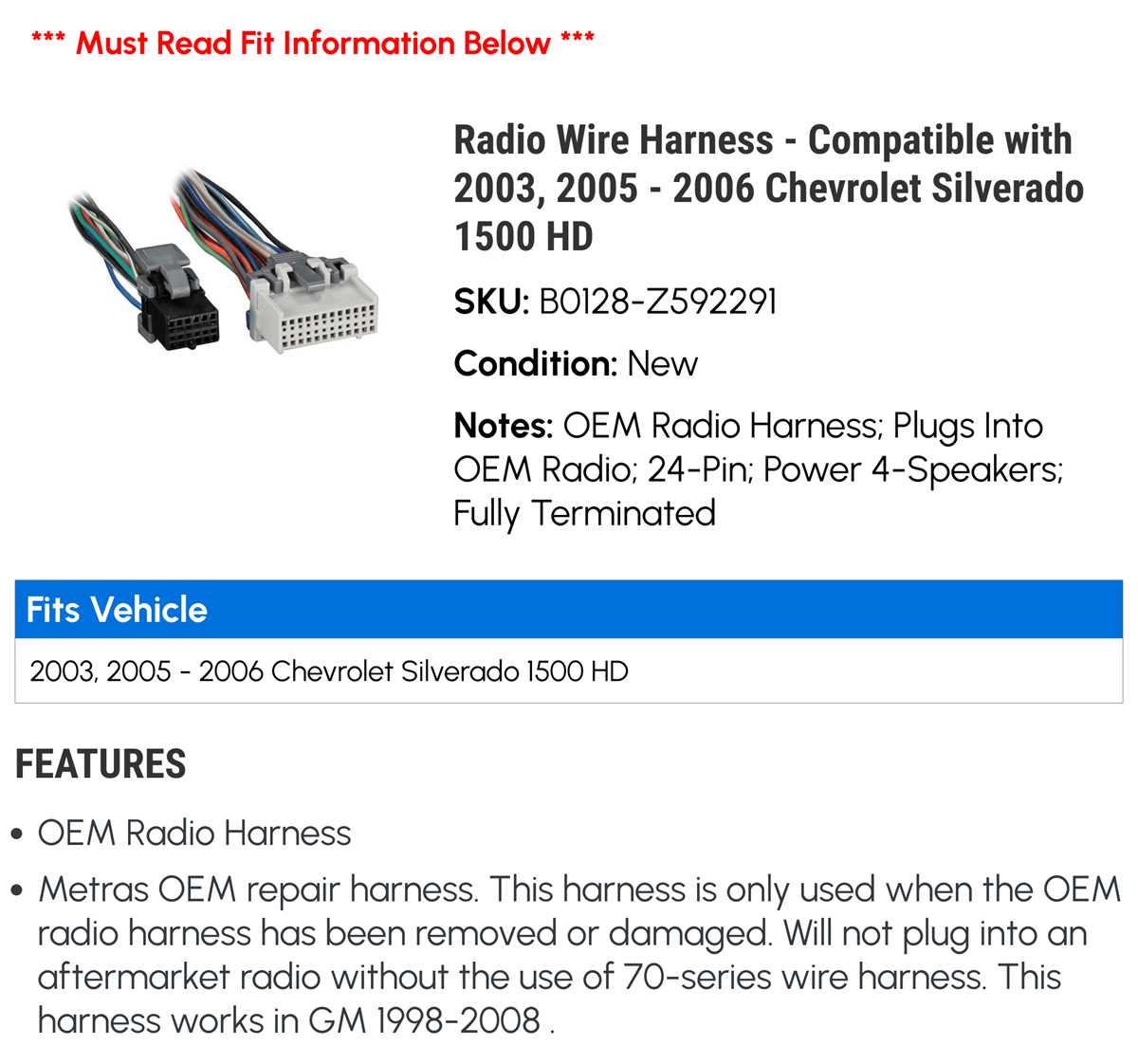

For seamless integration, use a Metra 70-2003 harness–the gold-standard adapter for 1999-2007 GMT800 platforms. This plug-and-play solution maps directly to the vehicle’s harness, eliminating the need for splicing factory wires. If retaining OnStar or steering-wheel controls, splice the light blue/white (data bus) and brown/yellow (speed sensor) leads into the new system’s harness using crimp connectors, not solder, for signal integrity.
Two critical adjustments prevent audio interference: first, disconnect the pink (vehicle antenna) lead entirely if installing an external amplified antenna. Second, bridge the dark blue/white (amplified audio mute) to chassis ground at the firewall–a step often overlooked, causing low-volume static. Use heat-shrink tubing on all connections to prevent corrosion from cabin humidity.
Test the setup with a 1kHz tone generator before finalizing the dashboard reinstall. Volume imbalance between left/right channels typically traces back to corroded factory plugs–clean contacts with electronic cleaner and a toothbrush. If bass response suffers, confirm the subwoofer output (tan/black) isn’t shorted to ground; its 2V P-P signal requires an unshielded RCA patch cable for clean transmission.
Audio System Connector Guide for GM Light-Duty Pickup Models
Locate the 12-pin connector behind the factory radio–the gray plug carries power and speaker outputs. Pin C1 (light blue) delivers +12V constant, C2 (orange) supplies accessory power via ignition, and C4 (black/white) grounds the circuit. Speaker outputs follow: front left (+, gray, C5), front left (-, gray/black, C6), front right (+, light green, C7), front right (-, light green/black, C8). Rear channels use C9 (purple, +) and C10 (purple/black, -) for left; C11 (dark blue, +) and C12 (dark blue/black, -) for right.
- Mute the amplifier by connecting pin C3 (pink) to +5V (resistor required).
- Aftermarket units requiring amplified signals must tap the same wires; non-amplified head units need the brown (C3) wire grounded.
- Vehicle-specific color codes match GM’s 2000-2006 fleet–verify against a multimeter before soldering.
- OEM plugs use Metri-Pack 150 terminals; crimp connectors must match the 0.64 mm pin width.
Disconnect the battery’s negative terminal for 10+ minutes to reset the Body Control Module if the radio displays “LOCKED.” If the display dims inconsistently, check the dash illumination wire (C13, dark gray) with a 1kΩ resistor to ground. Vehicles equipped with OnStar use separate telematics wiring–do not splice into the audio connector.
Matching the Proper Electrical Connector for Your Pickup’s Audio System
Locate the factory radio’s model number stamped on a label behind the dashboard unit before selecting a replacement plug. GM vehicles from this production cycle typically use Delco 22825208 or Delco 22815779 connectors–verify the exact part digit-for-digit against the sticker. Aftermarket suppliers like Metra or Axxess often cross-reference these OEM numbers to ensure color-coded wire-to-pin alignment.
Pinout configurations vary between base and premium sound setups. Single-DIN receivers connect via a 12-pin harness, while Bose-equipped trims require an 18-pin plug with dedicated amplifier triggers. Count the vacant slots in the existing connector housing–empty cavities signal a lesser-complexity system. Skipping this step risks mismatched RCA pre-outs or illumination wires, causing display failures.
Check the fuse box legend near the driver’s kick panel for Radio 1 and Radio 2 fuse ratings. A 10-amp fuse typically protects accessory circuits, while a 25-amp fuse guards amplified speakers. Swap any blown fuses with identical amperage before testing–ignoring this may blow the new adapter’s internal resistors during power-up.
Use a digital multimeter to probe the accessory wire when the ignition is turned to ACC; expect 12 volts dc. If voltage drops below 11.5, inspect the battery terminals for corrosion or loose clamps, as parasitic drains mimic wiring faults. Trace the thick red wire from the plug to its origin at the junction block–often spliced with the heater or rear defroster feed.
Some aftermarket retention kits bundle pigtail adapters pre-terminated with bullet connectors, eliminating soldering. If opting for bare-ended wires, strip only 3/16 inch of insulation to prevent shorts behind tight dashboard clusters. Secure exposed strands with adhesive-lined shrink tubing rated for 125°C–cheaper PVC variants melt under prolonged heater-core proximity.
Verify ground integrity by testing continuity between the black wire on the plug and a chassis bolt within three feet of the unit. Resistance above 0.5 ohms indicates surface oxidation–scour paint with a wire brush until shiny metal shows. Reconnect the negative battery cable last to avoid accidental arcing during installation.
Step-by-Step Guide to Locating the Factory Audio System Connections
Begin by removing the center dash panel using a plastic trim tool–avoid metal tools to prevent scratches on the vehicle’s interior. The upper section typically detaches first, revealing screws securing the lower trim; unscrew them carefully and set aside. Behind this panel, the factory head unit will be exposed, usually held in place by a mounting cage or brackets. Press the release clips on either side of the unit (often marked with arrows) to slide it out partially.
Once the device is partially removed, disconnect the antenna cable from the rear–this is a thin, coaxial lead with a threaded connector; twist counterclockwise to release. Next, identify the main plug at the back of the unit: it’s a rectangular, multi-pin connector with a tab on one side. Press the tab firmly while pulling the plug straight out–do not wiggle or force it at an angle, as this can damage the pins.
Behind the head unit’s mounting location, the vehicle’s speaker leads and power cables are bundled in a colored loom. Trace the bundle to the point where it splits into individual wires. The power supply lines include a constant 12V (yellow), accessory 12V (red), and ground (black). Speaker wires follow a standardized color code: front right (+) gray, front left (+) green, rear right (+) purple, and rear left (+) light blue. Negative leads are stripped with a matching color stripe.
If the loom appears taped or wrapped, carefully slice through the tape with a utility knife–avoid cutting deeply into the wires. For vehicles with OnStar or premium sound systems, look for additional harnesses: a smaller 4-pin plug for OnStar (if equipped) and a separate loom for amplifiers. These are usually positioned above or to the side of the main connection point.
Use a multimeter to verify each wire’s function before making any modifications. Set the meter to DC voltage (20V range) and probe the power leads with the ignition off–constant power should read ~12V, accessory power should drop to 0V. For speaker wires, set the meter to continuity mode and touch probes to each pair; a tone confirms correct pairing. Label each wire with masking tape or a marker to prevent confusion during installation.
For models with steering-wheel controls, locate the secondary harness near the main bundle–it’s a smaller, 4-6 pin plug with white, gray, and sometimes blue wires. Disconnect this gently by pressing the release tab; reconnecting it improperly can disable the controls. If retrofitting an aftermarket unit, match these wires to the new interface module’s color-coded diagram, typically included in the kit.
Reassemble in reverse order: reconnect all plugs securely, tuck the loomed wires back into their channel, and reattach the mounting brackets. Test all functions–radio, speakers, and auxiliary inputs–before fully re-securing the dash panel. If buzzing or distortion occurs, recheck ground connections and ensure no bare wires touch the chassis or each other.
Color-Coded Connector Guide for Upgraded Audio System Integration
Identify the vehicle’s 12-pin ISO connector by locating the black plastic housing near the factory receiver cavity. The top row (left to right) carries constant 12V (yellow), ignition-switched 12V (red), ground (black), and speaker outputs–front left (gray/white), rear left (tan/brown), front right (gray/black), rear right (tan/dark brown). Verify each lead with a multimeter before splicing.
Aftermarket head units typically bundle the same functions into an 8-pin plug: yellow (battery), red (accessory), black (chassis), and four speaker outputs. Match the colors exactly–deviations in wire gauge or insulation type can damage amplifiers. Strip 5 mm of insulation, twist tightly, and crimp with a closed-barrel connector; solder joints add durability but require heat-shrink tubing.
Critical Power Connections
Fuse the constant power line with a 15-amp ATC blade fuse within 3 cm of the battery terminal. The switched power must toggle with the ignition key; a permanently hot red wire drains the battery overnight. Ground directly to an unpainted chassis point less than 30 cm from the head unit; avoid daisy-chaining grounds to prevent alternator whine.
Factory steering-wheel controls rely on a separate 4-pin white connector: data in (blue/white), data out (blue), resistor network (purple), and ground (brown). Adapter modules like PAC RP4-CH11 preserve these functions–connect each pin per the module’s pinout, not the vehicle side, to avoid protocol errors.
Speaker Wire Termination
Front-door tweeters share the same positive lead as the midrange but split to a lighter gauge wire (0.75 mm²). Splice these directly at the kick panel, not the head unit, to maintain OEM fade/balance settings. Rear fill channels in extended-cab models use a dedicated violet harness–match polarity to avoid phase cancellation, which distorts vocals.
Subwoofer outputs usually appear as a single pair on the primary connector: purple (positive) and purple/black (negative). These lines handle 50 watts RMS; route them separately from speaker wires to avoid induction noise. Shielded RCA cables should run along the driver-side rocker panel, away from vehicle CAN bus wires (twisted orange/green pairs).
Verify all connections with a 5-volt test tone before reconnecting the battery. Static or silent channels indicate reversed polarity–swap leads at the amplifier input, not the head unit. Secure loose wires with nylon zip ties every 20 cm; sharp metal edges can abrade insulation within weeks, causing intermittent shorts.
