Begin by locating the solenoid pinion connector beneath the plastic engine cover–it sits adjacent to the transmission bellhousing on the driver’s side. Disconnect the negative battery terminal first to prevent accidental grounding. The primary power cable from the battery ties directly to the starter motor’s upper stud; trace this thick red cable down to its contact point. If corrosion is present, clean both the cable end and stud with a wire brush before reattaching.
Three smaller wires require attention: the control circuit (thin purple or yellow), the ignition feed (purple with a white stripe), and the engine sensor loop (gray). The ignition feed wire must deliver 12V when the key is turned to “start”; test this with a multimeter at the solenoid plug. If voltage is absent, inspect the ignition switch and neutral safety switch–both common failure points. Replace any brittle or melted connectors with heat-resistant terminals to prevent intermittent faults.

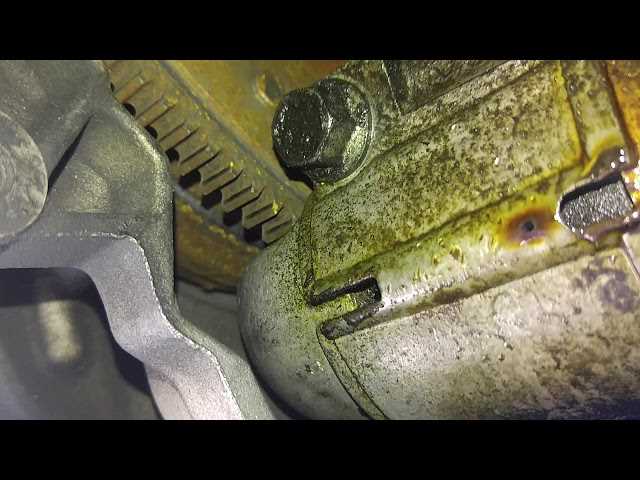

For ground verification, follow the black ground strap from the starter casing to its chassis mounting bolt near the wheel well. Scrape paint from the mounting surface to ensure solid contact. If the motor spins but fails to engage the flywheel, remove the starter assembly and check the pinion gear for worn teeth. Apply dielectric grease to all newly connected terminals before reassembly to guard against moisture ingress.
Use a factory service manual schematic for precise color codes–aftermarket replacements often vary. Avoid splicing wires; rely on approved connectors like Weatherpack or Metripack for long-term durability. If the vehicle cranks slowly, measure battery voltage at the starter terminals under load; a drop below 9.6V indicates either a weak battery or excessive resistance in the positive cable.
Electrical Schematic Guide for Mid-2000s GM Sedan Ignition Circuit
Locate pin S on the solenoid–this connects directly to the ignition switch via a 12-gauge purple wire with a yellow stripe. Verify continuity between this terminal and the battery-positive post during crank: resistance should read under 0.2 ohms. If readings exceed 0.5 ohms, inspect the fusible link (labeled F2 in the under-hood fuse block) for corrosion or heat damage. Replace the link with an identical 80-amp GM part, never a generic fuse, to prevent solenoid failure during cold starts.
Test the neutral safety switch by probing terminals A and B with a multimeter set to 20V DC while shifting into Park and Neutral. Voltage should drop to zero in both positions; any reading above 0.3V indicates misalignment or worn contacts requiring adjustment or replacement. For models with automatic transmission, note the inline pink wire splice–this delivers a 5V reference signal to the PCM; damage here disables fuel injection entirely.
Finding the Engine Cranking Component Terminals
Begin by raising the vehicle’s front end using a stable jack and secure it on jack stands placed under reinforced frame points. The cranking solenoid sits on the driver’s side near the transmission bellhousing–look for a cylindrical unit with two thick cables and a single thin control wire. Trace the red battery cable downward; it terminates at the solenoid’s upper bolt. Label each connection before disconnecting to simplify reassembly.
Identify the terminals using the table below:
| Terminal Type | Wire Gauge | Location Description | Expected Voltage (Key ON) |
|---|---|---|---|
| Battery Input | 4 AWG | Upper bolt on solenoid housing | ~12.6V |
| Motor Output | 2 AWG | Lower stud adjacent to engine block | 0V unless engaged |
| Trigger Signal | 14 AWG | Small spade connector, rear of solenoid | ~10-12V pulse when key is turned |
Remove the air intake duct for unobstructed access–loosen the clamp at the throttle body and disconnect the mass airflow sensor. A 10mm socket removes the solenoid’s protective cover, exposing the three terminals. Use dielectric grease on each connection to prevent corrosion before reconnecting. Recheck torque on bolts: 12-15 ft-lbs for thick cables, 4-5 ft-lbs for the control wire.
Test functionality by momentarily bridging the battery input terminal to the trigger terminal with a screwdriver–listen for a sharp click and smooth motor spin. If absent, verify the ignition switch signals using a multimeter: pin 50 on the switch’s connector should show battery voltage when the key is turned to start.
Locating Supply and Earth Leads in the Cranking System
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. The primary power feed to the motor solenoid typically originates from the ignition switch, routed through a relay or fuse block. On most platforms, this line carries 12 volts when the key is turned to the crank position–verify with a multimeter set to DC voltage, probing the connector while an assistant operates the switch.
Trace the main supply cable from the solenoid back to its source. Expect a thick gauge wire, often red or purple with a protective sleeve, terminating at either a fusible link or a high-amperage fuse. Some models split this feed into multiple branches, one feeding the hold-in winding and another the pull-in winding–use a test light to confirm continuity while cranking, ensuring both receive voltage simultaneously.
The earth return path is equally critical. Locate the engine block mounting point for the motor housing; this serves as the primary ground. Look for a braided strap or heavy-gauge wire bolted to the block, often ending at the chassis rail. Corrosion or loose connections here degrade performance–scrub contact surfaces with a wire brush and apply dielectric grease before reassembly.
Secondary grounding may occur through the transmission bellhousing. If the main engine block connection appears intact but issues persist, inspect this pathway. Remove the inspection cover on automatic transmissions to access the torque converter’s ground strap; on manuals, check for a dedicated stud connecting the housing to the chassis.
Avoid relying solely on wire color codes, as aftermarket repairs can alter schematics. Instead, use a continuity tester to verify each circuit’s integrity from the solenoid’s terminal posts back to their respective sources. For the power feed, measure voltage drop across the entire length during cranking–values exceeding 0.5 volts indicate resistance issues requiring wire replacement or terminal cleaning.
If the system includes a neutral safety switch or clutch pedal sensor, bypass them temporarily for testing. Jumper the appropriate terminals in the under-dash connector to isolate whether a fault lies in these components or the cranking circuit itself. Record voltage readings at both switch terminals during crank attempts to identify open circuits.
For vehicles with anti-theft systems, a dedicated module may interrupt the power feed. Consult the manufacturer’s pinout for the immobilizer unit; expect a small-gauge wire, often white or yellow, providing a signal to the solenoid control circuit. If this line shows voltage but no cranking occurs, the module may require bypassing or replacement.
Step-by-Step Guide to Testing Relay Circuit Signals
Locate the fuse box under the dashboard or near the engine bay–consult the vehicle’s manual for precise positioning. Use a multimeter set to continuity mode to verify relay socket terminals. Pinpoint the input (85) and output (86) coil terminals, then check for a closed circuit when voltage is applied. If resistance exceeds 100 ohms, replace the relay.
- Remove the relay and place the multimeter probes on terminals 30 (common) and 87 (normally open).
- Actuate the ignition switch briefly–readings should drop below 0.5 ohms. If not, inspect the switch contacts or relay socket for corrosion.
- Test terminal 87a (normally closed) by measuring resistance without ignition–values should mirror terminal 87 during actuation.
Voltage Drop Verification
With the relay installed, probe terminal 30 with the multimeter’s negative lead grounded. Turn the ignition to “START”–voltage should match battery level (12-14V). A drop below 10V indicates excessive resistance in the feed circuit, often caused by loose connections or damaged cables. Repeat the test on terminal 87; readings should stabilize within 0.2V of terminal 30.
- If terminal 87 shows no voltage, disconnect the relay and jumper terminals 30 and 87. If the circuit activates, the relay is faulty.
- For intermittent failures, tap the relay lightly during testing–fluctuating readings suggest internal contact degradation.
Load Testing Procedures
Connect a 12V test light between terminal 87 and ground. Crank the engine–the light should illuminate brightly. Dim or flickering output points to insufficient current delivery, typically due to a weakened solenoid or poor ground. Substitute a known-good relay to isolate the issue.
Monitor terminal 85 during ignition actuation–voltage should spike from 0V to 12V and return to baseline. Prolonged high voltage signals a sticking switch or faulty ECM command. Use a scan tool to verify control module output if manual testing yields inconsistent results.
Mapping the Ignition Relay Cable Route
Begin beneath the driver-side firewall, where the primary power conduit splits toward the engine bay. Locate the thick red feed line emerging from the battery distribution block–trace this 8-gauge cable as it snakes toward the solenoid terminal. At the junction near the transaxle housing, identify the slim violet sensing lead (20 AWG) branching off to the transmission range sensor before the main harness merges with the relay assembly. Secure any chafed insulation with heat-shrink tubing, especially where the bundle passes over the rear engine mount.
Follow the relay’s output side along the inner fender panel: the two 16-gauge purple/white stripes will route downward behind the coolant reservoir, then thread through a rubber grommet into the cab. Inside, these cables terminate at pin 30 of the under-dash fuse box. Verify continuity here–corrosion frequently disrupts the signal path at this junction. For accurate testing, disconnect the battery ground strap first; use a multimeter set to 200-ohm scale to confirm less than 5 ohms resistance across each segment.
Inspect the ground splice at frame rail station ST784–three 10-gauge braids converge here, secured by a 10mm bolt. Scrape away paint and apply dielectric grease before reassembling; a high-impedance connection here mimics solenoid failure. Route temporary jumper cables directly from the positive battery post to the relay’s “S” terminal during diagnosis–if engine cranks immediately, suspect a broken link in the violet lead’s path.
