For immediate results, locate the power antenna wire (typically blue or blue with a white stripe) behind the factory stereo unit. This line carries a 12V signal when the audio system activates and connects directly to aftermarket amplifiers or powered subwoofers for seamless integration. Verify the wire’s function with a multimeter before splicing to avoid damaging the head unit’s internal circuitry.
Identify the illumination wire (usually orange or orange with a green stripe) near the climate control harness. This lead adjusts dashboard backlighting brightness in sync with the vehicle’s lighting system. Connecting it incorrectly may cause either constant dimming or overly bright display, disrupting nighttime visibility. Use a matching 4.7 kΩ resistor if retrofitting LED displays to maintain proper dimming behavior.
Ground connections demand meticulous attention–use the dedicated chassis point (black wire with ring terminal) beneath the center console rather than splicing into existing grounds. Loose or corroded grounding leads to intermittent audio issues, static, or complete system failure. Sand the contact surface to bare metal, apply dielectric grease, and secure with a torque of 8–10 Nm for corrosion-resistant joints.
The speaker wires follow a consistent coding: front left leads (white/gray) and front right (gray/white), rear left (violet/white), rear right (black/violet). Confirm polarity with a 9V battery–brief contact should push the cone outward. Reversing polarity introduces phase cancellation, muddying midrange frequencies. For component upgrades, retain the factory wiring’s OEM gauge (usually 18–20 AWG) to prevent impedance mismatches.
For vehicles equipped with advanced audio options, the data bus (often green or brown) handles automatic volume adjustments and chime signals. Tampering without a compatible interface module risks disabling safety alerts or triggering error codes. Replace the factory stereo with units supporting Toyota’s 4-wire protocol if retaining steering wheel controls–aftermarket harnesses like Metra 70-8114 simplify this process without soldering.
Always disconnect the negative battery terminal before initiating work to prevent short-circuiting sensitive electronics, including airbag systems. Use a memory saver if retaining presets, but avoid leaving it connected longer than 30 minutes. When reattaching connectors, align them fully until an audible click confirms proper seating–partial engagement causes sporadic functionality or overheating.
Factory Stereo Harness Pinout for Sedan Models
Start directly by identifying the connector colors behind the head unit. The 16-pin primary harness uses white (constant 12V), pink/black (switched power), and yellow/blue (illumination). Ground connects to a solid black wire, typically bundled at the chassis near the rear of the dash.
Speaker wires follow this scheme: front left (+) solid gray, front left (-) gray/black stripe; front right (+) light green, front right (-) green/black stripe; rear left (+) solid white, rear left (-) white/black stripe; rear right (+) violet, rear right (-) violet/black stripe. Verify polarity with a 9V battery before crimping.
Aftermarket Integration Shortcuts

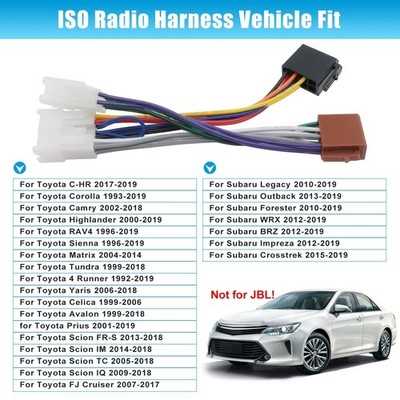

Splice the new stereo’s harness using these color codes–no need for complex adapters. Match pink/black to red ignition wire, white to yellow memory lead, and retain the stock antenna trigger (blue/white) to maintain power antenna function. Skip the dimmer circuit if your aftermarket unit lacks adjustable display brightness.
For amplified systems, locate the factory amp beneath the driver’s seat. The amp harness uses orange (speed signal), pink (mute), and gray/red (data). Disconnecting the amp disables fade/balance controls; substitute with an inline resistor (3.5Ω) on rear channels if audio drops.
Steering wheel controls interface via the Axxess ASWC-1 module. Connect it between the gray 8-pin connector and the new head unit’s SWC input. Program buttons by holding the volume-up key while cycling presets–consult the module’s latest firmware for sedan-specific mapping.
Troubleshooting Hidden Wiring Issues
If static persists, probe the chassis ground connection near the firewall. Sand the contact point to bare metal, then secure with a star washer. Check fuse #14 (10A) for switched power; a blown fuse often mimics wiring failures.
Subwoofer output (if equipped) links to an RCA harness beneath the center console. Cut the factory RCA wires at the midpoint–re-soldering them can introduce noise. Use shielded 18-gauge cable for signal paths longer than 4 inches.
Parking brake bypass requires splicing the green/white wire to ground. For rearview camera input (optional), tap the purple/white wire at the mirror connector. Always wrap splices in heat-shrink tubing and route wires away from moving pedals or HVAC ducts.
How to Find the Audio System Connector Behind the Instrument Panel
Start by removing the lower dashboard cover beneath the steering column. Use a flathead screwdriver to pry the plastic clips securing the panel–apply gentle pressure to avoid cracking the trim. Once detached, set the cover aside to expose the cluster of cables leading to the head unit. Look for a rectangular bundle wrapped in black or gray tape, typically positioned near the climate control vents or above the fuse box.
Disconnect the vehicle’s battery before handling any connectors. The audio harness often shares ground points with other electrical components, and accidental shorts can damage the onboard computer. Locate the negative terminal on the battery, loosen the clamp, and remove the cable entirely. Wait at least 10 minutes to allow residual power to dissipate, especially in systems with capacitors that retain charge.
Trace the bundled cables from the back of the factory stereo toward their termination point. The harness may be clipped to the chassis or tucked behind the HVAC housing–follow it visually or by touch, pulling gently to guide the wires into view. The connector will have anywhere from 8 to 20 pins, arranged in two rows. If obscured, remove the glove compartment or center console trim for better access, noting any screws or hidden fasteners.
Label each wire before disconnecting. Use masking tape and a permanent marker to identify colors and functions–common codes include yellow (constant power), red (switched power), black (ground), blue/white (antenna or amplifier trigger), and green/white (rear speakers). If the harness splits into sub-groups, document their paths. For stubborn connectors, press the release tab with a pick or small screwdriver while wiggling the plug free; force can break the plastic housing.
Factory Head Unit Wire Color Guide: Exact Connections for OEM Harness

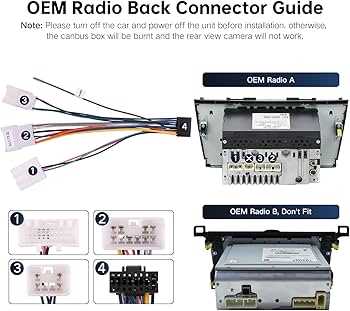

Start by locating the 16-pin harness connector at the back of the stock audio system–it’s rectangular with a locking tab on the right side. Release the tab by pressing inward while gently pulling the connector apart. This reveals the wires you’ll need to match for aftermarket installation or troubleshooting.
Critical Pinout Breakdown: The following table outlines the exact color codes, pin numbers, and functions for each lead. Verify with a multimeter set to DC voltage (20V range) before splicing–incorrect connections can damage fuses or the vehicle’s computer.
| Pin | Wire Color | Function | Voltage (Key ON) |
|---|---|---|---|
| 1 | White/Black stripe | Left front speaker (+) | 4.8V |
| 2 | Gray/Black stripe | Right front speaker (+) | 4.8V |
| 3 | Pink | Ignition power (ACC) | 12V |
| 4 | Yellow | Constant power (Battery) | 12V |
| 5 | Black | Ground | 0V |
| 6 | Light green | Illumination dimmer | Varies (0-12V) |
| 7 | Red/White stripe | Left rear speaker (+) | 4.8V |
| 8 | Blue/White stripe | Right rear speaker (+) | 4.8V |
| 9 | Blue/Yellow stripe | Antenna power | 12V |
| 10 | Green/Red stripe | Speed sensor signal | Pulsing |
| 11 | Brown | Mute control | Low (~0.5V) |
| 12-16 | Various (not used) | Reserved or unused | N/A |
Use a non-powered test light or multimeter to confirm the yellow (constant power) wire maintains 12V even when the ignition is off. The pink (ACC) wire should only show voltage with the key in the “ON” or “ACC” position. Ground the black wire to the chassis–ensure zero resistance to avoid buzzing or erratic behavior.
For speaker wires, match the solid color to the positive (+) lead and the same color with a black stripe to the negative (-). Reversing these can result in out-of-phase audio, reducing bass response and stereo separation. If adding an amplifier, tap into the blue/yellow (antenna power) wire for a switched 12V trigger–this avoids draining the battery when the system is off.
The light green (illumination) wire connects to the vehicle’s dimmer circuit. It adjusts voltage (0-12V) based on dashboard light settings. Connecting this incorrectly causes the head unit’s display to remain fully亮 or flickerdisregardless of dash light adjustments. For aftermarket units, ensure compatibility with variable voltage dimming.
When splicing, use crimp connectors or solder with heat-shrink tubing–never twist-and-tape. Poor connections oxidize over time, causing intermittent failures. For speed sensor signals (green/red stripe), verify with the vehicle in motion; a pulsing signal should register on the multimeter. This wire is critical for features like automatic volume adjustment based on vehicle speed.
Label each wire before cutting the harness–even a small slip-up can fry the fuse box or require a factory reset. If the mute function (brown wire) is active, the system may not produce sound. Check this wire for continuity to ground when engaging hands-free phone features or reverse gear (if equipped).
