Installing a 7-way connector on your full-size SUV requires precise wire integration. Start by locating the vehicle’s factory harness behind the rear bumper, typically bundled with green, yellow, brown, white, and blue wires. Match these to the corresponding harness pins: green (right turn/brake), yellow (left turn/brake), brown (tail lights), white (ground), and blue (electric brake controller). Use a multimeter to verify voltage–avoid splicing directly into the brake light circuit unless compensating for voltage drop.
For auxiliary functions like reverse lights or 12V power, tap into the purple wire (if equipped) or reroute from the fuse box. Connect the black wire (hot at all times) to a dedicated 30-amp fuse using an inline circuit breaker to prevent overloads. Secure grounds to bare metal, sanding paint for maximum conductivity. Test each connection under load–flickering signals often indicate loose terminals or inadequate grounding.
Use heat-shrink butt connectors for splices, crimping firmly before sealing with a heat gun. Avoid solder-only joints; vibrations from towing can weaken them over time. For surge protection, integrate a TVS diode across the brake controller output or install a transient voltage suppressor (TVS) near the connector. If LED trailer lights are involved, add a load resistor (3-6 ohm, 50W) to the circuit to prevent hyper-flashing from the low-current draw.
Document your layout with labeled diagrams–miswired harnesses can trigger false ABS codes or disable stability control. For late-model variants with multiplexed systems, consult OEM schematics to identify CAN bus interference risks. Replace brittle factory wires with automotive-grade tinned copper (10-12 AWG) if corrosion is present, focusing on areas prone to moisture exposure.
Electrical Hookup Guide for Chevrolet Heavy-Duty Vehicle Towing Setup
Locate the factory harness connector behind the rear bumper on the driver’s side, adjacent to the exhaust pipe. This port contains seven pins: three 12V circuits (running lights, left/right turn), two ground contacts, and two auxiliary outputs (brake signal, reverse lights). Verify pin assignments with a multimeter before splicing–factory labels often misalign with aftermarket adapters.
- Pin 1 (White): Ground–must connect to unpainted chassis metal to prevent voltage drop.
- Pin 2 (Brown): Tail lamps–use 18-gauge wire rated for 15A continuous load.
- Pin 3 (Green): Right turn/brake–requires relay for trailers exceeding 3,500 lbs gross weight.
- Pin 4 (Yellow): Left turn/brake–install a diode here if integrating separate brake controllers.
- Pins 5-7 (Blue/Red/Black): Auxiliary outputs–blue carries 12V brake signal; red (reverse) and black (battery hot) should fuse at 30A and 40A respectively.
For vehicles with integrated brake modules, disable the rear load-leveling shocks via the instrument cluster menus before connecting. Failure to do so risks false brake activation during highway speeds. Tap into the brake pedal switch using a T-tap connector–avoid splicing into the main harness bundle under the dash.
Test all circuits under load with a portable trailer simulator. Probe each pin for 0.5V or less difference between chassis ground and the pin during operation. Higher readings indicate corroded terminals or insufficient grounding–clean contacts with dielectric grease and sandpaper (120-grit) to restore conductivity.
- Strip ¼ inch of insulation from each wire using a precision stripper (AWG 16-12).
- Crimp terminals with a ratcheting tool; solder joints only if operating in high-vibration environments.
- Seal connections using adhesive-lined heat shrink tubing–avoid electrical tape.
- Route wires through a corrugated loom, securing every 12 inches with nylon zip ties.
- Label each wire at both ends with fade-resistant markers (mil-spec MIL-M-81531).
For heavy-duty applications, replace the factory 4-way connector with a 7-way modular plug. Match blade profiles to SAE J2863 standards–blade thickness for circuits carrying over 20A must exceed 0.060 inches. Use a torque screwdriver (12 in-lbs) to tighten terminal screws, preventing loosening from thermal cycling. Store spare fuses (blade type: ATO) and a breakout box in the glove compartment for diagnostic purposes.
Finding the Hidden Towing Plug on Your Full-Size GM SUV
Start by removing the black plastic cover on the driver’s side rear bumper–grab a 10 mm socket to unbolt the two fasteners securing it. Behind the cover, a rectangular seven-pin connector sits clipped to the metal frame roughly eight inches above the exhaust pipe; follow the factory harness bundle downward from the rear hatch area to locate it without confusion. If corrosion is visible, apply dielectric grease after cleaning the contacts with a brass-bristle brush to ensure reliable signal transfer.

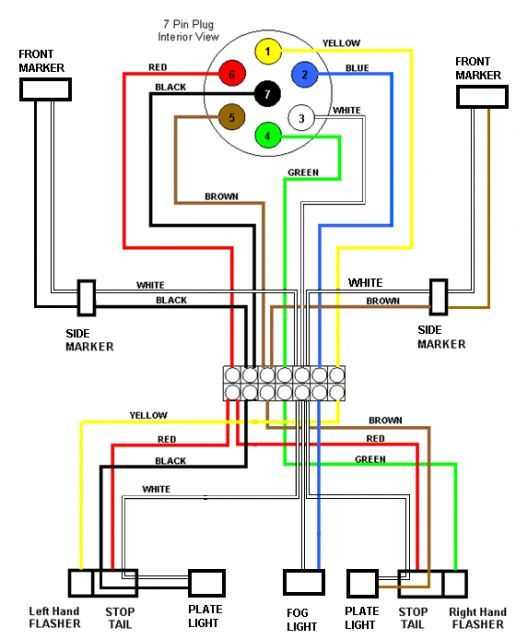

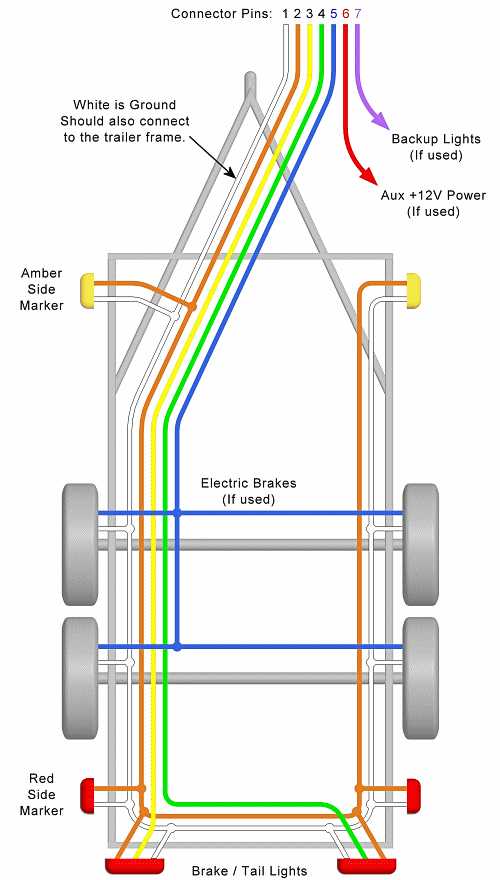

Verify pin functionality with a multimeter: ground on pin one (white wire), brake lights on pin two (brown), left turn on pin three (yellow), right turn on pin four (green), electric brakes on pin five (blue), reverse lights on pin six (purple), and 12V power on pin seven (black with red stripe).
Step-by-Step Guide to Hooking Up a 4-Way Vehicle Connector
Locate the factory tow harness behind the rear bumper on the passenger side–it’s typically bundled with a gray or black plastic cover. Strip ¼ inch of insulation from each wire in the vehicle-side harness using wire strippers, then match them to these colors: yellow (left turn/brake), green (right turn/brake), brown (running lights), and white (ground). Use a multimeter set to 12V DC to confirm each function by probing the wires while an assistant activates the corresponding light or brake pedal.
Align the 4-way plug’s wires with the vehicle leads, twisting each pair together clockwise for maximum contact. Secure connections with crimp connectors or solder for a vibration-proof bond, then cover with adhesive-lined heat shrink tubing to seal out moisture. Thread the tubing over each joint, apply heat evenly with a heat gun until it snugly conforms, and verify shrinkage by gently tugging–it should resist movement. Repeat for all four circuits, ensuring no exposed copper extends beyond the tubing.
Test the setup by plugging in the connector and cycling through all functions–verify left and right signals flash independently, both brake lights illuminate together, and running lights activate without flickering. If voltage drops below 11.8V at any contact, check for corroded ground points near the hitch receiver or frayed wires along the frame rail, using a wire brush to clean rusted metal surfaces before reattaching grounding screws.
Solving Frequent Electrical Problems in GM’s Heavy-Duty Utility Harness
Begin by isolating the ground circuit at the rear lighting connector–corrosion here mimics signal failures. Use a multimeter to verify continuity between the chassis and the white wire terminal; readings above 0.5 ohms indicate a compromised connection. Clean the mounting surface with a wire brush, then apply dielectric grease to prevent future oxidation. If resistance persists, trace the ground path to the frame rail and inspect for paint or rust under the bolt head.
Flickering or intermittent lighting often stems from loose pins inside the seven-way plug. Remove the connector cover and examine each terminal for bent contacts or greenish discoloration. A small flathead screwdriver can gently re-seat recessed pins, while a contact cleaner spray removes oxidation without damaging the plating. Replace the socket housing if pin engagement feels soft or if the locking tab is broken–aftermarket replacements typically use thicker gauge contacts for better reliability.
Voltage drop across the running light circuit shouldn’t exceed 0.3 volts when the system is under load. Test by connecting the multimeter’s positive lead to the brown wire at the junction box and the negative lead to the vehicle’s negative battery terminal while activating the lamps. If the drop is higher, inspect the inline fuse holder for loose wires or melted plastic, and check the harness route for chafing against sharp edges near the spare tire carrier.
Auxiliary circuits for electric brakes or charging require a dedicated 12-gauge red wire directly from the battery’s main fuse. Bypass the factory relay if the voltage at the blue wire is below 11.8 volts during operation–this indicates undersized internal wiring or a failing relay. Upgrade the relay socket to a weatherproof model if moisture ingress is suspected, and secure the new wire with Adel clamps to prevent vibration-induced fatigue near the rear crossmember.
Inspect the harness sleeve for cracks at flex points behind the bumper; moisture intrusion here causes short circuits in the yellow left-turn circuit. Replace damaged sections with heat-shrink tubing instead of electrical tape–apply a heat gun until the adhesive melts to seal the splice. Label each wire with heat-resistant tags before cutting to avoid misconnections, and route replacements through the original grommet to preserve abrasion protection.
Enhancing Your Heavy-Duty Tow Vehicle with a Full Electrical Hookup
Begin by locating the existing connector behind the rear bumper–typically a flat four-pin socket. Remove the factory mounting bracket by unscrewing the two 10mm bolts securing it to the crossmember. Disconnect the harness by pressing the release tab and pulling the plug straight out; label each wire with masking tape for later reference.
Install the new seven-pin universal socket bracket using the supplied 1/4-inch self-tapping screws, spacing them 3 inches apart for stability. Route the vehicle-side harness upward, ensuring it clears the exhaust pipe and fuel tank by at least 4 inches to prevent heat damage.
| Function | Wire Color (Factory) | Gauge | Pin Assignment |
|---|---|---|---|
| Marker Lights | Brown | 18 AWG | 1 (Top Right) |
| Left Turn/Brake | Yellow | 14 AWG | 3 (Bottom Left) |
| Right Turn/Brake | Green | 14 AWG | 4 (Bottom Right) |
| Ground | White | 12 AWG | 5 (Center) |
| Electric Brakes | Blue | 12 AWG | 6 (Left Center) |
| 12V Auxiliary | Black | 10 AWG | 7 (Top Left) |
Strip 1/2 inch of insulation from each wire using a dedicated stripper for stranded copper to avoid nicking. Crimp ring terminals onto the ground (white) and auxiliary (black) leads, then attach them directly to a clean chassis point with a 3/8-inch star washer for corrosion resistance.
For the brake controller circuit (blue), tap into the existing brake light wire at the factory harness. Use a Scotchlock connector for a solderless splice, or solder and heat-shrink for a permanent bond–avoid twist-and-tape methods. Test continuity with a multimeter set to 200 ohms; readings above 5 ohms indicate a poor ground requiring rework.
Route the new harness through the frame rail near the spare tire mount, securing it every 12 inches with UV-resistant zip ties. Use dielectric grease sparingly on each pin before mating the connectors to prevent oxidation. For integration with a brake controller, mount its inertia sensor horizontally on a flat section of frame, away from suspension components to avoid false activations.
Verify all functions with a dedicated plug-in tester before connecting any load. Monitor voltage drop under load–auxiliary circuits should remain above 11.8V while drawing 20A; drop below 11.5V suggests undersized wire or poor connections. Recheck torque on all ground points after 50 miles of towing.
For consistent performance, upgrade the tow vehicle’s charging system if frequent auxiliary loads exceed 30A. Install a 180-amp alternator and relocate the battery to the cargo area for balanced weight distribution. Use 4-gauge cable for the main power feed, fused at 100A within 7 inches of the positive terminal.
