Locate the main fuse box under the dashboard on the driver’s side to begin diagnosing power distribution issues. The IPDM (Intelligent Power Distribution Module) controls critical circuits, including the ignition relay, fuel pump, and ECU. Use a multimeter to verify voltage at pin 30 (red/black wire) of the ignition relay socket–readings should match battery voltage (12.6V+) when the key is in the “ON” position. If voltage is absent, trace the red/black wire back to the 10A IGN fuse (position 15 in the under-dash panel). Corrosion at the fuse terminal is a common failure point; clean contacts with a wire brush and re-test.
For lighting malfunctions, focus on the headlight harness connector (C-104) behind the left front wheel well. The high-beam circuit (white/black wire) and low-beam circuit (white/red wire) split at this junction. Inspect for chafing where the harness enters the A-pillar–rubber grommets often degrade, exposing wires to moisture. A 1A headlight fuse (position 22) protects both circuits; replace if blown, but check for shorts downstream before restoring power. For tail lights, probe the gray/red wire at the rear combination light connector (T-10)–voltage should drop to
The engine control wiring demands precision. The crankshaft position sensor (black/blue wire) requires a stable 5V reference signal; fluctuations beyond ±0.3V at ECM pin B136 (C-8) indicate sensor failure or a broken ground. For oxygen sensor issues, trace the black/white wires from the pre-cat O2 sensors to ECM connector B134. Signal voltages should oscillate between 0.1V–0.9V under load; flatline readings confirm a dead sensor or exhaust leaks upstream. Always disconnect the battery before splicing repairs–accidental shorts to the yellow/black (airbag) or red (SRS power) circuits can trigger diagnostic codes requiring dealer reset.
Heating and HVAC problems often stem from the blower motor resistor (beige/green wires). Remove the glovebox to access the resistor–ohm readings across the terminals should show 1.5–2.2Ω at room temperature. Burnt traces or erratic resistance indicate failure; replace the resistor assembly rather than individual components. For rear defroster, test continuity across the grid lines–broken filaments create visible gaps. Repair with a conductive paint kit, ensuring the rear window’s black defroster wire maintains continuity to the body ground (terminal G-500).
Electrical Schematic for the 2003-2005 Compact Crossover: Hands-On Reference
Locate the primary power distribution box beneath the dashboard on the driver’s side–remove the lower trim panel secured by two 10mm bolts and one plastic clip. Inside, fuse F38 (10A) controls the instrument cluster illumination; swap it with a fresh fuse if gauges remain dark after ignition activation. Use a multimeter set to DC 12V to verify voltage at terminal 1B (yellow/black stripe) of the 12-pin connector behind the speedometer–readings below 11V indicate a corroded ground at chassis point G102, near the brake master cylinder. Clean the contact surface with a wire brush and reattach with dielectric grease to prevent future oxidation.
Trace the oxygen sensor heater circuits by accessing the harness connector beneath the rear seat cushion; lift the cushion and peel back the foam insulation to expose the tan 6-pin plug. Pin 3 (gray wire) carries the signal to the PCM; back-probe it with a scope to confirm a 0.1–0.9V fluctuating waveform at 2,000 RPMs–steady 0.45V suggests a fouled upstream sensor. Replace the sensor without twisting the wires; route the new harness through the existing grommet in the floor pan to avoid chafing against the fuel tank straps. Secure the connector with a zip tie to the lateral body frame to prevent vibration-induced intermittents.
Critical Connector Pinouts and Harness Routing
| Connector | Location | Pin Color (Function) | Expected Voltage | Failure Symptom |
|---|---|---|---|---|
| M6 (White 10-pin) | Behind glovebox | 3B Red (Battery) | 12.6–14.2V | Radio/HVAC inoperative |
| B136 (Black 16-pin) | Driver’s kick panel | 10Y/Blk (Ignition) | 11.5–13.8V (key ON) | No-crank condition |
| I18 (Gray 4-pin) | Passenger inner fender | 1W (A/C Clutch) | 9–13V (clutch engaged) | Compressor cycling erratically |
Disconnect the battery negative terminal before servicing the rear wiper motor–failure to do so risks damaging the delay module integrated into the motor housing. Unclip the tailgate liner by removing six T20 Torx screws and two 8mm nuts securing the wiper arm; the motor’s three-wire connector (black, light green/red, orange/black) mates to the main harness at junction J601. Apply contact cleaner to both sides of the connector, then reseal with silicone dielectric compound before reassembly. Test the wiper’s park function by activating the switch and verifying the blades rest flush with the lower seal–misalignment indicates a stripped gear inside the motor requiring replacement.
For ABS diagnostics, probe the wheel speed sensors at the harness connectors adjacent to each strut tower. Front left sensor (connector L4) uses a four-wire shielded cable; pin 1 (white/black) should read 0.2–1.2V AC at wheel rotation. Low or absent voltage confirms a broken wire within the flexible conduit–split the corrugated sleeve with a razor blade, splice in a section of equivalent 20-gauge wire, and rebond with heat-shrink tubing. Reconnect the ABS module (located behind the master cylinder) only after verifying clean power at terminal 1A (white/red stripe) via the 50A fuse in the under-hood box. Skipping this step risks permanent controller damage from voltage spikes.

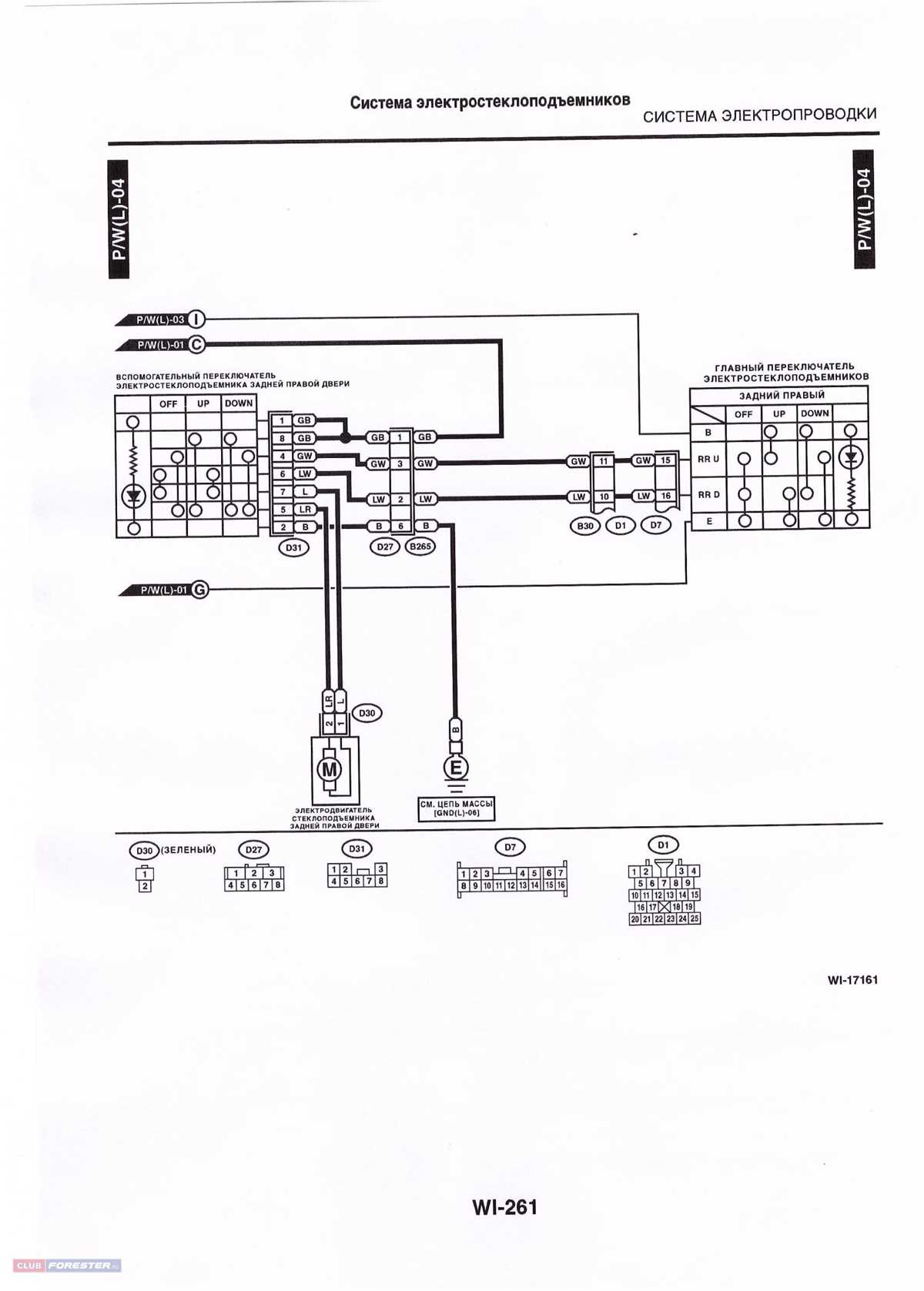

Finding the Full Electrical Schematic for Your 2004 Forester Variant
Download the official service manual from Subaru’s technical information system (STIS) at techinfo.subaru.com. Registration requires payment, but it’s the only legal source for factory-approved schematics. The electrical section spans pages 84-1 through 84-87 in the 2004 edition, covering every circuit from the main fuse block to sensor connectors.
Locate the annotated fuse layout on page 84-3. It reveals five fuse panels:
- Main under-dash panel (drivers left side)
- Under-hood box near battery
- Rear cabin fuse block
- ECU junction beside glove box
- Optional trailer harness relay box
Each fuse number corresponds to distinct color-coded wires labeled on the schematic.
Purchase a Haynes Repair Manual (ISBN 1-56392-584-5) for a condensed version. While less exhaustive, it includes critical diagrams like:
- Engine bay harness routing
- Passenger compartment ground points
- Headlight switch pinout
- O2 sensor circuit paths
These simplified charts omit less frequented branches but preserve primary node connections.
Extract the body harness illustration from the Subaru Select Monitor CD-ROM (part #Y0XC0877A). Insert the disc into any Windows XP machine, navigate to /Diagrams/Body, and open BH-Z52_A.pdf. This 11-page document isolates the entire body wiring system, including door actuators, interior lighting, and keyless entry components.
Identify the engine control module pinout in the engine section of the service manual. Pages 84-15 through 84-17 detail the 16-pin green connector and 22-pin black connector:
- Pin 1 (red/black) – ignition input
- Pin 4 (white/red) – MAF sensor
- Pin 7 (green/white) – camshaft position sensor
- Pin 12 (yellow/black) – throttle position sensor
Error codes reference these exact wire colors.
Consult the Trailer Wiring Supplement if your variant includes optional harness. The schematic appears on a standalone 4-page insert at the end of the manual. Key takeaways:
- Ground strap bolts to chassis rail behind passenger wheel well
- 7-way connector pin assignments match SAE J560 standard
- Fuse #27 (15A) powers auxiliary circuits
Omission of this diagram risks improper tow package integration.
Acquire a physical Subaru wiring color code guide from eBay sellers listing item #SOA645MPB23. This compact booklet decodes all European wire identifiers:
- B = solid black
- Br = brown striped
- Lg = light green
- V = violet
- W = white
Traditional American color charts reverse striped and ground wire conventions for this model year.
Verify wire gauge specifications in the Harness Manufacturing Manual (available through Subaru wholesale dealers). Most circuits utilize:
- Primary power (fuse → relay) – 2.0mm²
- Sensor signals – 0.5mm²
- Lighting loads – 0.85mm²
Inferior replacements accelerate voltage drop and intermittent failures.
Identifying Key Electrical Components in the Vehicle’s Circuit Layout
Trace the main fuse box first, typically mounted under the dashboard or near the engine bay. Locate the legend on the cover–each fuse number corresponds to a specific circuit, such as the headlamp relay, ignition coil, or fuel pump. Verify amperage ratings: 10A for interior lights, 15A for the radio, 20A for heated seats, and 30A for the cooling fan. Use a multimeter set to continuity mode to confirm fuse integrity without removing them.
- Label each fuse with the component it protects using masking tape and a fine-tip marker.
- Check for corrosion on fuse clips–clean with electrical contact spray if resistance exceeds 0.5 ohms.
- Replace blown fuses only after confirming the root cause; repeated failures indicate a short or overloaded line.
Follow power distribution from the battery’s positive terminal to the starter solenoid, alternator, and then the junction block. The alternator output wire should measure 13.8–14.4V when the engine runs; deviations point to faulty voltage regulation. Use a wiring harness map to identify color codes: red for constant 12V, black/yellow for switched ignition, and green/black for grounding points.
Inspect relay sockets–common failure points. Remove each relay and test with a known-good unit or a relay tester. The horn, A/C compressor, and fuel pump relays share similar pinouts (85: ground, 86: trigger, 87: output, 30: input). Swap relays between slots to isolate intermittent failures, but note that some systems (e.g., ABS) require exact matches.
- Measure resistance across relay coil terminals–should read 50–120 ohms.
- Apply 12V directly to terminal 86 to manually activate the relay; listen for a distinct click.
- Check for voltage at terminal 30 with the key off; persistent voltage suggests a stuck relay or wiring fault.
Ground points often hide beneath trim panels or near suspension mounts. Probe each ground with a voltmeter set to DC; readings above 0.1V indicate corrosion or loose connections. Scrape away paint to bare metal before reattaching ground wires. Prioritize chassis grounds near the engine bay–these feed critical sensors like the crankshaft position sensor and oxygen probes.
Sensors with three-wire connectors follow a standard pinout: signal (blue/white), 5V reference (white/red), and ground (black/blue). Back-probe these wires with a scanner while wiggling the connector–voltage drops signal broken strands or poor contacts. For resistive sensors (e.g., throttle position), measure resistance across the signal and ground pins; values outside 0.5–4.5kΩ require sensor replacement.
Document every splice and connector in the harness, especially those exposed to heat or moisture. Use dielectric grease on terminals prone to oxidation, such as trailer hitch plugs and trailer brake controllers. Solder and heat-shrink repairs for damaged wires; avoid crimping, which loosens over time. Label repaired sections with the date and repair type for future reference.
Test switch-operated circuits (e.g., fog lights, rear defroster) by activating the switch and measuring voltage at the output terminal. If voltage is absent, check the switch for continuity with the key on. For modules like the body control unit, verify power (red/black wire) and ground (black) before troubleshooting communication lines (CAN high/low). Use a scope to check CAN signal integrity–correct waveforms should show 2.5V idle and 1.5–3.5V transitions.
