Begin by locating the under-dash fuse panel on the driver’s side. Remove the access cover to reveal the factory tow harness connector–a white 7-pin socket labeled TBC (Trailer Brake Controller). If your vehicle lacks this port, splice directly into the black/yellow (brake signal), purple (reverse lights), and brown/white (tail/running lights) wires behind the same panel. Use a heat-shrinked butt connector rated for 16-gauge wire to prevent corrosion.
For the 7-way round connector, route the harness through the frame rail, avoiding sharp edges near the spare tire. Secure the ground wire (white) to an unpainted chassis point at least 18 inches from the battery to eliminate voltage drop. Test continuity with a multimeter between the trailer-side pins and the harness ends–readings should match the color-coded chart below:
Pin 1 (White): Ground (0Ω to chassis)
Pin 2 (Blue/Brown): Brake controller (12V when pedal pressed)
Pin 3 (Green): Right turn/brake (5.5Ω load)
Pin 4 (Yellow): Left turn/brake (5.5Ω load)
Pin 5 (Brown): Tail/running lights (3Ω with lights on)
Pin 6 (Red): Auxiliary power (12V, fuse-rated for load)
Pin 7 (Purple): Reverse lights (12V when shifted)
If auxiliary power is unstable, bypass the factory relay by tapping fused 12-gauge wire directly to the battery terminal. For brake controller integration, confirm the blue wire carries voltage only when the brake pedal is depressed–if not, inspect the B2 fuse (30A) in the under-hood box. Replace the fuse if continuity is lost.
Seal all splices with dielectric grease before reassembling panels. Verify operation by connecting a trailer-side tester or using a helper to observe each function during activation. Address flickering lights by upgrading to a heavy-duty ground kit–cheap OEM grounds often fail under load.
Chevy Truck Electric Connector Guide for Heavy-Duty Towing

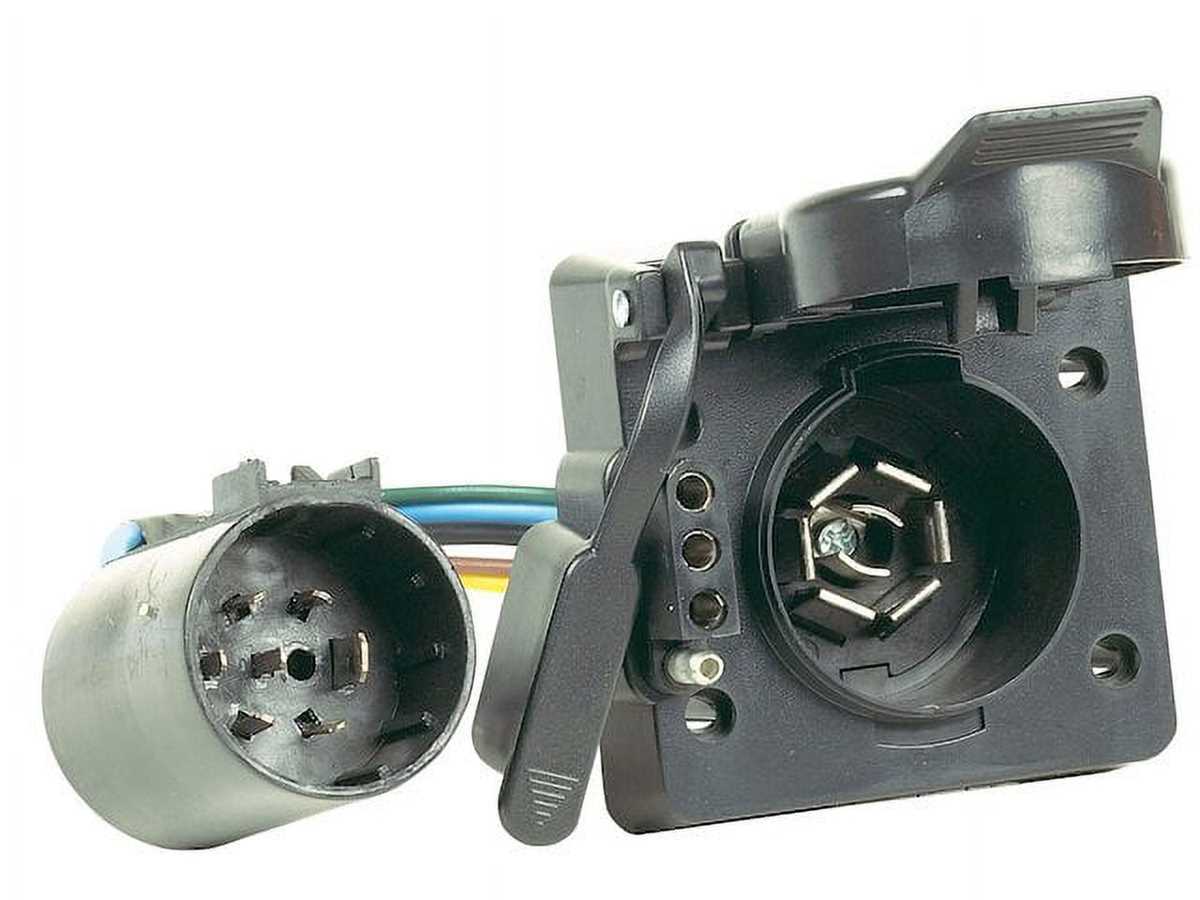

Begin by locating the factory-fitted harness under the pickup’s rear bumper–it terminates in a rectangular seven-pin socket. Remove the dust cap; beneath it, pin positions follow SAE J560 standards: white (ground), brown (running lamps), yellow (left turn/brake), green (right turn/brake), blue (electric brakes), red (auxiliary power), and black (reverse lamps). Verify continuity with a digital multimeter before splicing; resistance readings should not exceed 0.5 ohms.
- Pin 1 (center): Dedicated chassis return–attach directly to unpainted frame rail using a star washer.
- Pin 2: Tail lamps–feed from the tail light circuit fuse box terminal labeled “TRAILER TRL” beneath the dash.
- Pins 3 & 4: Stop-turn signals–tap into the vehicle’s flasher relay via T-tap connectors, ensuring color-coded 18 AWG primary wire gauge.
- Pin 5: Brake controller–run new 12 AWG wire from controller output to socket, safeguarding with a 30-amp fuse within 12 inches of the battery positive terminal.
- Pin 6: Battery charge–route through a relay triggered by ignition “RUN” position to prevent parasitic drain.
- Pin 7: Backup lights–connect to the reverse light positive lead at trunk lamp assembly.
For aftermarket adapters, match pin assignments meticulously; crossover errors result in brake lockup. Install an inline 10-amp fuse on auxiliary circuits to comply with FMVSS 108. Use heat-shrink butt connectors instead of crimp caps for corrosion resistance; apply dielectric grease liberally post-assembly.
Inspect ground integrity every 3,000 miles; corroded connections cause intermittent failures. Replace entire factory harness if visual inspection reveals frayed insulation or greenish oxidation. Store a spare dust cap on-board; moisture ingress degrades signal quality exponentially.
- Disconnect negative battery cable before handling wires.
- Label each wire segment with painter’s tape during disassembly.
- Route wires above exhaust pipes and suspension components to mitigate heat damage.
- Avoid sharp edges–protect with split-loom tubing.
- Secure bundles with plastic zip ties, spaced at 12-inch intervals.
Test functionality with a magnetic LED tester designed for seven-way connectors. Confirm brake controller calibration at 13.5 volts; incorrect settings produce premature trailer component failure. Keep an emergency repair kit containing spare fuses, connectors, and a bypass switch on-board.
Matching the Right 7-Pin Vehicle Socket for Your Heavy-Duty Pickup
Locate the OEM harness adapter under the rear bumper near the tow hitch receiver–it’s a black plastic junction box with a dust cover labeled “GM 1500/2500.” Peel back the cover to expose the seven terminals: ground at 6 o’clock, left turn/brake at 3, right turn/brake at 9, running lights at 12, battery hot (+12V) at 1, electric trailer brake at 7, and auxiliary at 5. Verify each pin’s function with a multimeter set to DC volts; engine running should show 12V on pin 1, while the others should only carry voltage when corresponding lights or brake controllers activate.
Pinout Validation Without Documentation
Cross-reference terminal positions against SAE J560 color codes: white stripe = ground, yellow = left circuits, green = right circuits, brown = marker lamps, blue = brake output, black = constant power, red = auxiliary. If colors deviate (common with aftermarket harnesses), trace each wire to its source–yellow and green split from the rear tail light assemblies, blue routes to the brake controller relay, black originates at the fuse block under the hood (40A “Trailer” fuse), and red terminates at the center console aux switch.
Use a digital circuit tester with a piercing probe to test for continuity between the socket terminals and the corresponding fuses/relays in the under-hood distribution box: pin 1 (black) → maxi-fuse #31 (40A), pin 4 (brown) → fuse #19 (10A), pins 2/3 (yellow/green) → fuses #23/24 (15A each). If any circuit shows high resistance (>0.5 ohms) or no continuity, inspect the wiring loom for chafing where it passes through the frame rails–common failure points include the driver-side rear wheel well grommet and the cross-member junction near the spare tire.
Step-by-Step Color Code Guide for Chevy Pickup Towing Connection
Begin by locating the factory harness behind the rear bumper–it’s a seven-pin round connector, typically black or dark gray. Use a multimeter set to continuity mode to confirm each circuit before splicing.
The standard US configuration assigns these functions to each pin:
- White (Ground) – Must connect to a clean, bare-metal chassis point; corrosion here causes intermittent failures.
- Brown (Running Lights) – Verify voltage (12V) while low beams are on; dimming indicates poor ground upstream.
- Green (Right Turn/Brake) – Test with hazard flashers; should show consistent 12V pulses.
- Yellow (Left Turn/Brake) – Matches the green wire’s behavior but on opposite side; cross-check with a helper activating the brake pedal.
- Blue (Electric Brake Output) – Requires a controller; bench-test with a 9V battery to ensure proper voltage output (typically 10-13V under load).
- Red (Auxiliary Power or 12V Hot) – Often fused at 30A; confirm voltage at pin with ignition on (not all models include this circuit).
- Black (Battery Charge Line) – Direct connection to the vehicle’s positive terminal; ensure a 40A fuse is installed within 7 inches of the battery.
Strip each wire to expose 3/8″ of copper, then crimp using heat-shrink butt connectors–avoid solder alone, as vibration can fracture joints over time. Route wires away from sharp edges or suspension components; secure with zip ties every 12 inches.
Testing Protocol
After assembly, perform these checks in sequence:
- Ground continuity – Probe between white wire and chassis; resistance should read
- Lighting circuits – Activate each function (running, brake, turn) while observing voltage at the connector; a drop below 10.5V suggests voltage loss.
- Brake functionality – Use a trailer brake simulator (or a spare magnet) to verify blue wire output responds to controller input.
For damaged harnesses, replace individual wires with identical gauge (14AWG for lighting, 12AWG for brake/auxiliary circuits). Avoid tapping into taillight wires–this creates voltage drop under load.
If the connector itself is corroded, disassemble the plug housing and clean contacts with electrical contact cleaner. For worn pins, replace the entire socket–aftermarket brass upgrades resist oxidation better than factory tin-plated versions.
Common Pitfalls
Incorrect brake controller installation often triggers ABS faults; ensure the blue wire connects only to the output terminal, not the vehicle’s existing brake light circuit. Additionally, loose grounds cause trailer lights to flicker–attach directly to the frame, not through bolted components like hitches.
For vehicles with a factory tow package, the harness may include a dark green (reverse light) wire–verify its presence before assuming a malfunction. On non-tow-package models, this circuit is typically absent and must be added if needed.
Diagnosing and Verifying the Electrical Connection for Heavy-Duty Towing
Start by disconnecting the vehicle’s connector from the harness and testing each terminal with a multimeter set to DC voltage. Probe the ground (typically the white wire) and compare readings against the reference values below–any deviation suggests a fault in the system or corroded contacts.
| Pin Position | Wire Color | Expected Voltage (Key ON) | Common Issues |
|---|---|---|---|
| 1 | Yellow | 12V+ (fused) | Blown fuse, open circuit |
| 2 (Brake) | Green | 12V+ when pedal pressed | Faulty switch, poor connection |
| 3 | Brown | 12V+ (running lights) | Corrosion at bulb socket |
| 4 | White (ground) | 0V (reference) | High resistance, loose bolt |
Check for voltage drop across the ground circuit by placing one probe on the negative battery terminal and the other on the vehicle-side connector’s ground wire. A reading above 0.5V indicates excessive resistance–clean the mounting point or replace the grounding strap.
For turn signals, activate the left or right circuit and observe the multimeter. If the voltage fluctuates but the bulb remains dark, test the filament continuity with an ohmmeter. A filament resistance above 10Ω suggests a broken filament; replace the bulb immediately.
Isolating Intermittent Faults
Intermittent failures often stem from loose terminals or damaged insulation. Wiggle each wire while monitoring the multimeter–any voltage dip confirms a poor connection. Crimp a new terminal or solder the joint for a permanent fix.
Inspect the harness for chafing near suspension components or sharp edges. Exposed copper wires can short against the chassis; repair with heat-shrink tubing and reroute the harness away from moving parts.
If all circuits test correctly but the issue persists, examine the controller module located under the dashboard. Remove the kick panel and check for burnt traces or swollen capacitors–replace the module if damaged.
