To troubleshoot starting issues on a 1999–2006 GM full-size pickup, begin by isolating the trigger circuit from the power feed. The ignition cylinder sends a 12V signal through the yellow wire (pin 5B, C2 connector) to the body control module. Verify this signal with a multimeter–if absent, check for corrosion at the steering column bulkhead connector or a broken wire inside the column housing.
Power for accessories and cranking comes from the red/light-blue wire (pin 5A, C1 connector), fed directly from the under-hood fuse block (fuse #10, 40A). A melted fuse indicates a short in the starter relay circuit–probe the purple/white wire (pin 86, relay socket) for battery voltage. If missing, trace the feed back to the instrument panel fuse box (fuse #29, 15A).
Ground paths are often overlooked. The starter solenoid relies on a bare braided cable bolted to the engine block–clean the contact surface and torque to 18 ft-lbs. For intermittent no-crank conditions, bypass the neutral safety switch by jumping the dark green/white wire (pin 87, relay socket) to the purple wire (pin 30). If the starter engages, replace the switch or inspect the transmission range sensor wiring.
Diode failures in the park/neutral signal circuit cause erratic behavior. Use a test light to check for 12V on the light green wire (pin 3, T43 connector) when the gear selector is in Park. A flickering light points to a faulty ignition switch–replace the entire cylinder assembly rather than attempting repairs, as internal wear affects multiple circuits.
Always disconnect the negative battery terminal before probing live circuits to prevent accidental shorts. Label each wire with masking tape during disassembly to avoid misrouting during reassembly. Aftermarket harnesses often omit proper shielding–opt for OEM connectors when replacing damaged wiring.
Understanding Electrical Connections in GM Full-Size Trucks
Locate the main harness connector beneath the steering column–black plastic housing with 12 terminals for models built before mid-year production. Pin 1 delivers 12V constant from the battery, labeled PK/BK (pink/black stripe). Pin 2 activates starter relay with YEL/BK (yellow/black) wire. Verify continuity between pin 3 (ORG/WHT) and the instrument cluster for RUN/ACC signal before proceeding.
Trace VT (violet) wire from pin 7 to the anti-theft module–short circuits here mimic key-off drain. If voltage persists at pin 4 (RED) while engine’s off, inspect fusible link near the under-hood junction block. Replace corroded terminals with gold-plated connectors, crimped at 18-20 in-lbs torque, not soldered. Heat-shrink tubing must cover entire joint to prevent moisture ingress.
For accessory circuits, connect WHT (white) from pin 5 to radio and HVAC controls–intermittent operation indicates frayed sections near the firewall grommet. Pin 6 (BLK) grounds through chassis; sand paint to bare metal and secure with star washer. Avoid common mistake: PK wire (pin 1) also feeds PCM–faulty splices cause hard starts.
Test each segment with multimeter: 0.2V max drop under load confirms clean connections. Factory service manual supplements show splice points–third-party diagrams often mislabel color codes aftermarket. Keep repair records with photos of original positions; one millimeter misalignment disrupts transmission range sensor signal.
Finding the Electrical Connector for Your Chevrolet Pickup’s Starter System
Start by removing the lower dash panel beneath the steering column–it secures with three 7mm bolts and two plastic clips. Follow the thick conduit exiting the key cylinder; it terminates in a rectangular plug with twelve contacts, positioned adjacent to the brake pedal support bracket. The connector’s locking tab sits on the upper side–press it while gently wiggling the plug downward to release. Label each wire before detachment: pink (constant 12V), red (accessory), yellow (starter solenoid), dark blue (ignition feed), and the four lighter wires for the VATS module.
- Dark brown conduit protects the harness; trace it upward to the column shroud if the plug isn’t visible.
- Check for a green ground wire bolted to the firewall near the master cylinder–corrosion here mimics faulty connections.
- Use a non-contact voltage probe on the yellow wire while cranking; absence of reading confirms a breach between cylinder and relay box.
Decoding Harness Colors and Roles in the Vehicle Activation System
Trace the red wire with a white stripe (RW) first–it delivers constant 12V power from the battery to the column assembly, regardless of key position. Verify continuity from the fuse block (typically J-case, 25A) to terminal 5 on the connector under the dash. If voltage drops below 11.8V, inspect for corrosion at the bulkhead connector near the firewall or a fractured wire inside the corrugated loom where it bends at the pedal bracket.
Common Color Codes and Pin Assignments
| Color Combination | Connector Pin | Circuit Purpose | Voltage (Key Position) |
|---|---|---|---|
| Purple (P) | 4 | Accessory feed | 0V / 12V (ACC / OFF) |
| Yellow (Y) | 2 | Starter solenoid trigger | 0V / 12V (START / RUN) |
| Dark Green (DG) | 3 | Run circuit sensor | 0V / 5V (IGN / OFF) |
| Light Blue (LB) | 6 | Voltage sense to BCM | 12V (all positions) |
Locate the black wire (B) at pin 8–it serves as the ground reference for the entire activation module. Secure attachment to the chassis stud near the column mounting bracket is non-negotiable; loose or painted-over connections drop system voltage below operational thresholds, causing intermittent crank-no-start conditions. Use a 10mm socket and dielectric grease to prevent oxidation.
For vehicles equipped with theft deterrent, the orange wire (O) at pin 1 carries serial communication to the security module. Signal integrity is confirmed with a scope reading clean 5V square waves at >1kHz; erratic patterns indicate a failing transponder ring encircling the key cylinder or compromised solder joints on the PCB beneath the shroud. Bypass testing involves bridging the purple and yellow wires while observing the tachometer response–no RPM spike confirms a faulty security output.
When splicing repairs, match gauge size exactly; undersized jumper wires create voltage drop across connector crimps. Tin solder joints with rosin-core 60/40, then seal with dual-wall heat-shrink tubing to prevent wicking. Avoid crimping red-butt connectors on signal wires; they introduce resistance that skews BCM readings during self-diagnostic sweeps.
Step-by-Step Guide to Testing Electrical Key Cylinder Voltage Readings

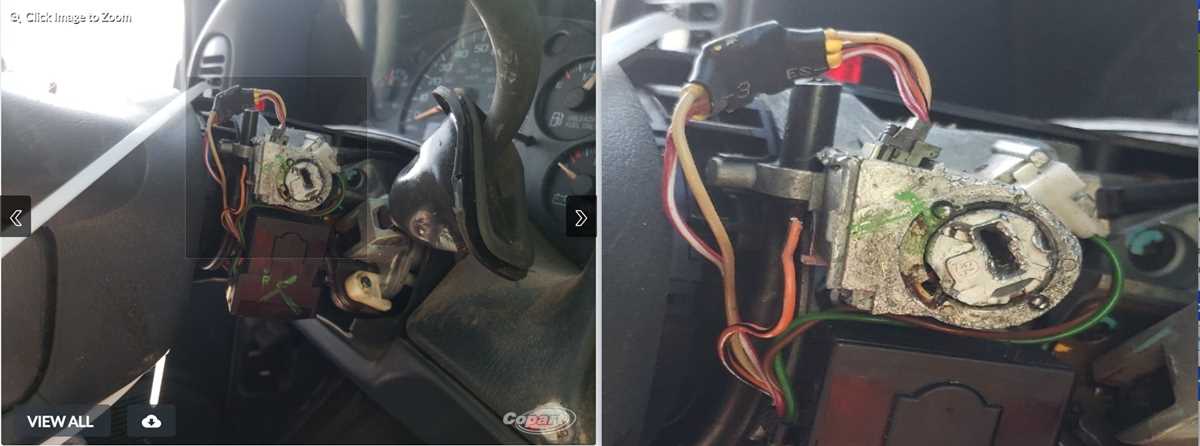

Disconnect the battery’s negative terminal before handling any electrical components under the column shroud. Use a 10mm socket to remove the steering column’s lower trim panel–three bolts secure it. Locate the harness connector at the back of the key cylinder; it’s a 12-pin plug with a gray housing.
Set a multimeter to DC voltage, 20V range. Probe pin 8 (purple wire) for reference ground–voltage should read 0V. If it fluctuates, verify the ground connection at the chassis near the pedal bracket; corrosion here disrupts readings.
Turn the lock cylinder to the “Run” position. Probe pin 3 (pink wire)–expect 12.6V ±0.3V. If low, check fuse #10 (10A) in the under-dash panel; a blown fuse indicates a short downstream. Next, probe pin 5 (dark green/white stripe)–voltage must match battery levels. Deviations point to a faulty relay or corroded splice in the main harness bundle near the firewall grommet.
Rotate the cylinder to “Start.” Probe pin 10 (yellow wire)–voltage should briefly drop below 0.5V as the starter engages, then return to 12V. If it stays high, inspect the neutral safety sensor or starter solenoid contacts. Finally, probe pin 2 (light blue)–it should pulse 8-10V during cranking. No pulse? Replace the ECM ignition feed fuse or test the crankshaft position sensor circuit.
Reassemble only after confirming all readings. Tighten the trim panel bolts to 8 Nm–overtorquing cracks the plastic. Reconnect the battery, then verify no warning lights appear. If the “Security” indicator flashes, recheck pin 7 (brown/white stripe) for a clean 5V signal; variance triggers anti-theft faults.
Common Electrical Failures Leading to Cranking Failures in GM Full-Size Pickups
Check the starter solenoid’s ground connection first–corrosion at the bellhousing mounting bolt disrupts current flow, mimicking a faulty relay. Remove the bolt, clean both surfaces with a wire brush, and apply dielectric grease before reassembly. A voltmeter should read less than 0.2V drop across the connection; anything higher indicates hidden oxidation.
- Inspect the fusible link between the battery and under-hood junction block–melted insulation often shows as subtle bubble wrap texture rather than outright burns.
- Trace the purple feed wire from the steering column to the instrument panel fuse box; chafing against the shift linkage bracket causes intermittent opens.
- Test the crank position sensor supply circuit at pin C101-B4–readings below 11.8V suggest a compromised splice near the driver-side shock tower.
Re-seal the bulkhead connector at the firewall with silicone dielectric compound to prevent moisture ingress; green-tinged terminals correlate with no-crank events after rain. Replace any crimped terminals exhibiting blackened edges–these fail suddenly under load, often at highway speeds.
