For precise troubleshooting or modifications, refer to the factory schematics found in the service manual. The most accurate version divides the system into sections: engine control module (ECM), instrument cluster, lighting circuits, and power distribution. Start by locating fuse box C100 under the dashboard–this is the primary junction for feeds to the ignition, fuel injectors, and cooling fan relays.
Trace the 18-gauge red wire from the main relay to pin 12 of connector C2 on the ECM. This delivers constant 12V to keep memory functions active. If voltage drops occur at this point, check the alternator output (expected: 13.8–14.4V) and the battery terminals for corrosion. Avoid splices–use crimp connectors with heat shrink if repairs are necessary.
Ground points vary by model year variant. The G103 location near the left strut tower handles most chassis grounds, including the audio system and anti-lock brakes. For audio upgrades, follow the shielded pair (gray/black) leading to the head unit connector–these wires require soldered connections to prevent signal interference. Replace any frayed or brittle wiring with TXL-rated copper core matching the original 0.5–2.0 mm² gauge.
When rewiring fog lights, bypass the factory switch by directly connecting the green/white wire from relay 6G to the light green fuse in the under-hood box. Verify operation with a 10A fuse before finalizing. For headlight upgrades, confirm compatibility with H4 bulb sockets–aftermarket HID kits often require relay harnesses due to higher current draw (6–8A).
For engine bay diagnostics, use a multimeter in DC voltage mode. Probe connector C15 (4-wire, near the strut tower) to check sensor feeds: MAF (pin 1, 5V reference), throttle position (pin 3, 0.5–4.5V range), and coolant temp (pin 4, resistance 200–10,000 ohms). Deviations beyond 10% indicate faulty sensors or shorted circuits.
Electrical Schematic for the 2004 Model Compact Hatchback
Begin troubleshooting by locating the main fuse box beneath the dashboard on the driver’s side. The under-hood power distribution center contains relays and high-amperage fuses; check labels on the inside cover for exact component mapping. For interior circuits, reference pin assignments on the BCM (Body Control Module) connector C1–a 42-pin interface with terminals labeled A through R and 1 through 24. Terminal A1 supplies ignition voltage to the instrument cluster, while B4 feeds the rear defogger grid.
Critical Color-Coding Conventions
Power feeds use solid red (constant 12V) and light green (ignition-switched). Ground circuits terminate in black or black with a colored stripe–never splice these; attach at factory grounding points bolted to chassis rails behind the front struts. Orange wires carry sensor signals; resistance readings should fall between 200-1200 ohms on throttle position and mass airflow sensors. Replace any burnt orange wire with 18-gauge TXL insulation to prevent voltage drop.
Verify continuity on the gray 54-pin ECM connector; pins 1-24 handle injector drives, 25-38 manage sensor inputs. A failed rear wiper often traces back to pin 17 on the multifunction switch harness–look for 5.6 VDC when activated. If the cooling fan doesn’t engage, probe pin 42 on the same ECM connector for a 3.9 V PWM signal; absence confirms a faulty fan relay or open circuit in the dark blue/white wire leading to the fan module near the radiator support.
Aftermarket audio integration requires tapping the factory radio harness behind the center console. Connect memory retention to orange/black (pin 12), left front speaker positive to light blue (pin 3), right front to gray (pin 6). Never ground speaker wires; use 0.75 mm² twisted pairs and secure splices with heat-shrink solder connectors to prevent corroded signal degradation.
Locating Critical Electronic Parts in the Compact Hatchback’s Circuit Layout

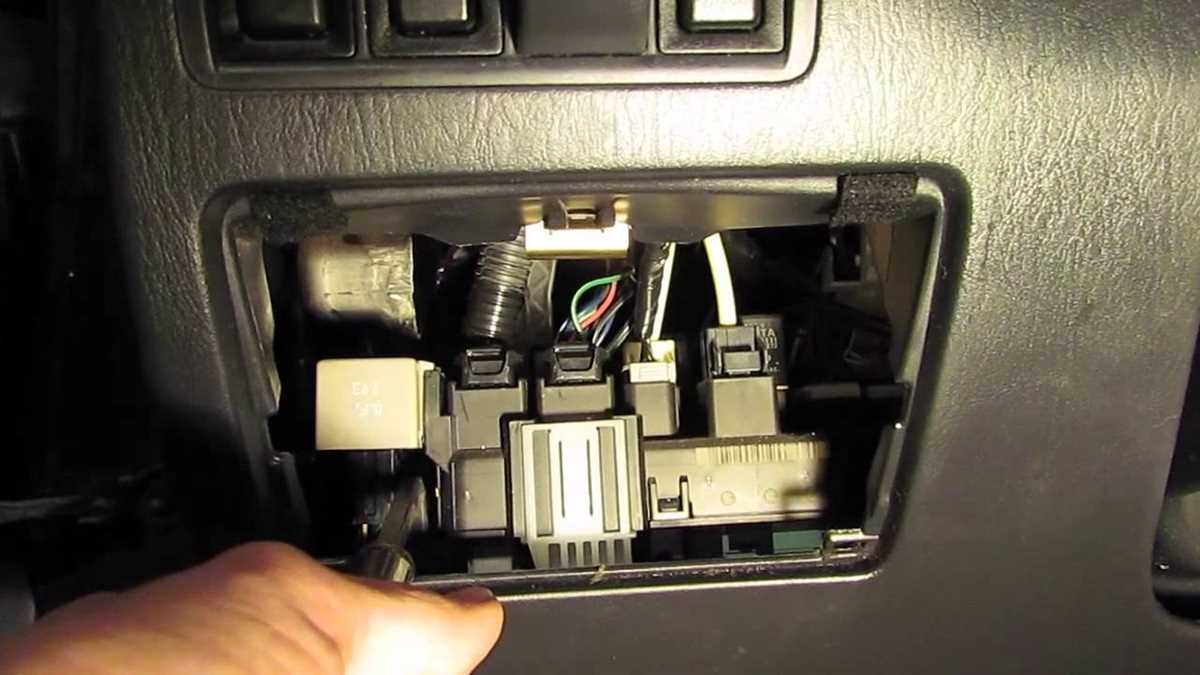

Begin with the fuse block under the dashboard on the driver’s side. Remove the lower panel by unscrewing two Phillips screws to expose the primary distribution point. Label fuses using a permanent marker before extraction–match them against the legend on the back of the panel cover. Pay special attention to slots 12, 15, and 28 as these handle the powertrain control module, instrument cluster, and daytime running lamps respectively.
The engine bay houses the main power relay near the battery tray. Trace the thick red cable from the positive terminal–this leads to the alternator’s output terminal (B+) and branches into the ignition switch via a 10-gauge wire. Check for corrosion at the connection points; clean with a wire brush and apply dielectric grease to prevent future resistance issues.
- Alternator – outputs charging voltage (13.8V–14.4V) via the B+ terminal.
- Starter solenoid – engages flywheel via a heavy-duty 4-gauge cable.
- Ground straps – multiple braided straps connect engine block to chassis; verify continuity.
Locate the body control module (BCM) behind the glove compartment. Disconnect the battery’s negative terminal before handling. The BCM manages lighting, door locks, and alarms through discrete circuits–identify pinouts using a multimeter set to continuity mode. Pin 18 (pink wire) controls the horn relay; confirm 12V present when pressing the horn pad.
The instrument cluster receives signals via a 16-pin connector. Pins 9 and 10 carry CAN bus data–check for proper waveforms using an oscilloscope. If the tachometer or speedometer malfunctions, test the vehicle speed sensor (VSS) mounted on the transaxle. The VSS outputs a square wave signal proportional to wheel rotation; verify with a scan tool at 500–2,000 pulses per mile.
- Remove the cluster by prying off the trim bezel carefully with a plastic trim tool.
- Inspect the back for burnt traces or swollen capacitors–common failure points.
- Reinstall by aligning tabs and pressing firmly until it clicks into place.
The rear defogger grid attaches to the back glass via thin horizontal elements. Test for open circuits with a voltmeter–expected voltage drop is 1–2V across functional segments. Repair breaks using conductive epoxy, ensuring the element is clean and dry before application. The grid’s power feed arrives via a 20-amp fuse in the under-hood panel.
Airbag circuits demand extra caution. The supplemental restraint system (SRS) computer sits beneath the center console. Disconnect the yellow 8-pin connector only after a 10-minute wait to allow capacitors to discharge. Test squib resistance–values between 0.8Ω and 2Ω indicate normal operation. Never probe the airbag inflator directly; use a dedicated SRS scan tool for diagnostics.
Step-by-Step Guide to Locating Electrical Schematics for Targeted Vehicle Systems
Begin by acquiring the official service manual for the model year in question–printed or digital copies are available through authorized dealerships, repair databases like Mitchell1 or AllData, or third-party publishers specializing in automotive documentation. Identify the section labeled “Electrical Troubleshooting” or “System Circuits”, where schematics are organized by subsystem (e.g., powertrain, lighting, instrumentation). For precise targeting, use the manual’s index or table of contents to cross-reference circuit names with component locations; for example, the fuel pump relay wiring typically resides under “Engine Management” or “Fuel System” diagrams, while HVAC controls appear in “Climate Control” sections.
Pinpointing Circuit-Specific Details
| Circuit Type | Diagram Section | Key Components to Trace | Color Codes (Common) |
|---|---|---|---|
| Ignition System | Engine Electrical | Ignition coil, crankshaft sensor, ECU | YEL/BLK (power), GRN/RED (signal) |
| Headlight Assembly | Lighting & Signaling | Fuse block, multifunction switch, bulb sockets | BLK/WHT (ground), RED/BLU (low beam) |
| Anti-Lock Brakes | Chassis & Safety | ABS module, wheel speed sensors, brake pedal switch | WHT (power), ORN/BLK (data) |
| Power Windows | Body & Interior | Window switch, door motor assembly, relay | PPL/WHT (up), BLU/WHT (down) |
Once the relevant schematic is located, isolate the circuit by following these steps: 1) Note the fuse/relay assigned to the system (e.g., Fuse #32 for the O2 heater circuit); 2) Trace the wire paths from the power source to ground, marking nodes like connectors (labeled C101, C202, etc.) and splice points; 3) Verify wire gauge and color using the manual’s legend–abbreviations like YEL (yellow) or BRN/WHT (brown with white stripe) correspond to insulation standards. For verification, use a multimeter to test continuity at connector pins against the schematic’s voltage specifications (e.g., 12V at terminal A, 5V reference at terminal B). If discrepancies arise, cross-check adjacent circuits for shared grounds or parasitic draws, which often manifest as unexpected voltage drops.
Typical Electrical Faults and Their Schematic Clues
Inspect fuse box connections for discoloration around terminal 17 (ignition coil relay circuit) – a telltale blackened halo signals overheating from excessive resistance, often caused by corroded crimp joints or undersized gauge conductors.
Trace the orange auxiliary power line from the under-dash harness to its junction at the instrument cluster. Bulging insulation or melted PVC sheathing at the 90-degree bend near the firewall indicates chronic voltage drop from improper grounding, typically at chassis point G301.
Check the BCM-controlled output wires for inconsistent gauge transitions. A sudden shift from 18AWG to 14AWG mid-run without proper splice protection creates chafing points where wires rub against the HVAC housing, exposing bare copper that triggers random accessory failures.
Look for heat-damaged connectors along the EVAP purge solenoid circuit. The ECU pinout shows terminal 52 should carry 5V reference – melted plastic on pin housing suggests internal shorting from moisture ingress, often traceable to a cracked intake manifold gasket allowing coolant vapor contamination.
Compare the oxygen sensor signal wires against their shield ground counterparts. Greenish oxidation on the shield braid where it meets the chassis ground strap confirms electrolytic corrosion from road salt accumulation, leading to false lean codes despite functional sensor elements.
Examine the turn signal flasher relay wiring for intermittent open circuits. The schematic reveals two parallel branches feeding the hazard switch – a single frayed strand in the purple/white lead will cause rapid blinking in one direction while the other remains functional.
Identify the blower motor resistor block’s power feed wires. Crumbled insulation at the connector interface occurs when 20A continuous load exceeds the original 16AWG rating, causing gradual carbon tracking that mimics resistor failure despite intact components.
Verify the ABS module’s CAN bus wiring topology. The diagram shows a daisy-chain configuration – partial signal loss typically stems from a compromised termination resistor at wheel sensor connector A05, often visible as cracked solder joints under magnification.
