Locate the correct wiring harness beneath the dashboard on the driver’s side–black connector with 12 pins, grouped in two rows. Pin 1 (top-left) carries the constant 12V power from the fuse box (marked “RADIO” or “ACC”), while pin 6 (second row, third from left) provides switched ignition voltage. Reverse polarity here risks frying the unit’s internal memory, so verify with a multimeter before connecting. The ground wire, typically a black or brown cable, must terminate directly to the chassis near the mounting point–avoid daisy-chaining or attaching to painted surfaces.
For the speaker outputs, match the colors precisely: front-left (gray/black stripe) to pin 2, rear-left (gray/white stripe) to pin 3, front-right (green/black stripe) to pin 5, and rear-right (green/white stripe) to pin 8. Swapping these will invert the audio phase, creating a hollow, unbalanced soundstage. If your aftermarket head unit lacks RCA preouts, splice the factory amplifier’s purple harness into the new unit’s high-level inputs–use crimp connectors, never twist-and-tape, to prevent signal loss or corrosion.
Auxiliary inputs, if present, route through the small 8-pin connector behind the climate controls–orange wire (pin 9) carries the left channel, and blue/white (pin 10) the right. For steering wheel controls, retain the factory resistor network by bridging the two yellow wires (pins 4 and 7) to the new head unit’s SWC adapter. Skipping this step will render the volume and track buttons inoperable, forcing manual adjustments while driving.
Before securing the dash panel, test all functions: scan through each input source, adjust fader/balance settings, and monitor for parasitic draw with the ignition off–draw should not exceed 50mA. If the display dims randomly, check the orange illumination wire (pin 12) for intermittent ground; a loose connection here causes flickering during night driving. Lastly, secure all wires with nylon zip ties every 15cm to prevent rattles or abrasion against the sharp metal edges of the footwell.
Installation Guide for Factory Sound System in Compact Hatchback
Locate the aftermarket harness adapter labeled METRA 70-2250 for seamless integration. Cut the existing 12-pin connector at the back of the unit, preserving wire lengths–pink (constant 12V), yellow (switched 12V), blue/white (amp turn-on), and black (ground) are critical. Splice these into the corresponding wires on the METRA harness using solder and heat-shrink tubing; avoid twist-and-tape connections, as vehicle vibration loosens them over time. The antenna lead (typically blue) requires a separate adapter if upgrading to a powered mast.
Color Code Reference for Aftermarket Upgrades
Grey/violet stripe (front left speaker, +), grey (front left, -), white/violet stripe (front right, +), white (front right, -), green/violet stripe (rear left, +), green (rear left, -), purple/violet stripe (rear right, +), purple (rear right, -). Confirm impedance: factory tweeters run 4Ω, subs 2Ω–match amplifiers accordingly to prevent thermal shutdown.
Finding the Original Audio System Connector in Your Compact Hatchback

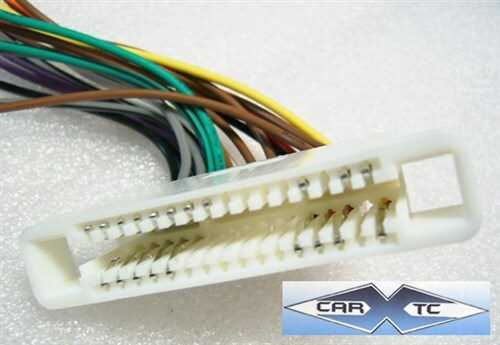

Begin by removing the lower trim panel beneath the climate controls. Two 7mm screws secure it–use a ratcheting wrench to avoid stripping. Gently pry the panel loose with a flat plastic tool, working from the right side outward to prevent cracking the clips. Behind this panel, you’ll expose the main harness bundle; look for a rectangular, 24-pin plug with black, yellow, and light blue wires grouped on the left side.
The harness is typically tucked behind the HVAC housing. If it’s not immediately visible, slide your fingers along the metal frame to the left until you feel the connector’s ridge. Avoid tugging any wires–some models have secondary plugs for the amplifier hidden deeper, which can be mistaken for the primary interface. Disconnect the battery’s negative terminal before handling any connectors to prevent shorts.
Follow these steps to identify the correct plug:
- Locate a cluster of wires exiting the dash behind the stereo cavity; the target plug has a distinct snap-lock tab.
- Check for a label strip on the harness–it should read “AMP” or “MAIN” in faint embossed letters.
- Match the pin count: 12 pins on the top row, 12 on the bottom, with two missing pins in the center.
If the harness isn’t behind the lower dash trim, remove the glovebox next. The glovebox hinges on two 10mm bolts–removing them allows the entire assembly to drop downward. Behind it, near the passenger-side kick panel, a secondary access point reveals a duplicate harness route. The correct plug here sits atop a black foam insulator to dampen vibrations.
Common mistakes include confusing the harness with:
- The HVAC blend door actuator connector–a 6-pin square plug with thin wires.
- The airbag control module–32-pin rectangular with orange safety clips.
- The rear defroster relay–a small 4-pin plug near the fuse box.
Once located, press the release tab on the plug’s top edge while pulling firmly downward. No twisting or jiggling–these connectors are keyed to prevent incorrect installation. If resistance persists, the tab may be partially broken; use a small flathead screwdriver to gently lift the locking mechanism while maintaining even pressure.
A multimeter test verifies the harness:
- Yellow (constant 12V), black (ground), and blue/white (antenna trigger): all should show battery voltage with the ignition off.
- Red (switched 12V) and light green (illumination): only powered when the key is in the “ON” position.
- Grey (front left speaker) and white (front right): should emit a faint popping sound when touched with a 9V battery’s leads.
If the harness is cut or damaged, replacement plugs can be sourced from salvage yards–ensure the pin layout matches exactly. For aftermarket adapters, confirm compatibility with the 2003 Toyota Matrix’s harness (identical platform), avoiding generic “universal” kits that often require splicing.
Matching Aftermarket Head Unit Cables to Factory Harness Colors
Locate the yellow constant 12V lead–it’s often marked with a green stripe in OEM connectors. Connect this directly to your new unit’s permanent power input to maintain memory settings. Skip the white wiper harness, which carries fused ignition-switched voltage; that’s the red wire on most aftermarket kits.
Ground connections demand scrutiny–factory brown or black-brown cables terminate in a single bolt near the dash frame. Secure your new unit’s black ground lead here with a star washer; any paint residue causes intermittent power drops.
Front speaker outputs follow a consistent pattern: light blue pairs (positive) with gray stripes (negative) for left channels, purple pairs with white stripes for right. Avoid relying on labels–meter each with a 9V battery to confirm polarity; reversed leads flip channel balance.
Amplifier triggers use a solid dark green or tan wire; splice this into your aftermarket harness’s remote turn-on lead to sync factory amp activation. If bypassing the amp, cap this wire–an open circuit trips error codes.
Steering control interfaces require adapter harnesses–OEM purple-white or pink wires carry serial data. Verify voltage (typically 3.3V) before connecting; incorrect pairing bricks the multifunction module.
Step-by-Step Removal of Factory Audio System Without Harming Connections
Start by disconnecting the vehicle’s battery to prevent short circuits. Locate the negative terminal–typically marked with a minus symbol–and loosen the clamp using a 10mm wrench. This step eliminates accidental power surges during disassembly, protecting both the device and its attached harnesses.

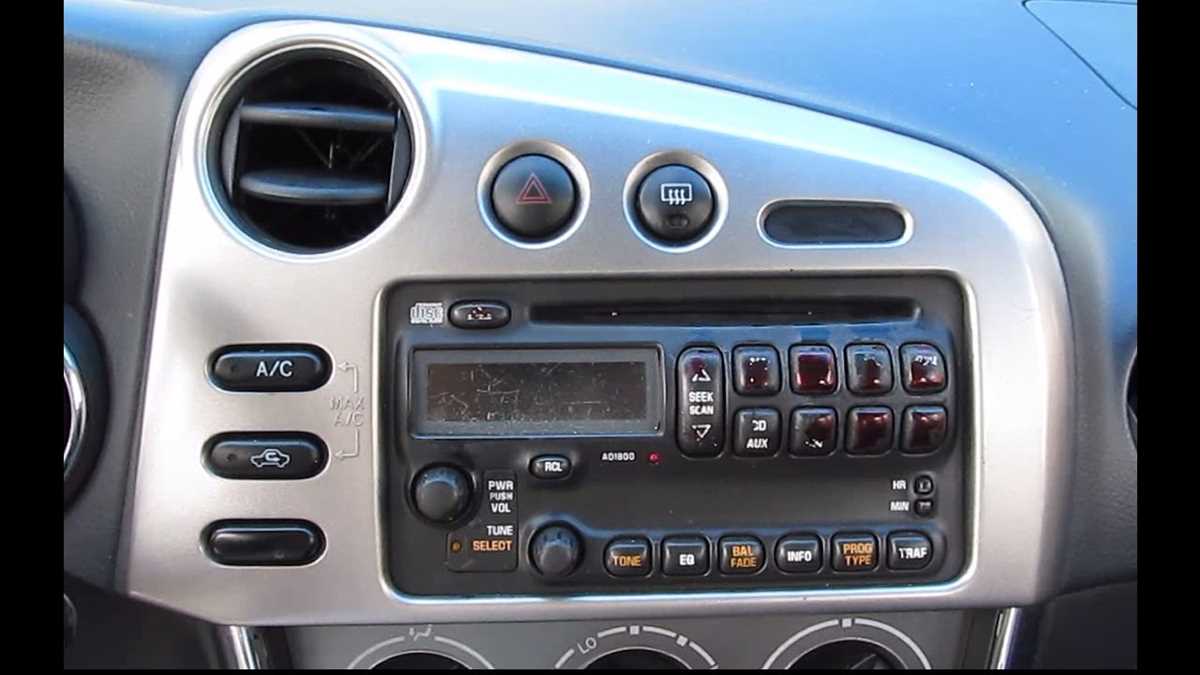

Remove the trim panel surrounding the unit. Insert a plastic pry tool between the panel and dashboard, beginning at a corner where the clips are least secured. Work slowly to avoid snapping retainers; most models use 4-6 plastic clips that release with gentle pressure. If resistance increases, reposition the tool closer to a known clip location rather than forcing it.
Accessing the Mounting Brackets
Slide the climate controls outward if they obstruct access. Some units integrate these into a single faceplate; others require separate removal. Look for release tabs on the sides or bottom–apply even force to push them inward, then lift the panel upward. Keep track of screws (usually Phillips #2) as they vary in length; storing them in a magnetic tray prevents loss.
Detach the factory harness connectors at the back of the unit. Squeeze the locking tabs–located on opposite sides of each plug–and pull straight out. Avoid twisting or angling the connectors, as this can bend pins. For units with antenna cables, press the release button on the coaxial plug before removal to avoid damaging the center conductor.
Final Extraction
Check for auxiliary brackets or security bolts before attempting to slide the unit forward. Some models use screws hidden behind the faceplate or at the top of the chassis–inspect all sides with a flashlight. Once free, rock the unit gently side-to-side while pulling it outward; this prevents snagging on hidden clips. If resistance persists, verify that no wires remain attached to the rear.
Reinstall any removed components in reverse order, ensuring all harnesses click securely into place. Reconnect the battery last, then test functionality before reassembling the trim. If static or power issues arise, recheck connector alignment and pin integrity–misalignment often causes intermittent signal loss.
