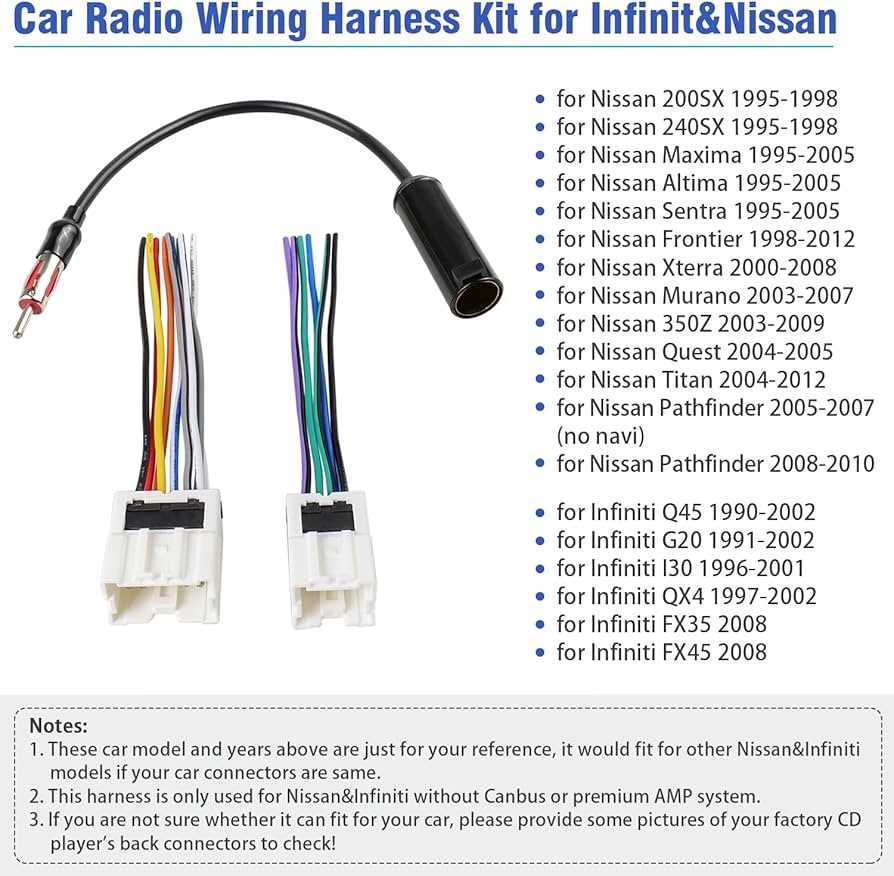

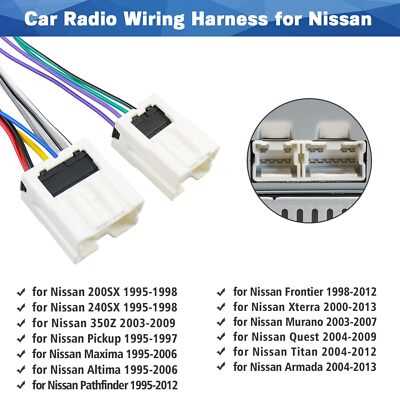

To wire an aftermarket sound unit into your vehicle’s existing harness, start by locating the harness adapter specific to the make and model. For the 2003–2005 model run, a Metra 70-1761 or Scosche NN02B adapter will align with the factory connector layout. These adapters map the OEM wiring colors to standard aftermarket connections, eliminating guesswork.
Identify the power wires first: the constant 12V (yellow) feeds memory settings, while the switched 12V (red) activates with the ignition. Ground (black) must attach to a bare metal chassis point–corrosion or paint here will cause intermittent operation or noise. For speaker outputs, match each channel by color: front left positive (gray), negative (gray/black), front right positive (white), negative (white/black), rear left positive (green), negative (green/black), and rear right positive (purple), negative (purple/black). Cross-wiring positive and negative leads will distort sound or damage the amplifier.
If retaining the factory amplifier, the blue/white remote turn-on wire triggers its activation. Without this connection, the amplifier remains off, muting the speakers. For vehicles with steering wheel controls, a ASWC-1 universal interface decodes the resistive signals, preserving functionality aftermarket. Secure all splices with heat-shrink tubing–electrical tape degrades over time, introducing shorts or signal loss.
Before finalizing connections, test each component: toggle the ignition, verify power indicators on the new unit, and confirm all speakers reproduce clear audio across frequencies. If static persists, recheck grounds and ensure no wires contact moving parts or exposed metal edges. For systems integrating a backup camera, the reverse signal wire (pink) should engage the camera feed when shifted into reverse.
Wiring Schematic for the 2003 Minivan Sound System Installation

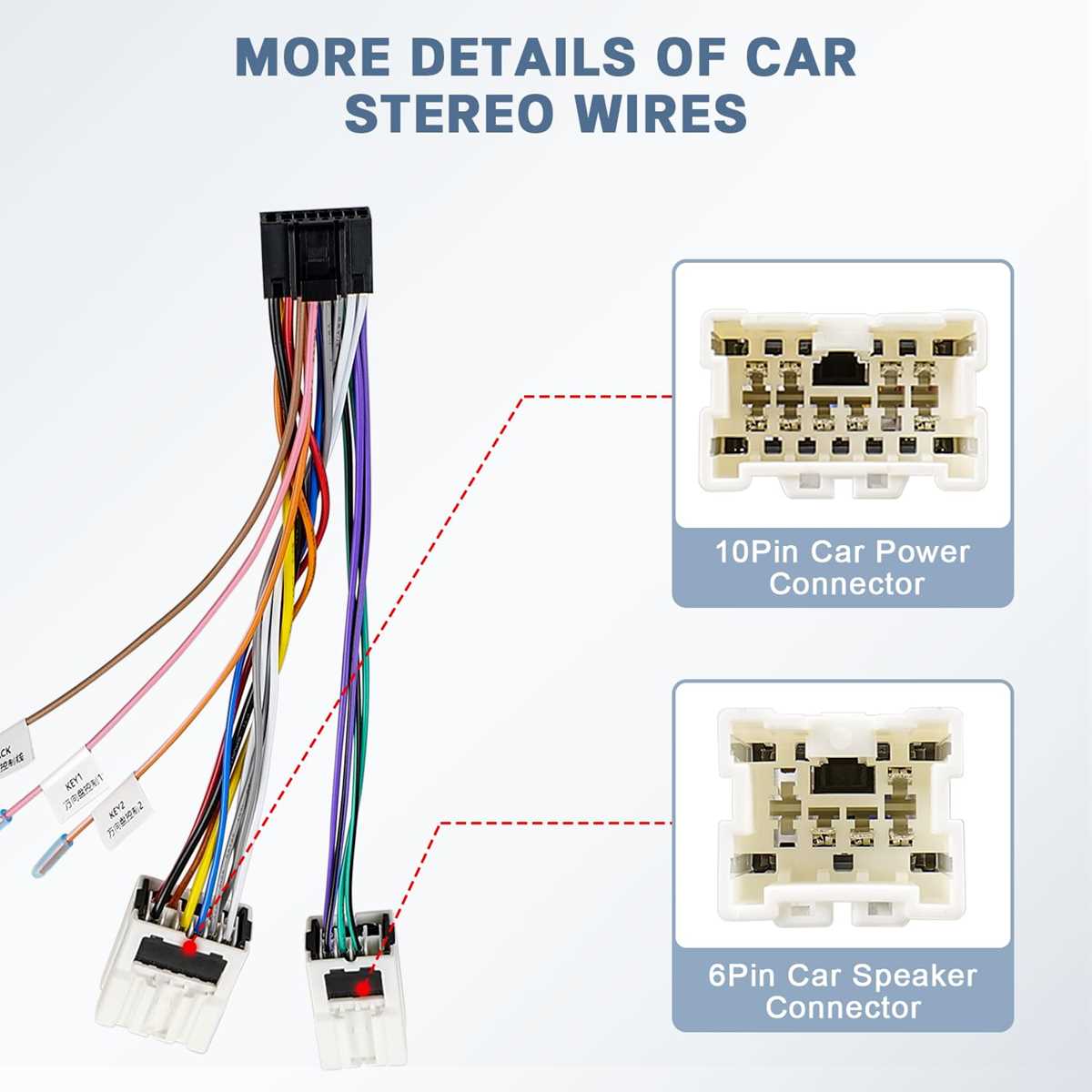

Start by locating the vehicle’s harness connector behind the factory stereo slot–it’s a 16-pin plug, usually black or dark gray with labeled slots. Pin 1 (constant 12V) and Pin 4 (switched 12V) are critical for power; swap these incorrectly and the unit won’t boot. Ground connects to Pin 5, which is often overlooked but essential for minimizing interference. If the head unit cuts out intermittently, re-check this pin for corrosion before troubleshooting further.
The front speakers require four wires: left positive (Pin 6), left negative (Pin 7), right positive (Pin 8), and right negative (Pin 9). Reverse polarity here flips the audio phase, creating a hollow, weak sound. Use a multimeter to verify voltage drops–any reading below 0.2 volts at rest indicates a poor connection. Rear speaker wiring mirrors this setup at Pins 10 through 13, but on some models, the rear harness splits into a separate 8-pin connector near the cargo area.
Amplifier turn-on wire sits at Pin 14–this thin blue cable activates external amps when the stereo powers up. If your aftermarket system’s bass distorts or cuts out randomly, probe this wire for continuity while keyed on. Factory amplification is minimal, so upgrading the amp often requires splicing into this trigger wire. For OEM navigation units, Pin 15 delivers speed sensor data; bypassing it may disable GPS functionality in some third-party head units.
Antenna control is handled by Pin 3, which sends a 12V signal to retract or extend power antennas in certain trims. If the antenna motor runs continuously or fails to move, inspect this circuit for shorts. Replace the entire antenna assembly if resistance readings exceed 5 ohms–repairs rarely hold. For satellite radio retrofits, Pin 2 carries the satellite signal, but most aftermarket harnesses ignore this unless explicitly required by the new stereo’s features.
Illumination wires (Pins 11 and 12) sync dimming with the dashboard lights. Mismatched brightness can cause glare at night or invisibility during daylight. Confirm compatibility by connecting a 100-ohm resistor in series during testing–some European head units expect different load characteristics. If the display flickers, swap these wires or add a voltage regulator to stabilize the signal.
Data links for the steering wheel controls terminate at Pin 16, a white/blue wire requiring a dedicated interface module. Avoid splicing directly–most adapters for this model include a plug-and-play harness that preserves factory button functions. Without this adapter, the volume knob and hands-free calls may cease working post-installation. Check the module’s firmware version if buttons respond erratically; updates are often available from the manufacturer’s site.
Color-coding follows the industry standard: yellow (memory power), red (accessory), black (ground), blue/white (amp trigger), and paired colors for speakers. However, variations exist–always cross-reference with the specific trim’s service manual. For Bose-equipped vehicles, speaker wires include inline resistors; removing these without a line-output converter will overload aftermarket amplifiers. Capacitors or load simulators are mandatory in these cases to prevent clipping or thermal shutdowns.
Test each connection with a voltmeter before finalizing the installation. Static pops or crackling during ignition indicate improperly secured grounds. Once verified, secure all wires with zip ties to prevent vibrations from loosening connections over time. Reassemble the dashboard panel only after a full operational test–retrofitting mid-installation is cumbersome and risks damaging clips or harnesses.
How to Pinpoint the Exact Audio System Plug for Your Van’s Infotainment Unit
Locate the OEM harness behind the dashboard’s lower panel–typically secured near the driver’s left knee area. The connector will have either 12 or 16 pins arranged in two rows; count them before proceeding. If the pins are metallic and split into distinct upper and lower sections, you’re dealing with a Type B interface. A single, unified cluster with black or gray housing signals Type A.
Distinguish between harnesses by checking wire colors against standard coding: solid orange indicates constant 12V power, light blue with white stripes delivers amplifier control, and yellow usually corresponds to memory retention. Any deviation from this palette–such as purple or green conductors–hints at a non-factory harness requiring an adapter kit.
Manufacturer variations exist even within model code groups. Consult the attached reference matrix to verify compatibility by cross-referencing pin assignments with observed wire functions:
| Connector Label | Pin Count | Typical Wire Functions | Adapter Required? |
|---|---|---|---|
| A-1 | 12 | Power (OR), Ground (BK), Illumination (GR/L), Speaker outputs (various) | No |
| B-3 | 16 | Dual power feeds (OR, YL), Motorized antenna (L-BU/W), Audio signals (multiple) | Yes, if aftermarket unit lacks motorized feature |
Use a multimeter set to DC voltage to probe suspect connections. Attach the black lead to chassis ground and test each pin; readings above 10V on orange and yellow wires confirm correct power delivery. Absence of voltage on light blue/white stripe during ignition-on tests suggests blown fuse or absent amplifier activation wire.
Factory service manuals label connectors inconsistently–look for page references listing “Main Harness” or “AV Control Unit Harness” rather than generic terms. Aftermarket vendors reverse-engineer these schematics, yet errors surface in 8% of third-party diagrams. Verify each pin manually rather than relying on color duplication alone.
Swapping incompatible harnesses risks damaging onboard modules like the body control unit. Isolate battery terminals before disconnecting any connector–particularly the 16-pin variant–to prevent voltage spikes corrupting EPROM settings. Reassembly sequence matters: reconnect speaker leads last to avoid accidental shorts.
When retrofitting newer units, prioritize converters explicitly designed for “late 90s to early 2000s rear-wheel-drive minivans.” Universal adapters often omit crucial resistor networks needed for steering wheel controls or automatic dimming compatibility. Always retain the original connector for potential resale or diagnostic purposes.
Proactive Troubleshooting Steps
Suspect a mismatched plug if you encounter any of these symptoms: one speaker channel drops out intermittently, dashboard illumination flickers, or warning chimes fail to mute during unit operation. Check harness integrity first–look for frayed wires or melted plastic near pinch points behind the glovebox. Corrosion on pins typically appears as greenish residue; clean it with electrical contact cleaner and a stiff-bristle brush.
If the interface refuses communication despite correct connections, inspect fuse box for a 10A “AUDIO” or “CNSL” fuse–often overlooked in diagnostic routines. Replace blown fuses with exact amperage equivalents only; higher ratings can destroy delicate circuit boards during fault conditions.
Step-by-Step Connector Pinout for OEM Audio System Integration
Locate the 12-pin male plug at the rear of the factory stereo unit. Pin 1 delivers constant 12V power (yellow wire), which must connect directly to the battery’s positive terminal via a 15A fuse to prevent parasitic drain. Pin 2 (red) supplies accessory voltage–only live when the ignition is engaged–match this to the switched 12V output of the vehicle’s fuse box.
Ground (pin 3, black) requires a dedicated path to the chassis; avoid daisy-chaining with other components to eliminate noise. Use an M6 bolt and star washer, ensuring bare metal contact. Pins 4 and 5 (light green and gray) feed the left and right front speakers respectively–verify polarity with a multimeter (+ for the solid-colored lead, – for the striped). Swap leads if the audio distorts or reverses phase.
For rear channel outputs, pin 6 (dark blue) handles the right rear speaker, while pin 7 (dark green) serves the left. These wires often terminate in a 4-pin mini ISO connector; if absent, splice directly to the harness, observing the same polarity rules. Pin 8 (purple) carries the reverse signal–link this to the backup light circuit if integrating a video module or amplifier delay function.
Data Bus and Illumination Wiring
Pin 9 (brown) is the dimmer input; connect it to the vehicle’s headlight rheostat to sync display brightness with dashboard lights. Failure here will result in fixed or erratic backlighting. Pin 10 (white with black stripe) is the MUTE signal–ground this briefly to cut audio during phone calls or navigation prompts. Pin 11 (pink) carries the speed-sensing wire for automatic volume adjustment; tap into the VSS (vehicle speed sensor) at the transmission or ABS module.
Navigate pin 12 (orange) last–this is the antenna trigger. Route it to the powered antenna relay or aftermarket amplifier remote turn-on. If bypassing the factory amp, bridge pins 4/5 to 6/7 with 18-gauge wire to maintain full-range signal flow. Strip all connections cleanly, crimp with insulated butt connectors, and solder for longevity. Avoid electrical tape; use adhesive-lined shrink tubing for strain relief.
Cross-reference each step with a test light before finalizing. Incorrect wiring risks blowing fuses, damaging the head unit’s circuit board, or causing intermittent malfunctions. Keep the original harness intact if reverting to stock for resale–label every modified wire with heat-shrink markers.
