Start by locating the main harness behind the dashboard’s lower panel on the driver’s side. The 16-pin connector splits into two distinct branches: power (red/yellow wires) and ground (black). Confirm continuity between these points and the fuse box using a multimeter–resistance should read below 0.5 ohms. Anything higher indicates corrosion or a faulty connection requiring immediate cleaning or replacement.
Trace the speaker outputs through the 12-pin auxiliary harness. Front left pairs orange/white and gray/light blue; rear right matches purple and green. Cross-reference these against the manufacturer’s color code chart to avoid miswiring–swapping lines reduces audio clarity by up to 40%. Solder connections instead of twisting to prevent signal degradation over time.
If retrofitting an aftermarket unit, bypass the factory amplifier by rerouting the 12V accessory wire (pink) directly to the ignition circuit. Failure to do so may drain the battery within 48 hours of disuse. Install an inline fuse (max 15A) on this line to prevent electrical fires. For complex setups, use a relay to handle higher current demands safely.
Verify antenna function by probing the coaxial lead–center pin should deliver 5V with the key in the “on” position. No voltage suggests a broken connection at the head unit or a blown fuse in the trunk’s left-side panel. Replace faulty components rather than attempting repairs, as internal shorts often recur.
Ford Pony Car Audio System Harness Guide
Locate the aftermarket connector behind the instrument panel, marked by an 18-pin Metra 70-1761 harness. Identify the yellow (constant 12V), red (switched 12V), black (ground), and orange (illumination) leads–these correspond directly to the DIN standard pinout.
Trace the speaker outputs through the factory harness: front left (+) grey/light blue, front left (-) grey/red; front right (+) white/light blue, front right (-) white/red. Rear outputs follow similar color codes with dark green (positive) and brown (negative) variants. Verify continuity with a multimeter before splicing.
Critical Splice Points
Cut only the accessory harness wires–never the vehicle’s original loom. Use heat-shrink butt connectors for all joints to prevent corrosion. The antitheft bypass wire (solid pink) requires a 4.7kΩ resistor inline if retaining factory security features.
For amplified systems, tap the purple/white (+) and purple (-) leads at the right rear kick panel–these carry the amplified signal from the trunk-mounted subwoofer controller. Ensure proper fusing (15A mini blade) on all power inputs to avoid fire hazards.
Ground the system chassis to the bare metal near the original mounting location. Avoid shared grounds with high-draw components like electric windows or seat motors. Test for voltage drop (should not exceed 0.5V) before finalizing connections.

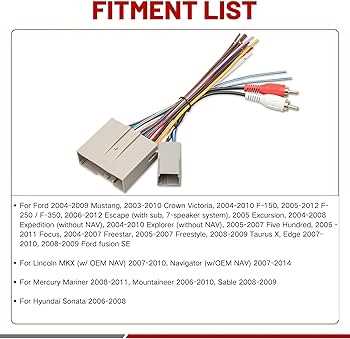

Adapters like the Scosche FD18SR integrate directly, but confirm compatibility with post-factory navigation units–some require additional CAN bus emulation for full functionality. Keep the original harness intact; store it in a labeled ziplock bag behind the new head unit for future troubleshooting.
Finding the Stock Electrical Bundle Behind the Console

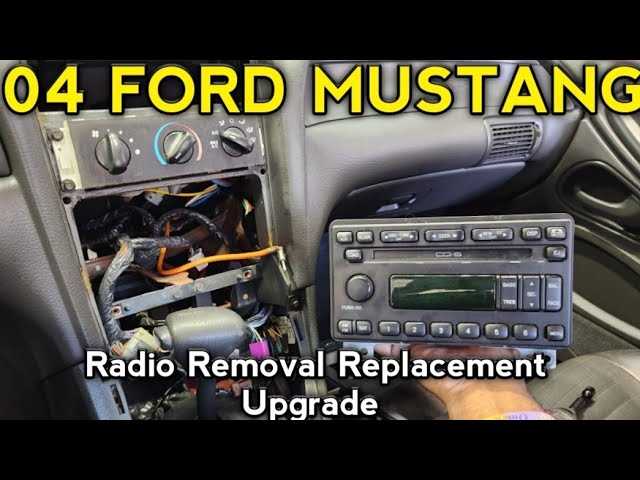

Remove the center dash panel by releasing the four retaining clips along the upper edge–two near the climate controls and two directly above the audio unit. A small flathead screwdriver or plastic trim tool inserted between the panel and the fascia will pop each clip without damaging the tabs. Once detached, tilt the panel forward to expose the main harness connector.
Identifying the Primary Connector
The factory electrical bundle connects via a 24-pin rectangular plug secured by a single locking tab. Squeeze the tab firmly to release the plug, then gently wiggle it free–excessive force risks bending the internal pins. The harness splits into three sub-branches: power feed (red/black wiring), speaker leads (four twisted pairs), and accessory circuits (smaller gauge wires typically orange and yellow).
Trace the harness downward; it routes behind the climate control module and loops around the support bracket. A secondary 8-pin connector for illumination and antenna control sits adjacent–this feeds into the rear satellite tuner if equipped. Avoid pulling directly on wires; instead, follow the bundle toward the firewall to locate splices for aftermarket integration.
Label each branch before disconnecting: use numbered zip ties or masking tape marked with pin functions. The power circuit should measure 12.6V at rest, while speaker wires carry no voltage–verify with a multimeter to prevent shorting sensitive hardware.
Locating Key Signal and Voltage Conductor Hues in Audio Integration
Begin by isolating the permanent 12V feed–this line is typically solid yellow in automotive infotainment harnesses and remains active regardless of ignition state. Verify continuity with a multimeter; expect a steady 12–14V reading to confirm correct identification. Attach this conductor directly to the vehicle’s fuse block using an add-a-circuit adapter, selecting a slot labeled “always hot” (e.g., horn, brake lights). Avoid splicing into accessory circuits, as these will power down when the key is removed, causing memory loss in preset stations.
Ground connections demand equal precision. The primary earth wire is usually black with a thick gauge, terminating at the factory’s central grounding point near the dashboard’s left kick panel. Secure this attachment with a 10mm bolt and star washer to prevent corrosion-induced signal degradation. For aftermarket units requiring multiple ground links, bundle all black leads together using a crimp connector; never daisy-chain grounds, as this risks creating ground loops that introduce noise into audio playback.
Common Conductor Color Codes and Their Functions
| Color | Function | Verification Method | Connection Notes |
|---|---|---|---|
| Yellow | Constant power | Multimeter at 12V+ with key off | Use fuse tap to avoid draining battery |
| Red | Switched power | Voltage present only with key in “ACC” or “ON” | Merge with yellow for permanent power setup |
| Black | Ground | Connect to chassis; 0V reading | Star washers prevent oxidation |
| Blue/White | Amplifier turn-on | Voltage spike when unit powers on | Isolate from direct 12V feeds |
| Orange | Dimmer/illumination | Voltage drops when lights activate | Connect to dash lighting circuit |
| Gray | Front right speaker (+) | Polarity test with 1.5V battery | Avoid shorting to other leads |
| Purple | Front right speaker (–) | Inverts polarity vs. gray | Twist pair with gray for noise rejection |
Speaker leads follow a paired color scheme: white (front left +), white/black (front left –), gray (front right +), gray/black (front right –), and so on. Test each pair with a 1.5V AA battery; a brief pop confirms correct polarity, while silence indicates reversed leads. For rear channels, violet and green replace front colors. Always twist speaker wires–one inch per foot–to minimize interference, particularly in vehicles with long cable runs. If static persists, reroute away from HVAC ducts and ignition coils, which act as electromagnetic noise sources.
Troubleshooting Incorrect Connections
Dim display or intermittent operation signals a misrouted dimmer wire (orange). Reattach it to the vehicle’s lighting switch harness, ensuring the lead remains separate from ignition-controlled circuits. If the unit powers down unexpectedly, suspect a faulty constant power connection; solder joints outperform crimps in high-vibration environments. For no audio output, probe each speaker connection with the battery test again–many installations fail here due to overlooked polarity reversals. Use heat-shrink tubing on all splices to prevent short circuits, especially in humid climates where condensation accelerates corrosion.
Integrating a New Head Unit with Factory Audio Components
Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits while working with electrical connections. Stock speaker terminals in most late-model vehicles use small-gauge wires–typically 18-22 AWG–terminated with crimp connectors or proprietary plugs. Verify each wire’s function by consulting the original system’s color codes; common standards include solid colors for positive leads and striped variants for negatives. If the factory harness lacks documentation, use a multimeter to test continuity by probing each wire while activating tone controls from the dash interface.

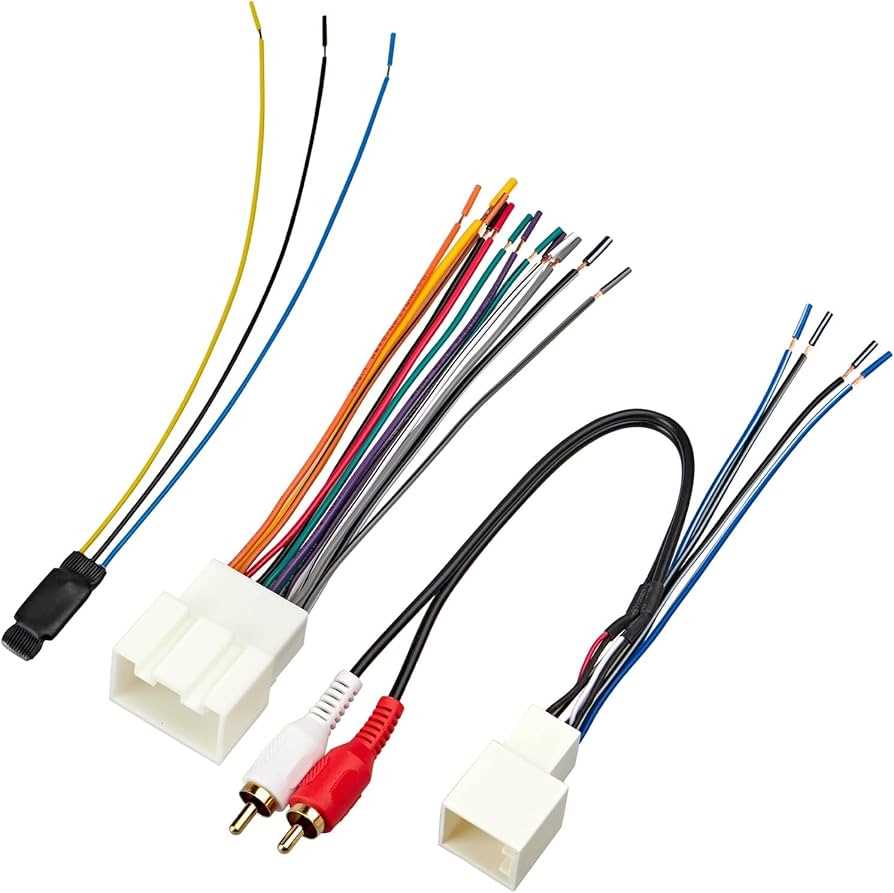

Select an aftermarket harness adapter that matches the factory plug configuration–this avoids splicing into individual wires. Brands like Metra, PAC, and Scosche offer pre-wired harnesses for most makes, ensuring compatibility with OEM amplifiers if present. For vehicles with amplified systems, locate the turn-on lead (usually blue or blue/white) and connect it to the new unit’s power antenna or amp trigger wire to maintain sound output integrity. Failure to connect this lead may result in silent audio or distorted output.
- Connect tweeters last–factory crossovers often integrate directly into door panels or pillars, and improper disassembly can damage these components.
- Test each speaker individually after installation using a 1 kHz sine wave at 50% volume to confirm proper polarity.
- If bass response is weak, check whether the factory system included a dedicated subwoofer output; some models route low frequencies through a separate amplifier channel.
Insulate all exposed connections with heat-shrink tubing or electrical tape to prevent corrosion or shorts. If the new interface loses steering wheel controls, install a resistive-load adapter (e.g., iDatalink Maestro) to retain functionality. For vehicles with fiber-optic MOST bus systems, consult the manufacturer’s pinout diagram–standard copper-wire harnesses will not work, requiring an optical signal converter.
Finalize setup by adjusting the new unit’s fader and balance controls. Factory speakers often have limited frequency response ranges (e.g., 80 Hz–15 kHz for mid-range drivers), so enable the head unit’s high-pass filter (HPF) at 80 Hz for full-range drivers and a low-pass filter (LPF) at 100 Hz for any active subwoofers to prevent distortion. If static or popping occurs, verify ground connections and ensure no bare wires contact the chassis.
