Begin with the engine bay harness. Locate the main power distribution box beneath a protective cover near the battery–labelled Fusible Link Output. Trace the thick red cable (12 AWG) to pin B3 on the ECM connector. Verify continuity with a multimeter set to 200Ω; resistance should read below 0.5Ω. If readings exceed this threshold, inspect the ground strap bolted to the firewall–corrosion here disrupts voltage stability.
Move to the instrument cluster. Remove the trim panel by prying the clips at 3 o’clock and 9 o’clock positions–use a plastic wedge to avoid damage. The speedometer and tachometer share a twisted pair (blue/yellow and green/red) terminating at the Combination Meter (pin 17 and 19). Cross-reference with a pinout chart for an Evo VIII–they share 80% of the connector layout. Solder any frayed wires with 60/40 rosin-core and heat-shrink tubing to prevent short circuits.
For the rear defroster grid, attach a relay to the brown wire (16 AWG) feeding the rear window switch. The relay’s coil side connects to pin 4 of the Rear Defogger Timer, while the contact side taps into the red/black wire (30A fuse). Test activation by holding the defogger button for 15 seconds–the relay should click when engaged. If not, replace the thermal fuse inline with the grid (10A, located behind the parcel shelf).
Address central locking malfunctions by probing the door actuator harness. The driver-side door module (black 10-pin connector) sends signals via a purple/white wire–this splits into individual actuators. Measure voltage at the passenger door actuator (orange/white wire); 12V indicates proper operation. If absent, cut open the rubber boot between the door and frame to check for broken strands–this is the most common failure point.
Lastly, resolve ABS sensor errors by bypassing the stock wiring. The front sensors use a shielded pair (black/white for left; green/white for right). Crimp new connections with gold-plated butt connectors–standard crimps corrode within 18 months. Route the new wires through the chassis grommet near the strut tower, avoiding the steering shaft. Re-calibrate by driving at 30 mph for 10 seconds while pressing the brake pedal to reset the Wheel Speed Sensor memory.
Electrical Blueprint for Pre-Owned Sedans: Hands-On Manual
Locate the main fuse box under the dashboard on the driver’s side–remove the plastic cover by pressing the clips on either end. Pin 12 (red/black) feeds the ignition switch; trace this wire to verify continuity before replacing the relay if the starter cranks but no power reaches accessories. Use a multimeter set to 20V DC; probe the terminal while turning the key–voltage below 11.5V indicates corrosion in the junction near the brake pedal bracket. Clean contacts with 400-grit sandpaper, then apply dielectric grease to prevent future oxidation.
Troubleshooting the Engine Harness
Disconnect the battery negative terminal before inspecting the harness for frayed insulation near the alternator. The thick yellow wire (8 AWG) carries charging current; check for voltage drop across its length by back-probing connectors with the engine running–any reading above 0.5V suggests a loose crimp at the engine block junction. Replace the connector if heat damage is visible. The ECU’s 42-pin plug (gray/white) uses pin 21 (blue/red) for the MAF sensor signal; a weak signal under 0.5V at idle requires cleaning the sensor with CRC Mass Air Flow Cleaner–avoid touching the hot film.
For climate control issues, focus on the dual-zone unit’s 16-pin connector. Pin 1 (black/yellow) controls the blower motor resistor; test resistance between pins 1–4 with the blower set to low–values should range 3.5–4.2 Ω. A reading outside this range means replacing the resistor block, accessible behind the glove box after removing two 10mm bolts. Ensure the recirculation door actuator (brown/white wire) receives 5V reference at pin 6–absence of voltage points to a faulty body control module, which requires reinitialization after replacement via a bidirectional scan tool.
When replacing headlights, note the brown ground wire that terminates at the front fender–corrosion here causes flickering. Strip 5mm of insulation, solder a new 14 AWG ring terminal, and secure it to the chassis with a 10mm star washer. The high-beam relay (black/white) sits in the under-hood fuse box; swap it with the horn relay to confirm failure–both share the same 30A rating. For fog lights, bypass the factory relay with a 150Ω resistor if the dash switch registers 12V but lights remain off, indicating a broken trace in the switch’s PCB.
Locating the Authorized Electrical Schematics for Your 2003–2005 Sedan
The most reliable source for factory-approved circuit blueprints is the Mitsubishi Motors Technical Information System (MMC-TIS). Access requires a paid subscription, but it guarantees unaltered schematics straight from the manufacturer. Visit mmc-tis and filter results by model variant (e.g., “CE” for the base trim, “ES” for the upgraded version). Schematics are grouped by system–engine control, lighting, ABS–so pinpoint the section matching your repair.

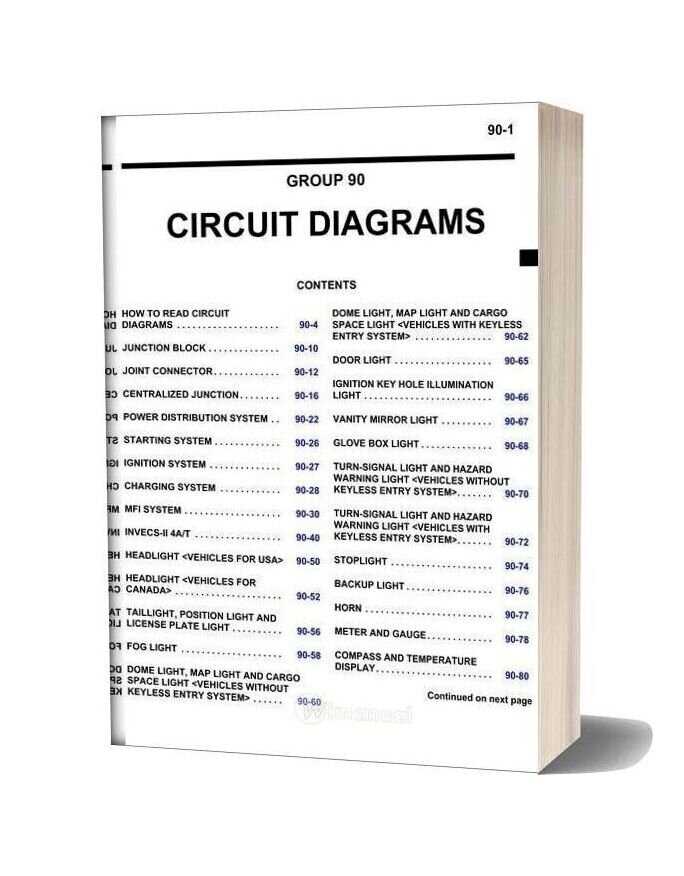

For offline access, consult the official service manual released under part number MSSP-991C. Retailers like Helm Incorporated and Auto Parts Warehouse occasionally stock digital copies. Expect to pay between $25–$40; avoid third-party scans, which often omit ground wiring or splice details critical for troubleshooting intermittent faults.
Alternative Resources with Verified Accuracy
- ChiltonDIY: Their online database includes OEM-derived diagrams for L-series sedans. Subscription tiers vary; their “Total Car Care” package ($19.99/month) covers fusebox layouts and common splice points.
- ALLDATA Repair: Used by dealership technicians, ALLDATA offers single-vehicle access ($29.95/year). Their schematics duplicate factory connector pinouts exactly, including color codes (e.g., “YL” for yellow-black) and wire gauge.
- Forum Archives: The Lancer Register forum hosts member-uploaded PDFs in the “Tech & DIY” section. Vet files by cross-referencing with known good sources–look for posts dated 2015–2018, when verified diagrams circulated.
When using forums or torrent sites, prioritize files with these traits: named according to model year span (e.g., “03-05 CE_ES Wiring.pdf“), sized 2–5 MB (smaller files truncate circuits; larger ones embed malware), and including a table of contents. Avoid ZIPs–decompression often corrupts vector-based schematics.
Quick Validation Steps
- Compare the first page: Official publications start with a title block containing the ECU part number (MD619870 for manual transmissions).
- Check wire color consistency: Factory diagrams use ANSI Z535.1 standards (e.g., “LG/Y” for light green with yellow stripe).
- Verify connector views: Look for labeled cavity diagrams–unofficial schematics often replace these with generic symbols.
If discrepancies appear, discard the file; even minor errors (swapped pins on the ICM, mislabeled grounds) can lead to sensor damage or fuse failures.
How to Read and Interpret the Engine Control Harness Schematic
Begin by locating the powertrain control module (PCM) on the layout–typically marked near the firewall or engine bay. Identify its pinout clusters, often grouped in blocks of 12, 16, or 24 connectors. Each pin corresponds to a specific sensor, actuator, or power feed, labeled with alphanumeric codes (e.g., “C1-17” for connector 1, pin 17). Cross-reference these codes with the legend to determine function: “IG1” may denote ignition feed, while “ECT” refers to coolant temperature input.
Trace ground circuits next–distinguished by black or brown wires on most schematics. Verify they terminate at chassis points or dedicated grounding blocks, avoiding accidental splits into sensor circuits, which can introduce voltage instability. Note resistance values where specified; a ground path should measure below 0.5 ohms. Deviations suggest corrosion or improper connection, leading to erratic component behavior.
Examine power distribution lines, usually red or yellow, originating from the ignition switch or main relay. These split into fused circuits, each protecting distinct systems (fuel pump, injectors, ignition coils). Check fuse ratings in the layout against the vehicle’s manual–10A for sensors, 20A+ for high-draw actuators. Failure to match ratings risks overheating or failed protection.
| Wire Color | Typical Function | Voltage Range |
|---|---|---|
| Red | Battery power (always hot) | 12-14.5V |
| Yellow/Red stripe | Ignition-switched power | 11.5-14V |
| Blue | Sensor signal (analog) | 0.5-5V |
| Green/White stripe | Actuator control (ground-side switch) | 0-0.3V (active low) |
| Black | Chassis ground | 0V |
Isolate sensor circuits–these carry low-current signals (0.5-5V) and are vulnerable to interference. Shielded cables (twisted pair or coax) should appear for knock sensors or O2 probes; their absence in the schematic signals potential noise issues. Measure signal wires at idle: a stable 1-2V for TPS, 0.45V for MAF, or fluctuating readings for O2 sensors. Static values indicate open/short circuits or failed components.
Review actuator drives (fuel injectors, ignition coils) as high-side or low-side switched. High-side drives (power side) show 12V pulses, while low-side (ground side) show rapid toggling to 0V. Use an oscilloscope to verify pulse width and frequency; injectors should fire at 3-15ms intervals, coils at 1-4ms. Irregular patterns point to faulty drivers in the ECU or wiring shorts.
Assess relay-controlled circuits–fuel pump, A/C compressor, main power relay. The layout shows coil activation (85/86 terminals) and load switching (30/87 terminals). Check for diode suppression across relay coils (marked “CR” or “D”) to prevent voltage spikes damaging the ECU. Absent diodes require retrofitting to avoid premature failure.
Validate CAN bus or communication lines if present–usually orange/white or pink/white wires. These carry multiplexed data; resistance should measure 60 ohms between endpoints (termination resistors). Open circuits or shorts disrupt network communication, often triggering “U” codes (e.g., U0100 for lost ECU link). Probe with a scan tool while wiggling connectors to identify intermittent faults.
