Accessing the factory electrical schematic for this vehicle model requires locating the OEM service manual PDF, typically found on automotive forums or repair databases like Mitchell1 or AllDataDIY. The document spans over 120 pages with dedicated sections for each system–engine control, lighting circuits, power windows, and instrumentation. Start by downloading section 8A, which covers the main harness layout, then cross-reference pins using page 9-15 for connector specifications.
Fault tracing begins with the ground distribution chart–test continuity between chassis ground points and the negative terminal of the battery. Common failure points include T-terminal connectors behind the dashboard and the I/P junction box beneath the glove compartment. Use a multimeter set to 200Ω range; readings above 0.5Ω indicate corrosion or loose terminals.
For ABS module diagnostics, focus on the wheel speed sensor circuits–pins 1-4 in connector C104 must show AC voltage fluctuation (100-500 mV) while manually spinning the wheel. If voltage flatlines, inspect the 5mm diameter wiring between the sensor and the hydraulic control unit for fraying near the brake caliper. Replace any compromised wire with TXL gauge rated for 150°C operating conditions.
Automatic transmission wiring often fails at the valve body solenoid connectors. Pinouts for solenoids SLT, S1, and S2 are detailed on page 6-8 of the schematic–verify 12V pulses at each pin during gear shifts. If no signal is present, trace back to the TCM (transmission control module) under the driver’s side footwell, checking for burnt traces on the circuit board.
Understanding Electrical Schematics for Your Mid-Size Sedan
Locate the fuse box under the dashboard on the driver’s side to begin troubleshooting. Refer to label F3-1 for the 10A ignition coil relay feed–verify continuity with a multimeter before assuming a fault elsewhere. Critical paths often fail at connectors, not wires; inspect pin J104 (gray, 16-pin) for corrosion or bent terminals.
Trace the engine control unit’s power circuit using color codes RG (red/green) for 12V constant and BY (black/yellow) for ignition-switched supply. Interruptions here mimic sensor failures–measure voltage drop across the ignition switch, not just at the ECU plug. A drop exceeding 0.2V suggests contact resistance in the steering column harness.
For dashboard gauges, focus on the instrument cluster’s C44 connector (blue, 22-pin). Pin 17 (W/Y) carries tachometer signal; interference from poorly shielded spark plug wires can cause erratic readings. Swap the ignition coil wires with known-good replacements if needle fluctuation persists.
Examine the automatic transmission’s valve body harness–damage near the transmission housing frequently disrupts shift solenoids. Probe connector T20 (gray, 8-pin) at TCC solenoid (pin 3) and pressure control solenoid (pin 5). Expected resistance: 12–25 ohms at 20°C; deviations indicate internal shorting.
Headlight circuit reliability depends on the multifunction switch’s LB/W (light blue/white) circuit. Use a wiring diagram’s numbered callouts to cross-reference splice S102 near the left strut tower–common failure point for intermittent low-beam loss. Check the headlight switch’s silver contact pads for pitting.
Blower motor speed control relies on the resistor bank beneath the passenger-side dash. Remove the glove box for access; corrosion on the RB connector’s BL/R (black/red) trace often causes stuck speeds. Back-probe the connector with probes–expect 0V at high speed, 5V+ at low speeds.
Oxygen sensor heaters draw 2–3A through fusible links in the main engine harness. If P0141 (heater circuit fault) appears, verify power at the sensor’s WH/LB (white/light blue) wire. Measure heater resistance: 6–20 ohms hot; cold readings below 4 ohms suggest a short to ground.
Ground points demand frequent attention: G101 (firewall, driver’s side) and G201 (engine block, near oil pan) corrode over time. Scrape paint, apply dielectric grease to fasteners, and torque to 10–12 Nm. Failed grounds manifest as phantom codes like P0442 (EVAP leak) despite intact components.
Finding Electrical Schematics in OEM Repair Documentation

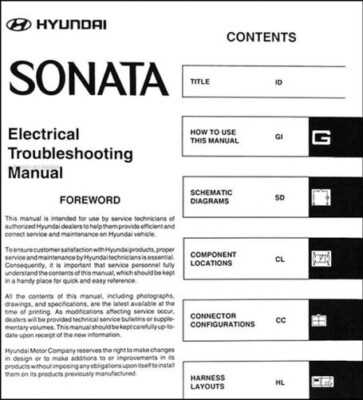

Begin by obtaining the official repair manual for the vehicle model in question–either in printed form or through an authorized digital subscription. Physical copies are typically organized into multiple volumes, with electrical schematics often consolidated in a dedicated section labeled “Electrical Troubleshooting” or “Wiring Harness Diagrams.” Digital versions may require navigating a table of contents or using the search function with precise keywords like “main harness routing,” “ECU pinouts,” or “circuit identification.”
Reference the index for specific component-based schematics, as the manual categorizes them by system: powertrain, lighting, instrumentation, or safety modules. For instance, the engine control wiring layout will differ from the audio system’s connector mappings. Note that diagrams are frequently split into multiple pages–look for continuation arrows or cross-references labeled “Part A” and “Part B” to avoid missing critical connections. Each schematic includes a legend explaining color codes, wire gauge, and connector pin numbering conventions, which are standardized but vary slightly between model years.
If the exact layout isn’t immediately visible, check the appendix for a master wiring overview–often a fold-out sheet in printed manuals or a high-resolution JPEG in digital formats. This overview maps the entire vehicle’s harness routing, allowing you to trace wires from fuse boxes to sensors or actuators. For models with optional equipment (e.g., premium audio or HID lighting), ensure you’re referencing the correct trim-level schematic, as additional wiring may not appear in baseline diagrams.
| Section | Typical Location | Key Details |
|---|---|---|
| Engine Electrical | Volume 1, Chapter 8 | Ignition coils, oxygen sensors, MAP sensor |
| Body Control | Volume 2, Chapter 11 | Door locks, power windows, relay centers |
| Lighting | Volume 2, Chapter 5 | Headlamps, turn signals, brake lights |
| Ground Distribution | Appendix, Page A-12 | Chassis, engine, and cabin grounding points |
Locate the component-specific pinout diagrams by cross-referencing the part’s identifier (e.g., “Connector C201”) listed beside the device in the main schematic. These pinouts detail every terminal’s function–signal, power, or ground–and the corresponding wire colors. Verify connections by comparing the pinout with the actual harness connector, as terminal positions may differ from generic aftermarket diagrams. For modules like the PCM or ABS control unit, pinouts may span multiple pages, requiring careful matching of labels.
Use a multimeter to confirm circuit integrity when discrepancies arise between the schematic and physical wiring. Measure voltage at key points–battery terminals, fuses, and sensor connectors–to isolate breaks or shorts. If a wire’s color doesn’t match the diagram, trace it back to the nearest junction or splice, noting any deviations in the harness sleeve. Factory manuals occasionally include updates or TSB references for corrected diagrams; check the publisher’s errata section if documentation conflicts with observed wiring.
Color Standards and Terminal Mapping for 2.4L Inline-Four and V6 Powertrains
Locate the main engine harness connector beneath the intake manifold–pin C104 (black/white stripe) delivers ignition-switched power to the PCM on both engines. Verify continuity with a multimeter set to 200Ω range; resistance should not exceed 0.5Ω between the pin and fuse #15 (10A) in the under-hood box.
Identify sensor circuits by trace color:
- Mass Airflow (MAF) – yellow/black (signal), black (ground), red/white (5V reference on 2.4L)
- Throttle Position (TPS) – green/white (V6), green (inline-four) for signal return
- Coolant Temperature (ECT) – blue/white, connects to terminal C205-3
If voltage at the 5V reference wire drops below 4.8V, inspect the PCM power relay (internal diode failure common).
Transmission Control Module Pinouts
For V6 models, the TCM shares a 60-pin connector; focus on these terminals:
- C132-15 – blue/orange (shift solenoid A)
- C132-16 – brown/black (shift solenoid B)
- C132-30 – yellow/blue (torque converter clutch)
- C132-45 – green/red (vehicle speed sensor)
Measure voltage at C132-15 during a drive cycle: 0V at idle, 12V during 2→3 upshift. If stuck at 0V, replace solenoid control assembly–valve body disassembly voids OEM warranty.
Inline-four ignition coils (4-pin connectors) use identical color codes: red (B+) for all coils, brown/white (trigger pulse), black (ground). Test pulse signal with an oscilloscope–peak voltage should reach 350V with
O2 sensors pre-cat (bank 1/sensor 1) and post-cat (bank 1/sensor 2) share a single 4-wire harness: white (signal), gray (signal ground), black/blue (heater +), black/white (heater -). Probe heater resistance at C101-1 (V6) or C101-4 (2.4L)–acceptable range is 2.5–4.5Ω at 20°C. If infinite, check fuse #23 (15A) or exhaust-side wiring for chafing against the subframe.
Ground Distribution Points
Primary engine ground (G102) is located behind the oil cap–clean with a wire brush and apply dielectric grease. Secondary grounds (G103–G105) serve ABS, instrument cluster, and audio unit; corrosion here manifests as erratic gauge behavior or ABS false triggers. For concealed chafing, shake the main harness near the strut tower while monitoring voltage–drops >0.2V indicate internal conductor breakage.
