For immediate troubleshooting, locate the constant 12V power wire (yellow) in the harness–it connects directly to the fuse box under the dashboard. Use a multimeter to verify voltage; a reading below 12V indicates a blown fuse or corroded connection. Replace the fuse with a 15A blade type, matching the vehicle’s OEM specifications.
The illumination wire (orange with white stripe) dims the head unit in sync with dashboard lights. If the display doesn’t adjust, check for a disconnected or shorted wire. Splice repairs should use solder and heat-shrink tubing–twist-and-tape methods risk intermittent failure. Avoid connecting this wire to ground, as it will disable lighting entirely.
Aftermarket head units require an adapter harness. The Metra 70-1732 matches the factory pinout, eliminating manual splicing. For hands-free microphone integration, route the gray/purple wire to the rearview mirror connector–skip this step if the vehicle lacks onboard Bluetooth, as it will interfere with audio signals.
Ground issues cause static or popping noises. Secure the black ground wire to bare metal with a star washer, not paint or undercoating. If symptoms persist, trace the antenna cable for kinks or damage; a broken core will reduce FM reception by 30%. Replace the cable with a RG-58 shielded variant if corrosion is visible.
Speaker wires follow this color code: front left (+) light green, front right (+) gray, rear left (+) white/black, rear right (+) violet. Negative leads use matching base colors with stripes. Swapping polarity reverses sound phase, muddying bass response–test with a 1kHz sine wave before finalizing connections.
Guide to Aftermarket Stereo Connections for the 2004 Compact Sedan
Start by locating the factory harness behind the original head unit–match wire colors precisely to avoid short circuits. The 12-pin connector splits into four key groups:
- Power: Constant 12V (yellow), switched 12V (red), ground (black)
- Speakers: Front left (+) gray, (-) gray/black; front right (+) white, (-) white/black; rear left (+) green, (-) green/black; rear right (+) purple, (-) purple/black
- Illumination: Orange (dims with headlights)
- Amplifier turn-on: Blue/white enables external amps
Use solder or crimp connectors rated for 18AWG; twist-and-tape methods risk intermittent failures.
OEM antennas use a single coaxial plug with a 3.5mm tip–replaceable adapters (Metra 40-GM10) preserve FM sensitivity without signal loss. Amplifier retention requires bridging the blue/white wire to the aftermarket harness; skipping this step mutes subwoofer outputs on premium systems. For steering wheel controls, add a PAC RP4-HY11–configure resistance values via its dip switches to match the vehicle’s voltage ranges (default: 220Ω for “volume up,” 330Ω for “next track”).
Verify all connections with a multimeter before mounting the new unit–measure voltage on yellow (12V at all times) and red (12V with ignition on). Ground faults often manifest as whining noises from speakers; relocate the black wire to a bare metal chassis point if interference persists. Fuse the constant power line at 10A to protect memory settings during battery disconnections.
Stock harness pins differ between base and GL trim: higher trims include a separate data bus (gray/red) for chimes–isolate this wire with electrical tape to prevent error codes on the instrument cluster. Aftermarket kits like Scosche HY01B retain steering wheel functionality without splicing, but manual wiring yields lower latency for voice commands.
Finding the Original Audio System Connector in Your Vehicle
Begin by removing the trim panel surrounding the dashboard’s central console. Use a flat plastic pry tool to gently separate the clips without damaging the plastic. Start at the bottom edge near the climate controls, then work upward–this area typically holds the connector behind the factory stereo.
The harness should be visible once the head unit is pulled out about three inches. Look for a rectangular plug with 16–20 colored wires bundled into a single plastic housing. Match the wire colors to the standard pinout: yellow for constant power, red for switched power, black for ground, and paired whites, grays, purples, and greens for speaker outputs.
Common Locations Behind the Dashboard
If the connector isn’t immediately behind the stereo, check the lower-left dashboard cavity. Some models route the harness downward, securing it with a small plastic clip. You may need to remove the driver-side kick panel for access. Avoid tugging wires–trace them back to their origin point.
Another frequent location is beneath the glove box. A single screw secures the lower dashboard panel; removing it reveals wiring looms running along the firewall. Follow these looms toward the center of the car–one bundle will terminate at the original audio connector.
For vehicles with automatic climate controls, the harness may be tucked behind the control module. Remove the module’s single Phillips screw and carefully slide it forward; the connector will be visible attached to the module’s backside.
Once located, label each wire with masking tape before disconnecting anything. This prevents confusion when installing aftermarket devices. Use a multimeter to verify power, ground, and speaker connections–yellow should show 12V constant, red 12V only with ignition on, and speaker wires should register 4–8 ohms when tested in pairs.
Color Codes and Pinout Details for the Factory Head Unit Harness
Begin by identifying the 12-pin or 16-pin connector at the rear of the OEM sound system–this is the primary interface for all audio and power connections. Matching the correct wire colors to their functions is critical to avoid short circuits or signal interference during installation or upgrades. Use a multimeter set to 12V DC to confirm live feeds before making any permanent connections.
The following table outlines the standard color codes and pin assignments for models equipped with the basic 12-pin layout. Variations exist, particularly in vehicles with premium audio or factory navigation, so cross-reference with the harness label if available.
| Pin Number | Wire Color (Base) | Function | Voltage/Notes |
|---|---|---|---|
| 1 | Black/White | Ground (Chassis) | 0V, direct connection to body |
| 2 | Yellow | Constant 12V (Memory) | Always hot, fuse-protected |
| 3 | Red | Switched 12V (Ignition) | Power when key is ON/ACC |
| 4 | Blue/White | Amplifier Remote Turn-On | 12V when system is active |
| 5 | Gray | Front Left Speaker (+) | High-level signal output |
| 6 | Gray/Black | Front Left Speaker (-) | Return path |
| 7 | White | Front Right Speaker (+) | High-level signal output |
| 8 | White/Black | Front Right Speaker (-) | Return path |
| 9 | Green | Rear Left Speaker (+) | High-level signal output |
| 10 | Green/Black | Rear Left Speaker (-) | Return path |
| 11 | Purple | Rear Right Speaker (+) | High-level signal output |
| 12 | Purple/Black | Rear Right Speaker (-) | Return path |
For units with a 16-pin harness, pins 13–16 typically serve auxiliary functions such as illumination control (orange/white, pin 13), antenna power (blue, pin 14), or data communication lines (often brown or pink, pins 15–16). These vary by trim; consult the specific vehicle’s service manual if the default labels are absent. Never assume a wire’s purpose based on color alone–verify with a test light or voltmeter.
When splicing into speaker wires, use solder and heat-shrink tubing instead of crimp connectors to prevent corrosion and signal loss over time. For aftermarket amplifiers, the blue/white remote wire must be extended to the amp’s trigger input; failing to do so will result in no output. If the vehicle has factory tweeters, the harness may include separate outputs for tweeter-positive and -negative–typically smaller gauge wires (e.g., light blue or dark blue) branching from the main speaker lines.
Ground loops are a common issue during upgrades. Ensure the black/white ground wire is securely fastened to a bare metal surface, free of paint or rust. For vehicles with subwoofers, additional wires (often orange or tan) may supply low-level preamp signals–these are voltage-sensitive and should not be connected to high-level outputs.
If the harness includes an unused pink or brown wire, it may carry the vehicle’s speed sensor signal or illumination dimming control–useful for steering wheel controls or automatic volume adjustment in aftermarket head units. Verify its function before repurposing.
Step-by-Step Removal of the Dashboard Trim for Head Unit Access
Start by inserting a flat plastic pry tool beneath the lower edge of the center console trim panel. Gentle pressure lifts the snap clips securing it–apply force near the clips, not the middle, to avoid cracking the plastic. Work along the perimeter, releasing eight clips in total: three at the top, two on each side, and one at the bottom.
Detach the climate control knobs by pulling them straight outward–grip them firmly near the base, not the stem, to prevent breaking the internal locking tabs. If resistance is felt, rock them side-to-side while pulling; twisting can damage the potentiometer shafts. Store knobs in a secure location to avoid misplacement or accidental stepping.
Use a 10mm socket to remove the two bolts behind the knobs–one on the left, one on the right–holding the trim in place. These bolts also secure the lower portion of the dash frame; loosening them fully allows the panel to pivot downward. Set bolts aside in a magnetic tray or marked container to prevent rolling into hidden crevices.
Lift the trim panel upward at the bottom, then slide it rearward to disengage the HVAC vent ducts connected near the top. Disconnect the electrical harnesses from the hazard switch and any auxiliary controls–press the release tabs fully before pulling. Label each connector with masking tape if multiple harnesses are present to simplify reassembly.
For models with a passenger-side airbag, locate the yellow airbag connector beneath the glove box. Squeeze the locking arms to release it before proceeding–failure to disconnect may trigger a diagnostic error code or prevent the dash from separating completely. The connector’s latch is fragile; avoid excessive force.

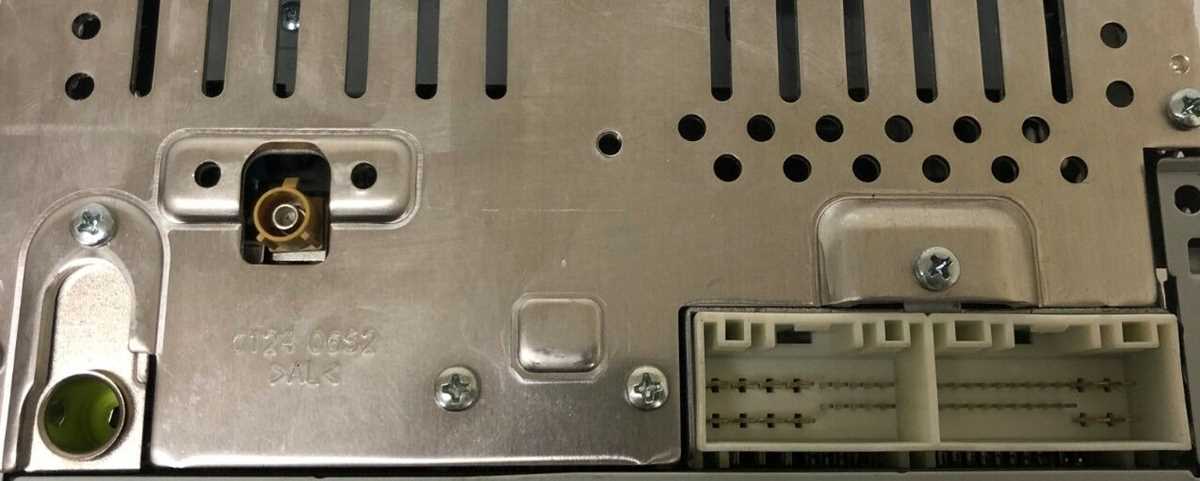

With the trim removed, the head unit’s mounting cage is exposed. Remove the four screws (typically 7mm or T20 Torx) securing the cage–two at the top, two at the bottom. Slide the unit out slowly, tilting it forward to clear the dashboard opening. Disconnect the antenna and wiring harness at the rear by pressing the release tab; pulling on wires risks damaging the connectors.
If reinstalling the original trim, ensure all snap clips align squarely before pressing into place–misaligned clips create gaps or cause the panel to pop free. Reattach harnesses, bolts, and knobs in reverse order, verifying each connection clicks securely. Test all functions (including defroster and hazard switch) before fully reassembling to confirm proper installation.
