Locate the factory wiring harness behind the dashboard on the driver’s side. The 12-pin connector (A) carries power, ground, and speaker outputs–match color codes before splicing. Pinouts include constant 12V (yellow), ignition-switched 12V (red), ground (black), front left (+/- gray/lt. gray), front right (+/- white/lt. white), rear left (+/- green/lt. green), and rear right (+/- purple/lt. purple). Verify each circuit with a multimeter–avoid relying on visual inspection alone.
For aftermarket upgrades, bypass the stock amplifier by tapping directly into speaker wires at the harness or using a wiring adapter (Metra 70-1721). Factory amplifiers often use low-level RCA inputs; adapter kits retain steering wheel controls and chime functions. If retaining OEM head unit, splice into the blue/white remote turn-on lead to power external amplifiers. Confirm fuse ratings–typically 10A for accessory circuits.
Common pitfalls: incorrect grounding causes engine whine; resolve by relocating ground wires to bare chassis metal. Crossed speaker wires distort audio; label each wire before disconnecting. Lack of memory retention? Ensure constant 12V remains uninterrupted during installation. For vehicles equipped with rear entertainment, separate harnesses (pink/black for video, orange for mute) require dedicated connections–consult OEM service manuals for pin assignments.
Tools required: wire strippers, crimping tool, soldering iron (optional), electrical tape or heat shrink tubing, multimeter. Test continuity after each connection–error-free installation prevents costly troubleshooting later. Retain original wiring diagrams for reference if reverting to stock configuration.
Electrical Integration for the 2003-2005 Mid-Size SUV Audio System
Begin by disconnecting the negative battery terminal to prevent short circuits. Locate the factory harness behind the dashboard unit–typically secured with a snap-in clip near the climate controls.
Identify the following wire colors and functions in the main harness connector:
| Color | Function | Notes |
|---|---|---|
| Yellow w/ black stripe | Constant 12V+ (memory) | Connect directly to aftermarket head unit |
| Red w/ white stripe | Switched 12V+ (accessory) | Verify with multimeter at ignition-on |
| Gray | RF speaker (+) | Check for 4-ohm impedance |
| Black w/ white stripe | Ground (-) | Scrape paint to chassis for solid connection |
| Green | LF speaker (+) | Test tone before final crimp |
| Blue w/ white stripe | Remote turn-on (amp) | Voltage should match head unit output |
| Brown | RR speaker (+) | Avoid routing near power wires |
| Light green | LR speaker (+) | Polarity test with 9V battery |
Strip 5 mm of insulation from each wire using a precision stripper. Twist strands clockwise before inserting into crimp connectors–avoid solder for this vehicle’s thin-gauge wiring. Secure connections with heat-shrink tubing, ensuring zero exposed copper.
For subwoofer integration, tap the blue/white remote wire at the harness and run new 16-gauge wire to the amplifier location. Route power wires through the existing grommet behind the glove box, avoiding the HVAC drain tube to prevent water intrusion.
Test each channel with a 1 kHz sine wave at half volume before reconnecting the battery. Verify no popping occurs when cycling ignition–this indicates reversed polarity or loose ground.
Program the security code by holding the preset buttons in sequence: 1 → 6 → 3 → 2 → 1. The display will flash twice upon success. If locked, disconnect both battery terminals for 10 minutes to reset the ECU.
For steering wheel controls, use a PAC SWI-X interface module. Connect yellow/white (data) and pink/black (ground) wires to the radio harness. Verify the buttons’ resistance values with an ohmmeter–volume up should read ~1.1kΩ, mode ~2.4kΩ.
If antenna motor noise persists, insert a 10 µF capacitor between the antenna lead and ground. For persistent alternator whine, add a ground loop isolator inline with the RCA cables. Always re-test after modifications to confirm signal clarity.
Matching the Right Connectors for Your 2003-2005 SUV Audio System Upgrade

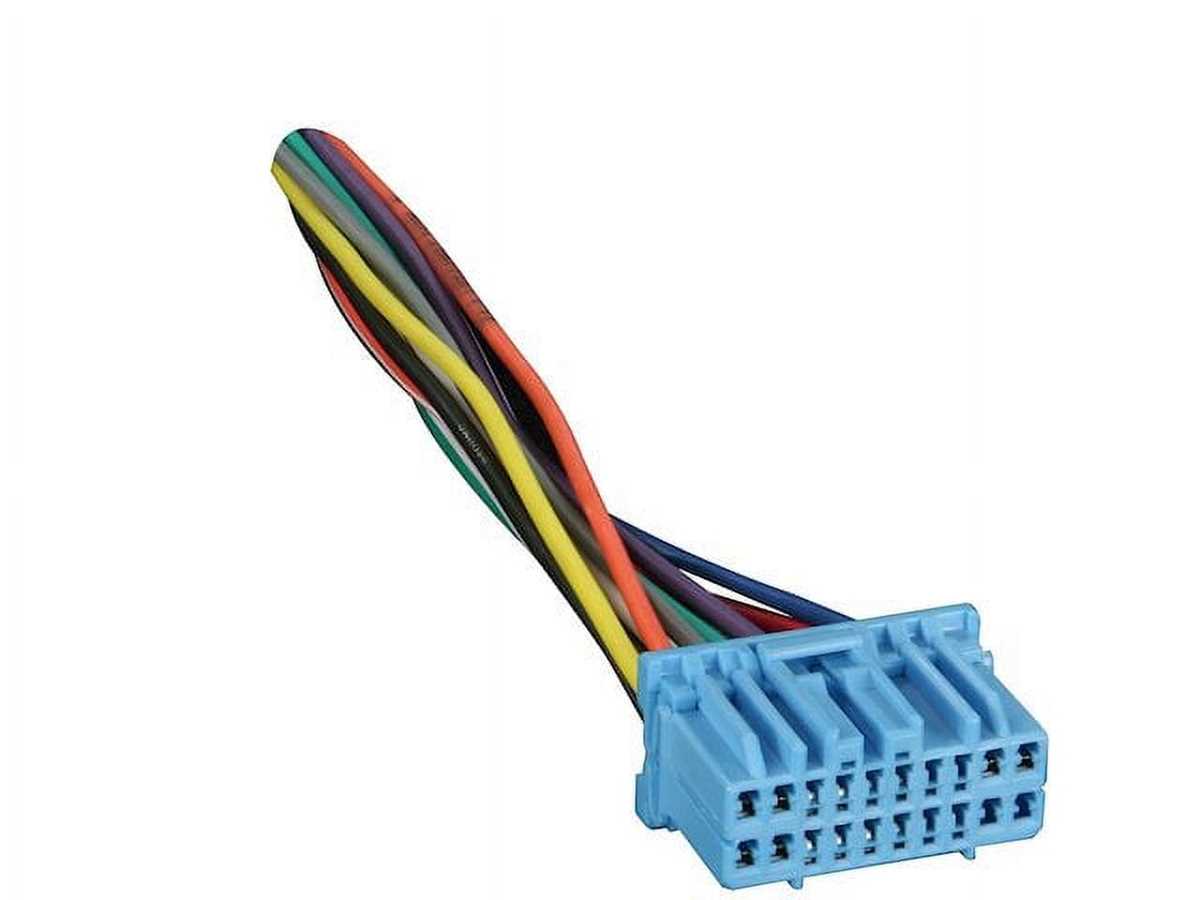

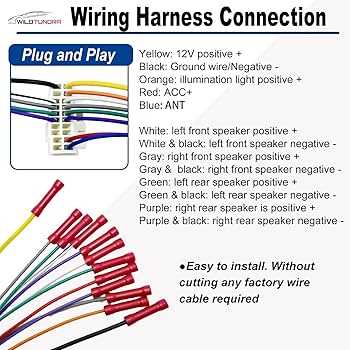

Locate the OEM harness behind the factory radio unit–it’s a 20-pin plastic plug with distinct color-coding. The upper row (left to right) includes solid white, white-black stripe, yellow, yellow-black stripe, green, green-black stripe, blue, blue-black stripe, gray, and gray-black stripe. The lower row reverses the order, mirroring the same colors without stripes in descending sequence. Cross-reference this with aftermarket adapter kits labeled for mid-2000s Japanese SUVs; Metra 70-1732 or Scosche SU06B fit precisely. Avoid “universal” kits–they often omit critical pins for amplified turn-on signals or steering wheel controls.
Check for a secondary 8-pin connector hidden under the dashboard, typically gray or black, near the climate controls. This carries power for the vehicle’s built-in amplifier (if equipped) and must be spliced correctly–red (constant 12V), yellow (switched 12V), and orange (illumination). For non-amplified models, bypass this entirely and route power directly to the head unit’s harness. Mismatching here causes dim lights, slow startup, or blown fuses–test with a multimeter before connecting.
Verify speaker wires by tapping a 9V battery to the harness while the radio is off. The correct wire should produce a sharp *click* from the corresponding speaker. Front left: solid green and green-black stripe (positive/negative respectively). Rear right: solid purple and purple-black stripe. Aftermarket harnesses sometimes reverse polarity–confirm by testing before finalizing connections. Incorrect pairing leads to phase cancellation, muffling audio.
For steering wheel audio controls, seek adapters with a separate 6-pin input (e.g., Axxess ASWC-1). The factory plug uses a gray 6-pin connector tucked behind the airbag module–disconnect the battery before probing. If the adapter isn’t pre-coded for this model, manual learning mode (holding volume +/– buttons) is required. Skipping this step leaves buttons non-functional or triggers erratic behavior like skipping tracks.
Secure all connections with solder and heat-shrink tubing, not twist-and-tape. Loose wires lead to intermittent sound, ground loops, or even dashboard fuse failures. Route the harness away from moving parts (gear shifter, pedals) and heat sources (exhaust, transmission tunnel). Use zip ties to bundle excess length–vibration can loosen crimp connectors over time. Final step: reconnect the battery negative terminal last, then test every function (radio, CD, aux inputs, Bluetooth) before reassembling trim panels.
Step-by-Step Wire Color Code Guide for Factory Audio System Removal
Disconnect the negative terminal of the battery first to prevent short circuits. Locate the dashboard trim surrounding the head unit–press gently on the edges to release the clips, avoiding excessive force to prevent cracking.
Identify the harness adapter behind the audio unit. The factory connector pins correspond to these standard color codes:
- Constant power (yellow) – 12V supply, always active, independent of ignition.
- Switched power (red) – 12V supply, engaged only when ignition is in ACC or ON.
- Ground (black) – Secure solid connection, typically bolted to chassis.
- Front left speaker (+) (light green) – Positive lead for driver-side tweeter and woofer.
- Front left speaker (-) (gray) – Negative lead, ensure polarity match.
- Front right speaker (+) (purple) – Positive lead for passenger-side tweeter and woofer.
- Front right speaker (-) (blue/white) – Negative lead, twisted pair for noise reduction.
- Rear left speaker (+) (brown) – Positive lead for rear door or cargo area.
- Rear left speaker (-) (brown/black) – Negative lead, verify continuity with multimeter.
- Rear right speaker (+) (dark green) – Positive lead, often routed under carpet.
- Rear right speaker (-) (green/black) – Negative lead, check for corrosion if sound cuts out.
- Illumination (orange) – Dimmer-controlled, syncs with dash lighting.
- Amplifier remote (blue) – Triggers aftermarket amp when head unit powers on.
- Mute (pink) – Disables audio during calls, rarely used in basic setups.
Label each wire with masking tape before cutting or splicing. Use crimp connectors or solder joints with heat-shrink tubing for durability–twist-and-tape methods degrade over time.
Testing Before Final Connection
Reattach the battery terminal temporarily. Toggle ignition to ACC and probe each wire with a voltmeter:
- Yellow wire should read 12V regardless of ignition state.
- Red wire must show 12V only when ignition is ON or ACC.
- Black wire should register 0V against chassis ground.
- Speaker wires (measured in ohms) should show ~4Ω resistance–higher readings indicate damaged drivers or shorts.
Avoid bridging power wires to speaker leads–this fries internal circuitry. If integrating an aftermarket unit, use an as-built adapter (Metra 70-1761 or equivalent) to match pinouts without splicing.
Secure Reassembly
Route wiring away from sharp edges, moving parts, or heat sources like HVAC ducts. Bundle excess length with zip ties, leaving slack for future adjustments. Reinstall dashboard trim by aligning top clips first, then pressing sides until they snap into place.
If retaining the original system, insert the harness adapter between the vehicle and head unit plugs–never force connections. For OEM amplifiers, additional wiring (typically gray/red and green/white) may require bypassing or reconfiguring.
Verify all functions before final assembly: test radio, CD, auxiliary inputs, and steering wheel controls if applicable. If static or intermittent audio occurs, recheck ground connections and antenna plug (white coaxial connector).
