Start by locating the harness connector behind the factory radio unit–it’s a 24-pin plug labeled C1 for the main power and C2 for speaker outputs. Pin 1 supplies constant 12V (memory), pin 2 delivers switched 12V (accessory), and pin 4 is the ground. Mismatching these causes blown fuses or dead presets.
Speaker wires follow a color-coded standard: front left (+) is light green/white, front right (+) is gray/light blue, rear left (+) is green/yellow, and rear right (+) is violet/gray. Strip 5mm of insulation, twist tightly with corresponding aftermarket harness wires, then secure with crimp connectors or solder. Avoid aluminum wiring–copper handles current surges better.
If retrofitting a modern head unit, bypass the factory amplifier module (mounted behind the glove box) by connecting the aftermarket harness directly to the speaker wires. The factory amp handles bass EQ; skipping it requires adjusting the new unit’s fader settings to compensate. Test each channel with a 9V battery before final installation–no continuity means recheck connections.
For steering wheel controls, identify the data bus wire (pin 20, solid gray). Use an ASWC-1 adapter or splice into the aftermarket harness’s control input. Incorrect pairing results in erratic volume jumps. Always disconnect the negative battery terminal before cutting wires–prevents shorting the CAN bus network.
Understanding Car Audio Harness Connections for a 2003-2005 Model Compact Hatchback

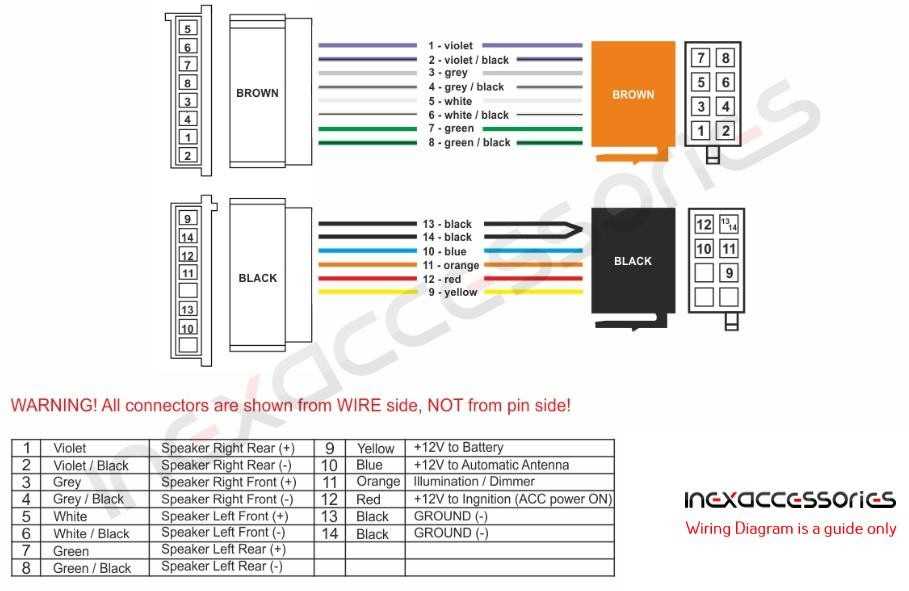

Start by locating the factory radio connector behind the dashboard panel–it uses a 16-pin ISO block with color-coded leads. The constant power (yellow) and ignition-switched power (red) wires must connect to their aftermarket counterparts without splicing; use a harness adapter for clean integration.
Speaker outputs follow this scheme: front left positive (gray/violet), front left negative (gray/brown), front right positive (white/orange), front right negative (white/light green). Rear channels mirror this pattern with purple/light blue (left positive) and dark green (left negative), plus orange/yellow (right positive) and dark blue/yellow (right negative). Avoid grounding these wires to prevent distortion.
Anticipate the antenna trigger wire (blue/white) when installing amplified systems–it requires direct connection to the new head unit’s power antenna or remote turn-on lead. Failure to connect this results in no AM/FM reception, even if the rest of the setup appears functional.
For steering wheel controls to work with aftermarket radios, procure an ASWC-1 interface module. Connect it between the factory wiring and the new deck’s 3.5mm control input port–no coding or software updates are necessary for basic functionality on this platform.
Check for factory amplifiers if the original system included premium sound. These are usually mounted under the front seats or behind rear trim panels. Bypass them by tapping into the speaker-level outputs before the amp, or retain them by using high-to-low line converters on the new radio’s RCA outputs.
Troubleshooting Non-Standard Configurations
Vehicles equipped with the optional 6-disc CD changer use a separate data bus (green/orange), which is incompatible with modern multimedia units. Disconnect this wire from the ISO block to prevent error messages on the new display. Some owners report phantom battery drain if this lead is left floating–insulate it with heat-shrink tubing.
If the new radio powers off inconsistently, verify the dimmer wire (brown/pink). This lead reduces voltage to adjust display brightness and may cause intermittent shutdowns if improperly connected. Tape it off if the aftermarket unit does not support dashboard illumination control.
Ground the new unit directly to the chassis using a dedicated ring terminal, not the factory harness’s ground (black). Use an 18-gauge wire and secure it to a bare metal surface near the radio cavity–common grounding points include the firewall or center console brace. Poor grounding introduces alternator whine and radio frequency interference.
Finding the Audio System Connector Under the Dashboard
Begin by sliding the driver’s seat fully backward to maximize access behind the instrument panel. The primary harness you need sits directly behind the climate control module, secured with a single 10 mm bolt and a plastic snap-fit clip. Use a stubby wrench to avoid interference from the steering column–turn counterclockwise until the bolt releases, then gently pry the clip upward with a flathead screwdriver.
The connector itself is a 12-pin rectangular plug, typically beige or light gray, with a distinctive latch on the upper edge. Pull the latch toward you to disengage the locking mechanism, then wiggle the plug free–do not force it if resistance occurs, as misalignment can damage pins. Below the main harness, you’ll find two smaller auxiliary connectors: a four-pin for amplifier control (if equipped) and a two-pin for power antenna (labelled “ANT” in tiny embossed letters).
| Connector Pin | Wire Color | Function | Voltage |
|---|---|---|---|
| 1 | Yellow/Black stripe | Constant 12V power | 12V DC (fused at 10A) |
| 4 | Gray | Illumination ground | 0.5V or less |
| 7 | Red | Switched 12V (accessory) | 12V when ignition on |
| 8 | Black | Chassis ground | 0V |
| 12 | Blue/White stripe | Amplifier remote turn-on | Switched 12V |
For sedans, the lower dashboard panel (kick panel) must be removed by unscrewing two Torx T-20 bolts near the door jamb. In hatchbacks, the glove compartment liner requires extraction–press inward on the side tabs until the liner pops free, revealing the same harness routing but with an additional ground strap bolted to the chassis. Mark each wire with painter’s tape noting its position before disconnecting, as the factory harness lacks color repetition and mismatches can cause silent failures.
Trace the yellow/black-striped wire from the connector to the inline fuse holder under the steering column; this wire carries constant power and must not be spliced into any switched circuit. The red wire, controlled by the ignition, will drop to near-zero voltage when the key is removed–verify this with a multimeter before connecting aftermarket components. If replacing the head unit, match the harness adapter’s pinout exactly; deviations in pin 3 (left front speaker) or pin 9 (right rear speaker) will reverse polarity and damage audio channels.
Understanding Factory Speaker Cable Color Standards for the 2003–2005 Hatchback Audio Installation
Verify each cable against the vehicle’s harness before making any connections–relying solely on memory or generic charts risks polarity reversal. The front door drivers utilize a two-wire configuration: solid green (positive) and green with white tracer (negative). Match these precisely to avoid phase cancellation during system diagnostics.
Rear Passenger Side Wiring Specifics
- Positive: violet wire (unmarked)
- Negative: violet with orange stripe
These leads terminate directly at the C-pillar enclosure; bypassing the factory plug risks shorting the amplifier’s internal circuit. Always test continuity with a multimeter after splicing–ambient speakers may share a common ground that appears valid during initial checks but fails under load.
For the rear subwoofer output (if equipped), identify the gray (hot) and gray with black stripe (return) wires near the trunk release module. These feed high-level signals; use shielded RCA adapters if converting to low-level outputs for aftermarket upgrades. Incorrect polarity here introduces deep bass distortion audible during transient hits.
Dashboard Speaker Wire Pairings
- Left tweeter: dark blue (+), dark blue with yellow stripe (−)
- Right tweeter: light blue (+), light blue with red stripe (−)
These smaller gauges handle tweeter frequencies exclusively; swapping them with door cables causes poor imaging and shrill midrange. Terminate unused tweeter wires with heat-shrink caps to prevent accidental shorts against the metal dash frame.
Corrosion-resistant connectors–tinned copper crimp splices or solder sleeves–are mandatory for door harness extensions. Bare copper exposed to humidity oxidizes within weeks, increasing resistance by 30% and degrading sound quality. Use dielectric grease at every junction to preserve signal integrity over seasonal temperature swings.
Check the integrated amplifier’s harness (located behind the glove compartment) for hidden color variations:
- Amplifier power feed: red with black stripe (12V switched)
- Illumination dimmer wire: orange with white stripe
These are often mislabeled in aftermarket diagrams; mismatching them blows the radio fuse during headlight engagement.
When retrofitting digital signal processors, intercept the front-left green/white wire before it reaches the door harness. This wire carries unamplified signals straight from the head unit; tapping here ensures optimal processing without ground loop interference. Avoid splicing into rear channels–rear cables carry amplified signals that overload most DSP inputs.
Lastly, document every modification with photographs and labeled wire tags. Factory audio systems undergo mid-year running changes; a violet wire that terminates at the rear deck in January builds may surface at the kick panel in August variants. Cross-reference your findings with the build sheet sticker (typically on the spare tire well) for exact date-code validation.
Integrating a New Radio with Original Harness in Compact Sedans
Start by locating the factory connector behind the dashboard–typically a 24-pin plug with color-coded leads. Pinouts for power, ground, speakers, and illumination follow a standardized layout but may vary slightly across trim levels. Verify the constant 12V (yellow), switched ignition (red), and ground (black) wires using a multimeter before making connections. Some models include an amplified setup, requiring extra care to avoid signal distortion.

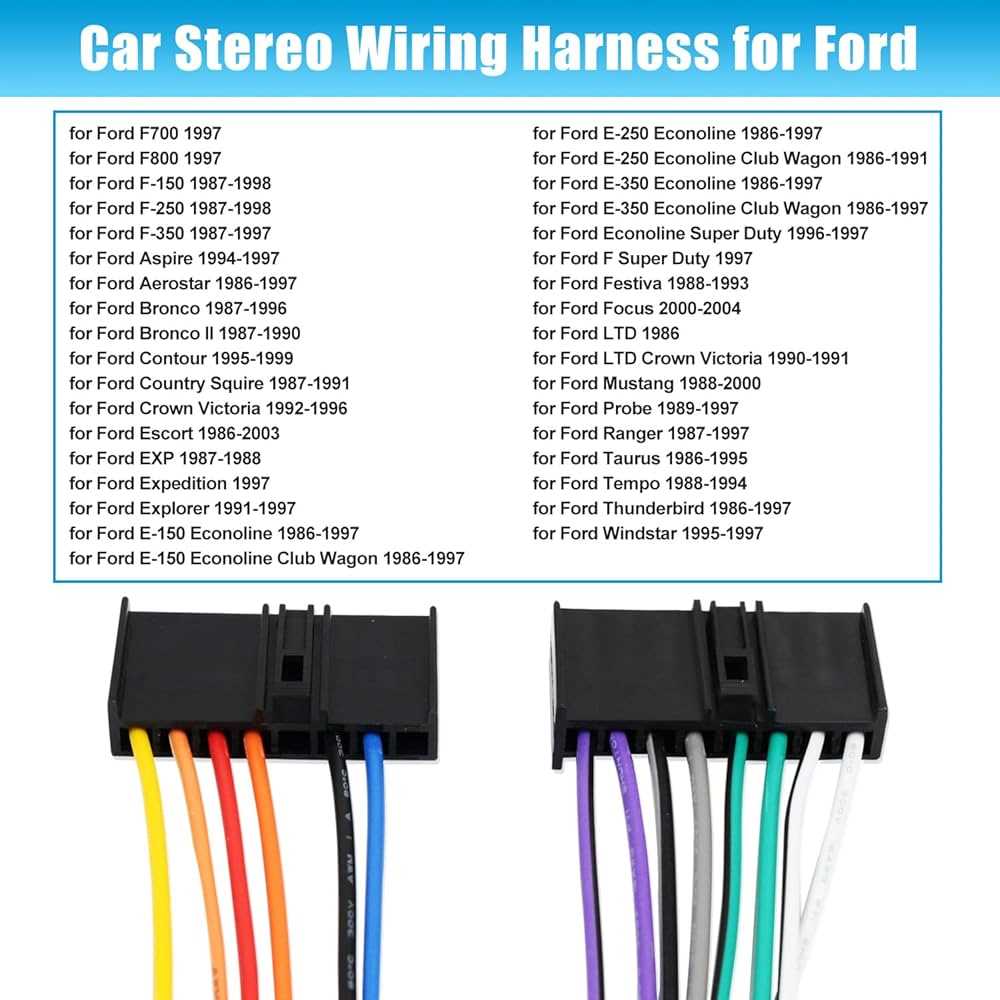

Use a wiring adapter harness designed for this vehicle generation to simplify installation. These adapters map the original plug to aftermarket unit pins, eliminating manual soldering. For models with steering wheel controls, an additional interface module may be necessary–ensure compatibility with the new head unit’s protocol (CAN-bus or resistive). Avoid bypassing factory fuses; retain the inline fuse holder on the yellow power lead.
Speaker wires follow a consistent color scheme: front left (gray), front right (white), rear left (green), and rear right (purple). Strip no more than 5mm of insulation to prevent short circuits. Twist strands tightly and secure with crimp connectors or solder for durability. Factory setups often use dual-voice coil speakers; confirm impedance (usually 4 ohms) matches the aftermarket unit’s output
For illumination retention, connect the dimmer wire (orange with stripe) to the head unit’s lighting lead. If the car has automatic headlights, test functionality before finalizing the dash reinstall. Some trims include a separate mute wire (purple) for phone integration–leave this disconnected unless using a hands-free kit.
Ground the new unit directly to the chassis using a dedicated wire (18-gauge minimum) rather than relying on the factory harness. Poor grounding causes engine noise or intermittent power loss. Route wires away from moving parts (steering column, pedals) and heat sources (HVAC vents) to prevent insulation damage.
After securing all connections, reconnect the battery and test audio output on all channels at low volume. Listen for static, popping, or imbalance–indicators of loose connections. Adjust fader/balance settings to confirm all outputs function. For units with EQ presets, disable any factory equalization to avoid double-processing.
If retaining the factory antenna, use an adapter cable matching the new unit’s connector type (typically Motorola or ISO). Antenna extenders may be needed for shallow dash mounts. For satellite radio or GPS, route the external antenna cable along the A-pillar with existing wiring harnesses, securing with zip ties every 15cm.
