Locate the master relay beneath the driver-side kick panel–only three bolts secure the cover. Disconnect the battery’s negative terminal first; reverse polarity during testing will destroy the comfort control module. The main harness splits at the A-pillar grommet; trace the red-black and light-blue wires–they feed both the regulator motor and the express-up relay coil.
Measure voltage at the door jamb connector: 12.5–14.2 V DC indicates a healthy fuse; anything below 11.8 V means corroded terminals or a failing alternator output. Replace fusible link #22 (20A) if resistance exceeds 0.3 Ω–standard copper wire won’t suffice; use melt-resistant filament.
For express-down failure, verify the white-purple wire at the window motor: continuity to ground confirms operational limit switches. Skip dealer diagnostic tools–short the green-yellow circuit at pin 9 of the central timer and observe the regulator; if movement is restored, the issue lies in the body control logic board.
Insulate all splices with heat-shrink tubing containing adhesive lining; standard crimp connectors corrode within 36 months in high-humidity climates. Use a multimeter’s diode test to detect parasitic draws; current above 50 mA signals a bypassed anti-theft sensor.
Reassemble door panels with torx T-20 fasteners only; Phillips screws strip the threads after three removals, causing rattles. Test each window from the key-off position–if one fails while others operate, concentrate on that individual door harness, not the fusebox.
Keep a spare door lock actuator in stock; its internal resistor network often mimics window switch failures. When troubleshooting intermittent faults, rap the trim panel near the regulator–short-term recovery confirms micro-fractures in the flex circuit board.
Electrical Schema for Mid-Size SUV Window Controls
Locate the motor connector behind the door panel–pins 2 and 5 deliver 12V for up/down operation, while pins 1 and 3 serve as grounds. Disconnect the battery negative terminal before probing to prevent short circuits; a multimeter set to continuity mode will verify circuit integrity without risking module damage. If the regulator fails, replace the entire assembly–partial repairs often lead to intermittent operation.
Common Fault Points
- Master switch: Corrosion on the backplate contacts causes erratic signaling; clean with electrical contact cleaner or replace if pitting is visible.
- Door harness: The flexing section near the hinge frequently breaks; splice in new 18-gauge silicone-jacketed wire rated for 20A minimum.
- Relay module: Mounted under the dash, it controls auto-up/down; swap with a known-good unit from a junkyard for quick diagnosis.
Trace the wiring color codes rigorously: purple/orange (constant supply), brown/white (switch signal), and yellow/black (ground). For rear panels, the harness splits at the B-pillar; secure loose connections with heat-shrink tubing to prevent chafing. If voltage drops below 11V at the motor, inspect the fuse block (slot 22, 30A) and alternator output–weak current mimics mechanical failure. Always reinitialize the system by lowering all panes completely before testing further.
Determining the Right Electrical Schematic for Your Mid-2000s SUV
Locate the vehicle identification number (VIN) on the driver’s side dashboard near the windshield or inside the door jamb–this 17-character code reveals trim, engine type, and manufacturing details critical for selecting the accurate circuit layout.
Check the fuse box lid under the hood or near the dashboard for a printed reference chart; some variants label corresponding motor actuation fuses and relays, narrowing down which version of the schematic applies.
Compare these key production variations:
- XLS: Simpler layout, 4-door only, featuring a single fusible link feeding the control module.
- XLT: Adds rear door switches, separated ground wires for each door actuator, and optional express-up functionality on the driver’s side.
- Eddie Bauer/Limited: Integrates heated glass defrost wiring with the regulator circuits, requiring a combined schematic to avoid confusion.
Download the official service manual PDF from the manufacturer’s technical resource portal using the VIN–generic online images often omit mid-year updates introduced in August for vehicles built after July, altering the pin assignments on the comfort control module.
Specific Wires to Verify Before Proceeding
Use a multimeter to confirm:
- Yellow with red stripe: Constant 12V feed at the door jamb connector–corrosion here causes intermittent dropouts.
- Black with white stripe: Ground path resistance under 0.5 ohms–high resistance burns motor brushes prematurely.
- Light blue: Data bus link to the smart junction box–open circuit prevents express-down operation.
Match wire gauge in the diagram to physical harness–aftermarket repairs often substitute 18-gauge copper for the original 20-gauge tinned copper, leading to overheating at the door hinge grommet.
Cross-reference the fuse rating on the schematic (typically 25A) with the actual fuse in the under-dash panel–lower-rated fuses risk nuisance blows during cold motor starts, signaling potential armature drag in the regulator gearset.
Step-by-Step Guide to Locating the Electrical Harness Links for Auto Glass Controls
Begin by removing the interior door panel using a trim tool. Pry carefully around the edges, starting at the bottom near the latch release. Disconnect any attached switch clusters or lighting modules before fully detaching the panel to avoid damaging the clips.

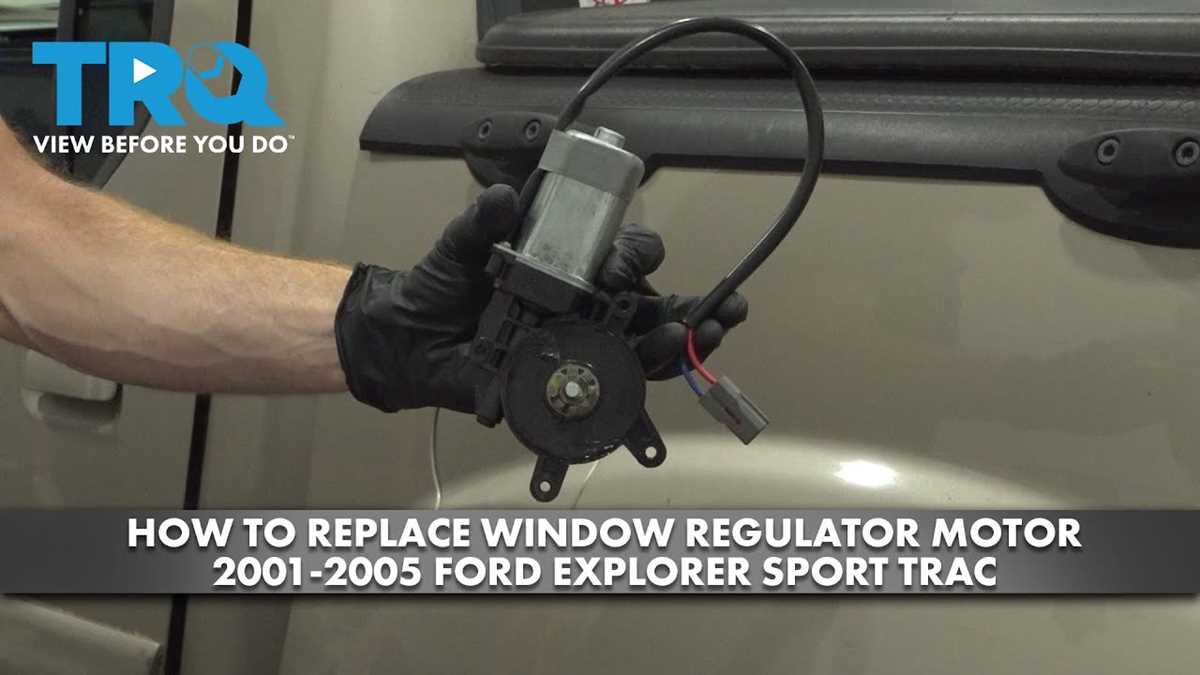

Once the panel is off, locate the regulator motor–it’s typically mounted near the center of the door frame, secured with two or three bolts. Trace the bundle of wires extending from the motor; this is the main harness leading to the vehicle’s fuse box and switch assemblies.
Identify the connector blocks where the harness splits: one branch goes to the control switch on the armrest, another to the fuse panel under the dashboard, and the last to the driver-side master controls. Use a multimeter to test continuity if visual inspection isn’t clear–probe the terminals while activating the switches to confirm the correct path.
Follow the harness toward the kick panel beneath the dashboard. This section often runs behind the plastic trim, secured with adhesive strips or zip ties. Cut these carefully to avoid pinching wires during reassembly. Label each connector with masking tape if multiple harnesses are present to prevent cross-wiring.
Inspect the door hinge area for a secondary harness link–this connects the motor to the body’s main electrical system. Look for a rubber grommet sealing the wires between the door and the frame; this is a common failure point where fraying occurs. Gently pull the grommet apart to access the wires inside.
Check for corrosion or heat damage near the fuse box connections, especially if the system behaves erratically. The fusible link for the glass controls is often marked in the owner’s manual but may require tracing the red or green wires from the harness back to the box for verification.
Testing and Repairing Faulty Links
Clip a test light to a ground point and probe each wire while cycling the switches. Dim or flickering lights indicate a break or short. For intermittent issues, wiggle the harness while testing–movement may reveal a loose or broken strand hidden beneath the insulation.
Reassembly Precautions
Route the harness away from sharp edges, door hinges, or moving parts before reinstalling the panel. Use dielectric grease on connectors to prevent moisture ingress, and secure loose wires with new zip ties to avoid future abrasion. Reattach the panel by aligning the clips, pressing firmly until they snap into place, then test the system before finalizing assembly.
Tools Required for Diagnosing and Fixing Automotive Glass Control Electrical Systems
Start with a multimeter capable of measuring both DC voltage and resistance. Set it to 20V DC for voltage checks and 200Ω for circuit continuity. Probes should have fine tips to access small connectors without damaging terminals. Ensure the device has auto-ranging functionality to simplify readings.
A 12V test light with an integrated ground clip eliminates the need for a separate ground connection. Choose one with a sharp probe to pierce wire insulation if necessary, but avoid excessive damage. Verify the bulb brightness matches the vehicle’s electrical system voltage to prevent false negatives.
Insulated wire strippers with gauge markings streamline repairs. Use 18-22 AWG for most door harnesses, but confirm with the vehicle’s service manual. Crimp connectors with heat shrink tubing prevent corrosion; soldering is optional but adds durability for high-vibration areas.
Specialized Diagnostic Equipment
An oscilloscope with a 10x probe helps identify transient voltage spikes or drops in motor circuits. Connect to the control module’s signal wire while operating the switch to capture waveform anomalies. Adjust time/division to 10ms for accurate readings of rapid events.
For vehicles with integrated body control modules, a bidirectional scan tool is essential. Activate outputs (e.g., “Window Motor Test”) to isolate faults in the motor, relay, or switch. Avoid generic OBD-II tools–they lack the necessary protocols for accessory circuits.
Non-contact infrared thermometers detect overheating components. Scan motors and relays after extended operation; temperatures above 60°C (140°F) indicate excessive resistance or failing contacts. Compare readings between sides to identify asymmetrical faults.
Mechanical and Safety Gear
Plastic trim removal tools prevent scratches when disassembling door panels. Use a set with varying pry thicknesses–thicker tools for panel clips, thinner for delicate edges. A magnetic tray organizes screws by location (e.g., “front door upper latch”).
Wear nitrile gloves to avoid transferring skin oils to electrical contacts, which can cause future corrosion. Safety glasses are mandatory when probing live circuits to prevent arc flash injuries. Store tools in a foam-padded case to protect delicate meters from shocks.
