The premium sound system retrofit in this luxury-tier utility model integrates with the factory harness via 12 distinct pin connectors. Locate the white 18-pin plug behind the center console; it carries power, ground, and amplifier trigger lines. Pin 1 delivers constant 12V from the battery, while Pin 3 supplies memory retention voltage–critical for clock and station presets. Mismatch these, and the system may reboot every ignition cycle.
Behind the dashboard, the antenna lead (coax with a silver Ford-specific coupler) splits into two circuits: the main signal wire (red with blue stripe) and a remote power line (black with yellow stripe). Splice the remote line into the accessory ignition wire–found in the driver-side kick panel–to activate the motorized mast. Skip this step, and the unit defaults to FM-only reception.
Factory amplifiers reside under the front seats. Each speaker harness uses color-coded leads: front left pairs blue (positive) with dark blue (ground); rear subwoofer pairs purple (positive) with pink (ground). Replace stock tweeters with aftermarket units by tapping into the gray and green wires at the overhead console–no factory resistors needed, but maintain polarity or risk phase cancellation at mid-high frequencies.
The steering wheel controls communicate over a single-wire CAN bus (orange with white stripe). Aftermarket adapters decode these signals; verify compatibility with the specific ASWC-1 or Metra AX-ADAPT model. Failure to properly terminate this circuit triggers random volume fluctuations or system-wide lockouts.
Stereo Harness Connection Guide for the 2004 Expedition Luxury Trim

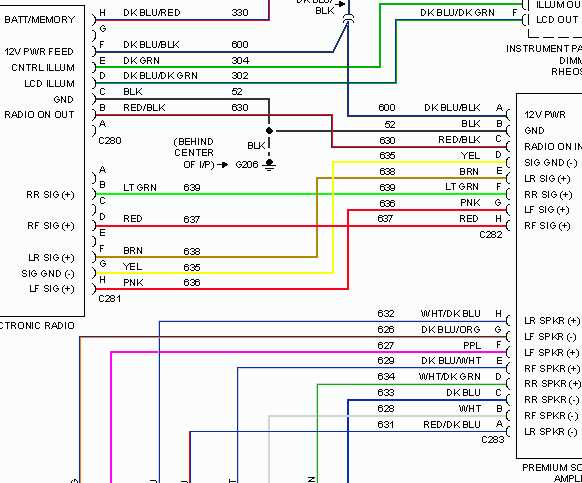

Begin by locating the factory harness behind the audio head unit–it’s a 12-pin plug with color-coded leads. Match these to your aftermarket connector using this pinout: yellow (constant 12V), red (switched 12V), black (ground), gray/lt. blue (front right speaker +), gray/lt. green (front right speaker -), white/lt. blue (front left speaker +), white/lt. green (front left speaker -), purple/lt. blue (rear right speaker +), purple/lt. green (rear right speaker -), green/lt. blue (rear left speaker +), green/lt. green (rear left speaker -). Verify with a multimeter–voltages should read 12V on power leads and resistances between 2-4 ohms for speaker pairs.
If integrating an amplifier, splice the remote turn-on wire (typically blue/white) into the harness’s switched power lead. Avoid tapping into the yellow constant power–it drains the battery. For navigation or satellite tuner kits, the brown/violet wire (vehicle speed sensor) and pink/lt. green (reverse signal) must be connected; failure risks interface malfunctions. Use crimp connectors or solder with heat shrink tubing–twist-and-tape splices corrode within months.
For premium audio systems, retain the factory amplifier (mounted behind the rear seat) by bridging its 8-pin harness to the new head unit’s preamp outputs. The amp’s input leads are orange/black (front), pink/black (rear), and tan/brown (subwoofer); ignore the gray/brown wire (telephone mute). Label every wire before cutting–reversing polarity (e.g., speaker + and -) blows fuses or damages components. Test functionality with engine off; if static persists, recheck ground integrity or add a secondary ground strap to bare metal chassis points near the fuse box.
Finding Audio System Connector Points Behind the Instrument Panel
Begin by disconnecting the vehicle’s negative battery terminal to prevent accidental shorts while working near the electrical junction points. Lower the steering column to its fully depressed position to maximize access to the lower dash trim. Remove the single screw securing the trim panel beneath the climate controls, then gently pry upward along its edges–release clips without forcing to avoid breaking plastic tabs.
Locate the retaining screws at each corner of the center stack bezel–typically Phillips-head or 7mm hex–and remove them before pulling the panel straight out. The connector points for the audio head unit hide directly behind this assembly, clustered near the mounting brackets. Expect four primary plugs: two for power (red/black and yellow/black leads), one antenna coaxial, and a multi-pin harness with color-coded wires for speakers and data signaling.
Trace the bundled wires to their anchor points–most clip into a central junction box on the driver’s side firewall. Use a non-contact voltage tester to confirm no live circuits remain before handling connectors. Label each plug with masking tape, noting their original positions, as reconnection errors can trigger dashboard warning lights or erratic system behavior.
For stubborn connections, apply dielectric grease sparingly to the male terminals before re-engagement to prevent corrosion over time. Avoid yanking wires; instead, depress the release tab (usually a small plastic lever or circular collar) on each plug with a flathead screwdriver to separate without damaging pins. Verify proper seating by tugging gently–loose connections cause intermittent power loss or distorted sound output.
If rewiring, route new harnesses through existing grommets to avoid chafing against sharp metal edges. Secure excess cable with zip ties to prevent rattling or interference with other components like the HVAC blend motors or fuse block. Double-check ground connections (bare copper or black wires)–poor grounding leads to signal noise or complete system failure.
Reassembly follows the reverse order, ensuring all dash clips snap fully into place and screws tighten evenly to prevent panel gaps. Reattach the battery terminal and test all audio functions (including subwoofer and amplifier, if equipped) before finalizing trim installation. Keep a flashlight and mirror handy to inspect recessed areas for overlooked connectors or tool debris.
Pinpointing Cable Hues and Roles for OEM Receiver Swaps
Locate the 12-pin connector behind the dash unit–the solid yellow lead delivers constant 12V power (battery-sourced), while the red-striped orange wire supplies switched ignition voltage. Ground attachments must terminate at the black-with-white-stripe conductor; never splice into chassis bolts or bare metal surfaces, as corrosion-induced resistance will trigger erratic behavior, including backlight flickering or memory loss. The violet pair (solid and stripe) carries left-front speaker output, split-phase for woofer and tweeter polarity–crossing these wires will invert audio phase, reducing bass impact and stereo imaging.
- Data bus (pink/light blue stripe): interfaces with onboard diagnostics and climate controls–cutting this line may disable steering wheel audio buttons unless an aftermarket adapter compensates.
- Mute signal (gray/black stripe): triggers during phone calls or navigation prompts; improper grounding mimics a stuck mute, silencing audio.
- Illumination dimmer (gray/yellow stripe): syncs dash brightness; floating this wire causes display to stay fully bright at night.
- Antanna trigger (blue/white stripe): powers retractable mast; polarity-sensitive–reverse connection risks burning out the motor.
Use a multimeter set to DC volts–probe each wire against ground while cycling ignition states (OFF, ACC, RUN) to confirm function before connecting harness adapters; manufacturer markings on factory harnesses never vary across trim variants.
Harness-Specific Anomalies
The rear subwoofer output (brown/black) exists only in models equipped with premium audio–its absence on base-spec vehicles does not indicate wiring errors. When splicing, avoid solid-core wire; stranded copper tinned with rosin flux resists vibration-induced breaks. Always verify speaker impedance before connecting aftermarket amplifiers–factory leads carry 2-ohm load; mismatched resistance risks overheating voice coils or amplifier shutdown.
Step-by-Step Guide to Safely Connecting Third-Party Speaker Cables
Cut wires only after verifying compatibility with a multimeter. Set the device to DC voltage (20V range) and probe each terminal while the original system is active. Note voltage readings–positive leads will typically show 12V, grounds near 0V, and speaker outputs oscillate between positive/negative values. Document each wire’s behavior before proceeding.
Required Tools and Materials
- Heat-shrink tubing (3:1 ratio, 4mm diameter for most harnesses)
- Crimping tool with insulated connectors (butt splices, 18-14 AWG)
- Wire strippers (precision 18-12 AWG)
- Soldering iron (60W, rosin-core solder)
- Electrical tape (high-adhesion, vinyl-based)
- Cable jacket remover (for bundled wires)
- Zip ties (4-inch, UV-resistant)
Strip ¼ inch of insulation from both the vehicle’s harness and the new unit’s leads. Twist strands clockwise to prevent fraying. Insert wires into a butt splice, ensuring full penetration–no exposed copper should remain outside the connector. Crimp firmly with pliers or a dedicated tool, applying pressure at the center then both ends of the splice.
Slide heat-shrink tubing over the joint before soldering. Align the tubing so it covers ½ inch beyond the splice on each side. Apply heat evenly with a heat gun, rotating the wire until the tubing forms a tight seal. For speaker wires, use thicker tubing (6mm) to accommodate vibration resistance.
Solder connections only if dealing with high-current circuits (amplifier feeds, power antennas). Melt a small bead of solder onto each wire end first, then join and reheat until the solder flows between strands. Avoid excessive heat–prolonged exposure degrades insulation. Cool the joint naturally; forced cooling causes brittleness.
Key Precautions
- Test each connection with the multimeter in continuity mode before reassembling panels. A weak crimp or cold solder joint will show resistance above 0.5 ohms.
- Separate signal wires (RCA, steering controls) from power cables with at least 4 inches of distance. Route them parallel to the vehicle’s existing loom to minimize interference.
- Secure all splices with zip ties every 6 inches, anchoring to factory harness clips when possible. Avoid wrapping wires around moving components (e.g., steering columns).
- For illumation circuits, verify polarity by connecting a test LED (forward voltage ~2V) before finalizing splices. Reversed polarity will damage dash lights.
Use dielectric grease sparingly on connectors carrying battery voltage. Apply a thin layer to male/female terminals to prevent corrosion, but avoid contact with signal wires–it increases capacitance and generates noise. Wipe away excess grease with a lint-free cloth.
After completing splices, reconnect the vehicle’s battery and test the system incrementally. Power on the new unit–verify display, then audio output at low volume. Check fade/balance settings, then increase volume gradually while monitoring for distortion or overheating. If issues arise, recheck splices with the multimeter, focusing on grounds and constant-power leads.
