Start by locating the factory-installed seven-way plug on the rear of the pickup. The standard configuration includes brake controller output (blue), left turn/brake light (yellow), right turn/brake light (green), auxiliary power (red or brown), ground (white), reverse lights (purple), and tail/marker lights (brown). Verify each circuit with a multimeter before connecting–open circuits or shorts will trigger a false fault code in the vehicle’s onboard computer.
Use 12-gauge TWP or GPT wire for all runs; thinner wire overheats under sustained 30-amp loads from electric trailer brakes. Route harnesses through factory grommets behind the rear bumper, securing with Adhesion Promoter SP-100 and plastic clamps every 18 inches. Avoid zip ties near sharp edges or exhaust manifolds–heat degrades insulation within 6 months.
For aftermarket brake controllers, splice into the vehicle’s brake switch circuit (thin red wire behind dash fuse panel). Match the controller’s voltage curve to the trailer brake magnet resistance–most 12″ Dexter brakes draw 3.2 ohms at 12 volts. Adjust the gain slider to 5.5–6.2 for optimal stopping without chatter on grades steeper than 7%.
Temporarily disconnect the battery negative terminal before splicing any live circuits. Test each function separately: activate hazard flashers, apply brakes at 5 mph, engage reverse lights. If marker lights flicker during engine crank, install a 40-amp inline fuse on the auxiliary power wire–alternator voltage spikes exceed 15 volts during cold starts.
Label every connector with Brady BMP-21 heat-shrink labels. Store a full-zoom PDF schematic under the driver’s seat–factory diagrams often omit splice locations behind the kick panel or beneath the rear seat delete plate. Include a trailer plug pinout cheat sheet in a resealable bag taped inside the glove box.
Ford Heavy-Duty Pickup Electrical Hookup Guide

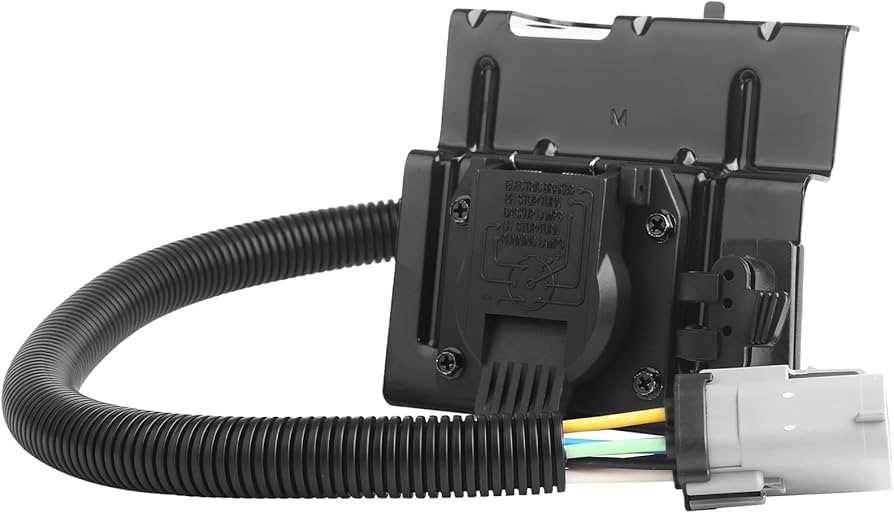

Begin by locating the factory-integrated connector beneath the rear bumper on the driver’s side–this 7-pin plug handles all signal outputs for auxiliary loads. Pin assignments follow SAE J2863 standards: pin 1 delivers 12V constant power, pin 2 carries left turn/brake signals, pin 3 grounds the system, and pin 4 activates right turn/brake lights. Pins 5 and 6 control side markers and backup illumination, respectively, while pin 7 supplies charging voltage when the ignition is active.
For aftermarket installations, splice into the existing harness using T-taps rated for 20-gauge wire or thicker–avoid vampire clips as they corrode under sustained 15A loads. The OEM connector wiring colors match Ford’s 2003–2007 color code: yellow for left turn/stop, green for right, brown for taillights, and white for ground. Verify each circuit with a digital multimeter set to DC voltage before securing connections with heat-shrink tubing to prevent moisture ingress.

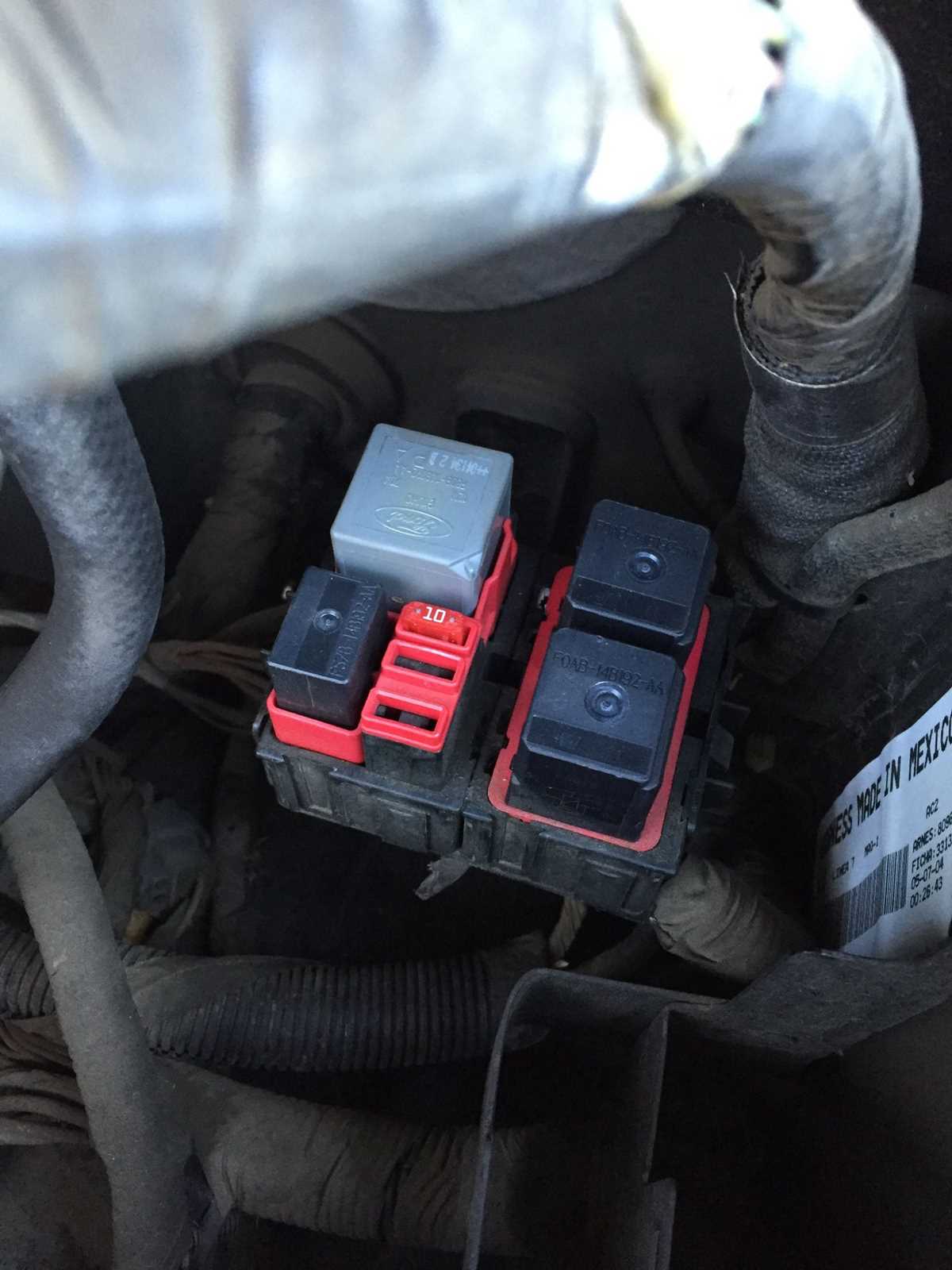

If the tow package was factory-optional, trace the blue wire from the under-dash fuse block–this powers the auxiliary battery relay and must be fused at 30A. Install an inline fuse holder within 7 inches of the battery terminal to comply with FMVSS 302 fire safety standards. For vehicles lacking the original harness, use a 12-circuit modular connector kit with 12AWG wire for circuits exceeding 12A draw.
Common Connection Issues and Resolutions
| Symptom | Root Cause | Corrective Action |
|---|---|---|
| Intermittent brake light operation | Corroded 7-pin connector pins | Clean contacts with dielectric grease; replace plug if pitting exceeds 0.5mm |
| Auxiliary battery not charging | Fused relay output failure | Bypass relay with direct connection to alternator’s “S” terminal (max 5A load) |
| Hyper-flashing turn signals | Insufficient ground path | Add supplementary 10AWG ground wire to chassis rail behind rear axle |
For vehicles equipped with integrated brake controllers, the red wire (pin 6) must interface with the controller’s “stop light” input–measure 4.5–6.5V during pedal depression to confirm proper signal voltage. Controller gain settings should start at 50% and increment by 10% until trailer brakes engage simultaneously with tow vehicle brakes. Always test at 30 mph on dry pavement with a minimum 1,500 lb. load to avoid false adjustment data.
When retrofitting a fourth brake light system, tap into the purple lead (pin 5) but insert a 5A fuse to prevent overload during trailer disconnect scenarios. For LED conversion kits, add a load resistor (6Ω, 50W) between turn signal and ground leads to eliminate rapid flashing caused by insufficient current draw. Secure all wiring with loom tubing or spiral wrap every 6 inches to prevent chafing against the frame rails.
Where to Find the Electrical Plug for Your Heavy-Duty Pickup’s Towing Setup
The harness connector for the towing package is positioned behind the rear bumper cover, directly beneath the driver-side taillight assembly. Look for a black plastic housing with a rectangular plug–often tucked upward into a small recess to shield it from debris. If the connector isn’t immediately visible, slide your hand along the inner fender liner; it may be secured with a single friction clip or dangling loosely on a short pigtail.
- Disconnect the battery ground cable before handling any electrical connections to prevent accidental shorts.
- Remove the two screws securing the taillight lens to gain better access; sometimes the plug is routed behind the lamp housing.
- Shake the bumper cover gently–corrosion or loose wires inside the conduit can create a faint rattling sound.
On models equipped with a factory tow package, the OEM harness merges into a seven-pin socket; if your truck lacks this, a dealer-installed adapter might terminate in a four-flat instead. Follow the main wire loom forward from the rear crossmember–it’s bundled with the brake light wires and should split near the frame rail kick-up. Trace the wires manually if they’re buried; pulling too hard can snap brittle insulation.
Check under the bed near the spare tire well if the connector remains elusive; earlier production runs occasionally mounted it there. Clear away any packed dirt or road grime with compressed air–moisture trapped around the pins can mimic disconnection. Test each circuit with a multimeter set to continuity mode before assuming failure; corroded terminals often register partial voltage drops rather than outright breaks.
For aftermarket setups, the location varies: Draw-Tite and Curt kits typically splice into the same loom but may secure their plugs on the opposite fender or behind the license plate bracket. Never rely solely on spliced connections without proper waterproofing; solder and adhesive-lined heat shrink tubing outlast crimp connectors in long-term towing conditions.
Decoding Color Standards for Heavy-Duty Vehicle Connector Configurations

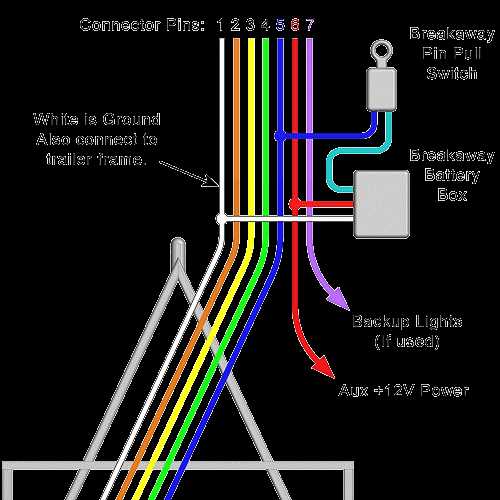

Start by verifying the standard color assignments for a 7-pin connector on your heavy-duty pickup–these are critical for proper function and safety. The industry-adopted scheme includes:
- White: Ground (G) – connects to the chassis or battery negative.
- Brown: Tail/marker lights (TM) – powers clearance, side marker, and license plate lamps.
- Yellow: Left turn/stop (LT) – handles both turn signal and brake activation for the left side.
- Green: Right turn/stop (RT) – same function as yellow but for the right side.
- Blue: Electric brakes (E) – supplies current to the brake controller output.
- Red (or purple): Auxiliary power (A) – provides 12V constant hot for accessories like winches or interior lamps.
- Black (or orange): Battery charge (B+) – delivers fused 12V+ to maintain tow unit batteries.
Always cross-reference the wire colors against the vehicle’s service manual–some manufacturers deviate slightly, especially aftermarket harnesses or imported models.
Tools and Verification Steps
Use a multimeter set to continuity mode to confirm each pin’s function before connecting. Touch the probe to the pin and activate the corresponding circuit (e.g., brake pedal, turn signal) to ensure the meter beeps. For the ground (white), verify zero resistance between the pin and the truck’s frame–corrosion here causes intermittent failures. If testing auxiliary circuits (blue or red), check for 12V+ with the ignition on; absence may indicate a blown fuse or faulty relay. Label each wire with masking tape during testing to avoid confusion.
Common mismatches occur with aftermarket brake controllers or adapters–ensure the blue wire connects to the controller’s output terminal, not the input. Some setups combine red and black wires into a single auxiliary feed; if your connector has both, black should handle charging (B+), while red powers accessories. Never splice B+ wires directly to the battery without a 30-40A fuse; place the fuse within 7 inches of the power source to prevent fire hazards.
- Inspect the connector housing for bent or corroded pins–clean with electrical contact cleaner and a small brush.
- Apply dielectric grease sparingly to each pin after verification to prevent moisture ingress.
- For turn signals, test both directions independently; unequal brightness suggests a weak ground or bad bulb.
- If the auxiliary circuit fails (red/purple), trace the wire to the fuse block and inspect for voltage drops under load.
Electrical Connection Troubleshooting for Towing Systems
Verify ground integrity first–secure a multimeter to the negative battery terminal and probe each chassis connection point, including the hitch frame. Voltage drops above 0.2V indicate corrosion or loose mounting, requiring disassembly and cleaning with a wire brush before resealing with dielectric grease.
Activate the vehicle’s lighting controls one by one and measure output at the plug using a test harness. Pin assignment variations exist: standard 7-way sockets follow a 12V-aux (center), left/right turn (outer pins), and brake lights (inner pairs). If readings fluctuate or fail, trace the harness upstream, checking inline fuses and relays hidden behind the dashboard kick panel.
For intermittent issues, flex the harness while monitoring signals to detect broken strands. Insulate exposed conductors with heat-shrink tubing, not electrical tape–moisture intrusion degrades connections faster. Replace any damaged sections with marine-grade 16-gauge wire, crimping terminal ends with a ratcheting tool to prevent pullout under vibration.
