Locate the driver-side fuse box under the dashboard. Remove the panel cover and identify fuse #23 (20A) labeled “Accessory Delay” and relay #509 (side glass control module). Use a multimeter to verify 12V at fuse #23 with the ignition in the “ON” position. If voltage is absent, inspect the orange wire from the ignition switch–trace it back to the junction block near the steering column.
For passenger door issues, access the door panel by removing the two 7mm hex screws behind the interior handle and the single Torx T20 screw beneath the armrest. Disconnect the wiring harness from the window actuator and probe the dark blue/light green wire at terminal #3–it should show 12V when activating the down switch. If not, follow the 16-gauge wire bundle through the rubber boot between the door and A-pillar to the cabin harness connector C305, pin #18.
Replace any corroded terminals at the actuator connector with new gold-plated 0.110″ female spades. Crimp using a ratcheting crimper set to 10 lb-in torque, then apply dielectric grease to prevent future oxidation. For intermittent operation, examine the black/white ground wire at G101 beneath the driver’s seat–clean the connection with a wire brush and re-secure with a star washer.
Non-responsive switches often stem from a failed window module. The module is secured with two snap clips inside the door, accessed after removing the plastic vapor barrier. Test continuity across the module’s 12-pin connector: pins #2 and #4 should bridge briefly when the down switch is pressed. If open, substitute a salvaged unit with matching part number 56049254AB.
Verify all connections with a schematic showing circuit paths in red (power), black (ground), yellow (signal), and purple (data link). Cross-reference wire colors against the factory manual’s section 8W–pay special attention to splices S153 and S154 located behind the glove box, which frequently fail due to chafing against the HVAC housing.
Electrical Circuit Reference for Crew Cab Side Glass Controls

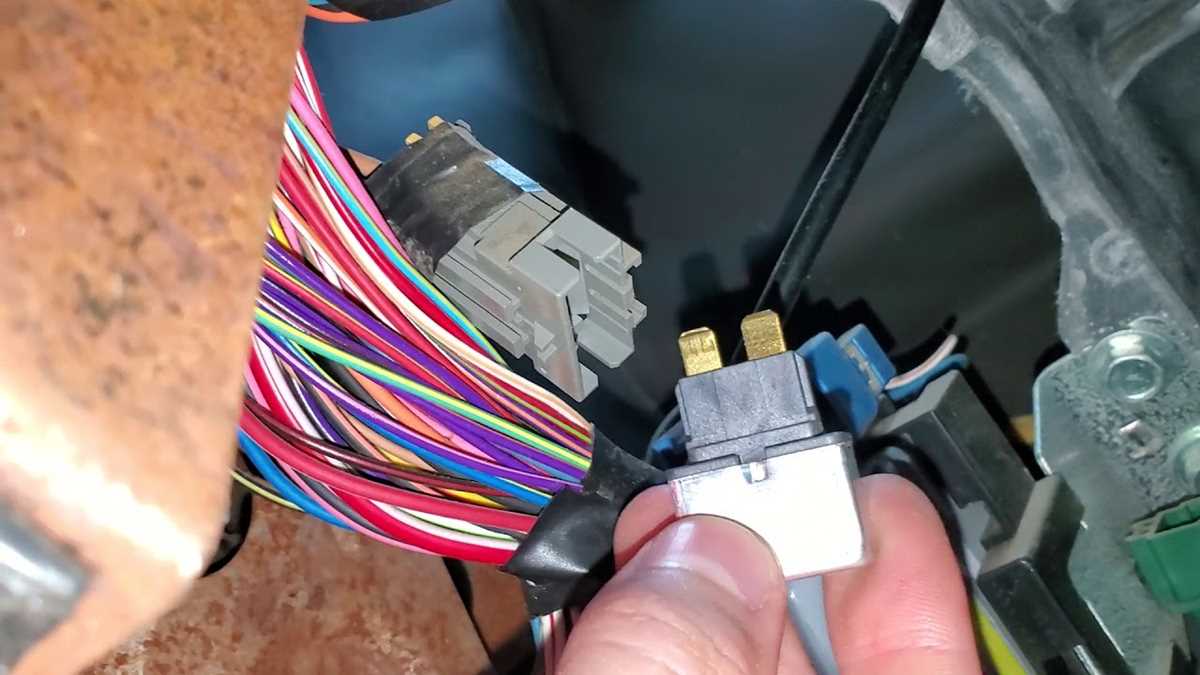

Locate the main control module behind the driver-side kick panel–remove the lower trim screw and pull outward gently to access. The harness connects via a 42-pin white plug labeled T42A; pin assignments are critical: purple/white (P/W) wire supplies fused ignition voltage, black/yellow (BK/Y) carries ground, while dark green/light blue (DG/LB) and light green/orange (LG/O) feed the front left and right regulators respectively.

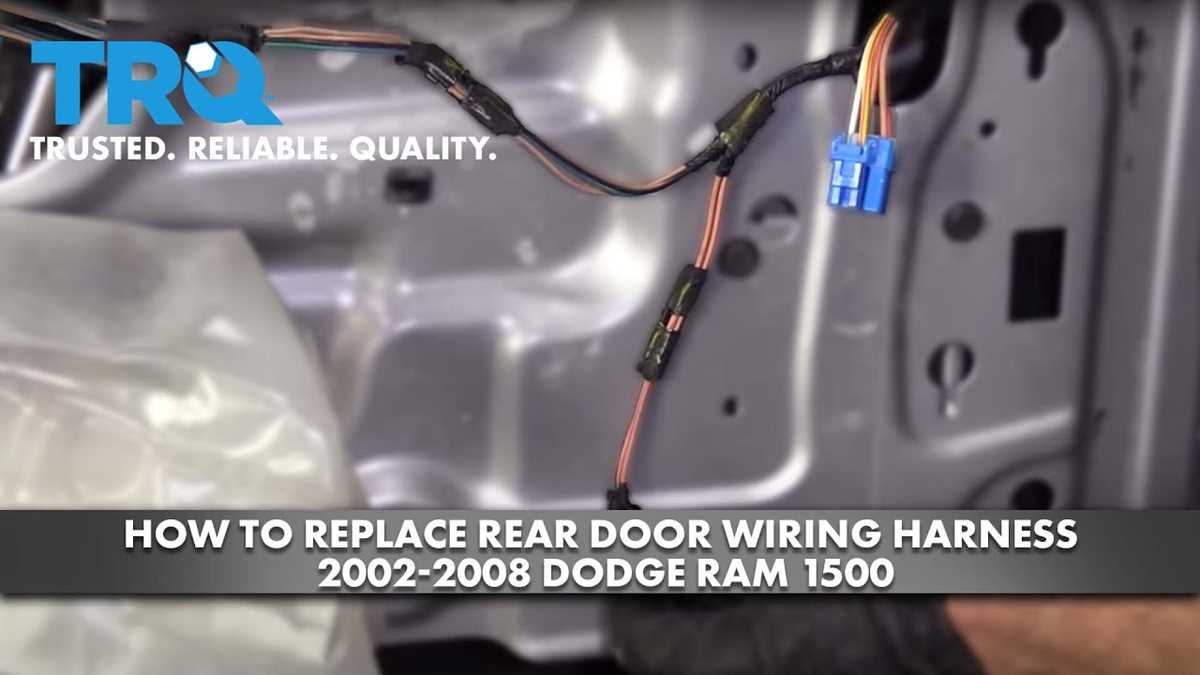

For rear door issues, trace the secondary harness routed beneath the carpet threshold–look for a two-wire splice near the B-pillar where tan/black (TN/BK) and tan/light blue (TN/LB) wires split to rear motors. Resistance readings should register 4-6 ohms at the motor terminals; discrepancies indicate corroded connectors or internal motor windings failure.
Switch Replacement Guide
Depress the small retaining clip on the window switch housing with a flathead screwdriver–angle it upward to release from the door panel. The switch uses a three-position momentary contact: up (LG/O to BK/Y), down (DG/LB to BK/Y), and auto (LG/O plus DG/LB to BK/Y through a bidirectional relay). Verify continuity with a multimeter; oxidized contacts often cause intermittent operation.
Door glass regulators on base models use a scissor-type mechanism–check the cable tension by manually lifting the glass; slack cables require realignment via the adjustment screw at the regulator base. Lubricate the steel cables with dielectric grease to prevent binding, but avoid petroleum-based products that degrade plastic bushings.
Fuse box location differs between trims: standard cab models house the 25A circuit breaker under the hood in the PDC, while quad cab versions place it inside the interior fuse block (slot 14). If motors stall, test voltage drop across the fuse; readings below 11.5V suggest excessive current draw or a short in the regulator’s 6-foot harness.
Color-coded wires in the door jamb grommet frequently fail–strip excessive insulation from the broken wire, crimp a new terminal, and apply heat-shrink tubing before taping. Never splice without solder; vibration causes intermittent connections. For rear door lockout switch issues, the orange/light green (O/LG) wire carries lockout signal–trace it to the body control module under the dash near the brake pedal.
Finding the Electric Glass Circuit in the Pickup’s Factory Handbook
Open the driver’s side door jamb and locate the fuse box cover–its diagram appears on the underside. Position 12 (20A) feeds the master switch, while slots 18 (10A) and 22 (10A) supply the left and right passenger switches respectively. Beneath the steering column, pull the lower dash panel; the orange connector (C2) carries the 12 V feed from the fuse block to the master switch via pin 12 (dark blue/white stripe).
Connector Pinouts for Quick Reference
| Switch Side | Pin ID | Wire Color | Function | Fuse Link |
|---|---|---|---|---|
| Master | 12 | DK BLU/WHT | Feed | Fuse 12 |
| Master | 3 | WHT/LT BLU | Left front motor UP | Fuse 18 |
| Master | 5 | WHT/TAN | Left front motor DOWN | Fuse 18 |
| Passenger | 4 | WHT/RED | Right front motor UP | Fuse 22 |
| Passenger | 6 | WHT/DK GRN | Right front motor DOWN | Fuse 22 |
Step-by-Step Electrical Connector Color Patterns for Front and Rear Door Glass Mechanisms
Start by locating the main harness beneath the driver’s side kick panel. The white/tan wire delivers 12V constant feed to both switches, while the dark green/orange stripe activates the motor ground circuit. Disconnect the connector before probing to avoid accidental activation.
Trace the driver-side switch wiring: the light blue/black stripe carries the initial command signal to raise the glass, and the yellow/light blue stripe controls downward motion. For the passenger switch, the light blue/dark green stripe triggers upward movement, while the tan/orange stripe initiates lowering. Cross-check continuity with a multimeter–resistance should read below 0.5 ohms between the switch terminals and the door panel connector.
Each door motor uses a two-wire interface: one for upward travel (purple/white on the driver side, purple/yellow on the passenger side) and one for downward travel (dark blue/white and dark blue/yellow respectively). Reverse polarity between these wires toggles direction–apply 12V to one while grounding the other to test movement.
If the regulator fails to respond, inspect the door jamb harness. The pink/black wire provides fused ignition input to the switches, and the gray/black wire grounds the system. A break here will disable both doors–splice in new 18-gauge wire if corrosion is present.
For rear side glass systems (if equipped), the switch cluster uses identical logic but routes through a secondary harness. The brown/white wire supplies power, while brown/light blue and brown/dark green govern direction. Rear motors follow the same two-wire rule: orange/white (up) and white/light blue (down).
Label all disconnected wires with masking tape and match their positions before reassembly. Misalignment can cause short circuits–verify each connection against the vehicle’s service manual color charts. For aftermarket upgrades, use heat-shrink butt connectors instead of solder alone to prevent vibration-induced breaks.
Finalize testing by cycling each switch three times. If intermittent operation occurs, check for frayed wires near the hinge pivot–this area sees high flex cycles. Secure loose strands with electrical tape or replace the entire harness segment if damage exceeds 20% of the wire’s cross-section.
Key Fault Points in Automotive Glass Actuator Circuitry
Start by inspecting the harness connectors at both ends of the motor assembly. Corrosion here often disrupts current flow–clean terminals with an electrical contact cleaner and reseat connectors firmly. Look for greenish oxidation or melted plastic, which indicates overheating from poor contact.
Check the door jamb switch cluster where wires bend repeatedly. Flexing causes insulation breakdown; probe with a multimeter for intermittent shorts. If a wire frays beneath the tape, solder a patch rather than taping–this ensures long-term reliability. The A-pillar conduit between the door and body is another hotspot; tug gently to confirm the grommet isn’t cutting into the harness.
Examine the ground strap near the kick panel. A weak ground mimics motor failure–scrape paint to bare metal if surface rust exists. Verify voltage drop across the circuit during operation; anything over 0.5V suggests resistance from a faulty splice or corroded wire. For motors that stall mid-travel, test the limit switch assembly–these small contacts corrode before other components.
Trace each wire color-coded path in the service manual. Pink/black often carries constant 12V, while dark blue may switch polarity for up/down commands. Deviations from the expected voltage at any point pinpoint the exact fault location. Replace any entire damaged harness segment rather than splicing–aftermarket repair kits frequently neglect the correct gauge or shielding.
High-resistance failures hide in crimps often overlooked. Use a continuity test between the fuse box and motor while wiggling wires. If readings fluctuate, the culprit is likely a broken strand within a T-tap connection. For stubborn issues, bypass sections with known-good wire to isolate the fault before cutting into factory loom.
Verifying Voltage and Earth Paths with a Multimeter
Set the multimeter to DC voltage mode at the 20V range before probing any contacts. Touch the red probe to the suspected live terminal–typically a small male spade connector wrapped in red or yellow insulation–and the black probe to a known chassis ground or battery negative. A reading between 11.5V and 14.5V confirms a functioning supply circuit; anything below 10V suggests a corroded fuse, broken wire, or failed relay upstream.
Locate the ground feed by following the harness to a bolt secured to the door frame or firewall. Detach the fastener and inspect for oxidation or paint obstructing metal-to-metal contact. Clean both surfaces with a wire brush, then reattach. Switch the multimeter to continuity mode and place one probe on the bare wire end, the other on a clean chassis point. A beep and near-zero ohms reading indicate a solid return path. If resistance exceeds 0.5 ohms, trace the wire back to its splice point and reseat any connectors.
- Use needle probes for piercing wire jackets when testing circuits without disconnecting terminals; this avoids cutting insulation.
- Check voltage drop across switches by activating the circuit and measuring input vs. output at each switch terminal–any drop over 0.3V signals internal resistance.
- For intermittent faults, gently wiggle wires near connectors while monitoring the multimeter; fluctuations pinpoint loose strands or cold solder joints.
Measure earth connections with the circuit energized by placing the black probe on the ground terminal and the red probe on the battery positive. A reading equal to battery voltage verifies the ground is properly linked; if the reading is lower, the ground wire may be severed or corroded at a hidden junction box inside the A-pillar or behind the kick panel.
For circuits that share grounds with multiple components–like door actuators–probe each return path individually while cycling the accessory. If voltage readings fluctuate when another part activates, a shared ground is overloaded; reroute the offending wire to a dedicated chassis bolt or install a terminal block to separate loads.
