Start by downloading the official manufacturer service manual for your model year–this is the most reliable source. Factory documents include precise pinouts for the fuse box, powertrain control module, and body control module, reducing guesswork. If the manual isn’t available, check OEM subscription services like AlldataDIY or Mitchell1, which provide color-coded schematics with wire gauge details.
Identify the main harness paths under the dashboard, along the firewall, and inside the engine bay. Trace wires by following their labels: black with a pink stripe (ground), red with a white stripe (ignition power), and yellow (switched 12V). Use a multimeter set to continuity mode to confirm connections, especially around the headlight switch and trailer brake controller, where corrosion often occurs.
Avoid third-party “free” diagrams–these frequently contain errors in wire routing or component labeling. Instead, cross-reference multiple sources: the service manual, a component location guide, and YouTube teardown videos from verified mechanics. Focus on sub-systems one at a time: start with exterior lighting, then fuel injection, and finally HVAC controls.
For intermittent faults, use a thermal camera or infrared thermometer to detect overheating connections. Check the OBD-II connector wiring (pins 6 and 14) for loose terminals–common causes of unresolved error codes. If splicing repairs are needed, use heat-shrink butt connectors with solder to prevent future oxidation.
Store digital copies of schematics on a ruggedized tablet kept in the vehicle. Highlight critical circuits (e.g., anti-lock brakes, airbag system) with different colors to speed up future diagnostics. Always disconnect the battery’s negative terminal before working on any electrical circuit to avoid short circuits.
Electrical Schematics for Full-Size Pickup: Hands-On Troubleshooting
Start by locating fuse box C305 beneath the driver-side dashboard–this central hub splits power to the TIPM (Totally Integrated Power Module). Pin 30 on the 68-pin connector delivers constant 12V to the fuel pump relay (J17), while pin 53 feeds the ignition-run circuit that activates the PCM and instrument cluster. Probe these terminals with a multimeter set to 20VDC; readings below 10.8V indicate corroded grounds at stud G110 under the battery tray or a failing alternator diode trio.
Trace Hidden Harness Failures
Peel back the brake light harness conduit behind the rear bumper to expose gray/yellow stripe wire (circuit Z1/21). This conductor carries stop-lamp voltage and often shorts against the trailer hitch mount–clip back the protective wrap to reveal copper strands fused into a brittle crust. Solder a 14-gauge bypass using shrink tubing rated to 150°C, then secure it with spiral wrap every 150mm to prevent sag-induced chafing on the rear crossmember.
Isolate HVAC blower motor speed fluctuations by disconnecting the blue/white trace at C1 connector under the passenger kick panel. Probe the resistor block (R26) with a 1kΩ setting; resistance should step uniformly from 0Ω (high speed) to 1.8kΩ (low speed). Burnt resistors emit a distinct phenolic odor and typically fail at the 50W tap–replace the entire assembly if resistance reads infinite, ensuring the new unit matches OE mounting flanges to avoid misalignment that scrubs against the evaporator housing.

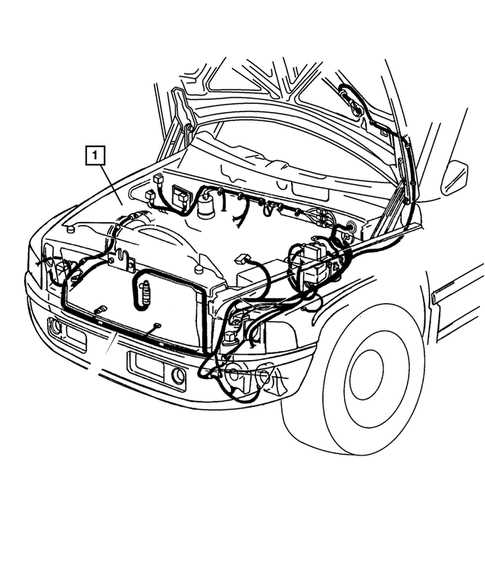

Finding Primary Electrical Bundle Links in the Engine Bay

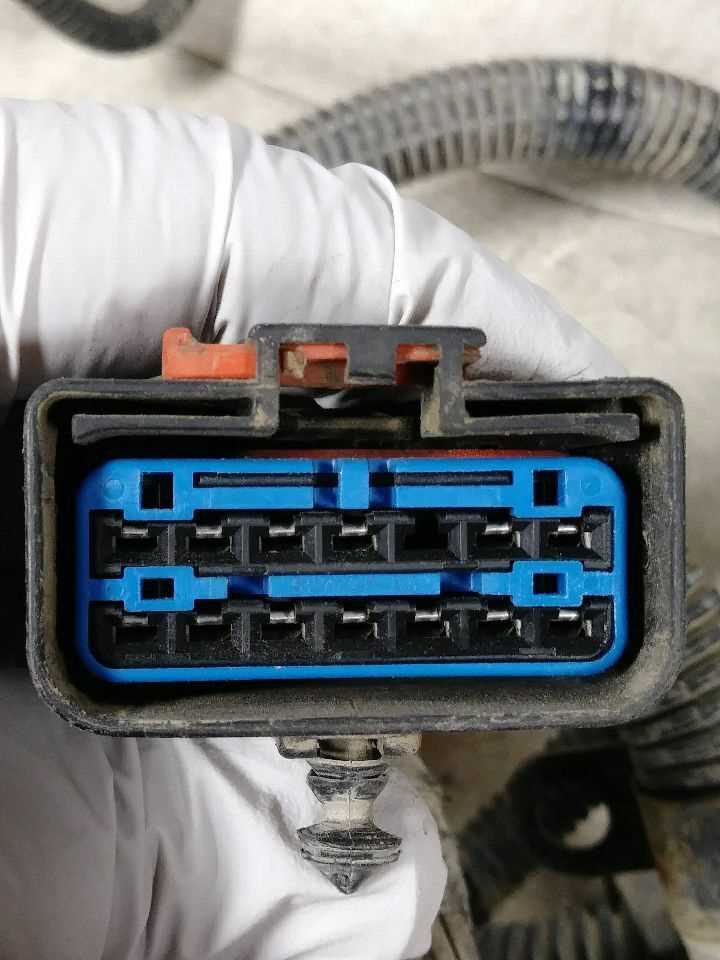

Begin by lifting the driver-side front corner of the plastic under-hood cover; two 10 mm bolts secure it. Behind the cover, near the hydraulic strut tower, lies a rectangular black connector block marked “C1” on the inner fender apron. Detach the red locking clip by pulling outward, then press the small tab underneath to separate the halves. This junction feeds power to the ECM, transmission control module, and the entire main chassis bundle.
The passenger-side fuse box sits adjacent to the coolant reservoir; pop its lid to reveal three large inline plugs labeled A, B, and C along the rear edge. Insert a flat-blade screwdriver into the narrow slot on the underside of each connector, twist slightly to release internal tabs, then tug downward with steady force–avoid jerking to prevent snapping retaining pins. Connector A supplies primary ignition circuits, while B and C split auxiliary feeds to ABS and lighting modules.
Trace the thick gray harness running above the front crossmember toward the radiator support; it splits into three thinner branches mid-span. The middle branch curls left toward the front bumper and carries fog lamp, horn, and sensor signals. Use needle-nose pliers to depress the tiny retaining barbs on each micro-connector–do not force otherwise fragile plastic tabs break easily.
A fourth critical bundle emerges from the firewall near the brake booster; two T30 Torx screws hold its protective shield. Remove the shield to expose a dense cluster of six connectors beneath: color codes yellow, orange, blue, green, black, and purple distinguish HVAC, airbag, and instrument panel feeds. Label each connector with masking tape before unplugging to ensure correct reinstallation sequence.
Tracing Electrical Flow in Truck Power Centers
Locate the main junction hub beneath the driver-side dashboard, directly adjacent to the hood-release lever. This central node consolidates input from the battery, alternator, and primary ignition circuits. Verify its mounting bolts–corrosion here mimics loose connections.
Identify feed cables by gauge: 4 AWG (red) handles starter current, 8 AWG (yellow-striped) supplies accessories after the ignition relay. Probe each terminal with a non-powered meter; resistance above 0.2 ohms indicates hidden oxidation.
- Fuse #12 (20A): Powers HVAC blower; trace violet wire to the resistor pack behind the glovebox–intermittent failure here causes erratic fan speeds.
- Fuse #24 (10A): Protects instrument cluster; check pink-striped lead for voltage drop when toggling headlight switch.
- Relay K3: Controls cooling fan; remove lid–internal pitting on contacts 85/86 confirms arcing during high-load cycles.
Separate chassis grounds from signal returns. The former terminate at the firewall stud (3/8″ bolt), the latter loop back to ECM pin 37 via a twisted pair–reversing these paths introduces 0.5V noise into sensor readings.
Map auxiliary circuits using the under-hood auxiliary box. The lug marked “IBS” (gray wire) interfaces with trailer brake controllers; disconnect and load-test this path with a 30A dummy load–voltage sag below 11.8V reveals insufficient gauge thickness.
Inspect fuse box internals for melted bus bars. A thermal camera reveals hotspots before visual damage; focus on Fuse #7 (15A, abs module) and Fuse #16 (30A, heated seats)–these commonly overheat due to undersized return paths.
- Shake each fuse while monitoring load currents; a 0.1A fluctuation indicates hairline cracks in the element.
- Check relay sockets for tinning–green corrosion here requires cleaning with rosin flux, not sandpaper.
- Use a heatshrink crimp splice rated for 105°C minimum when repairing connector J1 (transmission control module).
Cross-reference power paths with OEM pinouts during parasitic drain tests. A multimeter reading above 50mA on the red/light-blue wire (BCM keep-alive) suggests a faulty door ajar switch–bypass it temporarily to isolate.
Tracing Electrical Paths for Front and Rear Lights Including Directionals
Begin with the fuse box located under the driver-side dashboard. Locate fuse F24 (15A) for headlamps, F25 (10A) for tail lamps, and F8 (20A) for direction signals. Use a multimeter set to continuity mode to verify each fuse is intact before proceeding. If a fuse reads open, replace it with one of identical amperage–never upgrade capacity, as this risks overheating the harness.
Follow the color-coded cables from the fuse panel directly to the headlamp switch combo mounted on the instrument panel. The headlamp circuit typically routes through a purple wire with a white stripe (P/W) for low beams and a light blue wire (LB) for high beams. Disconnect the switch connector and probe each terminal with the multimeter; low beams should show 12V+ when the switch is in the “on” position, while high beams must activate only when the stalk is pulled.
Inspect tail lamp circuits next. The brown wire (BN) serves both taillights and license plate lamps, branching from the same 10A fuse. Trace this wire rearward along the driver-side frame rail; it terminates at the rear junction block beneath the bed. Verify voltage here–corrosion at this junction often causes both taillights to fail simultaneously. Scrape oxidation off terminals with a wire brush, then apply dielectric grease to inhibit future buildup.
Directional Signal Circuit Verification
Start at the turn signal flasher, accessible behind the lower dash panel near the steering column. The flasher relay emits an audible click when activated–no click indicates a failed relay or open circuit upstream. The relay receives power via fuse F8 through a dark green wire (D) feeding the turn signal switch integrated into the multifunction stalk. From the switch, directionals split: left-side signals feed through a light green wire (L/G), right-side through a yellow wire (Y).
At each lamp socket, confirm ground continuity by touching the multimeter’s negative probe to bare metal and the positive probe to the socket’s ground terminal; a reading near 0 ohms validates proper grounding. For front directionals, follow the L/G or Y wire from the engine bay firewall grommet to the bulb socket. Rear directionals follow the same wire through the tail lamp harness–look for chafed insulation where the harness rubs against the bed or frame, especially near sharp edges or suspension mounts.
Test bulb sockets by removing each bulb and probing the socket contacts. Front directionals should show 12V+ only when the turn signal is activated; rear sockets exhibit the same voltage but may also illuminate the taillights if the brown wire circuit is energized. If a socket fails to deliver voltage, backtrack along the wire, checking for broken strands or melted connectors at splices–common failure points include under the front fascia or beneath the bed liner.
Use a scan tool to monitor the Totally Integrated Power Module (TIPM) for fault codes if circuits behave erratically. Codes B1401 (left low beam failure) or B1407 (right turn signal malfunction) direct you to specific branches. Clear codes after repairs, then cycle each light function multiple times–intermittent faults often reappear only after several activation cycles, confirming the repair’s durability.
