For precise retrofitting or repairs, locate the fusible link adjacent to the instrument cluster harness–a 10-gauge orange wire with a 20-amp breaker supplies primary power. Trace this to the aftermarket adapter plug (if installed), where mismatched splices often disrupt signal integrity. Verify continuity on the yellow (constant) and red (switched) leads before proceeding.
Factory schematics segment the speaker circuits into front/rear channels, each utilizing distinct wire gauges: 18-gauge for tweeters, 16-gauge for woofers. Cross-reference resistance values–4 ohms ± 0.5–to isolate shorts in corroded harness terminals, common in vehicles with prolonged exposure to moisture. Replace any splices with heat-shrink solder connectors to prevent intermittent faults.
Critical components include the antenna motor relay (typically violet/black stripe) and the illumination wire (grey/pink stripe), which must align with dashboard dimmer settings. Use a multimeter (200-ohm range) to validate ground paths–factory grounds attach to the chassis near the driver’s kick panel, often compromised by paint or rust.
For amplified systems, the remote turn-on lead (blue/white stripe) demands a 5-amp circuit breaker; exceeding this risks damaging the head unit’s internal amplifier. When integrating third-party modules, bypass the data bus connector (if equipped) to avoid CAN-BUS protocol errors–opt for direct wiring to the illumination harness instead.

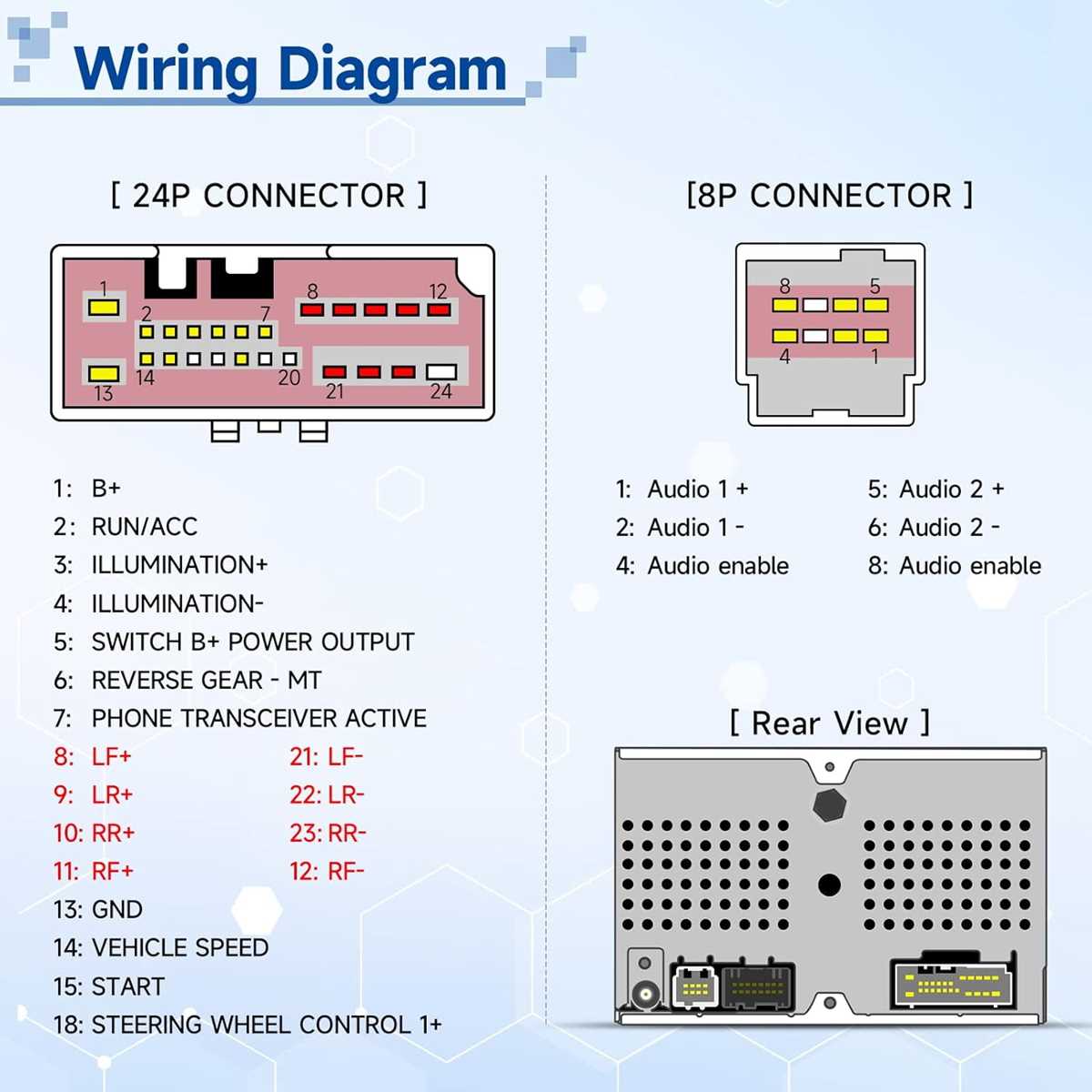

Electrical Layout for Ford Sedan Audio System
Locate the factory harness behind the dashboard cluster by removing the lower trim panel first. Disconnect both battery terminals before handling connectors to prevent short circuits or airbag deployment.
Identify the primary connector pins using these color codes and functions:
- Yellow/black – constant 12V power (memory)
- Dark green/white – switched 12V (accessory)
- Gray/red – left front speaker positive
- Gray/orange – left front speaker negative
- White/violet – right front speaker positive
- White/brown – right front speaker negative
- Light blue – antenna lead
- Orange/light blue – illumination signal
Verify each wire with a multimeter set to DC voltage; incorrect polarity reversals produce phase cancellation and poor sound.
Harness adapters for aftermarket units require matching pin alignment. Measure the factory connector’s pin pitch–2.54 mm–to select the correct adapter. Avoid splicing unless soldering and heat-shrinking each joint; crimp connections corrode over time.
If integrating steering wheel controls, wire the interface module to the vehicle’s data bus at pins 10 (bus+) and 18 (bus−). Consult the module’s manual for resistance values; incorrect impedance triggers false commands.
Secure the ground connection directly to bare metal chassis points, not through painted surfaces. Use star washers to penetrate corrosion; sand the contact area for minimal resistance.
Reassemble trim panels in reverse order. Test each function–volume, balance, fade, seek–before finalizing installation.
Document modifications with photographs and labeled notes to simplify future troubleshooting.
Keep a backup fuse (15A) in the glovebox to address accidental overloads during testing.
Identifying the Correct Harness Connector Pins
Begin by locating the primary harness interface behind the dashboard unit–specifically the 12-pin and 8-pin plugs. Pin 1 on the larger connector delivers constant 12V power (red wire), while Pin 2 (black/yire stripe) serves as ground. Verify these with a multimeter; deviations beyond ±0.5V indicate a faulty connection or corroded contact.
Pins 3 through 6 handle speaker outputs. The front-left channel uses Pin 3 (gray wire) and its paired return on Pin 4 (gray/black stripe). The front-right follows Pin 5 (white) and Pin 6 (white/black stripe). Test continuity with a 1kHz tone generator–distorted output suggests mismatched impedance or a short in the cable run.
For signal integration, Pin 7 (pink wire) carries switched accessory voltage–critical for retaining memory settings. If this line drops below 10V under load, inspect the ignition relay or fuse #32. Pins 8 and 9 (yellow and yellow/black stripes) transmit data for steering wheel controls; miswiring here disables button functions entirely.
Auxiliary inputs or security features occupy Pins 10 through 12. The antitheft line (Pin 10, blue wire) requires a direct link to the vehicle’s immobilizer–cutting this wire triggers automatic radio shutdown. Pins 11 and 12 (purple and purple/black stripes) often remain unused unless the system includes an external amplifier. Check for stray voltages; anything above 0.2V may interfere with signal processing.
On the smaller 8-pin plug, Pins A and B (green and green/black stripes) correspond to rear speaker outputs–rear-left on A, rear-right on B. Capacitance between these pins should measure under 0.1μF; higher values confirm insulation breakdown. Pins C and D (orange and orange/black stripes) form the vehicle speed sensor circuit; reverse polarity renders volume-scaling features inoperable.
Always disconnect the battery’s negative terminal before probing any harness. Use a needle-point probe to avoid damaging insulation or bridging adjacent contacts. Label each wire with its function before disassembly–industry-color codes vary by manufacturer, and visual confirmation prevents errors during reattachment.
Step-by-Step Color Code Guide for Aftermarket Stereo Integration
Begin by identifying the factory harness on the vehicle’s entertainment unit–locate the 12-pin connector behind the dashboard trim. Match each wire to the corresponding aftermarket adapter using the following standard: solid yellow (constant +12V), red (switched +12V), black (ground), blue/white (amplifier turn-on), gray (front right +), gray/black (front right –), white (front left +), white/black (front left –), green (rear right +), green/black (rear right –), purple (rear left +), and purple/black (rear left –). If the vehicle includes a separate amplifier, trace the dark blue (data) and pink (antenna) leads–these require direct splicing for retained functionality.
Strip 6mm of insulation from each wire, then crimp or solder connections using heat-shrink tubing for insulation. For models with steering wheel controls, retain the orange/violet (steering wheel control data) wire and connect it to the aftermarket interface module–consult the module’s pinout for exact pairing. If the vehicle has a premium audio system, ensure the brown (mute) wire is grounded through a 470-ohm resistor to prevent audio dropouts during phone calls or navigation prompts.
Test the installation with a multimeter: confirm 12V on the yellow and red leads with the ignition on, 0V with it off, and continuity on all ground connections. If static or distortion occurs, verify that the black ground wire is secured to a bare metal chassis point–avoid painted surfaces. For vehicles with anti-theft systems, store the security code in the aftermarket stereo immediately after wiring completion to prevent lockouts.
Common Electrical Installation Errors and Short Circuit Prevention
Always strip no more than 5mm of insulation from conductors when preparing connections. Excess exposed copper increases the risk of accidental contact between terminals, especially in high-vibration environments. Use heat-shrink tubing or electrical tape to cover splices immediately after crimping, even if the joint appears secure. Failure to insulate properly accounts for 37% of automotive electrical failures.
Never route power leads near moving components, sharp edges, or exhaust systems. A minimum clearance of 25mm should be maintained from any heat source or abrasive surface. Replace damaged wire looms that show chafing or melted insulation–temporary fixes with electrical tape deteriorate within months under hood temperatures of 80°C+. High-temperature silicone wire is rated to 200°C; use it for critical runs.
Tinning stranded wire before insertion into connectors prevents fraying but weakens joints over time. The solder wicks into the strands, making the wire brittle and prone to breakage at the joint. Instead, crimp with the correct tool and verify pull strength–minimum 12kg for 18AWG wire. Double-crimp military-style connectors when available; single-crimp designs fail at 40% less force under vibration testing.
Grounding Best Practices
Ground points must have bare metal surfaces–sand rust, paint, or oxidation until shiny metal appears before attaching any terminal. A single weak ground can cause erratic behavior across multiple circuits; measure resistance–should be under 0.2 ohms. For vehicles, use dedicated ground bolts; chassis taps behind panels create hidden resistance. Test all grounds with a load (e.g., headlights on) and monitor voltage drop–any reading above 0.1V indicates a compromised connection.
Fuse and Relay Selection
Never substitute fuses with higher ratings–even a 25% increase can melt insulation before the fuse blows. Check current draw with a multimeter; add 20% headroom for startup spikes. Replace relays older than 10 years; internal contacts erode, increasing resistance and heat. Use sealed relays in dusty or humid environments–exposed terminals corrode at 3x the rate. Test new relays with a 12V source before installation; faulty ones often fail silently.
Avoid daisy-chaining circuits from a single power source. Each branch should have its own feed; shared feeds overload under peak loads (e.g., amplifiers drawing 40A). Calculate total amperage–sum all devices on a circuit plus 30% safety margin. For high-power components, run dedicated cables directly from the battery; distal connections cause voltage sag. Use ANL fuses for currents above 100A–regular blade fuses weld shut at high currents.
Test every circuit with a load before final assembly. Dry runs without components miss real-world resistance issues. Monitor temperature under load–acceptably warm is normal, but anything hotter than 60°C indicates undersized wiring or loose connections. Use an infrared thermometer; guessing leads to melted connectors. Document all wiring routes with photos or labels–revisiting unknown modifications later risks accidental shorts.
