For precise repairs on your late-model large utility vehicle’s dashboard display system, begin by securing the official OEM schematics from GM’s technical service portal or a verified aftermarket repair manual. Third-party diagrams often omit critical details, such as ignition-switched power pins (typically C2007: Pin 15) or ground references (G401), leading to misdiagnosed shorts or erratic gauge behavior.
Identify the instrument assembly’s 14-pin connector (white housing, marked C2) on the rear of the unit–this interfaces with the vehicle’s primary wiring harness. Key circuits include: Pins 2 (PINK, battery voltage), 3 (PURPLE/WHITE, vehicle speed sensor input), and 6 (DARK GREEN, tachometer signal). Cross-reference each wire gauge with a multimeter set to 200Ω; resistance outside 0.3–0.7Ω indicates corrosion or a broken strand.
If the fuel level or temperature gauges fluctuate, focus on the sender unit wires: black (ground) and pink (signal) for the fuel pump module, or grey (signal) for the coolant sensor. Probe these at the PCM connector C1 (Pin 62 for fuel, Pin 57 for ECT) while cycling the ignition to isolate open circuits. Replace any degraded connectors using GM’s Part #12161648 (male terminals) to prevent voltage drop.
For backlighting failures, check the dash illumination wires (orange, Pin 1 on C2) and tail lamp circuit (brown, Pin 7). Dimmer control operates through a 1kΩ potentiometer integrated into the headlight switch assembly; verify continuity between Pins 4–5 on the switch’s 6-pin connector. If a gauge remains stuck, bridge Pin 3 (VSS input) to ground momentarily–restoration confirms a faulty speed sensor.
Understanding Electrical Connections for Your Vehicle’s Gauge Assembly
Start by locating the 14-pin connector on the rear of the dashboard display panel. Pin 1 delivers constant 12V power from the battery via the ignition switch, while pin 3 supplies ground through the chassis. Use a multimeter to verify voltage between these points–readings below 11.8V indicate a weak battery or corroded connection at the fuse block.
Signal inputs enter through remaining pins: pin 6 carries vehicle speed data via the transmission control module; pin 8 feeds engine temperature readings from the coolant sensor; pin 10 handles tachometer pulses via the crankshaft position sensor. Check resistance between each input and ground–values outside 200-400 ohms suggest a faulty sensor or broken harness wire.
Backlighting circuits occupy pins 2, 7, and 14. Pin 2 receives dimmer control voltage from the headlight switch, ranging 0-12V based on dash illumination setting. Pins 7 and 14 connect to left and right LED arrays respectively. Test continuity between these pins and the light switch–absence of continuity confirms a severed wire within the door jamb harness.
For analog fuel level indication, pin 12 links to the sender unit in the tank. Monitor voltage while manually varying sender float position–readings below 0.5V at full tank or above 4.5V at empty point to a defective resistor ladder within the gauge mechanism. Replace sender if voltage swings inconsistently during testing.
Warning lamp circuits utilize pins 4, 5, 9, and 11. Pin 4 triggers the brake system alert from the hydraulic switch; pin 5 activates the seatbelt indicator via the restraint control module; pin 9 handles oil pressure alerts from the engine lubrication sensor; pin 11 manages ABS warnings through the anti-lock brake module. Use a test light connected to battery positive to verify each input–failure to illuminate indicates upstream component failure.
Reassembly requires aligning the needle motors precisely before securing the rear cover. Zero-set procedures involve disconnecting battery, pressing reset button, then holding while reconnecting power–failure causes erratic needle behavior post-install. Route replacement harnesses through original grommet locations to prevent pinching against chassis members.
Finding Electrical Link Points in Your Full-Size SUV’s Gauge Assembly
Start by removing the upper dashboard trim panel beneath the windshield. Unsnap the four plastic clips securing the shroud–two on the driver side, one near the center, and one on the passenger side–using a flathead screwdriver wrapped in masking tape to prevent scratches. Behind this panel, you’ll expose a 24-pin black connector and a smaller 12-pin gray connector, both plugged directly into the back of the speedometer housing. Mark each connector with painter’s tape to note their positions before unplugging.
Identifying Individual Pin Functions
The 24-pin main harness includes circuits for the tachometer (pins 1-4, yellow/black striped wires), fuel level sender (pins 6-8, pink/black), and coolant temperature gauge (pins 12-14, dark blue). The 12-pin auxiliary connector handles illumination (pins 2-3, light blue/white), turn signal indicators (pins 5-6, brown/white), and check engine light (pin 9, orange/black). Use a multimeter set to 20V DC to verify voltage at pin 18 (purple) when the ignition is on–it should read 12V if the dash power feed is intact.
Trace the harness routing to avoid damaging hidden clips. Follow the wires from the connectors down along the steering column support bracket, where they merge into a larger loom secured with zip ties. Cut these ties carefully with diagonal pliers, then gently pull the loom toward the firewall to find a splice junction near the fuse box. This junction splits into smaller branches feeding the transmission shift indicator (gray wire), anti-lock brake module (tan/black), and backup light circuit (white). Label each branch with numbered flags before disconnecting.
Decoding Dashboard Connector Pinouts by Color Codes
Begin by locating the 24-pin gray connector on the back of the speedometer assembly–this is the primary interface for all gauge inputs. Pinout slots are marked numerically, but their functions are best identified by wire hues. The orange (ORG) wire with a black stripe at pin 3 delivers ignition-switched power (12V), critical for gauge illumination and LCD activation. Adjacent, the dark green (DK GRN) conductor at pin 5 carries the fuel level signal from the tank sender, pulsing 0-5V proportional to remaining capacity.
Critical Sensor Feeds and Grounding
- Yellow (YEL) at pin 9: Vehicle speed sensor (VSS) input–expect a 0-12V square wave signal; distorted waveforms here cause erratic odometer behavior.
- Light blue (LT BLU) at pin 11: Coolant temperature sender–delivers 0.5V at cold, rising to 4.5V at 250°F. Verify continuity with an ohmmeter: 10kΩ at 32°F, dropping to 70Ω at 212°F.
- Black (BLK) at pins 4, 14, 17: Three dedicated chassis grounds–ensure resistance below 0.1Ω to the battery negative terminal. Corrosion here mimics gauge failures.
For warning lights, focus on the smaller 12-pin white connector. The pink (PNK) wire at pin A supplies fused battery voltage (+12V constant) to memory circuits; a blown 10A fuse here disables trip computer functions. The tan (TAN) with white stripe at pin C triggers the check engine lamp–this line is pulled low (under 1V) by the PCM during faults. Test with a 12V test light: lamp should illuminate when grounded manually.
Ambient lighting relies on the gray (GRY) wire at pin 23 of the main connector, dimming from 12V (full brightness) to 0V via the rheostat. Illumination failures often trace to damaged rheostat potentiometers; substitute a 50Ω resistor temporarily to isolate faults. For tachometer input, the purple (PPL) wire at pin 1 carries a 12V ignition coil pulse–capture waveform with an oscilloscope: healthy signals show 14V peaks at 150Hz at 2,000 RPM.
Step-by-Step Guide to Testing Voltage at Each Gauge Panel Connector Pin
Disconnect the vehicle’s negative battery terminal before probing any connector pins to prevent short circuits or damage to electrical components. Set a multimeter to DC voltage (20V range) and insert the black lead into the ground pin–typically pin 10 (black wire) for this system–while leaving the red lead free for testing. Probe each pin sequentially, referencing the factory pinout for expected voltage ranges: pins supplying power (e.g., pins 1, 8) should read 12V±0.5V with the ignition on, while signal pins (e.g., pins 3, 5, 12) may fluctuate between 0-5V based on sensor inputs. If readings deviate by more than 10%, inspect the corresponding fuse, wiring harness, or sensor for corrosion, fraying, or loose connections. Use a backprobe technique for live-circuit testing to avoid damaging terminal clips.
Critical Pins and Expected Readings
Pin 1 (red/black): 12V ignition feed–verify against battery voltage. Pin 3 (purple): Tachometer signal (0-5V pulse)–rev engine to confirm variance. Pin 5 (yellow/black): Fuel level sender (0.5-4.5V)–check gauge response when moving float manually. Pin 8 (orange): Constant 12V–tests fuse integrity. Pin 12 (gray): Oil pressure sender (0.5-4.5V)–idle engine should yield ~1.5V. Ground pins (10, 15) must read 0V; any resistance indicates poor chassis grounding. Document each reading to isolate faults–consistent 0V on power pins suggests an open circuit, while erratic values point to intermittent connections or failing sensors.
Common Issues and Troubleshooting Faulty Gauges or Warning Lights
Check the fuse box first–blown fuses are the simplest cause of dead gauges or erratic dash signals. Locate the fuse labeled for the dash assembly (typically 10A or 15A) using the owner’s manual fuse map. Replace with an identical amperage fuse; if it blows immediately, inspect the circuit for shorts. Corroded fuse terminals can mimic a blown fuse–clean contacts with electrical cleaner before replacing.
Test the voltage regulator if gauges fluctuate randomly or peg against stops. On models with analog meters, the regulator is often integrated into the back of the control panel. Use a multimeter to check voltage at the regulator’s output–normal readings should stabilize between 13.8V and 14.5V. If readings swing wildly or drop below 12V, replace the regulator. For digital displays, a faulty regulator may cause backlight dimming or screen flicker.
Inspect the sender units for consistent resistance values if a single gauge fails. A fuel level indicator stuck on empty, for example, usually points to a faulty tank unit. Disconnect the sender wire, then measure resistance across its terminals. Compare readings to factory specs (e.g., 10–150 ohms for a full-to-empty range). Clean corroded connectors with a wire brush–oxidation disrupts signal integrity. Replace the sender if resistance values are outside tolerance.
| Gauge Symptom | Likely Cause | Quick Fix | Advanced Test |
|---|---|---|---|
| Speedometer erratic or dead | Faulty VSS (Vehicle Speed Sensor) | Check sensor wiring for breaks | Backprobe VSS connector; should show pulsed 5V signal at 2-3Hz per mph |
| Tachometer pegged or jerky | Bad ignition coil signal | Inspect coil wiring harness | Scope ignition pulses at ECM; missing or irregular signals confirm coil failure |
| Temperature gauge stuck high | Short in temp sender wiring | Ground sender wire momentarily–gauge should drop | Measure sender resistance (should be ~250Ω at 190°F) |

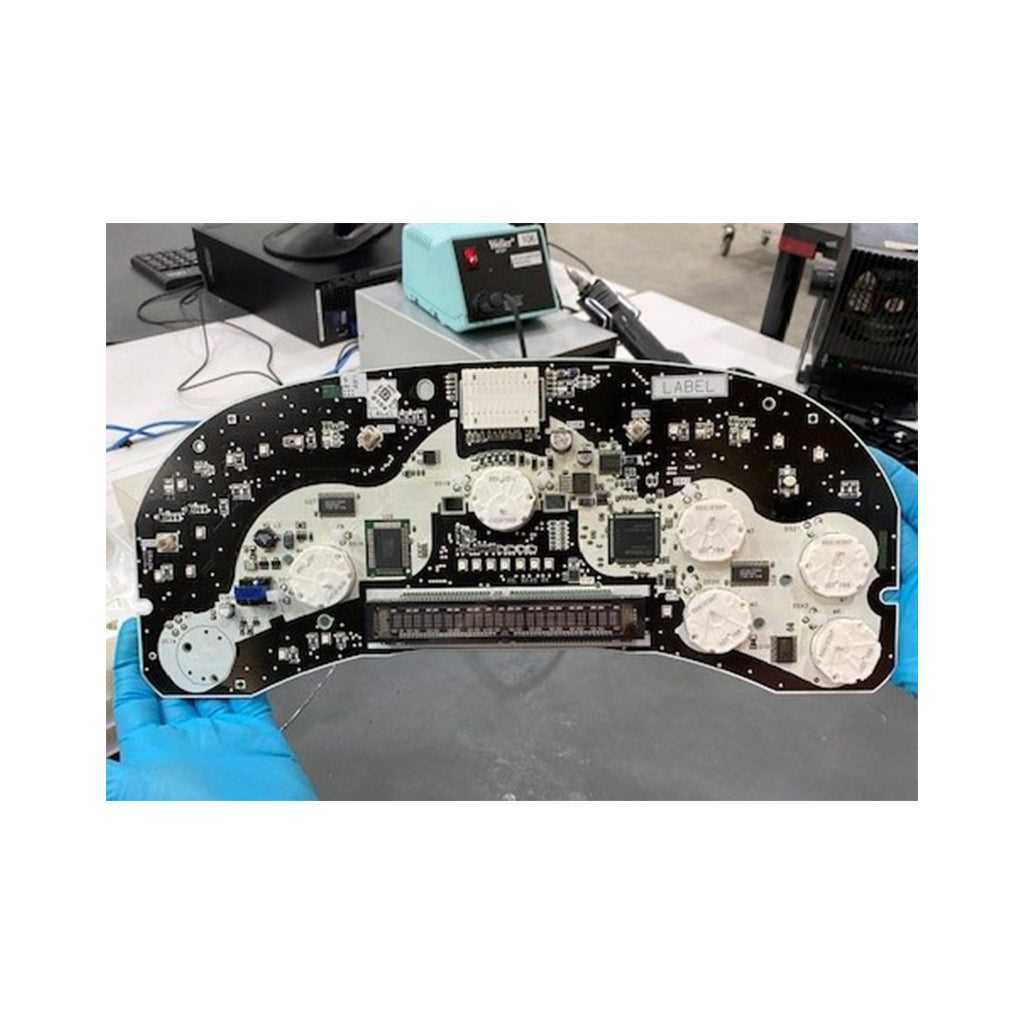

Examine the printed circuit board behind the panel for burnt traces or cold solder joints. Heat and vibration cause solder cracks, especially near high-current components like warning lamp drivers. Resolder suspicious joints with rosin-core solder; avoid acid flux which corrodes traces over time. For digital dashboards, reflowing connections to the LCD ribbon cable often restores missing segments.
Disconnect the battery and test the alternator’s diode trio if warning lights illuminate dimly or won’t extinguish. A faulty diode leaks AC current into the dash circuit, causing bulb flicker or ghost signals. Replace the diode trio if voltage readings show AC ripple above 0.5V. For intermittent bulb failures, pull each bulb and inspect the filament–thermal cycling often causes fragile filaments to break at the base.
