Start by locating the vehicle’s fuse block beneath the driver-side dashboard–harness connector C2 (dark blue/white) carries the primary power feed for the entertainment unit. Verify voltage at pin 18 using a multimeter set to 12V DC; expected reading should stabilize between 11.8 and 12.4 volts. If absent, inspect fuse #41 (20A) in the under-hood panel, as erosion or incorrect amperage ratings commonly disrupt signal flow.
Trace the orange-striped wire from the head unit’s rear plug (terminal 3) to the vehicle’s ignition circuit. This conductor must register 10-12V only when the key is turned to ACC or ON positions. Misrouted cables often bypass the ignition relay, leading to parasitic drain–use a non-contact probe to confirm continuity without piercing insulation. For aftermarket installations, splice this lead directly into the ignition harness at connector C190, pin 11, ensuring compatibility with factory theft-deterrent protocols.
The yellow memory wire (labeled B+) terminates at the battery’s positive terminal via a dedicated 10-gauge cable. Secure connections with crimped terminals and heat-shrink tubing to prevent oxidation; corrosion here reduces voltage by 0.2V or more over time. Check ground paths at the chassis mounting bolt near the rear cargo area–scrub paint and apply dielectric grease to bare metal surfaces to maintain conductivity.
Antenna power is delivered via the pink-striped wire at pin 4; if AM/FM reception fails, test this line for 5V output using a scope. Factory antennas require a separate ground return at pin 6–verify resistance below 0.5 ohms. For custom speaker upgrades, bypass the stock amplifier by routing leads from the purple/gray and dark green/violet pairs at connector C201 to direct amplifier inputs, matching impedance to avoid driver overload.
Auxiliary input integration demands tapping the light green and tan wires at the CD changer port (if equipped). Shield these connections with foil tape to minimize interference from the vehicle’s alternator or HVAC blower motor. Always disconnect the negative battery terminal before modifying circuits to avoid shorting integrated modules.
Guide to Audio System Electrical Connections for a Full-Size GM SUV (Model Year Early 2000s)
Locate the 12-pin connector behind the dashboard unit–pins 1 through 4 handle speaker outputs. Pin 1 (gray) delivers front left positive, pin 2 (gray/black) front left negative, pin 3 (tan) front right positive, and pin 4 (tan/black) front right negative. Verify voltage with a multimeter; expect 3-4 volts AC when playing audio at moderate levels.
For rear speaker connections, focus on pins 5 through 8. Pin 5 (dark green) carries rear left positive, pin 6 (dark green/black) rear left negative, pin 7 (light blue) rear right positive, and pin 8 (light blue/black) rear right negative. Ensure impedance matches factory specs (4 ohms) to prevent amplifier overload or distorted output.
The memory retention circuit requires constant battery voltage. Trace the orange wire (12V) from the harness to its source–a fusible link near the under-hood fuse box. Confirm continuity with a test light; if absent, check fuse 15 in the interior panel. Avoid splicing alternatives; this wire powers the clock and preset storage.
Dimmer-controlled illumination connects via the light green wire. Link it to the vehicle’s lighting switch circuit to sync brightness with dashboard dials. Incorrect pairing results in either overly bright or non-functional display. Test by toggling headlights–illumination should adjust smoothly.
Ground connections merge at a single point behind the center console. The black wire splits into two paths–one for the chassis ground, another for the unit’s internal regulators. Clean mounting surfaces thoroughly; corrosion here causes intermittent static or power loss. Secure with a star washer for optimal conductivity.
For auxiliary inputs, identify the purple and purple/white wires (pins 9 and 10). These carry left and right channel signals from external devices. Use a 3.5mm adapter cable, ensuring shielding to minimize interference. Confirm signal flow with a scope if distortion occurs–ground loops are a common culprit.
The antitheft feature relies on the pink wire (ignition-switched 12V). Without this feed, the system enters lockout mode. Use a relay if integrating aftermarket components to prevent voltage drops. Measure voltage at the harness end–specs call for full battery voltage during crank.
Before final reassembly, reconnect all harnesses and test each function: power, volume, balance, fade, and source selection. Probe connections with a multimeter set to continuity mode–unintended shorts can damage the head unit’s internal processor. Label all wires with heat-shrink tags for future diagnostics.
Finding the Stock Audio System Plug Connectors

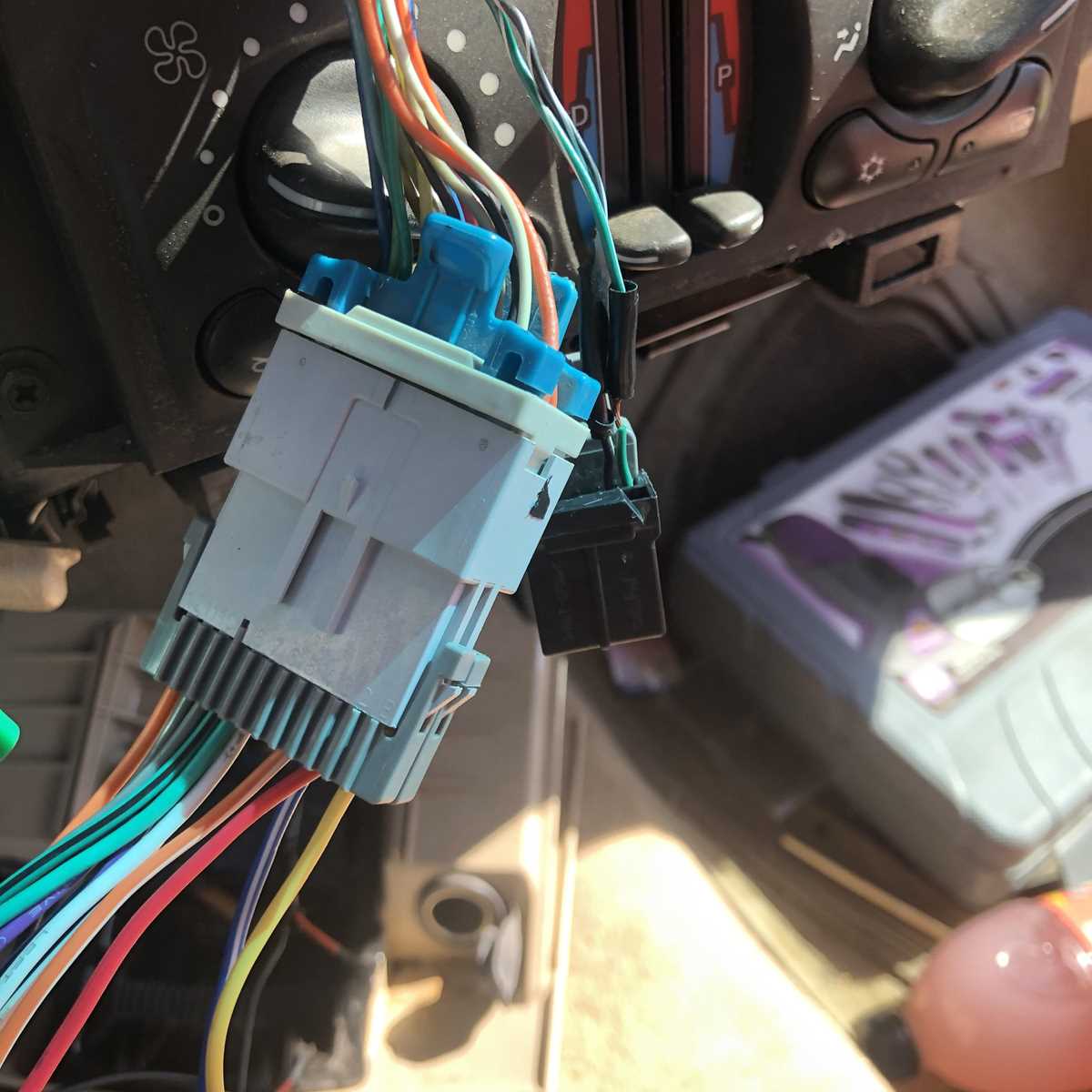

Check behind the center dashboard panel by removing the trim screws–there are typically two 7mm fasteners flanking the climate control vents. Pull the lower bezel straight out to reveal the factory harness; it sits on a black plastic bracket labeled “AUD” or “AMP” near the HVAC housing. The primary connector is a 24-pin gray block, while the secondary power plug is a smaller 8-pin white block–mistaking these can cause fuse failure in the speaker circuit.
Identifying Key Wires Without a Reference Sheet
Use a multimeter set to DC voltage (20V range) to probe the connectors with the ignition on. The constant 12V lead is red with a thin black tracer; switched 12V is purple with a white stripe–both measure 12V when the key is in the “on” position. Ground wires are all black or black with a colored tracer; verify by touching the probe to chassis metal–zero ohms confirms ground. Speaker wires are twisted pairs with distinct colors: front left (+) gray, front right (+) light green, rear left (+) tan, rear right (+) dark green; the corresponding (-) wires have black stripes.
Press the release tab at the top of the connector to disengage the locking mechanism–pulling without releasing can snap the plastic tangs. Slide the entire harness assembly downward about 2 inches to access the rear wires, where the amplifier input/output leads terminate in a smaller 12-pin orange plug. Avoid cutting loose wires; instead, use crimp connectors or T-taps to splice aftermarket hardware, preserving the original plugs for future reverts.
Mark each wire with masking tape labeled in pencil before disconnecting anything–factory colors fade, and duplicate hues (e.g., solid purple vs. purple/white) create confusion during reinstallation. Store removed connectors in a zip-lock bag taped to the underside of the dash to prevent moisture damage during long-term projects.
Color-Coded Wire Functions and Pinout Identification
Locate the factory harness connector behind the entertainment system’s mounting bracket–verify pin locations using a multimeter in continuity mode against the vehicle’s ground reference (bare metal chassis). The following color standards apply to most OEM harnesses and should be cross-checked with a 12V test light to confirm power delivery before any splice connections:
| Wire Color | Pin Number | Signal Type | Voltage Reference | Critical Checkpoints |
|---|---|---|---|---|
| Yellow (striped) | E4 (constant) | Battery feed | 12-14V DC | Fuse rating (20A), must hold under 0.2V drop at peak load |
| Red (solid) | A8 (switched) | Ignition-controlled | 12V when key ON/ACC | Verify relay click at ignition switch; avoid parasitic drain |
| Black (white stripe) | D6 | Chassis ground | 0V, | Scratch paint at connection point; use dielectric grease on ring terminals |
| Gray (solid) | A12 | Illumination dimmer | 0-12V variable | Test with dash lights ON/OFF; look for PWM waveform on oscilloscope |
| Purple (solid) | B3 | Right front speaker (+) | 0-4V AC audio signal | Confirm impedance match (4Ω); check for distorted sine waves |
Isolate the amplifier trigger wire (light blue, C7) if retrofitting an aftermarket audio processor–this line commonly carries a 2-5V pulse-width modulated signal that must be preserved to avoid factory amp mute. For vehicles equipped with OnStar or automatic climate control, the dark green (E8) wire carries serial data; severing it without a bypass module will trigger DTCs in the BCM. Always heat-shrink splice joints and route harness away from moving parts or sharp edges.
Critical Pinout Verification Steps
Strip 3mm of insulation from each wire and insert into a non-powered connector saver–use a digital scope to confirm signal integrity before mating to new units. Orange (black stripe) at pin A1 carries speed-sensitive volume compensation (12V square wave, frequency proportional to vehicle speed); splicing here requires a frequency-to-voltage converter for compatibility. Pink (white stripe, D10) is the retained accessory power feed–test with key OFF to ensure
Step-by-Step Guide to Removing the Factory Audio System
Begin by disconnecting the negative terminal of the vehicle’s battery to prevent electrical shorts. Locate the 10mm bolt securing the terminal clamp, loosen it with a wrench, and slide the cable off. This step eliminates risk of accidental airbag deployment or damage to internal circuits during disassembly.
Remove the trim panel surrounding the center console. Use a plastic pry tool to gently pop the clips holding the dash bezel in place–avoid metal tools to prevent scratches. Start at the bottom corners and work upward, releasing eight hidden retainers. If resistance is felt, check for screws masked by decorative plugs; these are typically Phillips #2 or Torx T15.
Key fastener locations:
- Behind the ashtray (one Phillips screw)
- Under the climate control knobs (two Torx screws)
- Top edge of the unit (four spring clips, no tools needed)
Once the trim is free, unplug the antenna cable by pressing the release tab and pulling straight out–do not twist. Next, disconnect the wiring harnesses from the rear of the unit. There are three connectors: one large 24-pin plug (main harness), one 4-pin amplifier connector, and a single-pin illumination wire. Squeeze the locking tabs while wiggling the connectors free to avoid damaging pins.
Support the unit with one hand while removing the mounting bolts. Most systems use four 7mm bolts–two at the top corners and two at the bottom. If the bolts spin, hold the nuts on the reverse side with needle-nose pliers. Slide the unit forward, tilting the top slightly to clear the dash frame. Store bolts and screws in a labeled container to avoid misplacement.
Handling Stubborn Components
If the climate control module is integrated, it may share mounts with the audio system. Remove it first by unscrewing two Torx T20 bolts from behind the faceplate. For vehicles with a CD changer in the glovebox, disconnect its 16-pin harness before attempting removal. Apply dielectric grease to all connectors before reassembly to prevent corrosion.
Verify all antennas, sensors, and auxiliary modules are disconnected before lifting the unit out. Check for ground wires bolted to the chassis near the mounting brackets–these often require an 8mm wrench. Once fully detached, inspect the cavity for debris or leftover fasteners before installing new equipment.
