To replace or upgrade the sound system in a 2000s GM platform vehicle, start by disconnecting the negative battery terminal to prevent shorts. The factory harness uses a 12-pin Metra 70-2003 connector–locate the gray plug behind the dash panel, typically near the climate controls on the driver’s side. Match each wire by function, not color, as aftermarket units may vary.
Constant 12V (orange) powers memory functions; connect it to your receiver’s yellow wire. The switched 12V (yellow with black stripe) activates the unit when the ignition is on–route it to the red wire. Ground (black) must attach to a clean metal surface, preferably the chassis near the original location. Speaker wires are gray (+) / gray-black (-) front left, white (+) / white-black (-) front right, green (+) / green-black (-) rear left, and purple (+) / purple-black (-) rear right. Avoid splicing into the pink/light blue factory amplifier trigger unless bypassing the stock amp.
For aftermarket amplifiers, tap the blue/white remote turn-on from the head unit–it provides 12V when the radio powers on. If retaining the factory amp, keep the tan/light blue data wires intact. Use metallic crimp connectors or solder with heat-shrink tubing for reliability. Test all connections with a multimeter before reassembling the dash–voltage should read ~12V on power wires and 4–8 ohms across speaker terminals. Errors like no sound or distorted audio often stem from reversed polarity or poor grounds.
If installing a nav or backup camera, note the pink/black wire carries video signal. Route it through a composite video adapter to avoid interference. Keep all wiring neat–zip-tie bundles away from moving parts and heat sources like the exhaust or HVAC vents. For troubleshooting, consult the GM Class 2 data pinout if the vehicle has OnStar or steering wheel controls.
Factory Audio System Color Codes and Pinout Guide

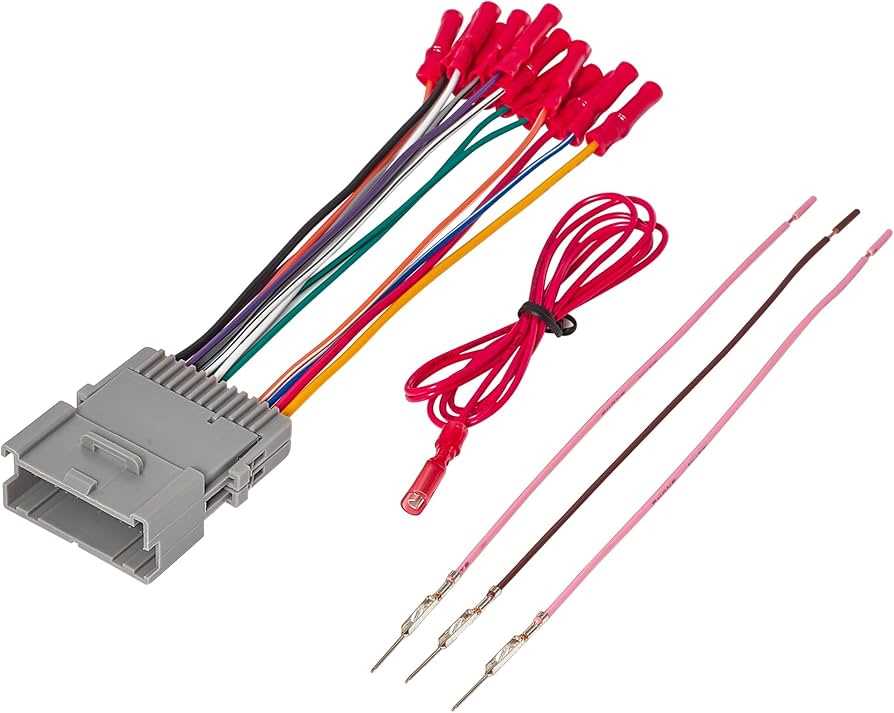

Locate the aftermarket harness adapter matching your vehicle’s OEM connector layout–Metra 70-2003 or Axxess ASWC-1 saves soldering by bridging factory plugs to standard ISO leads. Cutting factory wiring risks losing theft-docking features and triggers airbag faults in some base models.
Trace purple and light green wires beneath the dash–they feed constant 12V from fuse 29 (10A) and ignition-switched power (fuse 39, 15A), respectively. Bridge ground via black wire (pin C) to chassis screw near pedal bracket; scrape paint for clean contact to prevent alternator whine.
Door Speaker and Amplifier Connections
| Channel | Front Left (A) | Front Right (B) | Rear Left (C) | Rear Right (D) |
|---|---|---|---|---|
| Positive (+) | Gray/Dk. Blue | Gray/Orange | Brown/Dk. Green | Brown/White |
| Negative (-) | Gray/Brown | Gray/Dk. Green | Brown/Yellow | Brown/Violet |
LS models pair door tweeters via inline 3.5µF capacitors; bypass with 22-gauge jumper wires to retain high-frequency response after unit swap. Max4 models integrate a 20W/channel amp behind the glove box–relocate pink/black amp turn-on wire (pin F) to aftermarket head’s remote lead to avoid dead zones.
Troubleshooting Common Issues
If chimes mute post-install, verify orange/black data wire (pin H) remains untapped–it relays chime signals and OnStar prompts to the new receiver. Dimmer function relies on light blue/white wire (pin J); connect to rheostat input instead of constant 12V to preserve dash light sync. No bass during test tones? Check brown/light blue (pin G)–factory subwoofer trigger requires 5V pulse, emulated with a 1kΩ resistor to ignition +12V.
Finding the OEM Audio System Plug Interface
Check behind the climate control module first–this vehicle’s main harness connector hides directly behind the lower dash panel to the right of the driver’s knee. Remove the single 7mm bolt securing the lower trim piece, then gently pry the panel outward to expose the white 24-pin plug nestled against the firewall. Label every wire at this stage to prevent confusion later.
Trace the harness upward until it splits into two distinct branches: the 12-pin power/speaker bundle and the 8-pin illumination/data link. The larger bundle carries 12V constant (yellow), switched ignition (red), ground (black), front left/right (gray/brown), rear left/right (green/white), and amplified subwoofer signal (dark blue/light blue). The smaller branch handles dimmer input (orange/black) and data bus lines (tan/light green).
Verify pin assignments with a multimeter before disconnecting–factory connectors often use fragile clip retention. Set the meter to DC volts, touch the yellow wire (probe to chassis ground), and confirm 12V with the ignition off. Repeat for the red wire with the key in the ACC or ON position. Faulty readings indicate a blown fuse (typically 10A or 15A in the instrument panel cluster) or corrosion at the slick connector terminals.
If splicing is unavoidable, match gauge sizes–OEM harness uses 18AWG for high-current paths (yellow, red) and 20AWG for speaker outputs. Avoid soldering near the plug; crimp connectors rated for automotive use and seal splices with heat-shrink tubing containing adhesive lining to block moisture ingress. Reattach the dash trim with the original bolt torque of 8-10 inch-pounds to prevent rattles.
Standard Aftermarket Radio Harness Color Codes for GM Mid-Size Sedans
Connect the factory head unit’s 12-pin connector using these verified color assignments: light green (constant 12V+), yellow (accessory/ignition 12V+), orange (illumination/dimmer control), black (chassis ground), gray/light blue stripe (front left speaker +), gray/dark blue stripe (front left speaker –), white/green stripe (rear left speaker +), white/blue stripe (rear left speaker –), gray/red stripe (front right speaker +), gray/brown stripe (front right speaker –), dark green/violet stripe (rear right speaker +), dark green/light blue stripe (rear right speaker –). Verify polarity with a 9V battery before finalizing crimp connections.
Additional Integration Notes
Antenna trigger (pink) requires activation via a 1kΩ resistor when retrofitting non-OEM amplifiers; bypassing this step causes no audio output. If integrating steering wheel controls, splice the brown/white stripe data bus wire directly to the aftermarket interface module–no intermediate resistors or capacitors needed. For vehicles equipped with OnStar, retain the tan wire to maintain hands-free functionality; tap into purple/white stripe for composite video input if installing a rear-seat entertainment system.
Step-by-Step Aftermarket Head Unit Installation Guide
Disconnect the vehicle’s negative battery terminal first to prevent short circuits. Use a 10mm wrench to loosen the clamp securing the cable–wrap the terminal in a rag to avoid accidental reconnection. Wait at least 10 minutes before proceeding to let residual power dissipate from the system.
Remove the factory dash trim using a plastic pry tool. Start at the bottom edge of the center console and work upward, applying steady pressure to release the clips without cracking the plastic. Label each clip location with masking tape if the dash has multiple panels to simplify reassembly. Store screws in a magnetic tray sorted by size.
Connecting the New Receiver
Identify the harness adapter specific to your vehicle model–match the wire colors on the adapter to the aftermarket unit’s wiring harness. Solder each connection or use crimp connectors and heat-shrink tubing for durability. Wrap the joined wires in electrical tape once cooled, ensuring no bare metal remains exposed.
- Constant 12V (yellow): Supplies memory retention for presets.
- Ignition/accessory (red): Triggers power when the key is turned.
- Ground (black): Attach to a bare metal chassis point with a star washer.
- Front speakers (gray/white): Positive leads carry +12V; negatives are striped.
- Rear speakers (green/purple): Same polarity rules apply.
- Amplifier turn-on (blue/white): Enables external amps; optional if not used.
Mounting and Testing
Slide the new unit into the dash kit until it clicks into place. Reattach the trim panels in reverse order of removal, pressing firmly on each clip until it snaps. Reconnect the battery terminal and turn the key to accessory mode. Verify the display illuminates and adjust the fader/balance controls to confirm all channels produce sound. If static persists, recheck ground connections and speaker wires for shorts.
Secure excess wiring with zip ties, routing it away from moving parts like the steering column or pedals. Reinstall any kick panels or carpeting disturbed during the process. Perform a final test with a variety of audio frequencies to ensure no distortion occurs at high volumes–replace blown fuses if the unit cuts out intermittently.
Solving Audio Installation Electrical Faults
Measure voltage across each harness connector pin with a multimeter while the ignition is on. Front speaker positives should read 12V DC; rear channels typically show 6-8V less if using factory amplifier outputs. If readings drop below 5V, inspect the fuse for the radio circuit–replace it if the wire inside is broken. Ground connections often fail at the chassis bolt near the driver’s kick panel; sand paint to bare metal if corrosion is visible.
Diagnosing Intermittent Signal Loss
Clip a test light or oscilloscope probe to each speaker lead while playing a steady tone. Pulses should be clean and symmetrical; jagged waveforms indicate a short or poor solder joint. Swap channels left-to-right to isolate whether the issue follows the speaker or the head unit output. For persistent noise, trace each wire back to the harness splice points–common failure spots are crimp connectors and tape-wrapped joins near the firewall grommet.
