Locate the main fuse box under the left side dashboard panel–remove the retaining screw to access the labeled fuse layout. Pin configurations for the BCM (Body Control Module) follow a standardized 68-pin connector: pins 1–12 manage exterior lighting circuits, while 13–24 handle HVAC blower motor relays. Use a multimeter set to 20V DC to verify power delivery across these terminals; expected readings should range between 11.8V–13.5V under normal operating conditions. If voltage drops below 10V, inspect the instrument cluster harness for frayed wiring near the steering column shroud, a common failure point in early-production models.

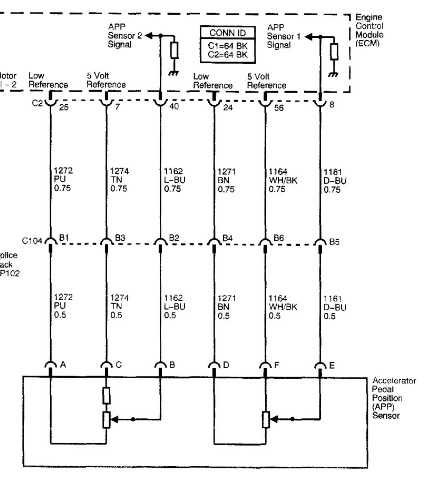

For the powertrain control schematic, focus on the ECM (Engine Control Module) and its two primary connectors: a 132-pin block for engine sensors and a 78-pin block for transmission interfaces. The fuel injector circuits (pins 63–70) share a common power feed from the underhood fuse relay–trace this to the main distribution box at the rear of the engine bay. Ground references for these components attach to chassis bolts near the driver-side strut tower; loose connections here cause intermittent misfires, often misdiagnosed as injector failure.
When troubleshooting the audio system, begin by removing the center console trim to expose the amplifier wiring. The ground strap connects to a dedicated bolt behind the rear passenger seat; corrosion here leads to static or total audio loss. Speaker outputs use twisted-pair wiring (18-gauge, color-coded) with shielded harnesses–any deviation from this standard indicates aftermarket modifications that may conflict with factory electrical layouts. For reference, the original schematic identifies speaker outputs by resistance values: front-door tweeters (4 ohms, parallel), rear coaxial units (8 ohms, series).
Critical safety circuits–airbag deployment, ABS module communication–run through CAN bus networks. The CAN-H line (pink/black tracer) and CAN-L line (pink/white tracer) terminate at the OBD-II port beneath the dashboard. Proper termination resistance between these lines should measure 60 ohms ± 2 ohms when the ignition is off; readings outside this range suggest a severed bus line or faulty module. Replace any damaged wiring with Teflon-coated 20-gauge wire to prevent future shorts from vibration or heat exposure.
Always cross-reference voltage readings with the manufacturer’s schematic, which groups circuits by function: ignition-switched (red), constant power (orange), and ground (black). Pay attention to splice points marked S100–S400 in the wiring harness–these junctions consolidate multiple systems and are prone to chafing against the chassis or exhaust components. Use dielectric grease on connector pins during reassembly to prevent moisture ingress, a leading cause of electrical gremlins in this vehicle’s design.
Electrical Blueprint for GM’s 2003 Luxury Sedan: Hands-On Reference
Locate the fuse block under the dashboard on the driver’s side to begin diagnostics–remove the panel by pressing the clips at its top edge. Pin assignments for the 32-pin BCM connector are as follows: pins 1-8 control lighting relays, 9-16 handle HVAC actuators, and 17-32 interface with the ECM. Use a multimeter set to 200Ω to verify continuity between pin 24 (ECM) and ground; readings above 0.5Ω indicate corrosion in the harness, requiring splice repair with Delphi PN 13573777.
For rear lighting circuits, refer to the following resistance values measured at the tail lamp connector:
| Wire Color | Function | Expected Ω | Fault Code |
|---|---|---|---|
| Dark Green | Brake Light + | 2.1-2.3 | B2605 |
| Light Blue | Reverse Light + | 1.9-2.2 | B2610 |
| Pink | Tail Light + | 3.0-3.5 | B2620 |
Deviations beyond ±0.2Ω suggest chafed insulation near the driver’s side quarter panel–inspect the harness where it passes through the trunk hinge. Replace the affected section with Teflon-coated wire (GM PN 12121142) to prevent recurrence.
When troubleshooting the audio system, disconnect the battery for 10 minutes to reset the amplifier module. The 18-pin radio harness uses these critical connections:
– Pin 4 (Yellow): Switched 12V (Key-on)
– Pin 7 (Gray): Ground (Splice to chassis)
– Pin 12 (Brown): Data bus (+)
– Pin 15 (Blue/White): Antenna trigger
If static persists, probe pin 7 with a scope; a jagged waveform confirms a failing ground at the kick panel–clean the connection with dielectric grease (Permatex 22058) and torque to 8 Nm.
To replace the instrument cluster, first disconnect the negative battery terminal, then remove the two Torx T20 screws behind the steering column shroud. The 24-pin cluster connector maps as follows: pins 1-6 (gauges), 7-12 (warning lamps), 13-18 (data lines), 19-24 (illumination). Crimp discolored wires (common on pins 11 and 22) with AMP 142064-1 terminals before reinstalling. Verify proper operation by cycling the ignition–the odometer should display “TEST” briefly before resetting.
For blind-spot sensor faults (DTC U1000), access the radar module behind the rear bumper cover. The module’s 12-pin connector requires these voltages:
– Pins 1-3: 12V constant (fused at 10A)
– Pins 4-6: 5V reference (from BCM)
– Pins 7-9: Ground
– Pins 10-12: CAN bus (±)
Measure pin 5 against pin 7; readings below 4.8V indicate a shorted sensor or damaged twist in the CAN harness near the rear axle. Replace the entire harness section if insulation resistance drops below 5 MΩ at 500V.
Finding Accurate Electrical Schematics for Your Luxury Sedan Variant
Identify the exact trim level first–Base, Sport, or Performance–to avoid mismatched schematics. Manufacturers often adjust pinouts, fuse ratings, and connector layouts between models, even within the same production year. The rear-seat entertainment system in higher trims, for example, may require an additional 12-pin harness absent in entry-level configurations.
Consult the vehicle’s data plate, typically riveted to the driver’s side door jamb. This tag lists the RPO (Regular Production Option) codes, a three-letter sequence such as “Y52” for Sport Suspension or “U2K” for Premium Sound. Cross-reference these codes with official service documentation to pinpoint the correct schematic subset.

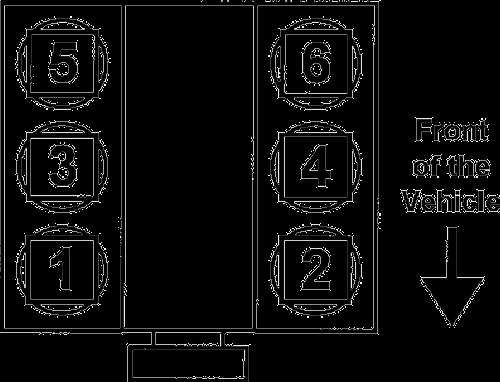

Official repair manuals from Helm Incorporated offer three distinct schematic sets: chassis, interior, and powertrain. Each set spans 40-60 pages, with color-coded traces for power (red), ground (black), and signal (blue). The powertrain schematics detail the 3.6L V6’s crankshaft position sensor circuit–a frequent failure point–while interior schematics cover the keyless entry module wiring.
Third-party providers sometimes omit critical updates issued after initial release. Check for TSBs (Technical Service Bulletins) related to electrical revisions, such as TSB 04-08-40-004 for intermittent instrument cluster backlighting. These updates may supersede older schematic versions, altering wire gauge or terminal assignments.
Alternative Sources for Obscure Connector Details
Factory wiring harnesses from salvage vehicles can serve as practical references. Deconstruct the harness for a 2003 Deville with the same 4T45-E transmission–its PCM pinout matches closely. Verify pin functions using a multimeter in continuity mode, ensuring соответствие before tracing.
Online forums for owners of similar luxury platforms (e.g., Lincoln LS or Jaguar S-Type) often share high-resolution scans of internal schematics. Filter posts tagged with “BCM splice repair” or “retained accessory power relay,” as these align with common failure points in your vehicle’s architecture. Avoid generic aftermarket diagrams; they frequently mislabel the T56 transmission’s reverse lockout solenoid circuit, leading to erroneous diagnostics.
For advanced diagnostics, procure an OEM scan tool that retrieves calibration IDs. These IDs correlate to specific ECM and TCM software versions, dictating minor but critical variations–for instance, the presence of a dual-fan relay versus a single-fan setup. Match the calibration ID to the corresponding schematic revision to ensure accuracy when probing sensor circuits like the ECT or MAF.
Decoding Electrical Schematics: A Practical Guide to Color Schemes and Symbols

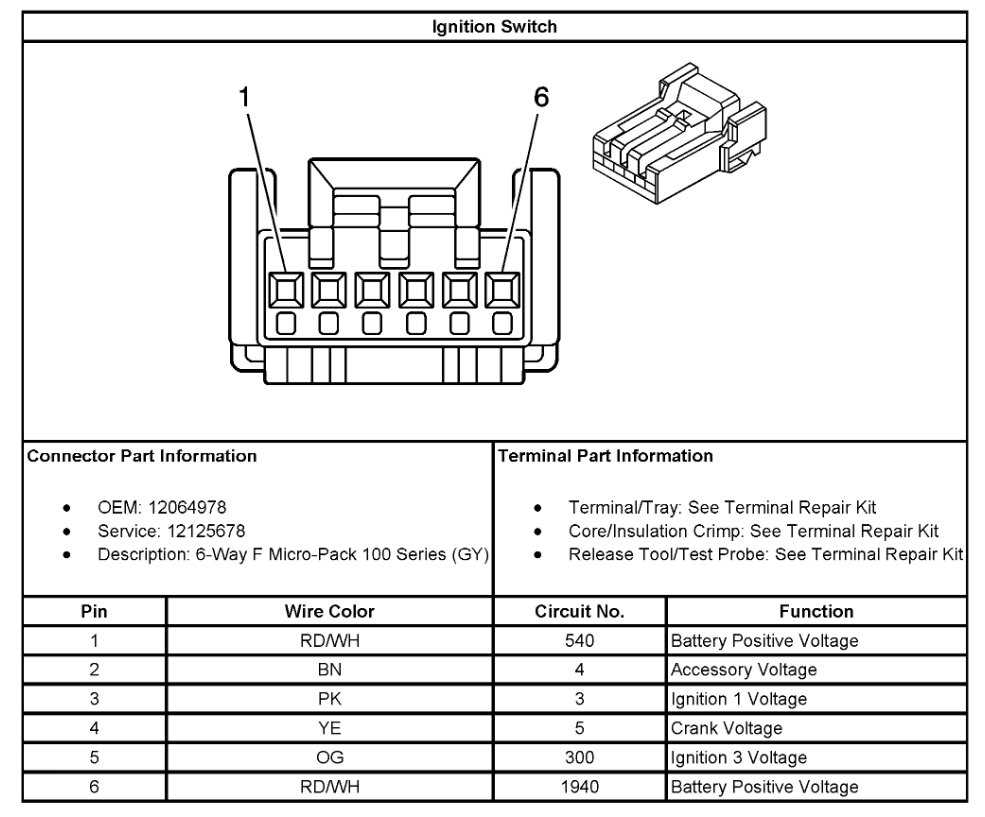

Locate the legend on the schematic first–this section translates color abbreviations into full definitions. Standard codes follow a pattern: BK for black, WH for white, RD for red, and GN for green. Less common but critical are OR (orange), YE (yellow), BR (brown), BL (blue), PK (pink), VT (violet), and GY (gray). Some schematics supplement these with numeric suffixes (e.g., WH/OR or RD-2) to indicate stripe variations. Cross-reference these against the legend to avoid misreading circuits.

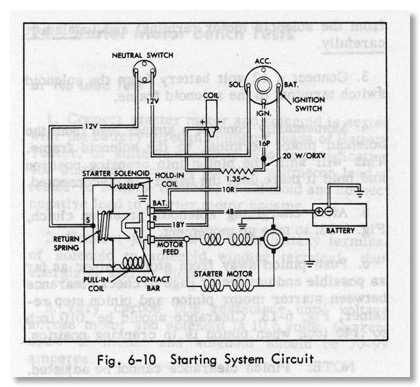

Trace the path methodically: begin at the power source, typically a battery symbol or fuse block, and follow the conductor to its endpoint. Solid lines represent continuous connections, while dotted or dashed lines indicate splices, connectors, or junctions. Forked paths split into branches–each labeled with a unique terminal identifier (e.g., C100 or A6). Note that ground symbols (⏚ or a downward triangle) terminate most circuits; verify these points against chassis references in the manual.
Interpreting Modifiers and Special Markings
- Prefixes like P (power), G (ground), or S (signal) clarify conductor roles. For example, P-RD denotes a red power wire, while S-BL signals a blue control line.
- Numeric codes after slashes (e.g., WH/2) identify stripe patterns: /1 for a base color, /2 for a secondary stripe, /3 for a tertiary stripe if present.
- Letters in parentheses–(D) for door circuits, (I) for instrument cluster–indicate subsystem affiliation. These help isolate faults without dismantling unrelated components.
- Dashed borders around groupings denote harness bundles. Labels like ENGINE or REAR pinpoint physical routing locations.
Validate color assignments by comparing schematic symbols against physical connectors. Use a multimeter in continuity mode: probe the wire at both ends while observing the diagram. A mismatch between the expected YE/PK (yellow with pink stripe) and an actual YE/BL signals a repair or misprint–verify with alternate documentation before proceeding. Photograph connectors before disassembly to preserve terminal orientation, especially for multi-pin plugs where position errors cause shorts.
Troubleshooting Common Pitfalls
- Faded prints or low-resolution scans obscure critical details. Magnify schematics digitally (300% zoom) to reveal faint markings, or request higher-quality replacements from the manufacturer.
- Aftermarket modifications introduce non-standard colors. If encountering TK-BU (turquoise-blue) or LA-GN (lime-green), consult the original build sheet or factory service bulletins.
- Small squares or circles along conductors mark inline splices or mounting clips. These are not junctions–ignore them unless testing reveals voltage drops at these points.
- Bold, double-width lines rarely indicate heavier gauge wires. Instead, these emphasize critical circuits (e.g., starter or ignition feeds). Focus on these first during diagnostics.
Record observations in a concise log: note wire gauge (gauge is often printed adjacent to the conductor), terminal types (e.g., MALE 0.5 for a male spade terminal), and connector housing numbers. For complex systems like CAN bus networks, highlight serialization (e.g., CAN-H and CAN-L) in contrasting colors–yellow for CAN-H, green for CAN-L–to avoid signal inversion. Cross-check resistance values against the repair manual; typical readings for intact copper conductors range 0.1–0.5 ohms per meter.
Final verification requires load testing. Reconnect the battery and activate the circuit (e.g., headlights, window switch). Probe key points while monitoring for voltage drop–more than 0.2V across a connection indicates corrosion or loose terminals. Replace worn connectors with exact-match replacements (e.g., TE Connectivity 1-967613-1 for a 6-way weather-pack plug) to prevent water intrusion and subsequent faults.
