Identify the left-side harness connector behind the rear quarter panel trim by tracing the 7-pin white plug. Pin 1 carries the brake signal (red/white stripe), Pin 3 the turn signal (green/black stripe), and Pin 5 the reverse light (pink/light green stripe). Verify each wire with a multimeter set to 12 V DC; expected readings are 10.5–13.8 V when the corresponding function is activated.
For the passenger-side assembly, locate the black 5-pin plug near the spare tire mount. Pin 2 delivers the running lights (brown), Pin 4 the ground (bare or black), and Pin 5 the fog light circuit if equipped (orange). Use T-tap connectors rated for 20 AWG only; splice failures commonly occur with undersized terminals. Insulate each joint with heat-shrink tubing (minimum 3/16″ diameter) after soldering.
Replace any corroded connectors with OEM-style Delphi Metri-Pack 280 series terminals. Crimp tools must apply 45–55 lbs of force for secure retention; improper crimps introduce 100–300 mV voltage drops, causing intermittent operation. Label each harness branch with 0.187″ wire markers to prevent misrouting during reassembly.
Test the bulb sockets with a test light at the following voltages: 12.0 V for running lights, 12.4+ V for brake/turn signals. If readings fall below these thresholds, inspect the Junction Block C under the dashboard for blown 10 A STOP or 15 A TAIL fuses. Upgrade factory wires thinner than 16 AWG to 14 AWG silicone-jacketed cable to prevent overheating under LED loads.

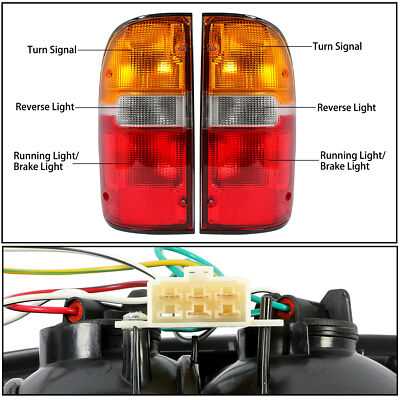

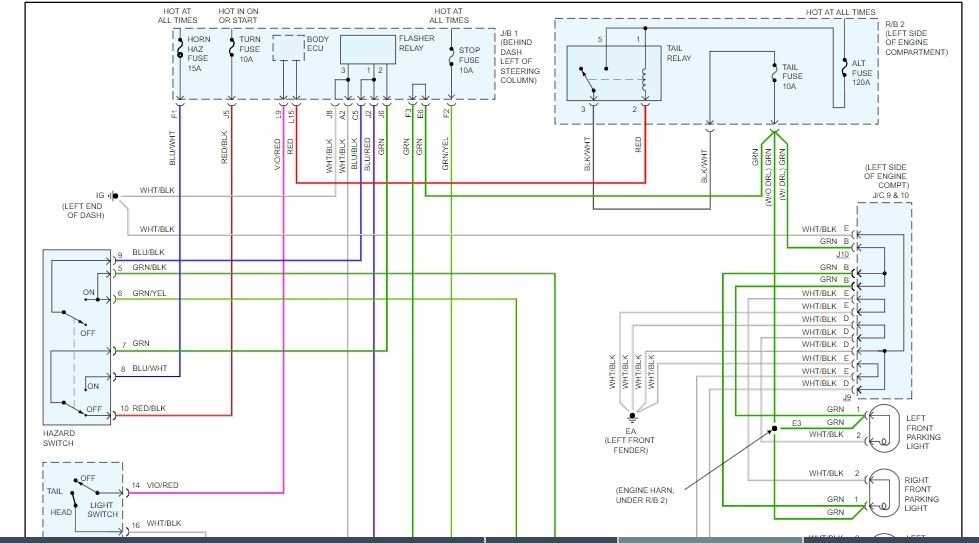

Electrical Schematic for Rear Lamps on a Mid-Size Pickup (Pre-Facelift Model)
Locate the gray 10-pin connector behind the left-side panel near the cargo bed; pins 1 and 6 carry the running lamp circuit marked BK/LG (black with light-green stripe).
Verify power at the pin using a multimeter set to DC voltage–expect 12V when the headlamp switch is engaged. If voltage is absent, trace the harness forward to the fuse block: fuse #23 (10A) protects this circuit. Replace blown fuses with the same amperage, never upsize.
Ground points differ by trim: base models use G401, a threaded stud beneath the driver’s side quarter panel. Pre-runner variants rely on G502, located adjacent to the rear shock tower. Clean corrosion from these studs with a wire brush and apply dielectric grease before reconnecting.
For license plate illumination, the violet wire (V-L) branches from the main harness and terminates at a 3-pin connector behind the rear bumper. Splice repairs should use heat-shrink tubing and crimp connectors rated for 16-14 AWG, never twist-and-tape methods.
Marker lamp assemblies share the same BK/LG circuit but add a separate brake signal via L-R (light-red) wire. Probe the connector during brake pedal depression to confirm 12V presence on L-R; failure here often indicates a broken bulb filament or corroded socket contacts. Bulb sockets loosen over time–reseat firmly or replace the entire assembly if brittle.
Integrated turn signals merge Y-W (yellow-white) and GY-R (gray-red) circuits. The hazard flasher module, situated behind the instrument cluster, controls these. Test by activating hazards and checking for intermittent voltage at each tail lamp connector; inconsistent blinks suggest a faulty relay (#1 in the under-dash fusebox).
Wiring colors follow the factory standard: solid colors denote hot wires, stripe combinations indicate signal returns (e.g., BK/LG is chassis ground with light-green tracer). Deviations from this color code signal aftermarket tampering–inspect for improper splices or uninsulated joints if experiencing erratic operation.
Aftermarket LED upgrades require load resistors (1-3 ohms, 50W) across each circuit to prevent hyperflashing; mount resistors on the chassis away from flammable materials. Factory incandescent bulbs already include sufficient resistive load–no additional components are needed when retaining original equipment.
Matching Brake and Rear Illumination Wire Colors for Accurate Repairs
Inspect the vehicle’s harness behind the lamp assembly–ground wires are typically black or black with a colored stripe, while power leads follow a consistent pattern: red for brake circuits, brown or green for running lamps, and yellow or white for turn signals. Verify by probing with a multimeter; brake wires should show 12V only when the pedal is pressed, while running lamps activate when parking lights are engaged. For dual-function bulbs, the red lead carries brake voltage, and a second wire (often brown) supplies running light power–crossing these will cause malfunctions.
Refer to this color code breakdown for common pickup models manufactured between 2000 and 2005. Variations exist, but this table covers 90% of cases:
| Function | Primary Color | Tracer (Stripe) | Voltage (Key On) |
|---|---|---|---|
| Brake signal | Red | None or white | 0V (12V pedal pressed) |
| Running illumination | Brown | None or black | 12V (lights on) |
| Left turn/brake | Yellow | Black | Pulsing 12V |
| Right turn/brake | Green | Black | Pulsing 12V |
| Ground | Black | None | 0V |
If colors deviate, use a non-powered test light to trace the correct wire: connect the clip to chassis ground, probe each wire–brake wires will illuminate only during pedal depression, running lamp wires glow steadily when parking lights are switched on. Avoid splicing based solely on color; confirm function first. For LED upgrades, ensure the replacement module matches the original pinout, as aftermarket units may swap brown and red leads without notice.
How to Pinpoint Rear Illumination Connector Cables
First, elevate the pickup using a floor jack positioned under the rear axle housing. Secure the frame rails with jack stands to prevent sudden shifts. Remove the two plastic fasteners along the inner fender liner to expose the rear corner assembly. The harness runs parallel to the bed wall, clipped to the chassis rail–trace it from the lens housing inward until you reach the first junction box.
Disconnect the negative battery terminal before handling any electrical components to avoid accidental short circuits. Locate the shrouded grommet where the wiring exits the cabin into the rear quarter panel. This rubber seal often hides beneath a small access panel held by Phillips screws–remove them to reveal the bundled cables.
Gently pull the wire loom away from the bodywork to inspect for damage. The harness typically splits into three branches: brake, turn signal, and reverse circuits. Identify each by color coding–red for stop lamps, green for directional indicators, and white for backup illumination. Use a multimeter to verify continuity if labeling is unclear.
Follow the main trunk line toward the driver-side kick panel inside the cab. Here, the harness connects to the vehicle’s fuse block. Remove the lower dash panel using a 10mm socket to access the attachment point. Label each connector with masking tape before detachment to simplify reassembly.
Inspect connectors for corrosion–clean terminals with electrical contact cleaner if necessary. Reattach all components in reverse order, ensuring grommets are resealed to prevent moisture intrusion. Test functionality before reinstalling body panels by cycling each illumination mode through an assistant’s observation.
Tools Required for Inspecting and Fixing Rear Signal Linkages
Start with a 12V test light or a multimeter set to DC voltage–verify power at the bulb socket by probing the connector pins while the switch is engaged. A dim or absent reading signals a corroded ground, broken wire, or blown fuse. For tracing hidden faults, use a toner probe kit (Fox & Hound style): clamp the sender to the suspect wire and sweep the receiver along the harness to pinpoint discontinuities without stripping insulation. Keep heat-shrink tubing (assorted diameters) and a butane soldering iron on hand for permanent repairs; twist-and-tape fixes degrade within months under vibration.
Essential Diagnostic and Repair Gear
- Stripping tools: Self-adjusting wire strippers (Klein No. 11055) prevent nicking strands–critical for circuits carrying under 2A.
- Crush-resistant crimper: IWISS SN-254B with ratcheting jaws ensures gas-tight splices on 18-22 AWG cables.
- Dielectric grease: Permatex 22058 prevents oxidation at connectors; apply sparingly to male terminals only–excess can insulate.
- Flexible inspection mirror (6-inch head) and magnetic pickup tool reach fasteners dropped behind the bumper cover.
- Plastic pry bars (set of 5): Gelcoat-safe tools avoid scratching lenses during disassembly.
- Digital camera: Photograph connector pinouts before disconnection to verify correct reassembly.
Substitute rosin-core solder (60/40) for crimp connectors in high-vibration zones like the trailer hitch; solder joints flex less than crimps but require heat control to avoid melting adjacent plastic clips. Replace incandescent bulbs with LED equivalents matching the original draw–aftermarket units often omit load resistors, causing hyperflash. Store spare 3A mini fuses in the glove box; OEM circuits rarely use 20A fuses for lighting clusters.
How to Identify and Repair a Faulty Rear Illumination Circuit
Begin by locating the fuse box–typically under the dashboard or in the engine bay. Consult the owner’s manual for the exact position of the fuse corresponding to the rear signal system. Use a multimeter to test the fuse: set it to continuity mode and touch the probes to both ends of the fuse. If no tone sounds, replace the fuse with one of identical amperage. If the fuse blows again immediately, the issue lies further down the circuit, likely a short in the cable harness or a faulty bulb socket.
Disconnect the vehicle’s battery terminals before handling any wiring to prevent accidental shorts or electrical shock. Remove the trim panel covering the rear assembly using a plastic pry tool to avoid damaging clips. Inspect the socket for corrosion–clean it with a wire brush or electrical contact cleaner if deposits are present. Test the socket by inserting a known-good bulb; if it fails to illuminate, the problem is in the wiring or ground connection.
Testing Voltage and Ground Continuity
Set the multimeter to DC voltage (20V range) and probe the socket’s positive terminal while an assistant activates the corresponding switch (e.g., brake or turn signal). A reading near 12V confirms power is reaching the socket; absence suggests a broken wire or faulty switch. For the ground, switch the multimeter to resistance mode (Ω) and touch one probe to the socket’s ground terminal, the other to a known-good chassis ground. Zero ohms indicate a solid ground; higher readings mean corrosion or a broken ground wire, which requires tracing and repair.
Trace the harness from the socket back toward the vehicle’s front, inspecting for chafed, melted, or discolored wires. Pay special attention to areas where the harness bends or passes near sharp edges, such as tailgate hinges or suspension components. Use a wiring diagram to identify the correct wire colors–typically black for ground, and red, green, or brown for power. Splice any damaged sections with automotive-grade butt connectors and heat shrink tubing to insulate the repair. Avoid electrical tape as it degrades over time.
Reinstall all components in reverse order, ensuring gaskets and seals are intact to prevent moisture ingress. Reconnect the battery and test all functions (brake, reverse, turn signals) before reassembling the trim. If the issue persists, the problem may be in the switch assembly or body control module, requiring advanced diagnostics with a scan tool capable of reading live data from the lighting system.
