Begin by locating the orange memory fuse under the instrument panel–typically a 10A unit labeled RADIO. Disconnect the battery’s negative terminal before splicing any harness to prevent shorts that corrupt the EEPROM settings in the Delco 22845458 head unit. The factory harness bundles six distinct circuits: power (constant and switched), ground, illumination, antenna trigger, and paired speaker outputs.
Trace the yellow constant voltage lead directly from the back of the head unit to the fuse block. This wire maintains clock and preset memory–verify continuity with a multimeter; readings should hold steady at 12V DC regardless of ignition state. Switched power arrives via the pink/black (PK/BK) wire; splice it to the ignition-switched fuse labeled ACC to restore accessory delay and prevent parasitic drain.
Ground connections cluster at the G201 chassis stud beneath the center console. Ensure bare copper contacts clean, tight fasteners–corrosion here manifests as intermittent static or amplifier cutouts. For speaker circuits, note polarity: front-door drivers use light green/dark green (LT GRN/DK GRN) for positive and tan/yellow (TN/YL) for negative; rear deck employs gray/white (GRY/WHT) and dark blue/white (DK BLU/WHT).
Antenna activation relies on a purple/white (PPL/WHT) relay feed from the body control module; splice this wire to the aftermarket radio’s auto antenna terminal only if retaining the OEM power mast. Failure to do so risks module fault codes BCM-11 or U1044, triggering security lockout.
Always test each circuit with the head unit powered on–front-door tweeters should register 4±0.2 ohms, while rear woofers measure 2±0.1 ohms. Deviations suggest partial shorts in the harness; inspect door jamb boots for pinched wires where the harness flexes near the hinge.
Pontiac Coupe Audio System Color-Coded Connections Guide
Begin by identifying the 12-pin harness behind the head unit–orange and brown wires supply constant 12V power (+) from the ignition-switched circuit, critical for memory retention of presets. Trace the yellow and light green conductors for the right-front and left-front speakers, respectively; these carry the amplified signal output (+). Match these to the vehicle’s factory harness adapter using a multimeter set to continuity mode to confirm polarity before splicing. The black wire acts as the chassis ground (-) and must connect directly to a bare metal surface within 12 inches of the unit to prevent hum or interference.
Locate the dark blue stripe wire–this delivers the amplified remote turn-on signal to external amplifiers. If your setup lacks aftermarket amplification, cap this lead with electrical tape to avoid short circuits. For vehicles equipped with a premium sound package, the gray and dark green wires transmit fade-adjusted rear speaker outputs; verify their resistance (typically 4 ohms) to ensure compatibility with OEM or third-party components. Use shrink tubing on all exposed connections to prevent corrosion, particularly in high-humidity climates.
Aftermarket adapters for GM vehicles often include a purple wire for the dimmer feature, allowing dashboard illumination sync. If retained, link it to the existing dashboard harness; otherwise, isolate it to avoid erratic behavior. The pink and purple conductors may carry on-off pulse data for steering-wheel controls–consult the specific interface module manual (e.g., PAC RP4-GM11) to decode resistance values before integration. Soldering is advised over crimp connectors for long-term reliability, especially in high-vibration areas.
Test the entire circuit before final assembly: reconnect the battery, engage the accessory mode, and verify all speakers produce clear sound without distortion. If static persists, recheck the ground path and ensure no loose strands are touching adjacent wires. For models with Monsoon systems, the wiring includes additional lines for a factory equalizer–bypass these if upgrading to a standard aftermarket deck to simplify the installation. Document each wire’s function with labels to expedite future repairs.
Retain the original harness if planning to revert to stock configuration. For hybrid installations (e.g., retaining the factory amplifier), use a line-level converter to match signal voltages; failure to do so can damage the new head unit. Store spare fuses (10A) in the glove compartment–these are prone to failure during initial testing. Avoid routing speaker wires parallel to power cables to minimize electromagnetic interference, and secure all looms with zip ties to prevent chafing against sharp edges.
Finding the OEM Audio System Harness Pin Layout
Start by removing the lower dashboard panel beneath the climate controls on the driver’s side. The connector you need sits directly behind the factory radio unit, secured with a single plastic clip. Press the release tab downward while gently pulling the plug away from the harness–excessive force can damage the wiring or housing.

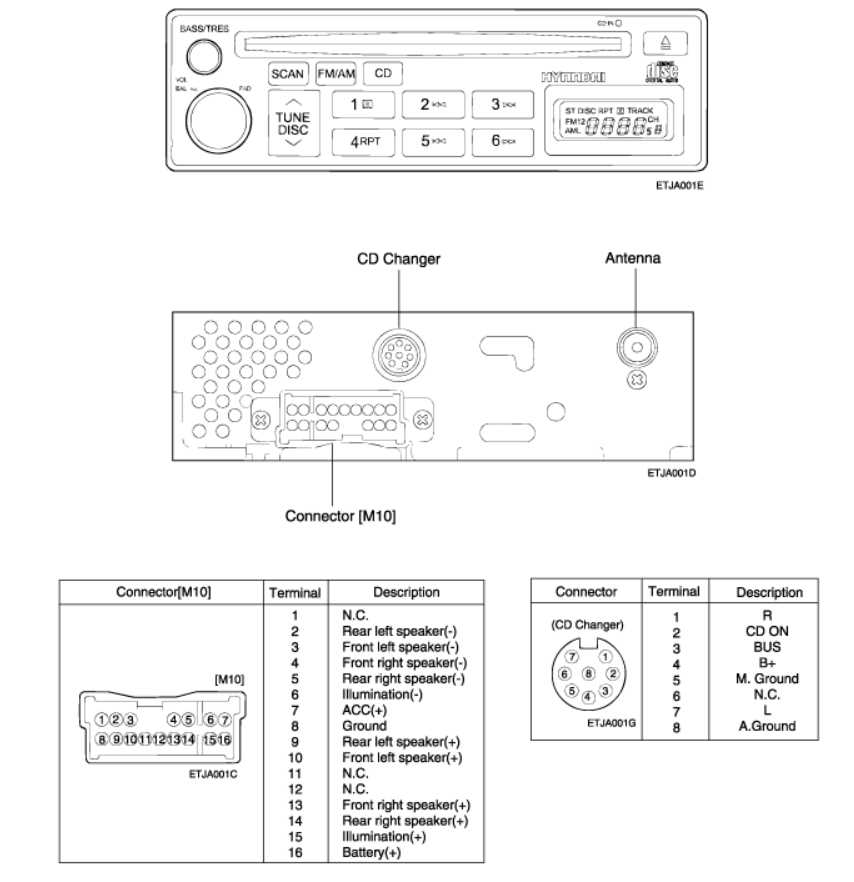

Identify the connector’s shape: a 16-pin rectangular plug with two rows of eight contacts each. Pin numbering follows standard automotive convention–top row left to right is 1–8, bottom row left to right is 9–16. Use a multimeter set to continuity mode to confirm each pin’s function before splicing or connecting aftermarket components.
Key Pin Functions
Pins 2 (front left speaker +), 4 (front right speaker +), 6 (rear left speaker +), and 8 (rear right speaker +) carry amplifier-switched audio signals–verify +12V presence during playback. Pins 3 (illumination), 5 (battery constant), and 7 (accessory ignition) supply power: 5 should read +12V even with the ignition off, while 7 drops to 0V when the key is removed.
Ground references cluster at pins 9 (chassis ground), 13 (amplifier ground), and 16 (speaker common ground). Resistance between any ground pin and the vehicle’s body should not exceed 0.5 ohms. Pins 10 (power antenna), 11 (dimension data bus), and 12 (mute signal) require no connection unless integrating advanced interfaces like steering-wheel controls or chime modules.
Mark each pin with painter’s tape or a labeled connector saver before disconnecting. Misaligned connections risk shorting the amplifier IC or corrupting the vehicle’s computer. For aftermarket head units, match the colors on the new harness to the documented pinout–do not rely on wire color alone, as aftermarket standards vary.
If the original plug shows signs of corrosion or melted plastic, replace it with a new OEM-style connector rather than soldering directly to the wires. Crimp connectors introduce resistance and potential failure points; use gold-plated terminals and heat-shrink tubing for secure, weatherproof joints.
Decoding Aftermarket Head Unit Cable Color Standards
Start by locating the constant power (yellow or orange with a stripe)–this line must connect to the vehicle’s fused ignition circuit to retain memory settings. Verify its function with a multimeter (≈12-14V DC) before securing the connection; premature soldering risks draining the battery.
Match the ground lead (black) to the car’s chassis near the installation point–avoid daisy-chaining to existing grounds as corrosion or loose bolts create signal interference. Scrape paint or rust at the attachment site to ensure conductivity.
Identify speaker outputs by checking for paired solid-and-striped wires (e.g., gray/gray-black for front right). Cross-reference with the harness adapter’s documentation; aftermarket units often invert polarity (white/green instead of factory green/white). Label each pair before cutting to prevent phase cancellation.
For turn-on leads (blue or blue-white), wire through the vehicle’s accessory circuit or fuse tap–never splice directly into the ignition switch wire. Use a 20A fuseholder inline to protect against short circuits, which can fry amplifier relays in premium setups.
Test dimmer-compatible illumination wires (orange or orange-black) by toggling headlights; voltage should drop to ≈0V at night. If absent, splice into the vehicle’s dash light circuit with a 10A resistor to simulate factory behavior. Skip this step for non-dimmable interfaces to avoid erratic backlighting.
How to Safely Install an Aftermarket Audio System Without Splicing Factory Harnesses
Purchase a vehicle-specific adapter harness matching your Pontiac’s existing connector. Confirm the harness includes color-coded leads for power, ground, speakers, and antenna control–look for labels like “BATT,” “GND,” “ACC,” “LF+,” “LF–,” “RF+,” “RF–,” “LR+,” “LR–,” “RR+,” and “RR–.” Verify compatibility with the new head unit’s wiring scheme before proceeding.
- Locate the factory connector behind the dash panel near the climate controls.
- Disconnect the battery’s negative terminal to prevent shorts.
- Remove the climate control bezel by gently prying along its edges with a plastic trim tool.
- Release the factory radio by inserting two removal keys into the designated slots on each side–pull firmly until the unit detaches.
Connect the adapter harness to the factory plug without altering any wires. Align the male and female connectors precisely–twist slightly if resistance is felt, but do not force. Secure the head unit’s harness to the adapter using the provided bullet connectors or solder joints if required. Insulate each connection with heat-shrink tubing or electrical tape to prevent corrosion or intermittent faults.
Mount the new unit’s dash kit by snapping it into the empty cavity–ensure flush alignment with the surrounding trim. Attach the head unit’s retaining brackets (if included) to the sides of the dash kit using the screws provided. Test fit the unit before finalizing to confirm clearance for climate control buttons and vents. Reconnect the battery and power on the ignition to verify all functions: source selection, volume adjustment, and equalizer settings.
- If no sound emits, recheck ground and speaker connections–ensure no reversed polarity on (+) and (–) leads.
- For static or weak output, inspect antenna cable seating and test with an alternate audio source.
- Restore trim panels in reverse order, pressing firmly until clips click into place.
- Avoid overtightening screws on the dash kit to prevent cracking.
