Start by locating the powertrain control module (PCM) connector C1, typically found near the driver-side firewall. Pin 12–identified by GM’s service manual as circuit 430 (tan/black wire)–supplies the control signal to the relay that activates the pressure regulator solenoid. If voltage drops below 10.5V at this pin during cranking, inspect the underhood fuse block: fuse F5 (20A) feeds this line, and corrosion at the fuse clip is a frequent failure point.
Trace the gray wire (circuit 540) from the relay to the tank sender assembly. At the harness connector near the rear axle, probe the terminal labeled “C”–it should carry battery voltage when the ignition is in the RUN position. If absent, check the inline splice S202 located beneath the driver-side carpet; water intrusion here is a known issue in vehicles produced before May 2002.
For intermittent stalling, focus on the fuel level sensor assembly. The inner ring of the sender uses three discreet resistors (310Ω, 510Ω, 790Ω) to signal fuel quantity. A cracked solder joint on the 310Ω resistor causes sudden voltage swings, triggering the PCM to cut injector pulse width. Resolder the joint with 63/37 rosin-core solder; avoid acid flux to prevent future corrosion.
Ground reference is critical: the black wire (circuit 350) must bond directly to the frame rail near the rear shock tower. Resistance exceeding 0.2Ω here induces false lean codes (P0171/P0174). Clean the mounting bolt with a wire brush, then apply dielectric grease before reassembly.
Chevy Avalanche 1500 Fuel System Electrical Schematic
Locate the primary relay under the driver-side dash–pin 87 connects directly to the sending unit via a 16-gauge pink wire. Verify voltage at the inertia switch (0.5 ohms or less) before probing the ECM-controlled ground (C2, pin 30). If resistance exceeds 2 ohms, bypass the frame rail splice (S203) using a 14-gauge jumper to restore flow. Avoid probing live circuits without a 10-amp fuse in series to prevent frying the PCM.
Trace the orange/black stripe from the tank harness connector (T3) to the underhood junction block (C101). Disconnect the negative battery terminal, then check continuity between T3 and C101 with a multimeter–expect 0.2-0.3 ohms. If readings spike, replace the 30-amp maxi-fuse (F5) and inspect the chassis ground (G103) for corrosion. Use dielectric grease on all reconnects to prevent voltage drop.
Finding the Power Relay and Fuse Box for the 2003 Chevy Tahoe-Based SUV
Start by opening the driver’s side dashboard panel below the steering column. The relay center is mounted behind it, secured by two 7mm screws. Remove the panel carefully–any forced effort risks breaking plastic clips. The relay in question sits in position R5 (third row, second slot from the left) in the under-dash fuse block. Verify its labeling: it’s marked “FUEL” in bold letters on the inside cover of the relay box.
Check the fuse allocation chart printed on the back of the fuse block door. The 20-amp fuse (mini blade type) for the electric injector circuit is located in slot F12–do not confuse it with F14 (15-amp), which handles the instrument cluster. Use a test light probe: insert the tip into the fuse socket with the ignition turned to ON (II). Both terminals should show 12 volts; absence on one side confirms a blown fuse.
| Relay Position | Slot ID | Component Served |
|---|---|---|
| R2 | First row, second column | Cooling fan (low speed) |
| R5 | Third row, second column | Injector solenoid circuit |
| R7 | Third row, fourth column | HVAC blower motor |
If the relay clicks but the engine cranks without starting, swap R5 with a known-good relay from position R2 or R7–both handle resistive loads and share the same 12V ref. Pin layout on the relay socket should match: terminal 30 (constant 12V), 85 (ground trigger), 86 (ECU control), 87 (output to injector solenoid). Use a multimeter set to ohms: resistance between pins 85 and 86 should read 50-120Ω; infinite resistance means burnt coil.
For fuse inspection, pull the mini blade fuse with needle-nose pliers–look for a broken filament or darkened glass inside. Replace only with identical amperage: substituting a 25-amp fuse where a 20-amp belongs risks melting the wiring harness. Inspect the fuse box terminals–corrosion shows as white powder or green oxide; clean with electrical contact spray and a small wire brush. Reinstall the relay before securing the panel–ensure the tab aligns with the plastic slot to avoid bent relay pins.
Accessing the engine bay fuse block requires removing the air intake duct–which snaps off without tools–and locating the black plastic cover near the battery. Labeling here is minimal; use the owner’s manual page 5-73 for slot identification. The 30-amp maxi fuse at position E powers the main injector solenoid feed. Test for continuity across both fuse blades–any voltage drop above 0.2V indicates corroded connections requiring terminal crimping with new spade connectors.
After replacement, cycle the ignition key three times–each cycle primes the solenoid for 2 seconds. Listen for a distinct hum from the tank; absence signals either a faulty relay (even if new), a corroded ground near the rear frame rail (passenger side), or a severed pink wire in the under-hood harness–trace this wire to the firewall grommet using a tone generator.
Step-by-Step Voltage Drop Verification for Auxiliary Power Circuits
Locate the relay box under the dashboard on the driver’s side–this houses the control module for the high-pressure sender unit. Use a digital multimeter set to DC voltage (20V range) and probe the 87 terminal of the relay socket while an assistant activates the ignition in the “ON” position. A reading below 10.5V indicates excessive resistance upstream; proceed to isolate the segment between the battery and relay.
- Disconnect the negative battery terminal first–this prevents accidental shorts during testing.
- Identify the main power feed wire (typically 10-gauge pink with a black stripe) leading to the relay; trace it back to the fuse block.
- Clamp one multimeter lead to the battery positive post and the other to the wire’s crimped terminal at the fuse. Voltage drop should not exceed 0.2V. If higher, examine the fuse contacts, junction splices, and ground connections.
Isolating Chassis Ground Anomalies
Move the multimeter to resistance mode (200Ω range) and measure between the engine block and the negative battery terminal. A reading above 0.1Ω suggests corroded or loose grounding points–common culprits include the strap between the engine and frame or the rear body-to-chassis bolt. Clean all contact surfaces with a wire brush and apply dielectric grease before reassembling.

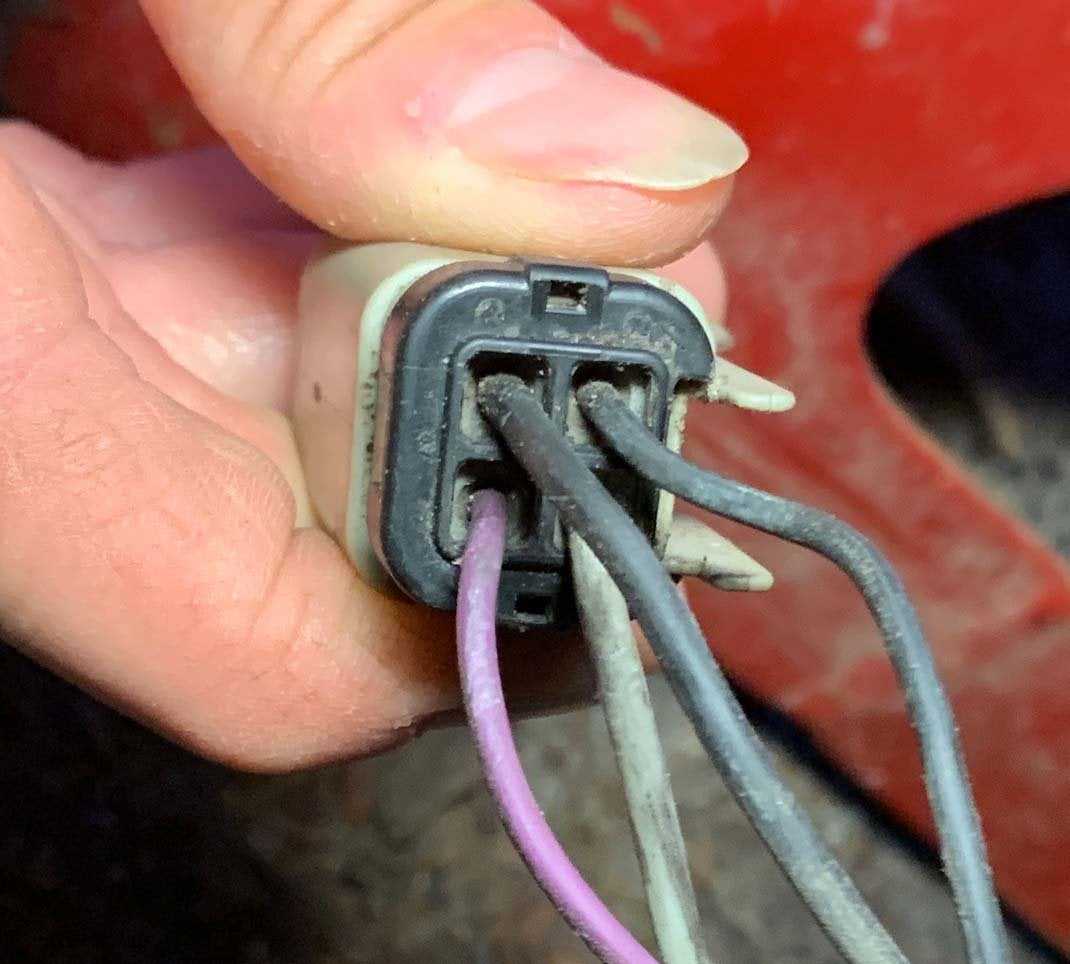

- Check the sender’s harness connector for oxidation–especially the ground pin (often green or black).
- Reinstall all connectors and retest voltage at the relay with the ignition cycled twice.
- If voltage stabilizes at 12.6V but drops below 11V during cranking, inspect the starter motor solenoid wiring for parallel resistance.
For pinpoint accuracy, use a load tester (minimum 30A capacity) on the circuit while monitoring voltage drop. Connect the tester between the battery positive and the relay input terminal–any drop beyond 0.1V per foot of wire length confirms internal conductor damage. Replace the harness segment if necessary, ensuring all splices are soldered and heat-shrinked, not crimped.
Troubleshooting Electrical Faults in the Chevy AV Platform’s Energy Delivery System
Check the relay contacts under the instrument panel first–corrosion on terminals 85 or 86 often mimics power loss. Use a multimeter in continuity mode to verify the control circuit’s integrity; readings above 0.5 ohms indicate resistance buildup requiring replacement of the relay or cleaning with a non-conductive abrasive.
Inspect the inertia switch, located behind the left rear quarter panel near the wheel well, for accidental tripping. Even minor impacts can trigger this safety mechanism, cutting voltage to the circuit. Reset it by pressing the red button firmly while monitoring the system voltage at the pump module connector–fluctuations suggest a faulty switch needing replacement rather than further diagnostics.
Examine the main harness along the frame rail, particularly where it passes over the rear axle. Chafing against metal edges frequently damages insulation, exposing wires to moisture. Probe suspected areas with a test light while cycling the ignition; intermittent flickering confirms a short requiring immediate repair with heat-shrink tubing and dielectric grease to prevent recurrence.
Voltage Drop Testing at Key Connection Points
Measure voltage drop between the battery positive terminal and the delivery module connector during cranking–values exceeding 0.2V signal excessive resistance. Pay special attention to the ground strap near the spare tire mount; rust accumulation here creates parasitic loads. Clean connections with a wire brush and apply corrosion inhibitor to maintain conductivity.
For parasitic draws, disconnect the module’s power feed and insert an ammeter in series. Readings above 50mA indicate a short in the float sensor or sending unit. Isolate components one at a time; the faulty element will show a sudden drop in current draw when unplugged. Replace damaged connectors with OEM-spec terminals to ensure proper mating.
Decoding the OEM Electrical Layout for Auxiliary Power Systems
Locate the color codes on the schematic first–these define each conductor’s role in the circuit. GM’s standard palette for this generation includes:
- Orange: Constant 12V supply (battery hot)
- Dark green/white stripe: Relay control output
- Gray: ECM command signal
- Black/white stripe: Chassis ground
- Pink/black stripe: Ignition-fed voltage
Trace the relay coil connections to understand activation logic. On most mid-2000s GM platforms, the relay coil receives switched ignition voltage (pink/black) at terminal 86 and grounds through the ECM at terminal 85. A 30-amp fuse inline with terminal 30 protects the heavy-gauge supply feeding terminal 87.

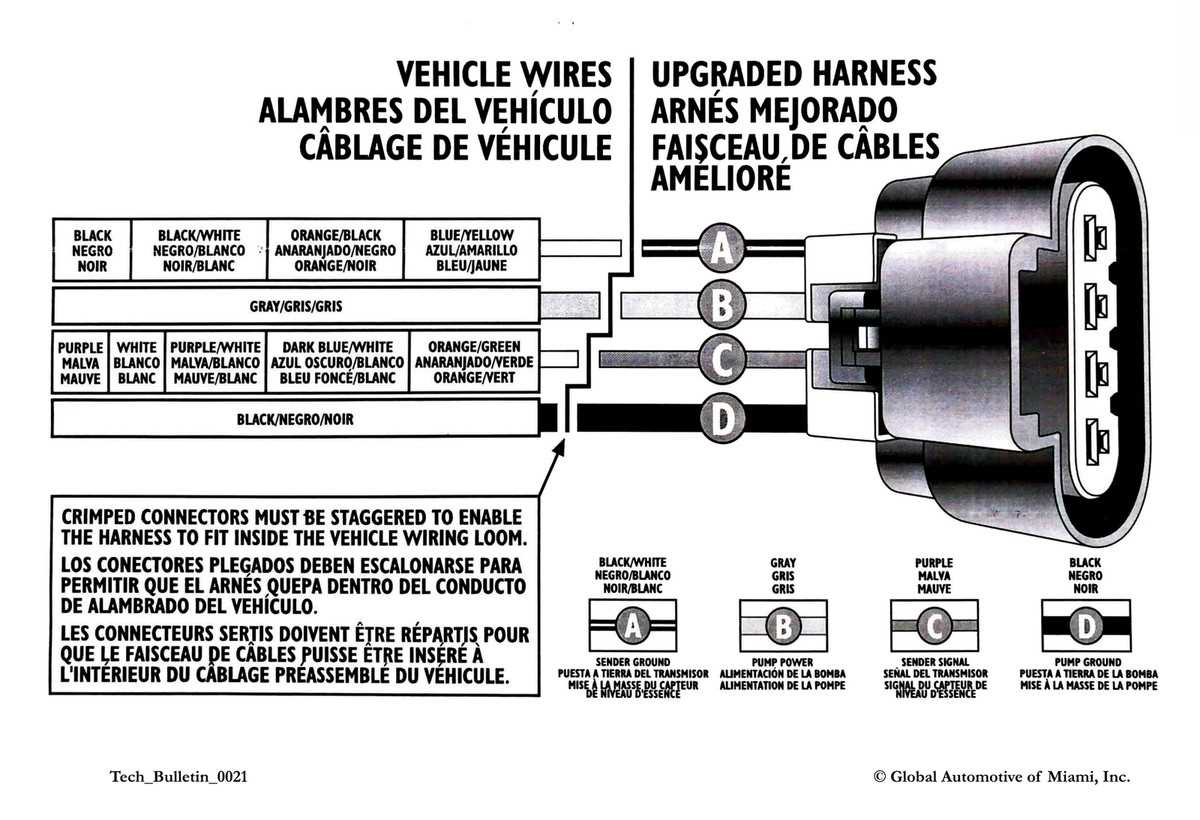

Examine the module-side connectors–typically a 4-way and 2-way plug. The 4-way handles power, ground, and signal returns; the 2-way carries sensor feedback (pressure/volumetric readings). Match pin numbering: metric harnesses often label these as A, B, C, D and E, F, but factory schematics use numerical designations.
Verify voltage drop across the main power feed under load. A 0.5V drop under 10A suggests corroded terminals. Clean oxidation from eyelets with a fiberglass pen; avoid sandpaper on plated connectors.
Check for splices–especially in the rear harness near the tank sump. These junctions fail silently due to heat cycling. Probe with a digital multimeter set to 200Ω; expected continuity should read below 0.2Ω. High resistance points to a broken strand cluster.
Identify ECM-controlled circuits by finding the gray command wire. Apply 5V from a scan tool to simulate start-up pulses. No current draw? The engine control unit may not be grounding the relay coil properly–common with failed PCM relays or broken traces inside the controller.
Look for diode suppression near inductive loads (relay coils). These appear as a small black stripe around the symbol. Polarity matters–reverse voltage spikes can fry downstream electronics. Replace any missing diodes during repairs.
Cross-reference the schematic with the component location diagram. Some models splice the inertia switch into the ground return upstream of the tank sender. During diagnostics, bypass this switch temporarily to isolate faults without triggering fuel cutoff.
