Locate the main fuse box under the dashboard on the driver’s side–the black cover marked with “FUSE” should hide a label showing the internal wiring layout for critical systems. If the label is missing or faded, cross-reference the circuit paths with a repair manual specific to the mid-2000s model year, particularly Section 8 for detailed color-coding and pin assignments.
Pull the engine bay relay panel cover to access the power distribution schematics. The ECU, ABS, and HVAC connectors follow a consistent wiring pattern: thick black wires handle ground, while red, yellow, and white wires carry 12V power. Probe the connectors with a multimeter set to 20V DC–voltage readings below 11.5V at any terminal indicate a faulty relay or corroded joint.
For rear tailgate and dashboard illumination, trace the green-and-white striped wires from the fuse box to the instrument cluster. These wires split at the C-pillar, feeding the rear wiper motor and license plate light–interruption here typically stems from broken insulation or loose crimp connections. Use heat-shrink splicing kits rated for automotive applications to repair worn sections.

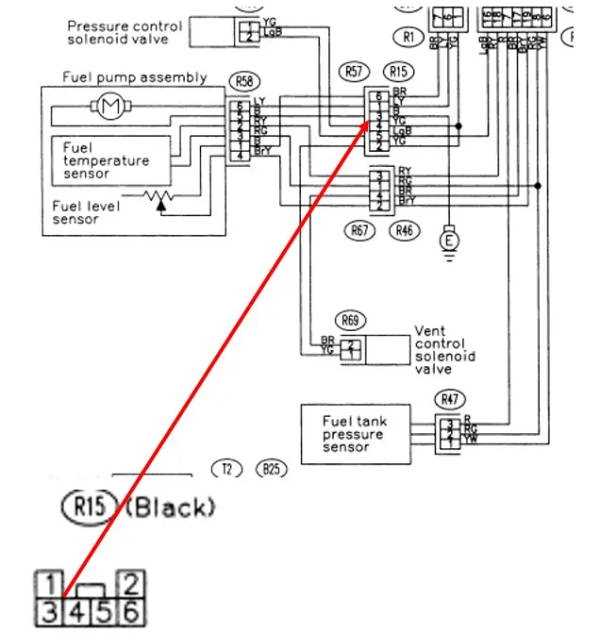

If troubleshooting the fuel pump relay, focus on the gray 10-pin connector near the firewall. The third pin from the left (viewed from the wiring harness side) delivers ignition-controlled voltage–test continuity to the pump itself. A resistance reading above 1 ohm suggests a short to ground, requiring replacement of the pump or its pigtail.
Download the official factory service diagrams from authorized repair databases, filtering for the specific trim level. Avoid aftermarket schematic collections–variations between base models and turbocharged versions often lead to incorrect repair attempts on MAP sensor wiring or intercooler fan circuits.
Electrical Schematic Manual for the 2002-2004 SF Chassis
Locate fuse box B13 (passenger kick panel) and verify connectors T6-T8 before testing continuity–failure here disrupts PGM-FI relay output, cutting fuel pump power.
Colour codes for this model follow JIS Z8306 standards: red/white striped cables carry constant +12V from the battery, black/yellow manage ignition-switched circuits, and blue/white ground sensors. Crossing these triggers false MIL codes even if wiring integrity is intact. Use a multimeter set to 200 Ω range; readings above 0.5 Ω indicate partial shorts requiring harness replacement.
| Connector | Pin Layout | Typical Voltage (Key ON) |
|---|---|---|
| ECU B134 | 18-pin female, 2.5 mm pitch | 4.8–5.2 VDC (TPS input) |
| Ignition Control M/T | 6-pin male, 3.5 mm pitch | 8–10 VDC (coil driver) |
| O2 Sensor Bank 1 | 4-pin, 1.5 mm pitch | 0.1–0.9 VDC (heater ground floating) |
Tracing the loom behind the glovebox reveals ground point G4–a single steel stud bolted through chassis rail. Corrosion here manifests as intermittent gauge flickers or stalling within 10 seconds of cold-start. Remove the bolt, scour mating surfaces with 80-grit emery, apply dielectric grease, and torque to 12 Nm; no star washers.
Dashboard illumination circuits feed through BCM channel 7 (white/green wires) at 10 mA–exceeding this current fries the dimmer potentiometer, forcing full brightness regardless of switch position. Test with a 1 kΩ resistor across the BCM pin and chassis; if amperage rises above 12 mA, replace the entire control module.
For A/C clutch relays, check the synchronous diode across coil pins–open-circuit diodes leak inductive spikes back into ECM pin 14, logging code P1457. Swap in a NTE5812 or equivalent, ensuring reverse polarity protection matches the original’s 40 V rating.
Locating the Primary Powertrain Cable Assembly Junctions
Begin beneath the driver-side dashboard near the firewall where the main engine control loom enters the passenger cabin. The largest multi-pin connector here–typically a 24-pin black or gray plug–links to the vehicle’s central computer; follow its bundled cables downward to trace the harness route toward the engine bay.
The secondary critical junction sits adjacent to the fuse block under the hood, where a 12-way weatherproof connector joins the powertrain loom to auxiliary systems. Check for a labeled retaining clip securing this connector; releasing it reveals the color-coded terminal layout (standard: yellow/black–ignition, blue/red–sensor reference).
Tracing Under-Hood Connections
Behind the battery tray, locate the torque converter control module–its single 8-pin connector branches directly from the main loom. The surrounding cables should bear factory-labeled sleeves indicating functions (e.g., “TCM,” “A/T Solenoid”); verify continuity with a digital multimeter before detachment if corrosion is visible on terminal 3 (ground lead).
Near the right strut tower, a bundled section splits toward the alternator and starter motor–identify the thickest gauge wires (4–6 AWG) leading to the solenoid terminal. Ensure the protective corrugated conduit remains intact; fraying here can cause voltage drop during cranking. Clean contact surfaces with 400-grit sandpaper if oxidation is present.
Verification and Common Pitfalls
Inspect the firewall bulkhead grommet where cables pass between engine bay and interior; this rubber seal degrades over time, risking moisture ingress. Use dielectric grease during reassembly to prevent future corrosion on the twin 10-pin connectors hidden behind the grommet–these handle fuel pump relay and MAP sensor signals.
The oxygen sensor pre-catalytic converter connector often disguises itself among identical EVAP solenoids near the intake manifold. Look for a dual-wire pigtail (white/black stripes) rather than the three or four-wire downstream sensor–mistaking these causes erroneous ECU fault codes for fuel trim errors.
Finally, confirm ground strap connections bolted to the left cylinder head–these appear as braided copper leads terminating in ring lugs. A compromised ground here mimics transmission slippage or misfire symptoms; test resistance (should read below 0.2 ohms) with the ignition off to rule out parasitic voltage leaks.
Tracing the Electrical Paths for Dashboard Components
Begin by locating the fuse box beneath the steering column; remove the lower dash panel using a Torx T20 driver to access terminals labeled C134 (yellow) and C135 (white). These connectors feed power to the instrument cluster, climate controls, and warning indicators. Verify continuity on pins 1 (constant 12V), 8 (illumination dimmer), and 15 (ground) before proceeding.
Instrument Cluster Circuit Breakdown
- Pin 4 (C134): Tachometer signal from ignition coil – splice a test light to confirm pulses during engine crank.
- Pin 10 (C134): Speed sensor input – measure resistance (500–1200 ohms) between this pin and chassis ground.
- Pins 12–14 (C135): Fuel level, coolant temp, and oil pressure senders – backprobe with a multimeter (0–5V range) while cycling ignition.
For climate control diagnostics, focus on connector C136 (black, 14-pin). Pin 2 delivers switched 12V; probe while toggling the A/C button to observe voltage drop (should not exceed 0.2V). Pin 7 links to the blend door actuator – disconnect and check for 5V reference and 0.5V–4.5V feedback across pins 5 and 11 when adjusting temperature dial.
Warning Lights and Switches
- Airbag warning: Trace orange/black wire from C135 pin 3 to the SDM (under driver’s seat). Resistance to ground must be infinite; any reading below 10 kΩ indicates a short.
- ABS light: Follow gray/red wire from C134 pin 6 to the ABS relay (driver’s side kick panel). Jumper pins 85–86 to simulate relay engagement and verify light extinguishment.
- Check engine light: Gray/white wire to C134 pin 9 – connect LED test light between this pin and ground to confirm PCM sends a 5Hz blink code upon MIL activation.
Illumination circuits rely on C135 pins 13 (dash lights) and 14 (panel dimming). Test by connecting a 330-ohm resistor between pin 13 and ground; lamps should glow at ~50% brightness. If dimming is erratic, inspect the rheostat behind the headlight switch for corrosion on solder joints.
Harness routing critical for dashboard components: the main loom runs above the pedals, splitting at the firewall grommet (rubber boot). Use a borescope to inspect for chafed wires where the bundle passes through the bulkhead. Common failure points include the gray/violet wire (C134 pin 5, right turn signal) and the blue/black wire (C136 pin 1, rear defogger relay trigger). Replace any conductor showing exposed copper or less than 2.5 mm² cross-section.
Decoding Wire Colors in Sensor and Actuator Circuits
Locate the primary power feed first–typically a thick gauge line with red or pink insulation, often paired with a black or dark brown ground. For 5V reference signals, expect solid orange or violet stripes; these supply stable voltage to position sensors like throttle bodies or crankshaft encoders. Ignore generic color charts; verify every connection against the vehicle’s specific harness schematic, as manufacturers reuse colors across models with subtle variations.
Oxygen sensors rely on distinct patterns: upstream pre-cat units use black for signal output, white for ground, and gray for 12V heater power. Downstream post-cat variants swap the signal wire to blue, maintaining white for ground but often adding a second white/green stripe for heater circuits. Probe with a multimeter set to DC volts–signal wires should fluctuate between 0.1V–0.9V depending on engine conditions, while heater circuits remain steady at battery voltage when active.
MAP, MAF, and IAT sensors share similar color coding but differ in connector pin layouts. A typical MAP sensor uses green/yellow for 5V reference, green/blue for signal return, and green/white for ground. MAF sensors frequently employ yellow for signal output (scaling 0V–5V), black for ground, and red for 12V power. IAT sensors mirror MAP colors but may substitute green/red for signal. Always cross-check resistance values: IAT sensors should read 2K–3K ohms at room temperature, dropping as heat increases.
ACT and ECT sensors follow temperature-specific coding: ACT typically orange or brown for signal, blue or gray for ground. ECT sensors often invert this, using blue for signal and orange for ground. Probe sensor output at -40°C equivalent (spray freeze spray) for ~4.8V, dropping to ~0.5V at ~120°C. Deviations beyond ±0.3V suggest faulty wiring or failed sensor. For actuators, throttle position motors use two opposing signals (e.g., gray/yellow + gray/black) that should mirror each other–if one line reads fixed voltage, suspect a broken trace or ECU fault.
Camshaft and crankshaft position sensors demand precise waveform analysis. Crank sensors usually output a 58X or 2X signal (blue/white or blue/black), while cam sensors generate single-edge patterns (pink/black). Use an oscilloscope: crank signals should show sharp 5V transitions with no skew, while cam pulses must align with TDC markers. If waveforms appear distorted, trace back to the ECU connector–common faults include corroded pink/green pins (cam) or loose blue/white terminals (crank).
Knock sensors and ABS wheel speed inputs use shielded wires–typically a twisted pair with braided shielding (black/green center, bare drain). Knock sensors output a ~2.5V AC waveform during detonation, while ABS signals alternate between 0.5V–4.5V square waves. If knock signals flatline, inspect the shield ground; ABS errors often stem from broken shields causing EMI. For CAN bus circuits (yellow + green), verify resistance between lines (~60 ohms)–higher readings indicate an open circuit or damaged terminating resistor.
Fuel injectors and ignition coils follow separate but predictable patterns: injectors use a single trigger wire (blue/yellow or blue/white) switching to ground, while coils employ two-wire configurations (12V power + trigger). Check injector resistance (~12–16 ohms); lower values suggest internal shorts. Coil-on-plug setups often share a common 12V feed (red/green) with individual triggers (black/white, yellow/blue). If cylinders misfire, swap coil connectors–consistent failures on one cylinder point to wiring, while random misfires suggest ECM or ground issues.
