Locate the aftermarket radio harness adapter specific to your model year before attempting any modifications. Models between 1999 and 2006 share a nearly identical electrical pinout layout, though minor variations exist in speaker outputs. Use a digital multimeter to verify voltage on the constant 12V (yellow), accessory (red), and ground (black) wires–incorrect connections risk blowing fuses or damaging the head unit.
Disconnect the battery negative terminal first to prevent short circuits during installation. The factory radio utilizes an 8-pin ISO connector; Metra 70-2003 or Scosche GM03B adapters provide direct plug-and-play compatibility without cutting original wires. For vehicles with premium sound systems, retain the amplifier turn-on wire (blue/white) to maintain active noise cancellation or external amp functionality.
Speaker wires follow a standardized color code: front left positive (gray), front left negative (gray/black), rear right positive (purple), and rear right negative (purple/black). Swap polarity carefully–reversing leads causes phase cancellation, muffling audio quality. Aftermarket units may require line output converters for factory amplified systems; bypassing this step often results in distorted or weak sound.
Test all connections before final assembly. Play a full-range audio file (e.g., 20Hz–20kHz sweep) to confirm balanced output across tweeters and subwoofers. If static or no sound occurs, recheck grounding–corrosion-resistant crimp connectors or soldering prevent intermittent failures common in older harnesses.
Audiophile Guide: Factory Audio System Integration for Compact GM Models

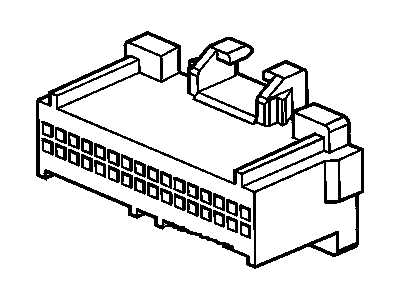

Locate the 12-pin connector at the rear of the default radio harness–pin assignments follow this layout: pin 1 (constant +12V, orange), pin 2 (illumination +12V, gray), pin 3 (left front speaker +, tan), pin 4 (left front speaker –, gray/black), pin 5 (right front speaker +, light green), pin 6 (right front speaker –, dark green/black), pin 7 (ignition +12V, yellow), pin 8 (ground, black), pin 9 (antenna, blue), pin 10 (data bus, brown), pin 11 (right rear speaker +, light blue), pin 12 (right rear speaker –, dark blue/black). Verify continuity with a multimeter before connecting aftermarket units–resistance between matched pairs should read under 4 ohms; higher values indicate wiring faults or speaker degradation.
Power Management and Data Signal Handling
Isolate the brown data line (pin 10) during installation–direct connection risks triggering dashboard error codes. Use a 1 kΩ resistor between the data terminal and grounded orange wire to simulate factory resistance, preventing Check Radio warnings. For high-power amplifiers, splice the yellow ignition feed with a 30-amp inline fuse; factory wiring gauge (18 AWG) supports up to 200W RMS–exceeding this requires relocating power from the battery via 10 AWG cable, fused within 7 inches of the terminal. Avoid tapping into the gray illumination circuit for accessory power–it’s pulse-width modulated and will cause voltage fluctuations.
Finding the Radio Harness Connector in Your Compact Sedan
Disconnect the negative battery terminal before probing any electrical connections. The primary harness connector for the factory audio system is positioned behind the dash cluster, directly adjacent to the lower left side of the climate control assembly. Remove the trim panel beneath the steering column by prying out the six plastic retaining clips–these snap back into place without damage if released carefully. Once exposed, the connector appears as a 12-pin rectangular plug with a locking tab on the lower edge; press the tab to release it from the mounting bracket.
Identifying Pin Layout and Wire Colors
| Pin Number | Function | Wire Color |
|---|---|---|
| 1 | Constant 12V Power | Yellow |
| 2 | Ground | Black |
| 3 | Ignition Switched Power | Red |
| 4 | Front Left Speaker (+) | Dark Green |
| 5 | Front Right Speaker (+) | Light Blue |
| 6 | Rear Left Speaker (+) | Gray |
| 7 | Rear Right Speaker (+) | Brown |
| 8 | Amplifier Remote Turn-On | Pink |
| 9 | Front Left Speaker (-) | Dark Green/White |
| 10 | Front Right Speaker (-) | Light Blue/White |
| 11 | Rear Left Speaker (-) | Gray/Black |
| 12 | Rear Right Speaker (-) | Brown/White |
Use a multimeter set to 20V DC to verify power at Pin 1 (should read battery voltage) and Pin 3 (should read 12V only when the key is in the “ACC” or “ON” position). Ground integrity at Pin 2 can be confirmed by measuring continuity to the chassis; expect less than 0.5 ohms resistance. If voltage is absent at Pin 1, inspect the 10A fuse labeled “RADIO” in the under-hood fuse box–replace if blown, using only an identical amperage rating.
Trace the speaker wires upward to avoid mistaking them for antenna leads. The antenna feed is a separate coaxial cable terminating in a single-pin connector, usually routed alongside the left A-pillar. If retaining factory chimes or OnStar functionality, maintain the original wiring path–splicing into the pink wire (Pin 8) preserves all alarm and voice prompts without requiring additional modules.

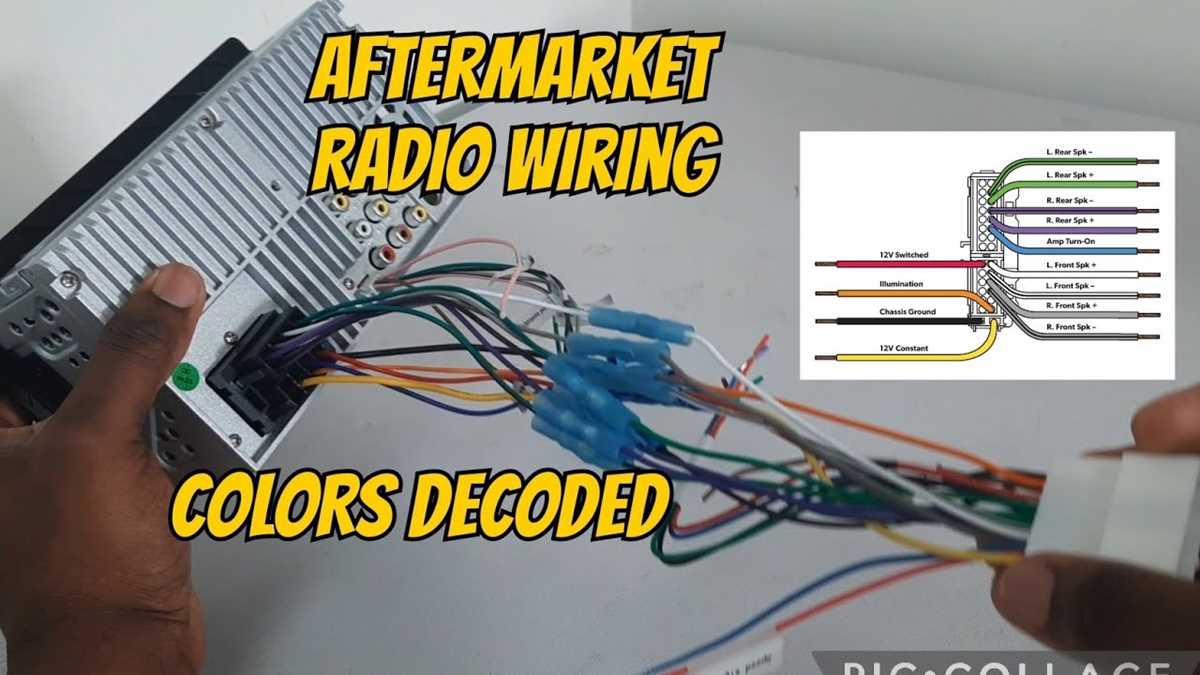

Matching Audio System Cable Colors to Their Roles
Start by locating the 12-pin connector at the back of the head unit–pin 1 (yellow) carries constant 12V power from the battery, essential for memory retention during ignition-off periods. Pin 2 (red) delivers switched power from the ignition circuit, activating the device only when the key is in the “on” or “accessory” position. Verify continuity between these lines and their corresponding fuses (typically F2 and F3 in the under-dash panel) using a multimeter to rule out blown fuses or corroded contacts.
Front and Rear Speaker Outputs
The front left speaker wires emerge from pins 3 (gray) and 4 (gray/black), while the front right pair uses pins 5 (white) and 6 (white/black). For rear channels, scan pins 7 (green) and 8 (green/black) for the left, and pins 9 (purple) and 10 (purple/black) for the right. Strip the ends of these leads carefully–exposing more than 6 mm of copper increases the risk of short circuits. Cross-check each pair’s impedance (should read between 2-4 ohms) to confirm they’re not grounded or internally severed.
Ground connections terminate at pin 11 (black), which must attach to a bare metal chassis point devoid of paint, rust, or undercoating. Use a star washer between the ring terminal and chassis to ensure a low-resistance path; poor grounding manifests as buzzing, static, or intermittent operation. If noise persists, trace the entire ground path back to the battery negative terminal–corrosion inside the main harness or at the engine block can create phantom resistance.
Pin 12 (orange/white) handles the illumination circuit, dimming or brightening display lights in sync with the vehicle’s dashboard. Test this function by toggling the headlight switch–if unresponsive, inspect the dimmer module located behind the instrument cluster. Replace any burnt bulbs or damaged resistors within the dimmer assembly before condemning the cable harness.
Step-by-Step Guide to Integrating Custom Audio Components with Factory Harness
First, locate the vehicle’s original speaker connectors in the door panels or rear deck. Use a multimeter set to continuity mode to verify pin assignments for positive and negative terminals–match these to the aftermarket speaker’s wire gauge and polarity. For a 200-watt RMS system, ensure 16-gauge or thicker wiring is used to prevent signal loss. If factory connectors lack color-coding, trace the harness back to the head unit’s fuse box using a circuit tester to identify power and ground feeds.
Disconnect the battery’s negative terminal before splicing. For quick, secure connections, use crimp connectors with heat-shrink tubing instead of twist-and-tape methods–this prevents corrosion and short circuits. Secure all splices with zip ties to the vehicle’s existing harness loom, avoiding sharp edges or moving parts. Test each speaker with a 1 kHz sine wave at half volume before finalizing mounts; distortion indicates reversed polarity or inadequate ground contact.
Fine-Tuning and Troubleshooting
If static or weak output persists, reroute the ground wire directly to the chassis using a self-tapping screw and star washer at a bare metal point. Avoid daisy-chaining grounds to other components. For amplifier installations, run a dedicated power cable from the battery through a 60-amp fuse within 18 inches of the positive terminal, and use a capacitor (minimum 1 farad per 500 watts) to stabilize voltage spikes. Cross-check all connections against an OEM pinout chart to confirm no auxiliary outputs (e.g., antitheft or onstar) are disrupted.
Diagnosing Power and Ground Failures in OEM Audio Systems
Check the fuse linked to the head unit’s constant power line first. Locate the fuse box under the dashboard or near the battery; refer to the owner’s manual for the exact fuse number–typically a 10A or 15A fuse labeled “radio” or “audio.” Use a multimeter to verify continuity; if blown, replace it with an identical rating. A reoccurring blown fuse suggests a short in the circuit, often caused by chafed wires near the harness or ignition switch. Trace the red or yellow wire from the unit’s connector back to the fuse panel, inspecting for exposed copper or melted insulation.
Verify ground connections at the chassis anchor point. Most vehicles ground the audio system via a black wire attached to a bolt on the vehicle’s frame or firewall. Remove the bolt, clean both the wire terminal and the mounting surface with a wire brush to eliminate corrosion or paint, then reattach securely. Loose or oxidized grounds cause intermittent power loss, static, or dim display backlighting. If symptoms persist, run a temporary ground wire directly from the unit’s ground terminal to a known good chassis ground (e.g., a bare metal bolt on the transmission).
Testing Voltage at the Head Unit Connector
Use a multimeter set to DC voltage (20V range) to probe the following pins at the OEM harness connector while the key is off and in the “ACC” or “ON” position:
- Constant 12V (yellow or red wire): Should read 12V with key off.
- Switched 12V (red or orange wire): Should read 0V with key off, 12V with key in “ACC” or “ON.”
- Ground (black wire): Should read 0V against chassis ground.
If constant power is missing, inspect the wiring loom for breaks, especially where it passes through the firewall or near seat tracks. If switched power is absent, the issue lies within the ignition circuit–check the ignition switch, fuses, or wire junctions behind the instrument cluster.
Identifying Common Shorts and Open Circuits
Strip ¼ inch of insulation from suspect wires and perform a continuity test between the following:
- Constant power wire and ground–should read “OL” (open). A reading below 1Ω indicates a short.
- Switched power wire and ground–should also read “OL.”
- Constant power wire and switched power wire–should read “OL” with key off.
Shorts often occur where wires bend sharply, such as behind the dash or near the gearshift. Open circuits typically result from broken wires inside insulation–wiggle test sections of the harness while monitoring voltage to pinpoint the fault.
Replace the factory antenna booster module if reception cuts in and out. This module, usually mounted behind the glove box or under the dashboard, amplifies weak FM signals. Symptoms include good AM reception but poor FM, or static that improves when touching the antenna base. Test by bypassing the module with a temporary antenna wire from the head unit’s “ANT” terminal directly to the antenna mast–if reception stabilizes, the booster is defective. Purchase an OEM-replacement module (part numbers vary by model year) rather than aftermarket alternatives, which may cause impedance mismatch.
Inspect the dimmer wire (usually gray or violet) for correct functionality. This wire adjusts display brightness with the instrument panel lights. With parking lights on, voltage should vary between 0V and ~5V at the head unit connector. If stuck at 0V, the dimmer circuit is inoperative–check the dimmer switch, rheostat, or wire junctions near the headlight switch. A shorted dimmer wire may cause the display to flicker or turn off entirely when headlights are activated.
Re-seat the factory harness connectors if the unit powers on intermittently or displays erratic behavior. Over time, oxidation or slight vibration can loosen pins inside the 12-24 pin connectors. Disconnect both battery terminals, then unplug and re-plug the harness at the back of the head unit. Apply dielectric grease to the connector pins to prevent future corrosion. For persistent issues, probe each pin with a multimeter while gently moving the harness–fluctuating readings indicate a faulty connector, requiring replacement of the entire harness assembly (dealer-order part).
