For accurate connections, refer to pin assignments on the factory harness. The color-coded wires in the dash connector follow a standard GM schema: yellow (constant +12V), red (switched +12V), black (ground), white with black stripe (left front speaker +), dark green (left front speaker −), gray (right front speaker +), and light blue (right front speaker −). Rear channels mirror this pattern with purple and light green for the left and orange and brown for the right. Double-check continuity with a multimeter before soldering or crimping.

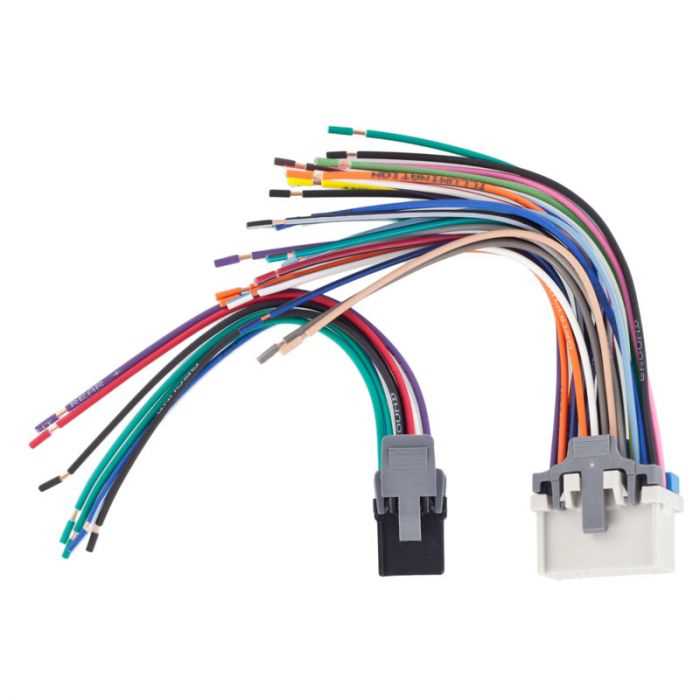

Do not rely on aftermarket adapters labeled “plug-and-play.” Many universal harnesses omit the dimmer lead (typically pink) or the antenna trigger (blue/white). These are critical for proper illumination synchronization and power antenna functionality. If missing, run fresh wires: pink to the fuse box under the dash and blue/white to the antenna motor. Secure connections with shrink tubing and dielectric grease to prevent corrosion.
Amplifier integration requires additional ground points. Factory grounds beneath the driver’s side kick panel often have insufficient contact area. Clean the mounting surface to bare metal, use a star washer, and apply anti-seize compound. Avoid daisy-chaining grounds–each amplifier should have a dedicated path back to the chassis. For non-Bose systems, bridge the orange/white wire (illumination) to red to ensure head unit dimming matches the instrument cluster.
The data bus (tan/orange stripe) carries serial signals for chimes and OnStar. Severing this wire without a bypass module will trigger false warnings. Install a compatible interface (e.g., Metra ASWC-1) or retain the factory radio’s display connectors if retaining steering wheel controls. Test all functions–volume, track skip, voice commands–before finalizing trim panel reassembly.
Always disconnect the negative terminal before splicing. Hidden fuses (like the 10A radio fuse in the underhood box) protect against shorts. If static persists, verify the ground path includes the engine block via the black wire at the battery and a secondary ground strap near the firewall. Never splice into the orange/red wire (airbag circuit)–this risks supplemental restraint system faults.
Guide to Audio System Electrical Connections for the 2003 Compact Coupe
Begin by locating the vehicle’s harness connector behind the factory radio unit. Pin configurations differ between models with premium sound systems and base audio packages. For standard setups, the power lead is a 12-gauge orange wire (constant 12V), while the ignition-switched wire is yellow (10-gauge). Ground connections use a black wire, often routed to the chassis near the mounting bracket.
Speaker outputs follow a consistent pattern: front left (+) is light green, (-) is gray; front right (+) is white, (-) is dark green. Rear channels use violet (+) and light blue (-) for the left side, and brown (+) and tan (-) for the right. Confirm polarity with a multimeter–reversed leads degrade sound quality, especially in low frequencies.
Amplifier-equipped versions include an additional harness with a pink wire for remote turn-on and a thicker purple wire for power distribution. If upgrading, splice these leads carefully–factory insulation is thin and prone to fraying. Use heat-shrink tubing rather than electrical tape for long-term reliability.
Antenna cables require a specific adapter for aftermarket units. The factory coaxial connector is proprietary; swap it for a standard Motorola plug (available as part #GM-ANT-ADPT) to avoid signal loss. For satellite radio compatibility, retain the data bus wires (pink/black) even if the feature isn’t used immediately–they are critical for future-proofing.
When testing circuits, disconnect the battery’s negative terminal first to prevent shorts. Probe wires with a no-load voltage tester before connecting new equipment; factory harnesses sometimes carry residual current even when the key is off. For troubleshooting, refer to the ISO 10487 standard–this model’s harness aligns with its pin assignments, simplifying cross-compatibility checks.
Color codes may vary for vehicles built after August 2002 due to mid-year manufacturing updates. Always cross-reference the harness with a visual diagram from the car’s service manual (section 8A-62) before cutting or splicing. If retaining the factory CD changer, leave the purple/white and gray/black wires intact–they carry digital signals that newer systems cannot replicate.
For optimal grounding, sand the chassis surface to bare metal at the attachment point. Poor grounding causes audible noise, particularly in high-power aftermarket setups. Use a star washer and locknut to ensure a solid connection, and apply dielectric grease to prevent corrosion in humid climates.
Finding Audio System Connectors Behind the Dashboard
Start by removing the center dash panel below the climate controls–it snaps off with minimal force, secured by three plastic clips: one at each corner and a central tab. Once detached, disconnect the cigarette lighter harness first to avoid straining wires during inspection. The main connector block sits directly behind the factory receiver, identifiable by its gray or black housing and twelve-pin layout, matching the OEM interface standards for this platform.
Connector Identification Guide
| Connector Type | Pin Count | Wire Colors (Common) | Function |
|---|---|---|---|
| Power Input | 4 | Yellow (12V constant), Red (accessory), Black (ground), Orange (illumination) | Primary voltage feeds and ground reference |
| Speaker Output | 8 | Gray/Black (front right +/-), White/Black (front left +/-), Purple/Green (rear right +/-), Green/Purple (rear left +/-) | Direct speaker-level signals |
| Antanna Trigger | 1 | Pink | Motorized antenna activation |
Trace the speaker harness bundle–it splits from the main plug and routes downward, bundled with cloth tape. The rear deck and door speaker pairs share this run, so label each wire at the splice points before cutting. The antenna lead branches upward, hidden behind the climate control module–press the module’s lower retaining clip to release it and expose the coax connector.
For auxiliary inputs or aftermarket adapters, locate the secondary twelve-pin plug adjacent to the main harness. This меньший разъем often carries CD changer signals, chime module interfaces, or unused pre-wired circuits. Use a multimeter to verify continuity on lighter-colored wires (tan, light blue) when testing as these typically handle data transmission rather than high-current paths. Remove the glovebox liner to access the body-side harness if extending circuits to the trunk.
Secure all connections with solder-sealed butt splices and apply heat shrink tubing–avoid electrical tape alone, especially near HVAC ducts where moisture accumulates. Reinstall the dash panel by aligning the upper lip first, then pressing firmly until all clips audibly engage. Test each function–lights, tuner, and amplifier triggers–before fully reassembling interiors.
Standard Wire Color Identification for Head Unit Upgrades in Compact Hatchbacks
Match the yellow (B+) wire from the aftermarket audio interface to the vehicle’s constant 12V supply–typically tagged with black tracer stripes on factory harnesses. Verify power continuity with a multimeter before securing connections; transient voltage drops often indicate hidden resistors or anti-theft coatings.
Route the red (accessory) lead to the ignition-switched circuit, usually identified by a pink or violet base with white dashes. Avoid splicing into fused circuits below 10A to prevent overheating; source directly from the fuse box using mini blade add-a-fuse connectors.
Ground the black cable to a bare chassis point near the original radio cavity, sanding away paint or corrosion to ensure
Connect front speaker outputs using the following standard-but-variable codes: gray (+)/gray-black (-) for right front, white (+)/white-black (-) for left front. Factory harnesses may reverse polarity on tweeters; measure with a 1 kHz test tone to confirm phase before final crimping.
For rear speakers, use green (+)/green-black (-) (right) and purple (+)/purple-black (-) (left). Check for bridged grounds–common in dual-voice-coil doors–by probing each lead against chassis ground; any resistance below 10kΩ suggests shared grounding.
Illumination control (dimmer) uses a light gray or orange wire, often paired with a brown base. Tap into the instrument cluster dimmer circuit rather than the headlight switch to avoid voltage drop issues at low brightness.
Amplifier remote turn-on–if applicable–requires a blue/white striped wire. Trigger from the ignition accessory circuit only; direct battery hookups risk draining power cells overnight.
Retain factory antenna control with a blue or blue-red cable; motorized units demand a 12V pulse to extend. Bypass auto-retract modules when upgrading to fixed-mast antennas by splicing into the signal wire with a 470Ω resistor to prevent error codes.

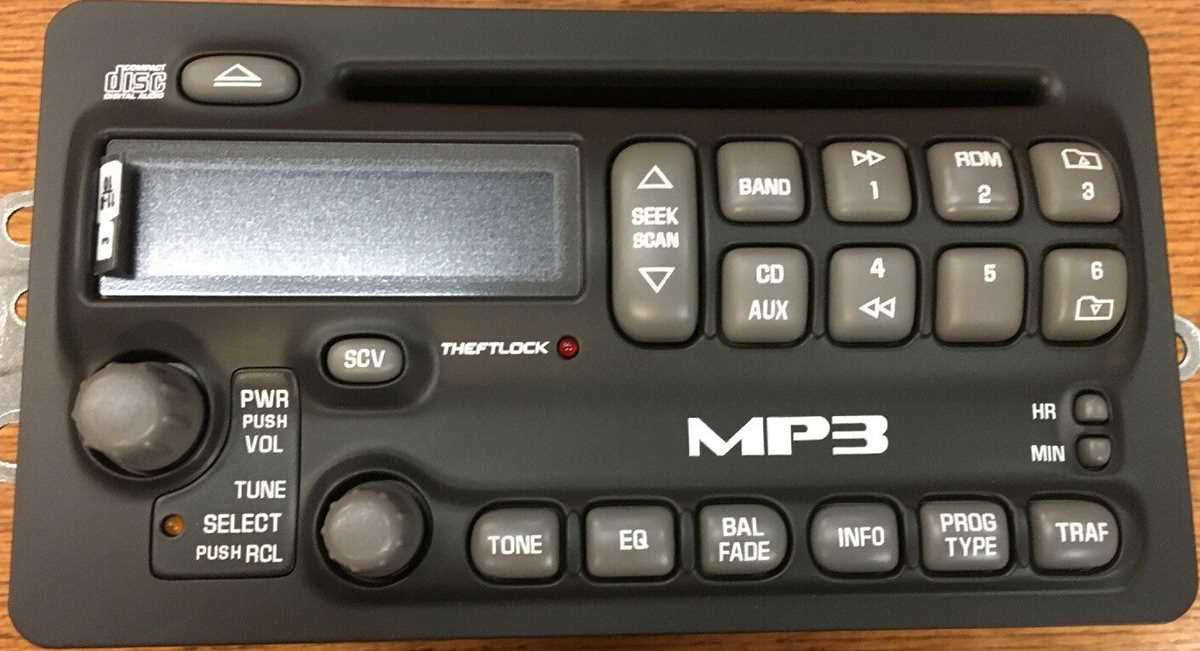

Step-by-Step Guide to Removing the Factory Audio Head Unit
Disconnect the vehicle’s negative battery terminal first to prevent electrical shorts or airbag deployment. Use a 10mm wrench to loosen the clamp on the terminal and slide it off the post. Place it aside where it won’t make accidental contact while working.
Locate the trim panel surrounding the central console. Most models feature four hidden clips along the top edge and two on each side. Use a trim removal tool or flathead screwdriver wrapped in tape to pry these clips free. Work slowly near the climate controls to avoid snapping plastic tabs.
- Start at the bottom corners and gently wiggle the panel upward.
- Pull outward once the clips release; set the trim aside carefully.
- Avoid tugging on attached wiring harnesses behind the panel.
Remove the four metric bolts securing the head unit’s mounting cage. These are typically 7mm hex fasteners, recessed into the dashboard’s frame. Use a magnetic screwdriver to prevent dropping bolts into the dash cavity. Keep bolts organized–label them if reusing for aftermarket installation.
Slide the factory unit forward until the rear connectors are accessible. Press the release tabs on the wiring plugs and disconnect them one at a time. Antenna cables may require a slight twist before pulling straight out. Note the orientation of connectors for reassembly or replacement unit installation.
Handling Obstacles
If the unit resists removal, check for additional screws behind the air vents or beneath the hazard light switch. Some trim pieces pop off to reveal hidden fasteners–consult a repair manual for model-specific variations. Never force the unit; excessive pressure risks damaging dashboard components.
Reinstallation follows the reverse order: reconnect plugs, seat the unit into the mounting cage, secure bolts, and reattach trim. Reconnect the battery last, then test all functions–radio presets, auxiliary inputs, and steering wheel controls if equipped–before completing the job.
