Start with the fuse box under the dashboard on the driver’s side–identify the 10A audio fuse labeled “RADIO” or “AUX.” Trace the red-yellow wire to the harness behind the center console. Disconnect the negative terminal before probing to avoid shorts. The power lead splits into two branches: one for constant 12V (red-yellow) and another for ignition-switched supply (yellow-black). Ground connections cluster near the lower kick panel, terminated in a single bolt with a 14-gauge wire (black or brown).
Speaker outputs follow a quadraphonic layout–front left (light green) and right (dark blue), rear left (gray) and right (white). Each pair carries a positive signal with its paired negative tracer: for example, light green with a light blue stripe. Avoid stripping wires beyond 5mm to prevent bridging. If resistance tests exceed 4 ohms, check for corrosion at the door hinge grommets, a common failure point in older models.
Aftermarket integration requires bridging the factory harness to an ISO adapter. Pinouts for auxiliary inputs are not standard–verify compatibility with pin 16 (data bus) before splicing. For stealth installs, bypass the antenna trigger (pink) to prevent phantom power drain. Use a multimeter set to DC 20V to confirm voltage drops across connections; readings below 11.5V indicate a weak alternator or parasitic draw.
Factory service manuals (section 230-50) detail splice points for navigation retrofits–locate the teal wire (vehicle speed signal) near the OBD-II port. If upgrading to a touchscreen, repurpose the climate control harness by rerouting the gray-violet wire (display dimmer) to the new unit’s illumination input. Always secure connections with solder and heat shrink, never crimp caps alone–vibration loosens them over time.
Electrical Integration Guide for Your Minivan’s Sound System
Begin by locating the factory harness behind the dashboard’s lower trim panel. Disconnect the vehicle’s battery before proceeding to prevent shorts. The stock connector typically features 12 labeled pins: constant power (yellow, 14-gauge), ignition-switched (red, 18-gauge), ground (black, 12-gauge), and antenna trigger (blue/white stripe, 20-gauge). Verify wire gauge with a multimeter–mistakes here risk fuse overload.
Front speaker wires follow a standardized color code: left positive (light green, 18-gauge), left negative (blue/black stripe), right positive (gray), right negative (brown/black stripe). Rear channels use different hues: left positive (light blue), left negative (orange/black stripe), right positive (pink), right negative (green/black stripe). Cross-reference these with your aftermarket unit’s manual– factory amplifiers may require bypassing.
Critical Connections for Signal Integrity
Use crimp connectors rated for automotive applications– solder joints corrode over time. For vehicles with navigation or premium audio, identify the data bus (green/orange stripe, 22-gauge) and avoid splicing here unless the adapter harness explicitly supports CAN-BUS protocols. Aftermarket stereos may trigger error codes if this wire is interrupted.
If retaining steering wheel controls, procure an interface module– direct wiring risks damaging the vehicle’s ECU. The module typically connects between the factory harness and new head unit, requiring four additional wires: power, ground, CAN-HI (usually purple), and CAN-LOW (often green). Verify compatibility with your model year’s microcontroller version.
Test all connections before reassembling panels. Check for proper operation in accessory, ignition-on, and engine-running modes. Static or intermittent sound indicates poor grounding– relocate the ground to an unpainted chassis point if necessary. For persistent issues, inspect the fuse box for dual-purpose relays–some models share audio system protection with vehicle stability control circuits.
Finding the Original Audio System Harness Plug

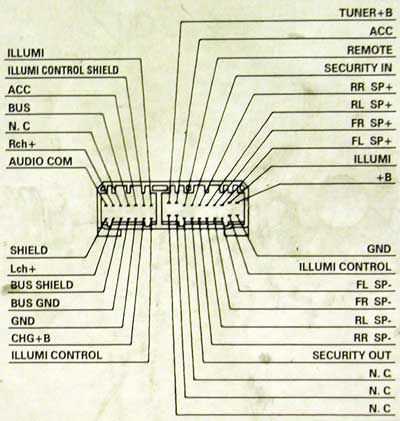

Start by removing the lower dashboard trim panel on the driver’s side. Use a trim removal tool to avoid scratches–insert it between the panel and the frame near the steering column. Gently pry outward to release the clips, then pull the panel away. Behind this cover, you’ll find a bundled set of cables terminating in a rectangular 12-pin plug; this is the primary connection point for the stock sound unit.
If the plug isn’t visible, check behind the climate control cluster. Some models route the harness upward, securing it with a single screw. Remove the screw and slide the climate module slightly forward to reveal the hidden plug. Label each wire with masking tape before disconnecting anything–color codes typically follow ISO standards, but variations exist in aftermarket adapters.
- White/black: left front speaker (+)
- White: left front speaker (–)
- Grey/black: right front speaker (+)
- Grey: right front speaker (–)
- Green/black: left rear speaker (+)
- Green: left rear speaker (–)
- Purple/black: right rear speaker (+)
- Purple: right rear speaker (–)
- Yellow: constant 12V power
- Red: accessory/ignition-switched power
- Black: ground
- Blue/white: amplifier remote turn-on
For vehicles with navigation, an additional 8-pin connector may be present. This smaller plug handles display data and steering wheel controls. Disconnect the battery’s negative terminal before handling this plug to prevent short circuits. Reconnecting requires aligning the plug’s notch with the socket–force or misalignment can damage the pins permanently.
Trace each cable back to the firewall if the harness splits behind the dash. Factory-installed harnesses often route through a grommet near the brake pedal; pull back the carpet to inspect. If splicing is necessary, use solder and heat-shrink tubing instead of crimp connectors for long-term reliability. Test all connections with a multimeter before reinstalling panels–verify 12V on the yellow wire and continuity on speaker leads.
Identifying Wire Colors and Their Functions for All Speakers
Locate the front left door tweeter’s positive lead by tracing the bright yellow wire with a thin red stripe–this pairing is non-standard but consistent across factory audio harnesses. The corresponding negative terminal will use a solid light green wire, often mistaken for ground but confirmed by its connection to the amplifier’s output side.
Rear Speaker Configuration
Rear right mid-range speakers receive power via a solid purple wire (positive) and a purple wire with a black stripe (negative), while the left side mirrors this with solid gray (positive) and gray with black stripe (negative). Subwoofer channels, if present, bypass this scheme entirely, relying instead on a thick brown wire for the positive signal and brown with white stripe for negative–verify continuity with a multimeter before splicing.
Factory-installed tweeters in the dashboard use a dedicated pink wire (positive) and pink with white stripe (negative), separate from door speakers despite sharing the same amplifier output. For aftermarket installations, ignore the orange illumination wire unless integrating steering wheel controls–it carries no audio signal but can interfere if misrouted.
Troubleshooting Unlabeled Wires
Test unknown wires by connecting a 9V battery’s positive terminal to each suspect lead while listening for a faint pop from the speaker–this confirms signal path without risking amplifier damage. Avoid pairing white wires (front right positive) with any solid black wires, as the latter serve as chassis ground for non-audio components.
Step-by-Step Guide to Removing the Factory Audio Head Unit
Locate the trim panel surrounding the dashboard controls. Use a plastic pry tool to gently separate it from the dash–avoid metal tools to prevent scratches. Starting at the lower edge, work upward and outward, releasing the clips holding it in place.
Disconnect the cigarette lighter and auxiliary power outlets before removing the trim. Unplug their wiring harnesses by pressing the release tab and pulling straight out. Store the trim in a safe location to avoid damaging the clips or connectors.
Accessing the Fasteners
Remove the two Phillips screws securing the audio unit’s mounting bracket–one at the top center, another at the bottom. Slide the entire assembly forward slightly to expose the remaining connections.
Unplug the main wiring harness by pressing the white tab on the back of the unit and pulling firmly. Disconnect the antenna cable by twisting the collar counterclockwise and pulling it free. Avoid tugging on the wires to prevent damage.
Detach the climate control cables if your model integrates them with the audio system. Pull the cable ends straight off their posts–no tools required–then move them aside to clear space. Verify none remain attached before fully removing the unit.
Slide the head unit out completely once all connections are free. Check for additional screws or brackets hidden behind the mounting sleeve–some variations include extra securing points.
Inspect the empty cavity for leftover debris or damaged wires before installing a replacement. Reconnect all components in reverse order, ensuring harnesses click securely into place and antenna cables are fully seated.
Installing a New Head Unit with Factory Harness Adapters

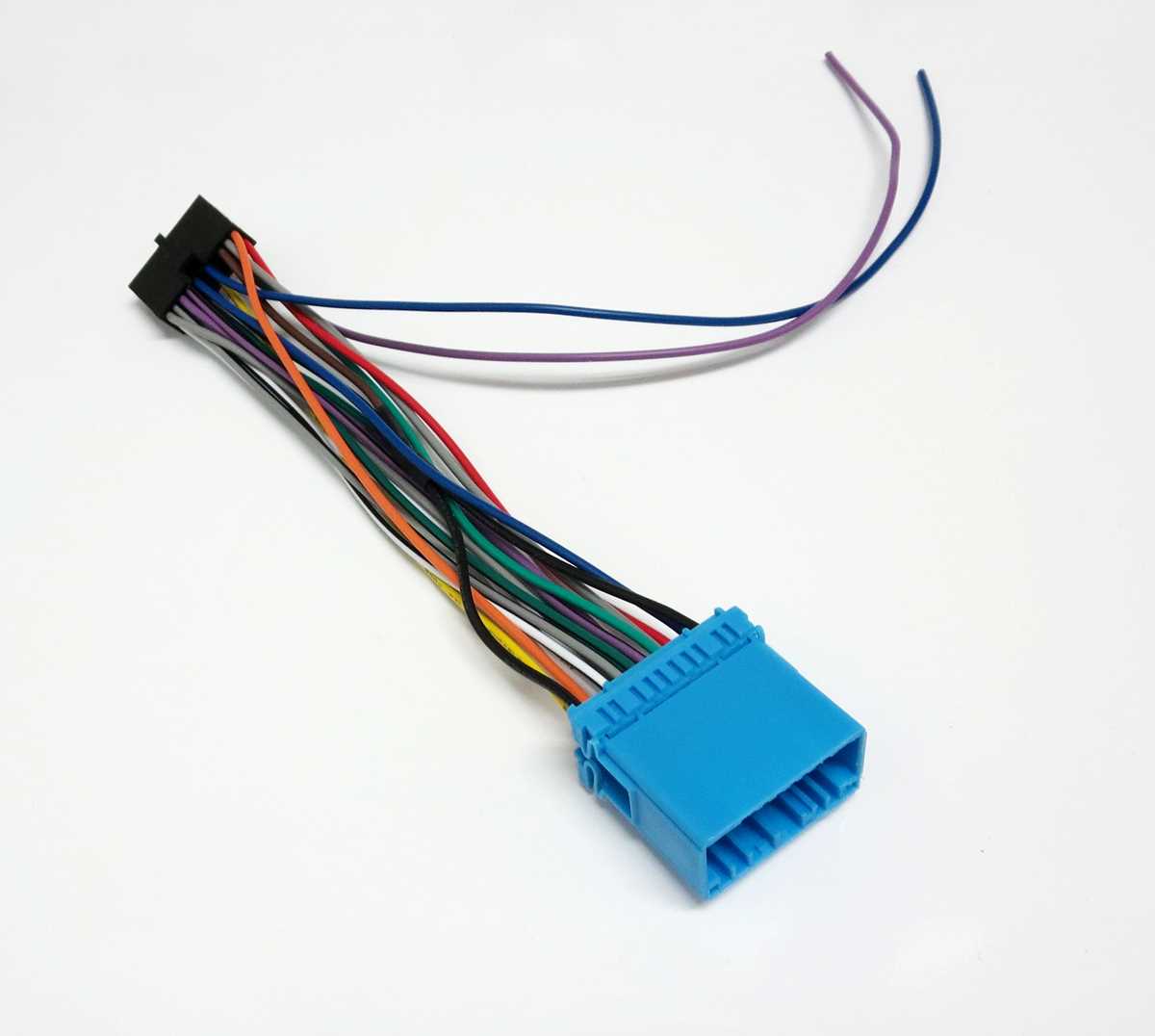

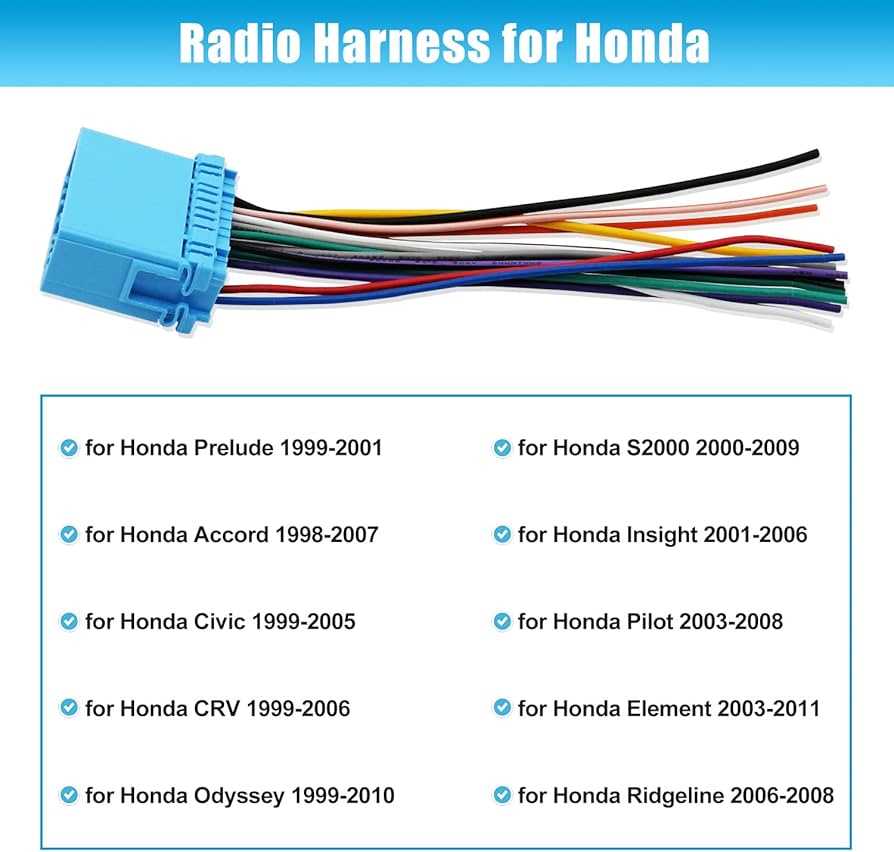

Begin by securing a harness adapter specific to the minivan’s electrical architecture–vendors like Metra or Scosche offer direct-fit connections for the audio system’s original connectors. Match the adapter’s color-coded wires to the aftermarket deck’s pins: yellow to constant 12V, red to ignition-switched 12V, black to ground, and orange to illumination. Verify compatibility with the vehicle’s Bose amplifier (if equipped) by checking for a purple/white wire in the factory harness–this signals the need for an amplifier integration module to maintain sound quality.
| Original Connector Wire | Function | Aftermarket Deck Wire |
|---|---|---|
| Yellow | Battery (+12V constant) | Yellow |
| Red | Ignition (+12V switched) | Red |
| Black | Ground | Black |
| Orange | Dash lights dimmer | Orange |
| Purple/White | Amplifier turn-on | Blue/White (remote) |
Strip no more than 6mm of insulation from each wire, twist strands tightly, and crimp with solder-sealed connectors–or solder directly for a corrosion-resistant joint. Route the new harness behind the dashboard’s lower panel, avoiding sharp edges near the climate control assembly. Test all functions (memory settings, antenna, speakers) before reassembling trim; loose connections often manifest as single-speaker dropout or erratic volume adjustments.
