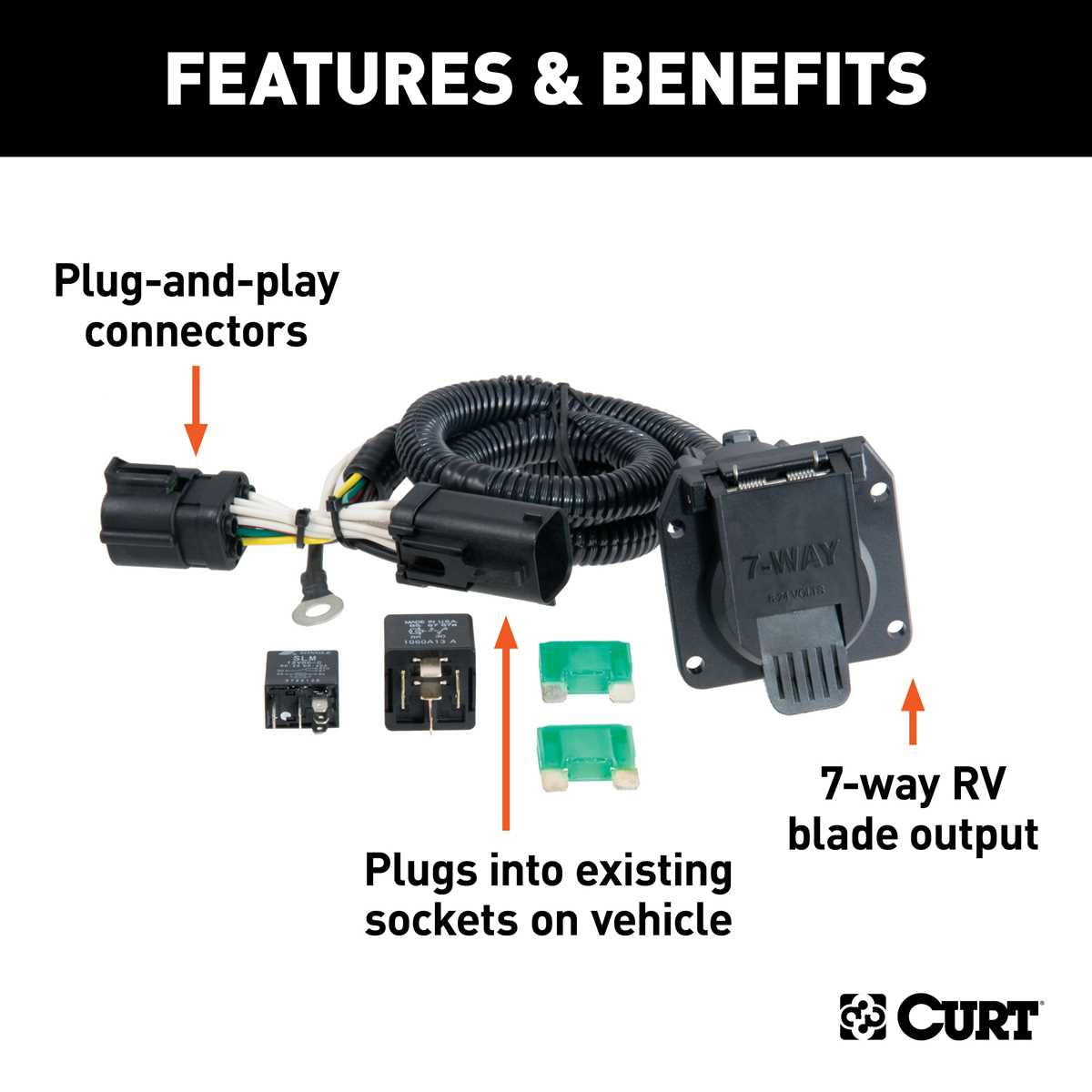

Start with a factory-approved 7-way plug harness from the manufacturer’s parts catalog (Motorcraft part number 14A005). This pre-terminated harness includes a 30-amp breaker for reverse lights and a 40-amp circuit for auxiliary power–no splicing required. Replace the inline fuse link with a blade-style fuse (30A) immediately downstream of the battery connection; the original fusible link is prone to corrosion under heavy trailer loads.
Locate the under-dash relay panel. Pin 1 on the gray multi-pin connector (C187) delivers constant 12V; tap this feed for trailer brakes if you run electric drums. Use 12-gauge TWP copper wire for all brake circuits–any smaller gauge risks voltage drop exceeding 0.5V over a 15-foot run. Ground the white return wire to chassis at the frame rail behind the rear axle; avoid the bed sheet metal–it flexes and creates intermittent connections.

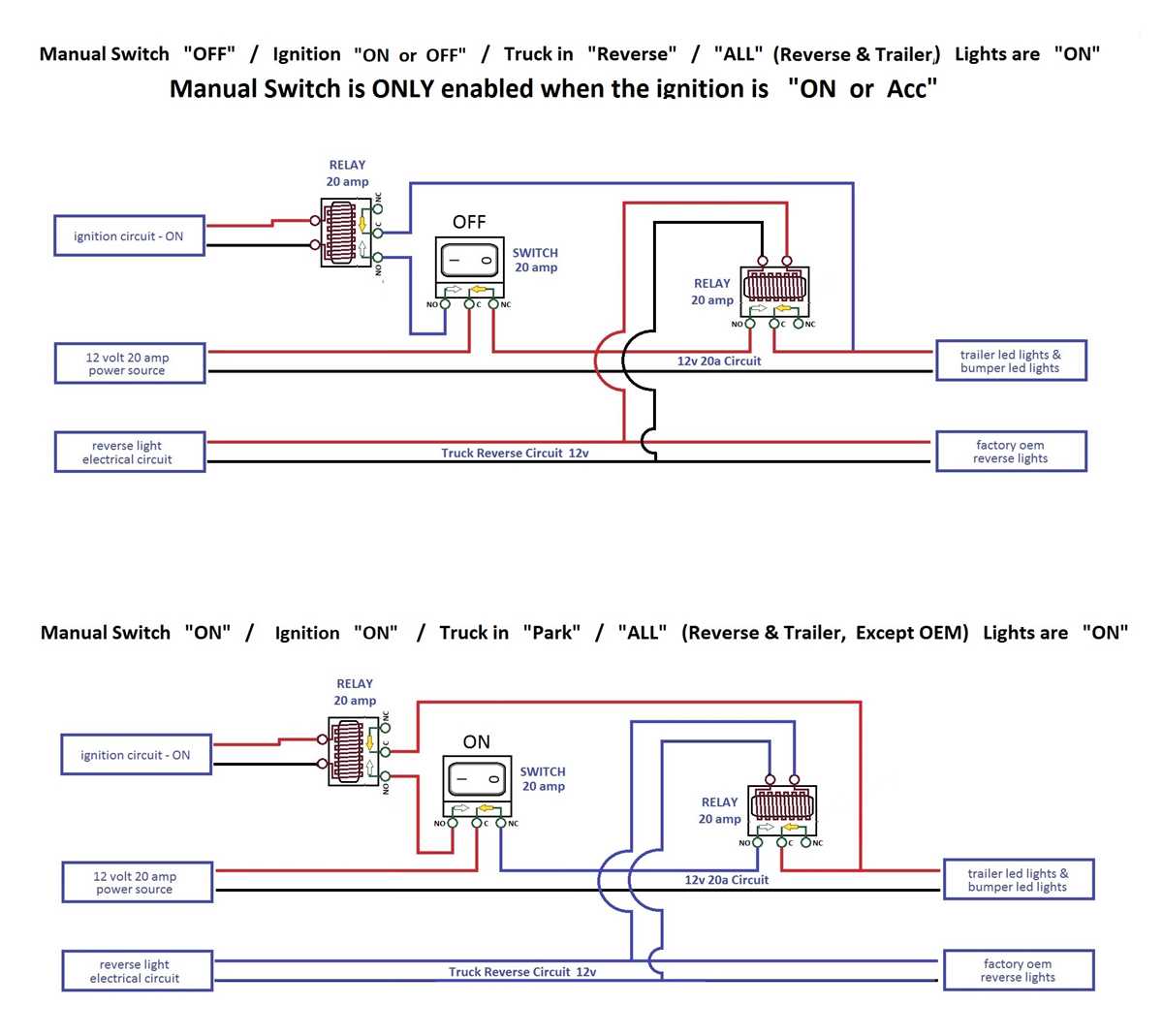

For auxiliary circuits, install a dedicated 5-pin relay (SPST, coil current 150 mA) triggered by the tow/haul switch on the transmission selector. Run the switched output (20A max) through color-coded OE-spec GXL cross-link cable–regular THHN will degrade in engine-bay temperatures above 190 °F. Route all cables inside 1-inch convoluted tube and secure with P-clamps every 18 inches; loose loops chafe against the driveshaft tunnel.
Test each circuit before finalizing. Use a digital multimeter: probe the 7-way pin (yellow–left turn/brake) while activating the turn signal; expect 12.8–13.2V square wave with rise time. Any fluctuation beyond ±0.3V indicates a corroded terminal–clean contact surfaces with DeoxIT D100 and re-crimp terminals using double-crimp weather-pack tooling. Reuse the existing pressure-lock connectors only if resistance measures across the joint.
Understanding Your Vehicle’s Electrical Connection Guide
Start by locating the primary connector under the rear bumper, typically a 7-pin round plug. Pin configuration follows this standard: 1 (left turn/stop), 2 (reverse lights), 3 (12V auxiliary), 4 (right turn/stop), 5 (tail lights), 6 (electric brakes), and 7 (ground). Verify each function with a test light before connecting external loads to avoid short circuits.
For models equipped with a factory tow package, the OEM plug may already include color-coded leads matching the sequence above. Brown (tail lights), yellow (left turn), green (right turn), white (ground), blue (brake controller), red (battery hot), and black (reverse) simplify troubleshooting. If colors deviate, consult the owner’s supplement manual for exact wire identification.
Upgrade to a heavy-duty relay kit if pulling loads exceeding 10 amps. Factory wires often lack sufficient gauge for high-demand accessories like hydraulic winches or auxiliary lighting. Install a 40-amp relay between the battery and connector, securing all power feeds with dielectric grease to prevent corrosion.
Test continuity between the vehicle frame and the connector’s ground pin using a multimeter. Resistance should read below 0.5 ohms; higher readings indicate poor grounding. Clean contact points with a wire brush and reattach firmly to the chassis–improper grounding causes intermittent failures, especially in braking circuits.
Aftermarket adapters may require splicing if the plug design differs. Strip insulation carefully, avoiding nicked conductors, and use heat-shrink tubing instead of electrical tape for long-term reliability. Verify all splices with a continuity test before sealing connections.
For integrated brake controllers, ensure the blue wire connects to a dedicated port on the vehicle’s computer module, not a generic fuse tap. Incorrect wiring triggers error codes on the instrument cluster, disabling trailer brake functionality until cleared with a scan tool.
Store spare fuses near the junction box–standard values range from 15 to 30 amps depending on the circuit. Label each fuse holder to streamline future diagnostics. Replace blown fuses with exact amperage ratings; using higher values risks damaging wiring insulation under sustained loads.
Finding the OEM Tow Package Plug on Your Pickup
Check beneath the truck’s rear bumper on the driver’s side–just left of the hitch receiver tube. The factory-installed tow plug is a gray or black 7-pin round connector bolted to the frame rail about 12 inches forward of the spare-tire crossmember. If the connector is missing, follow the main chassis loom upward from the bumper area; it often terminates in a weatherproofed connector tucked under the bed, near the tail-light junction.
- Driver-side frame rail, left of the receiver tube.
- Directly below the rear valence panel.
- Approximately 16–18 gauge wires entering from the front.
- Look for a round, hinged dust cap if the plug is intact.
When the OEM plug isn’t visible, slide under the truck and trace the harness from the rear corner light bulb socket back toward the centerline. The loom usually runs inside a plastic conduit clipped to the underside of the bed floor. At the halfway point, it drops through a hole in the frame and reappears as a single connector. Squeeze the retaining tabs and pull; the plug should release without force.
If corrosion or damage has compromised the connector, verify the pin layout with a multimeter. Probe each cavity while cycling the turn signals, brake pedal, and parking lamps–voltages should correspond to standard SAE J560 pin assignments (yellow/left turn-brake, green/right turn-brake, brown/tail-lamp, white/ground, blue/auxiliary). Replace any terminal showing open circuit or inconsistent voltage with a matching solder-sealed crimp connector to prevent intermittent failures.
How to Install a 4-Way Connector on Your Pickup’s Electrical System
Locate the factory tow socket behind the rear bumper–it’s typically mounted on the driver’s side, near the vehicle’s frame rail. If absent, remove the inner taillight lens cover to access the existing cable bundle. Identify the four primary circuits: ground (white), running lights (brown), left turn/brake (yellow), and right turn/brake (green).
Trim ½ inch of insulation from each wire using a wire stripper, exposing fresh copper strands. Match the new plug’s wires to the pickup’s color-coded outputs:
- White → Ground
- Brown → Marker/side lamps
- Yellow → Left signal/stop lamp
- Green → Right signal/stop lamp
Twist corresponding wires together and crimp with insulated butt connectors–heat-shrink tubing adds corrosion resistance.
Route the connector assembly through the bumper hole or drill a ¾-inch access port if needed. Secure excess cable with zip ties, keeping it 2 inches above the lowest frame point to avoid road debris damage. Ground the white wire to a clean chassis surface–scrape paint down to bare metal, attach with a ring terminal, and tighten with a 10mm bolt.
Testing the Connection Before Final Assembly
Activate the vehicle’s hazard lights and verify each side flashes independently. Press the brake pedal–both turn signals should illuminate steady without blinking. Switch on the headlights; marker lamps must glow consistently without flickering. Use a circuit tester on the plug’s exposed pins to confirm 12V output aligns with expected functions.
Seal all connections with dielectric grease to prevent oxidation. Snap the new plug cover into place, ensuring no exposed wires protrude. Store unused adapter clips in the glovebox–roadside repairs may require bypassing damaged circuits. If the tail light housing interferes, trim plastic guides with a Dremel bit to create clearance.
For trailers with surge brakes, connect a separate brake controller output (blue wire) to the pickup’s dedicated socket–omit this pin if not equipped. Recheck grounds after 50 miles; loose connections often cause intermittent failures. Label the plug cable with a small tag to simplify future troubleshooting.
Decoding the Electrical Pathways in Your Pickup’s Towing Setup
Start by locating the main connector under the rear bumper–typically a 7-pin round socket. The brown wire is the running lamp circuit; test it first with a multimeter set to 12V DC while the headlights are on. If readings drop below 11 volts, inspect the fuse labeled “LR Park Lamp” in the junction box behind the driver’s kick panel.
Trace the yellow wire next–this carries left turn and brake signals. Verify function by activating the turn signal; the voltage should spike between 12-14V during blinking. A dim or constant signal indicates a faulty relay or bulb failure in the tow vehicle’s rear lamp cluster.
The green wire mirrors the yellow but for the right side. Cross-check against the yellow during hazard operation; both should pulse in unison. If asynchronous, the issue lies in the flasher module or corroded ground at the hitch plug.
For older models with a 4-pin flat connector, the white wire is critical–it serves as the ground. Scrape paint from the chassis mounting point to ensure a clean connection; resistance over 0.5 ohms necessitates reattachment or wire replacement.
Voltage Parameters for Critical Circuits
| Wire Color | Function | Expected Voltage | Troubleshooting Action |
|---|---|---|---|
| Brown | Marker/running lights | 12-14V (headlights on) | Test fuse LR4 (30A) |
| Yellow | Left turn/brake | 9-14V (pulsing) | Inspect bulb filaments |
| Green | Right turn/brake | 9-14V (pulsing) | Check flasher relay |
| Blue | Electric brake output | 0V idle / 12V activated | Verify brake controller settings |
Blue wires control auxiliary functions like brake controllers. Probe this circuit only when the controller is powered; voltage should match battery levels during activation. Absence of voltage suggests a faulty controller or open circuit in the tow package’s inline fuse holder near the battery.
Black and red wires handle auxiliary power feeds–typically for 12V accessories or battery charging. Measure under load; voltage drop exceeding 0.2V per foot of wire requires upgrading to 8-gauge or thicker. Secure all connections with dielectric grease to prevent oxidation.
When splicing into factory circuits, use heat-shrink butt connectors–not twist caps. Match wire gauge precisely; undersized connectors overheat. Label all modified circuits with shrink tubing to avoid diagnostic confusion later.
