Begin by locating the factory connector behind the rear bumper, typically adjacent to the spare tire mount. This 7-pin round plug contains the following circuits: running lights (brown), left turn/brake (yellow), right turn/brake (dark green), electric brake output (blue), battery feed (red), ground (white), and auxiliary power (black). Verify each pin’s function with a multimeter before attaching any new harness–mismatched connections cause immediate fuse failure or reverse polarity damage.
For aftermarket installations, avoid splicing into the factory loom. Instead, tap the OEM harness using weatherproof connectors rated for 15+ amps per circuit. The brake controller output wire (blue) must run through a dedicated 30-amp relay to prevent backfeeding voltage into the vehicle’s ABS module. Secure all new wiring with polyethylene conduit, zip-tying every 12 inches, and route along the frame rail to shield from road debris and exhaust heat.
Test the lighting sequence with a tow vehicle simulator: left blinker should flash 60-120 cycles per minute, brake lights must illuminate at full intensity (minimum 300 candela), and the marker lights require consistent 12.8-14.4V input. If LED trailer lights are used, insert a load equalizer between the turn/brake circuits to prevent hyperflashing–OEM flasher relays are not compatible with low-current LED draw.
Wiring Guide for Heavy-Duty Towing on Older GM Models
Begin by locating the factory connector behind the rear bumper–it’s a seven-pin round socket near the driver’s side exhaust outlet. If corrosion is present, clean terminals with a wire brush and apply dielectric grease to prevent future oxidation. For vehicles equipped with the 4L60-E transmission, ensure the brake controller is wired directly to the brake switch circuit to maintain proper voltage under load.
Use the following pinout configuration for standard towing setups:
| Pin Number | Function | Wire Color Code | Gauge Recommendation |
|---|---|---|---|
| 1 (Top) | Left Turn & Brake | Yellow | 14 AWG |
| 2 | Reverse Lights | Green | 16 AWG |
| 3 (Center) | Ground | White | 12 AWG |
| 4 | Right Turn & Brake | Dark Green | 14 AWG |
| 5 | Electric Brakes | Blue | 12 AWG |
| 6 | Tail Lights | Brown | 16 AWG |
| 7 (Bottom) | Auxiliary Power | Red | 10 AWG |
For trailers exceeding 7,500 lbs GVWR, install a separate relay to isolate the brake circuit from the tail light circuit. This prevents voltage drop during simultaneous brake and light operation. Splice the blue wire (electric brakes) into the brake switch harness using a T-tap connector–avoid solderless butt connectors for long-term reliability. Route wires through a grommet near the rear crossmember to prevent chafing against the frame.
Test all circuits with a multimeter before connecting the trailer. Key checks include:
– Brake lights (voltage: 12.0–13.8V)
– Turn signals (flashes: 60–120 per minute)
– Ground continuity (resistance:
Voltage fluctuations above 0.5V indicate a poor ground or undersized wire. Replace any factory ground straps showing signs of rust or thinning.
When adding a seven-way adapter to a four-way factory harness, bypass the factory converter module if present. These modules often limit current to 2.5 amps, which is insufficient for modern LED trailer lights. Instead, wire directly to the fuse block using a 20-amp fuse for the tail light circuit and a 40-amp fuse for the brake circuit. Use heat-shrink tubing on all splices to seal connections from moisture.
For auxiliary power, tap into the battery via a 40-amp circuit breaker, not the cigarette lighter circuit. Route the red wire through the firewall using the existing grommet near the brake master cylinder. Verify the breaker trips under load–if not, upgrade to a higher-rated breaker or reduce trailer accessory load. Avoid using the factory trailer plug for high-draw applications like winches or camper batteries.
Identifying the Proper Electrical Connector for Your Silverado 1500 Model Year Early 2000s

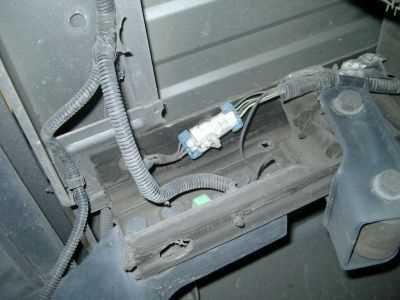

Begin beneath the rear bumper on the driver’s side–look for a factory-installed six-way plug or a four-pin socket integrated into the chassis frame. The original harness typically exits left of the spare tire mount; follow the main bundle toward the tail lamp assembly. If no connector is visible, detach the plastic trim panel inside the pickup bed covering the junction block–here, splice points match OEM color codes: yellow (left turn/brake), dark green (right turn/brake), brown (tail lights), white (ground), and a thin red wire (auxiliary power +12V). Avoid modifying the connectors inside the driver-side kick panel; these supply the cab fuse box, not towing functions.
- Check under-hood fuse relay center for a 20A or 30A fuse marked “Trailer” or “Tow” if auxiliary circuits fail.
- Verify the harness joins the rear light pigtails without tampering–cut wires void OEM wiring integrity.
- For trucks equipped with factory brake controllers, a separate seven-pin round plug hides behind the rear bumper cover; its purple wire signals brake output.
- Purchase a manufacturer replacement connector GM part #12172357 if pins are corroded–aftermarket plugs often lack proper insulation seals.
Step-by-Step Guide to Hooking Up a 4-Pin Vehicle Light Circuit
Begin by locating the factory tow connector under the rear bumper or behind a removable panel near the taillights. Use a multimeter to verify pin functions–ground will show continuity to the frame, while the remaining three wires correspond to running lights (typically brown), left turn/brake (yellow), and right turn/brake (green). Strip ¼ inch of insulation from each wire, twist copper strands tightly to prevent fraying, then crimp on weatherproof butt connectors sized for 16-14 AWG gauge.
Testing and Securing Connections
Attach a 4-way plug to the newly connected harness, ensuring the flat side of the connector faces downward for proper alignment. Secure all splices with heat shrink tubing–apply heat evenly until adhesive melts and seals the joint. Route excess cable away from moving parts and exhaust, fastening with zip ties every 8-12 inches. Activate vehicle lights sequentially: park lights, turn signals, and brakes. Verify each function illuminates the corresponding light on the towed unit; flickering indicates a loose connection–recheck crimps and ground attachment. Apply dielectric grease to the plug before mating to prevent corrosion.

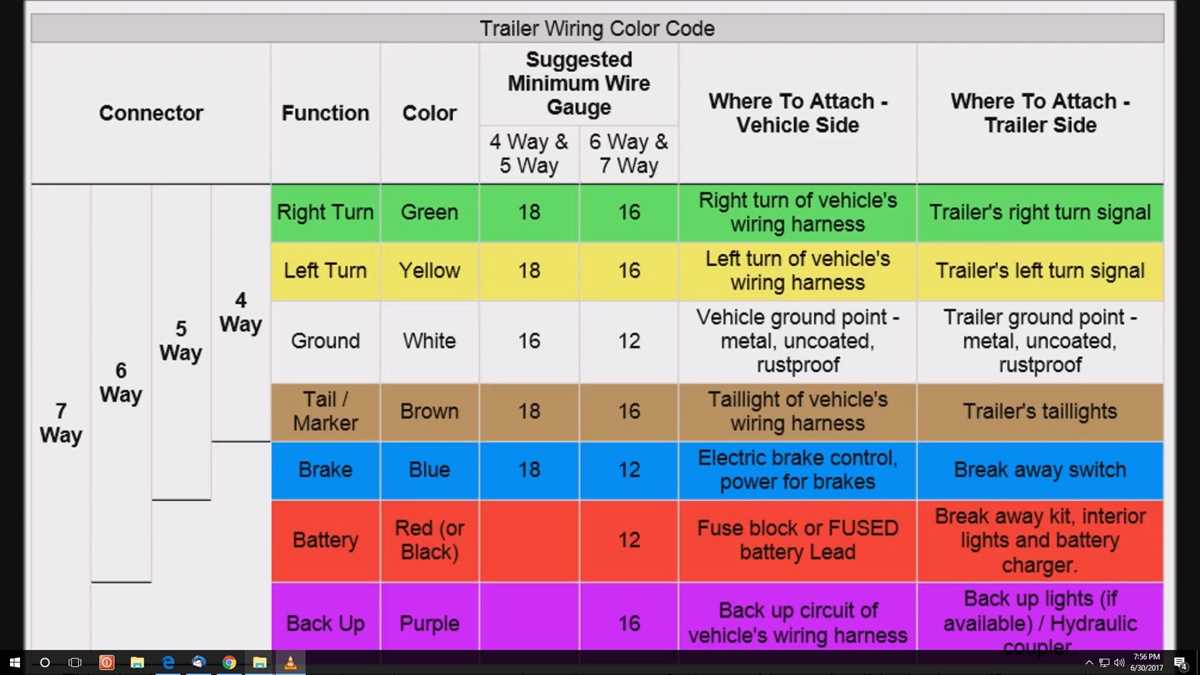

Matching Circuit Hues to Their Electrical Roles
Start by isolating the vehicle’s harness connector–typically a compact 4-pin or 7-pin plug beneath the rear bumper. The color codes follow an industry-wide standard, but variations exist between models. For immediate troubleshooting, trace the cables in this order: white (ground), brown (running lights), yellow (left turn/brake), and green (right turn/brake). Verify each strand with a multimeter set to continuity mode; a broken connection often hides behind intact insulation.
- White: Ground reference–securely fastened to the chassis or frame rail using a 10-gauge ring terminal. Corrosion here causes intermittent failures across all circuits.
- Brown: Powers tail and marker lamps. Check voltage at the bulb socket (12V expected). Dim output usually indicates a corroded splice or bad earth return.
- Yellow/Green: Carry pulsed current for blinkers and brakes. The yellow lead activates the left-side circuits, while the green handles the right. Swap these accidentally and the flasher relay behaves erratically.
- Blue (if present): Dedicated auxiliary feed, often for electric trailer brake controllers. Confirm voltage drops to zero when brakes engage–prolonged 12V here overheats actuator magnets.
Work backward from the plug toward the tow vehicle’s fuse block. Each wire pair–turn, brake, and running circuits–shares a common junction box or inline connector. Disconnect the battery negative before probing; shorting a hot terminal to chassis will trip the alternator’s diode trio. If the diagram lists “purple” or “red” wires, these serve reverse lights and battery charge lines respectively–measure these last.
Label every splice with waterproof shrink tubing rather than tape; UV degradation causes adhesion failure within months. When re-terminating a corroded connector, use tin-plated crimp terminals and dielectric grease. Avoid twisting bare strands together–this creates a high-resistance point that drops voltage under load. Replace any broken or frayed strands sectionally, not by splicing over the damage.
Fixing Typical Problems with Pickup Towing Light Systems
Start by testing the ground connection at the vehicle’s frame. Corrosion or loose bolts near the rear bumper often disrupt circuits. Use a multimeter to verify continuity between the grounding point and the lighting assembly–readings above 0.5 ohms indicate a faulty connection. Sand the contact surface with 80-grit sandpaper, then apply dielectric grease before reattaching the bolt.
If brake lights work but turn signals blink rapidly, inspect the bulbs for filament fractures. Replace any dual-filament bulbs where one circuit remains intact–common in 3157 series–since partial operation creates hyperflashing. Ensure the replacement matches the original’s candlepower rating to avoid triggering false error codes in the tow vehicle’s computer module.
Voltage Drop Across Connectors
Disconnect the seven-pin plug and measure voltage at each terminal while an assistant activates the corresponding function. Expected readings: 12.5V for running lights, 12-14V pulsed for signals, and 12V steady for brakes. Drops below 11.8V suggest pin misalignment or internal corrosion–clean terminals with a wire brush and contact cleaner, then reassemble with anti-seize compound.
For intermittent flickering, bypass the existing harness with a temporary 14-gauge jumper wire directly from the fuse block to the affected light. If stability improves, replace the factory loom; heat-shrink tubing over splices prevents future moisture ingress. Avoid vinyl electrical tape–it degrades within months under UV exposure.
When reverse lamps fail, check the dedicated purple wire (pin 7 on OEM connectors) for continuity to the transmission control module. Some models require manual override via the dash switch panel–consult the owner’s manual for specific relay activation steps. If the circuit tests positive but lights remain dark, swap the bulb for an LED equivalent with built-in resistors to prevent load errors.
Quick Diagnostics for Blown Circuits
Remove the taillight housing using a T20 Torx driver–retainer clips often break during disassembly, so order spares (GM part #22698598). Visually inspect the board for burned traces; a 10x magnifier helps spot hairline fractures. If damaged, bridge gaps with rosin-core solder, ensuring joints cool below 350°F to avoid melting adjacent plastic.
If fog lights dim when brakes are applied, test the brake switch above the pedal. Adjust the plunger gap to 0.020 inches–misalignment causes partial engagement, drawing excess current through shared circuits. For persistent issues, install a load-equalizing harness with a capacitor to stabilize voltage during high-demand situations.
