Start by locating the factory harness behind the dashboard on the driver’s side–this twelve-pin plug matches the aftermarket wiring adapter for seamless integration. Pin assignments follow a consistent pattern: pink supplies constant 12V power, yellow handles the switched source, while black remains dedicated to ground. Orange carries illumination, crucial for dimming control compatibility. Confirm voltage with a multimeter before connecting; mismatched currents risk damaging amplifiers or fuses.
Stock configurations often include a built-in amplifier, identifiable by four additional wires–two for front speaker outputs (left/right) and two for rear. Bypass this module by tapping directly into the head unit’s speaker leads, but expect reduced bass response unless compensating with an external equalizer. For vehicles equipped with OnStar or rear-seat entertainment, retain the brown data wire uncut; splicing here disrupts vehicle communication modules.

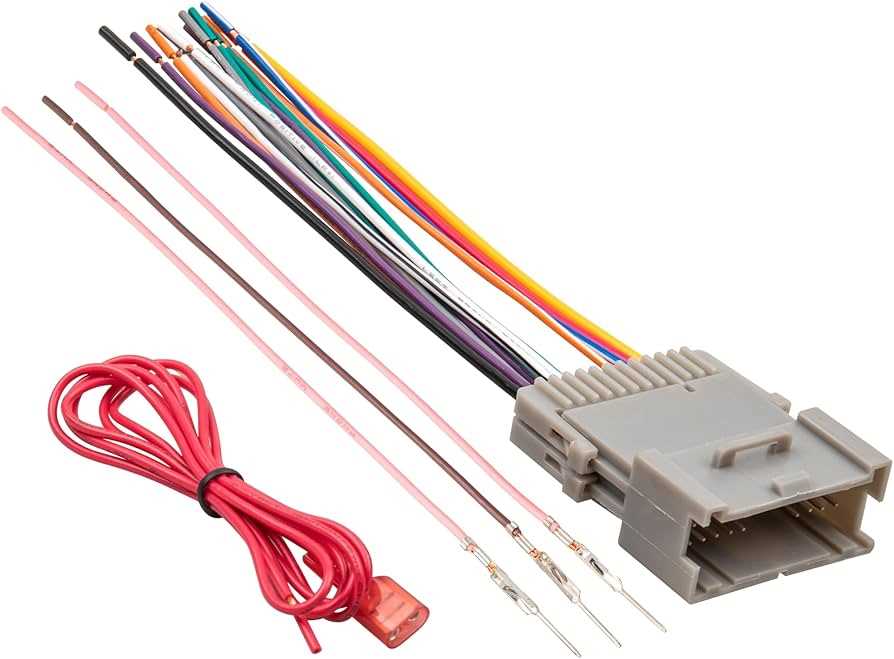

Aftermarket adapters simplify color-matching: Metra 70-2003 or Scosche GM20 retain steering wheel controls and chime tones if spliced per included instructions. Avoid twisting wires; use soldering or crimp connectors rated for 16-gauge copper. Heat shrink tubing prevents corrosion. Test each channel with a 1 kHz sine wave before finalizing the installation–distorted audio signals hardware issues, not software.
For GPS-ready units, verify the purple antenna lead connects to the existing roof-mounted mast. Factory subwoofer systems draw power from the pink constant wire; relocate this connection to a fused distribution block if adding high-wattage components. Always disconnect the negative battery terminal before handling wiring to prevent airbag deployment or shorts. Label each wire with masking tape during disassembly to eliminate guesswork during reassembly.
Schematic for Your SUV’s Audio System Installation
Begin by locating the factory harness behind the dash panel on the driver’s side–consistent pin assignments simplify integration. The 12-pin connector includes power feeds at slots A4 (yellow, 12V constant) and A7 (red, ignition-switched 12V), while ground attaches at A5 (black). Speaker outputs follow this pattern: front left (+) at C2 (light green/gray), front left (-) at C3 (gray/white); front right (+) at C4 (light blue/white), front right (-) at C5 (dark blue). Rear channels use C6 (tan/white) and C7 (brown) for left, C8 (orange) and C9 (orange/black) for right.
If retaining the stock amplifier, tap into the dedicated harness near the center console–orange/violet (A8) delivers the data bus signal required for factory-equipped premium systems. Omitting this connection risks distorted output or complete audio dropout. For aftermarket units without data integration, bypass the amplifier by splicing speaker wires directly at the head unit’s 16-pin connector, matching colors precisely to avoid phase cancellation.
Verify all connections with a multimeter before powering the system–voltage at the yellow (A4) and red (A7) wires should read 12V relative to ground (A5). A reading below 11V indicates a weak battery or corroded fuse link; replace fuse F24 (10A) in the underhood panel if necessary. For vehicles with OnStar, preserve the microphone wiring (gray/white at B1) unless the new head unit includes built-in echo cancellation.
When routing new RCA cables, avoid running them parallel to power wires–separate by at least 18 inches to prevent alternator whine. For subwoofer installations, use the purple (B10) and gray/black (B11) wires at the rear hatch’s 6-pin connector, ensuring impedance matches the amplifier’s minimum ohm rating (typically 2-4 ohms). Secure all splices with solder and heat-shrink tubing; electrical tape degrades over time and invites shorts.
Troubleshooting Common Issues
No sound after installation? Confirm the red ignition wire (A7) has voltage with the key in the ACC position–many units default to a safety lockout if this feed is absent. Static or intermittent dropout often stems from a loose ground; clean the mounting surface to bare metal and reattach the black wire (A5) directly to chassis ground, not dashboard supports. If high frequencies distort, inspect speaker polarity–swapping (+/-) on one driver reverses phase, causing cancellation in midrange tones.
Dim head unit displays signal insufficient voltage at the yellow (A4) wire; check the 30A fuse in slot F17 under the dash. For systems with factory theft deterrent, the pink (A1) wire must receive a 5V signal from the BCM within 30 seconds of power-up–failing this, the unit enters lock mode and requires a factory reset via the ignition key dance (insert key, turn to ON, wait 10 minutes, repeat twice).
Retain the factory antenna connection (coax at B4) for AM/FM reception; aftermarket adapters introduce signal loss unless impedance-matched to 75 ohms. For steering wheel controls, use a PAC SWI-JACK adapter–direct splicing risks frying the BCM module due to varying resistance thresholds. Always disconnect the negative terminal before servicing; the airbag system’s backup power capacitor holds charge for up to 30 seconds, risking deployment injuries.
Matching the Right Connector for Your SUV’s Audio System
Start by locating the factory harness behind the dashboard unit–typically a 12-pin Metra 70-2003 or Axxess ASWC-1 compatible plug. Verify color codes against the OEM schematic: orange/black for constant power, gray/red for ignition-switched, and purple for illumination. Mismatched wires risk damaging the amplifier or blowing fuses.
Manufacturers label aftermarket kits inconsistently–compare pinouts directly. Crutchfield’s vehicle-specific adapters bundle correct connectors, but generic harnesses often require manual splicing. Scan for:
- Twisted pairs (speaker +/-)
- Bare copper ground wires
- Fused power leads
Measure wire gauge–thinner than 18 AWG overheats under sustained load.
For vehicles equipped with Bose premium systems, add a line output converter to step down amplified signals. Passive systems tolerate direct connections, but active setups demand impedance matching to prevent distortion. Reuse original mounting brackets if replacing the head unit–many third-party kits omit these.
Test continuity with a multimeter before finalizing connections. Probe each terminal while cycling through:
- Accessory mode
- Radio-on state
- High-beam activation
Voltage discrepancies reveal faulty harnesses or overlooked taps.
Adapters like Scosche GM02B simplify retrofits for non-Bose models, integrating steering wheel controls via a separate interface dongle. Avoid universal kits lacking model-specific labels–they complicate troubleshooting and void warranties if improperly installed.
Connecting Audio System Harness: Color Codes and Terminal Guide
Locate the aftermarket head unit’s 12-pin harness adapter–match each lead to the vehicle’s existing harness using the following color mapping for the correct signal path and power delivery.
| Factory Wire Color | Aftermarket Connection | Function | Voltage (Key On) |
|---|---|---|---|
| Dark Blue / White stripe | Blue / White (Antenna Trigger) | Amp Remote | 12V |
| Yellow | Yellow (Battery +) | Memory Keep Alive | Continuous 12V |
| Red | Red (Ignition +) | Accessory Power | 12V |
| Black | Black (Ground) | Chassis Ground | 0V |
| Gray | Gray (Front Right +) | Front Right Speaker (+) | 4V peak |
| Light Blue | Light Blue (Front Right -) | Front Right Speaker (-) | Low reference |
| Dark Green | Dark Green (Rear Right +) | Rear Right Speaker (+) | 4V peak |
| Violet | Violet (Rear Right -) | Rear Right Speaker (-) | Low reference |
| White | White (Front Left +) | Front Left Speaker (+) | 4V peak |
| Tan | Tan (Front Left -) | Front Left Speaker (-) | Low reference |
| Brown | Brown (Rear Left +) | Rear Left Speaker (+) | 4V peak |
| Light Green | Light Green (Rear Left -) | Rear Left Speaker (-) | Low reference |
Critical Safety Checks Before Powering On
Use a multimeter to verify each connection: probe the harness side of the factory plug against the matching aftermarket lead–zero ohms confirms correct soldering, while 12V on the yellow and red wires ensures uninterrupted power and accessory control.
Tape off the dark blue/white stripe wire if no factory amplifier is present–floating voltage here risks damaging the head unit’s internal amplifier circuitry.
Safe Removal of the Original Audio Unit Without Cutting Cables
Disconnect the negative battery terminal first. This prevents short circuits and resets the vehicle’s computer system, avoiding error codes after reconnection. Use a 10mm wrench to loosen the clamp–no need to remove the cable entirely, just slide it off the post and secure it away from metal surfaces.
Remove the dash trim surrounding the radio. Insert a flat trim tool at the upper right corner of the climate control panel, then gently pry outward. Work clockwise around the edges, releasing clips one by one. The lower trim piece beneath the unit pulls straight out once the upper section is detached–slide it toward you to avoid bending the plastic tabs.
- Upper trim: 8 clips (4 along the top, 2 each side)
- Lower trim: 2 clips (centered, near the bezel)
- Climate control panel: 4 screws (2 visible, 2 behind the trim)
Unplug the antenna cable before pulling the unit. It’s secured with a small tab on the side–press down while pulling the connector outward. The antenna wire is thin and can snap if yanked; grip the plastic housing, not the cable itself.
Locate the mounting screws for the audio head. There are four: two 7mm bolts at the top corners and two Phillips screws at the bottom. Remove the top bolts first to prevent the unit from dropping suddenly. Support the weight with one hand as you extract the final screw to avoid stress on the harness connectors.
Release the factory harness plugs by squeezing the release tabs. The larger connector (power/amplifier) requires firm pressure–use a small screwdriver to depress the tab fully if it sticks. The smaller plugs (speaker/ground) release with a simple pinch. Pull straight out; twisting or wiggling can bend the pins.
Check for hidden screws before attempting to pull the unit free. On some models, a fifth screw secures the bracket near the hazard light switch. If the head resists removal, shine a flashlight behind it–there may be an overlooked fastener or dangling wire snagging the frame.
Store the removed unit face-down on a soft cloth. This protects the screen and prevents debris from entering the cooling vents. If reusing the factory harness, wrap the connectors in electrical tape to prevent corrosion and secure them to the dash frame with a zip tie to avoid dangling wires interfering with the new installation.
Test all cables for continuity before installing a replacement. A multimeter set to ohms (200 range) should read 0.5-4 ohms on each speaker lead. Any reading above 10 ohms indicates a broken wire or bad connection–trace the wires back to their source (door, tweeter, subwoofer) before proceeding.
