For accurate integration of an aftermarket sound module into a GM-derived luxury utility vehicle from the specified model year, start by identifying the 16-pin connector behind the original head unit. Pin assignments follow a consistent color-coded pattern: yellow (B+) for constant power, red (ACC) for ignition-switched power, and black (GND) for ground. The remaining wires–gray (LF+), gray/black (LF−), green (RF+), green/black (RF−), purple (LR+), purple/black (LR−), light blue (RR+), and light blue/black (RR−)–deliver amplified audio signals to each speaker. Verify each connection with a multimeter (set to DC voltage) before finalizing splices.
If retrofitting a modern amplifier, bypass the internal noise suppression circuit by locating the pink/black wire (vehicle speed sensor input) and disconnecting it at the harness. This prevents variable voltage interference during playback. Use crimp connectors instead of solder for dash-mounted components; vibration loosens solder joints over time. Retain the orange illumination wire (connected to dimmer switch) to maintain dashboard lighting synchronicity. For vehicles equipped with OnStar, preserve the light green data wire to avoid triggering false error codes.
When mapping the antenna motor lead (solid blue), ensure it connects to the power antenna output of the new unit, not the amplifier turn-on lead (typically blue/white). Failure to distinguish these will result in non-functional antenna extension. For vehicles with rear seat audio controls, trace the brown and tan wires back to the auxiliary junction block beneath the rear cargo panel–these carry retained accessory power and muting signals, respectively.
Before securing the fascia, test all functions: fader balance, tone adjustments, and auxiliary input (if available) must respond without distortion. If static persists, inspect the grounding point behind the glovebox; a loose or corroded connection introduces audible interference. Replace any factory-issued in-line fuses (rated 10A) with equivalent values to prevent overload. Documentation errors are common–cross-reference with an OEM electrical schematic for the exact trim package to confirm wire gauges and shielded pairs.
Guide to Original Audio System Circuit Layout for the 2003 Model Full-Size SUV
Locate the main harness connector behind the stereo unit–it’s a 12-pin rectangular plug labeled “C1.” Pin assignments are as follows: A4 (yellow) delivers constant 12V power, B6 (purple) carries ignition-switched 12V, D1 (black) is ground, and A1 (gray) supplies 12V memory retainer. Speaker wires use a dual-color code: front left positive (light green/white), front left negative (dark green/black), rear left positive (tan/black), rear left negative (gray/black), front right positive (light blue/black), front right negative (dark blue/black), rear right positive (dark brown/white), and rear right negative (brown/black).
Use a multimeter to verify each connection before tapping into the harness. Set the meter to DC voltage and probe the pins with the ignition off–constant power should read 12.6V, switched power 0V, and ground less than 0.1 ohms. If readings deviate, inspect the fusible link near the under-hood junction block (F1-15A) or the in-cabin fuse panel (P1-10A) for blown circuits. Avoid splicing directly into the harness if adding aftermarket components; instead, use a dedicated adapter plug (Metra 70-2003 or equivalent) to preserve OEM functionality.
| Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|
| A4 | Yellow | Constant Power | 12.6V |
| B6 | Purple | Switched Power | 12.6V (Ignition On) |
| D1 | Black | Ground | 0V |
| A1 | Gray | Memory Power | 12.6V |
For subwoofer integration, tap into the rear speaker lines (tan/black and gray/black for left, dark brown/white and brown/black for right) using a line-output converter (LOC) rated for 200mV–2V input. Install the LOC between the amplifier and the speaker wires, not at the head unit, to avoid signal distortion. Adjust the LOC’s gain to match the aftermarket amplifier’s sensitivity (typically 4V–6V for modern units). If the system lacks preamp outputs, consider a harness adapter with built-in RCA converters (e.g., Scosche GM03B) to simplify installation.
When replacing the OEM head unit with a single-DIN or double-DIN aftermarket receiver, remove the dash trim panel by prying gently along the edges with a plastic trim tool–start at the lower left corner near the hood release. Disconnect the antenna cable (thin coaxial connector) and climate control harness (if equipped) before unbolting the stereo bracket. Secure the new unit’s mounting sleeve with the original screws or use a universal installation kit (e.g., Metra 99-3305) for compatibility. Reconnect all grounds directly to the chassis near the original point to prevent electrical noise.
Finding the Right Connector Assembly for Your Mid-Size SUV Audio System
Identify the OEM harness behind the dashboard by locating the 12-pin rectangular plug near the climate control module. The upper row contains power feeds: pin 2 (constant 12V), pin 4 (switched 12V), and pin 5 (illumination). Ground connections sit on pin 7 and pin 12. Speaker outputs occupy the lower section–front left (+) on pin 8, front left (-) on pin 10, rear right (+/-) on pins 1 and 3, respectively. Verify these assignments with a multimeter before splicing any aftermarket adapters.
Matching Aftermarket Plugs to Stock Configurations

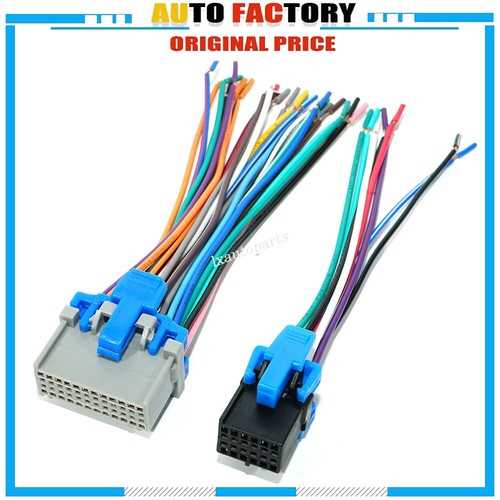

Use a Metra 70-1002 adapter for double-DIN upgrades–its color-coded leads align directly with the original setup. For single-DIN replacements, select Axxess ASWC-1 integration harness to retain steering wheel controls. Confirm compatibility with 40-2000-10 for GM Class 2 data retention if installing navigation systems. Avoid generic “plug-and-play” kits without explicit model verification; incorrect pinouts risk fusing speaker coils or damaging the BCM.
Decoding Electrical Connections in Your Vehicle’s Audio System
Locate the yellow wire on the harness–this delivers constant 12V power directly from the battery, ensuring memory retention for presets and clock settings. Verify its function by probing it with a multimeter; readings should remain steady around 12V even when the ignition is off. If voltage drops below 11V, inspect the fuse or check for corrosion at the connection point.
For switched power, trace the orange (or orange/white stripe) lead–this line activates only when the ignition is turned to the “accessory” or “on” position. Connecting this incorrectly may drain the battery or cause intermittent audio system shutdowns. Test by turning the key to the accessory position; voltage should appear and disappear consistently with key cycles.
Ground connections use black or brown wires, typically bundled at the rear of the unit. Poor grounding leads to buzzing, distortion, or complete audio failure. Attach these wires directly to a bare metal surface on the chassis using a ring terminal and star washer to prevent oxidation. Avoid daisy-chaining grounds; each device should have its own dedicated path to the chassis.
Speaker outputs follow this color-coding standard:
- Front Left (+): light green
- Front Left (-): gray with black stripe
- Front Right (+): light blue
- Front Right (-): dark blue with white stripe
- Rear Left (+): tan
- Rear Left (-): white with red stripe
- Rear Right (+): purple
- Rear Right (-): green with orange stripe
Reverse-polarity connections weaken bass response and cause phase cancellation. Use a 9V battery to test speakers–touching the leads should make the cone move outward briefly. If it retracts, reverse the wires.
Illumination circuits (usually gray or pink) control dashboard brightness synchronization. These carry low current and adjust intensity based on headlight activation. Tapping into these lines requires a 220-470 ohm resistor to prevent shorts. Ensure connections are insulated with heat-shrink tubing, as exposed wires near the fuse box can trigger shorts during system operation.
Aftermarket adapters often include a purple “data” wire for steering wheel control integration. Leave this disconnected unless using a compatible interface module–incorrect pairing can fry the vehicle’s computer. If retaining OEM chimes or warnings, splice the appropriate wires (typically violet or light brown) into the new unit’s harness carefully, as these carry critical safety signals.
Step-by-Step Guide to Installing a New Head Unit in Original Vehicle Harness
Disconnect the negative battery terminal before touching any electrical connections. Locate the OEM connector behind the dashboard–it’s typically a 12-pin or 16-pin plug with colored wires. Use a multimeter to identify power, ground, speaker, and accessory leads. Red wires usually carry constant 12V, yellow supplies ignition-switched power, black grounds the system, and orange may control illumination.
Match the aftermarket harness to the vehicle’s existing plug. Splice the new adapter’s wires to the original loom following the color codes from the manufacturer’s manual. Avoid twisting wires; instead, use solder and heat-shrink tubing for secure, corrosion-resistant joints. Confirm polarity on speaker wires (striped for positive, solid for negative) to prevent phase issues or damage to audio components.
Test connections with the vehicle battery reconnected but the head unit uninstalled. Verify voltage on power wires with the ignition off (should read 12V on constant power) and on when turned to accessory mode. If any lead shows zero voltage, recheck splices or consult the vehicle’s electrical schematic–some models route power through fuses labeled “RADIO” or “ACC.”
Mount the new stereo securely, ensuring the faceplate aligns with the dash kit. Connect the aftermarket harness to the unit’s rear, then attach the vehicle’s original plug to the adapter. Power on the system and check for proper operation: tuner reception, media playback, steering wheel controls (if retained), and amplifier engagement. If static or distortion occurs, revisit speaker wires–incorrect polarity often causes weak output.
Finish by tucking excess wiring behind the dash using zip ties. Reinstall trim panels carefully to avoid pinching wires. Reconnect the battery and test all functions again, including reverse signal (if applicable) and parking brake interlock (for video features). If the system powers down unexpectedly, check for shared fuses or relays in the fuse box–some models integrate stereo circuits with other modules like climate controls.
