If you’re replacing the stereo unit in a GMC-derived pickup from the early 2000s, the first step is locating the 12-pin connector behind the dash. Pin assignments follow this sequence: constant 12V (yellow, pin 4), switched 12V (red, pin 3), ground (black, pin 5), and illumination (orange, pin 6). Front speaker wires are gray/light green (+) and gray/dark green (-) for LF, tan/light green (+) and tan/dark green (-) for RF. Rear speakers use blue/red (+) and blue/white (-) for LR, brown/red (+) and brown/white (-) for RR. Parasitic draws can occur if the memory keep-alive (yellow, pin 4) isn’t properly fused–install a 20-amp in-line fuse within 12 inches of the battery.
Factory harnesses often omit dimension wires; if your aftermarket head unit requires them, tap pin 1 (dark blue/white) for the data signal. For vehicles with OnStar or premium Bose systems, the rear amplifier sits beneath the driver’s seat–bypass it by connecting directly to the speaker-level outputs at the head unit. Pink/black (pin 2) carries the antenna trigger; without it, the power antenna won’t extend. Verify each connection with a multimeter–resistance should read 4-8 ohms across speaker terminals. For models equipped with a CD changer, the data bus (pin 1) remains unused unless upgraded to an iPod interface.

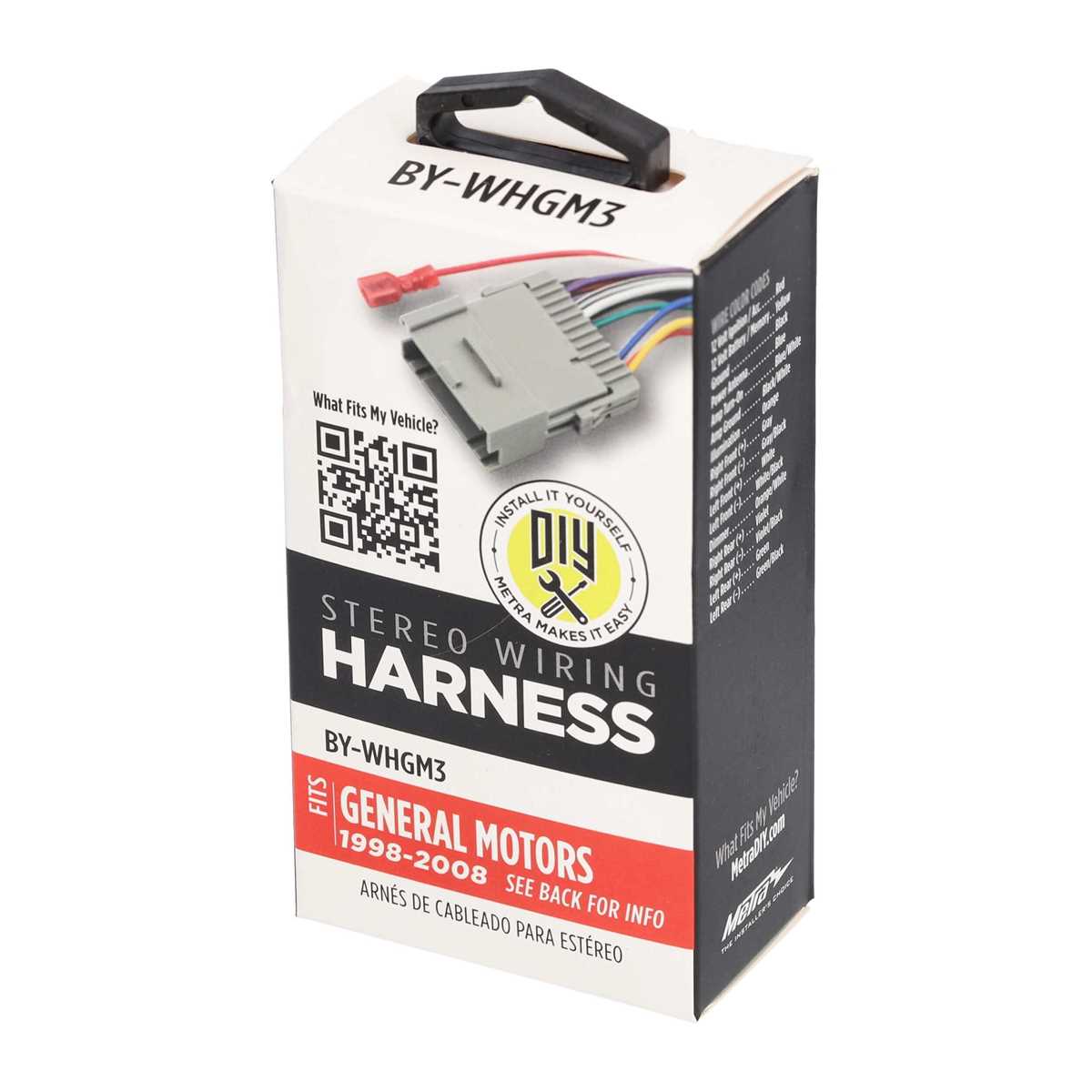

Adapters like the Metra 70-2220 simplify integration, but manual splicing yields cleaner results if color codes are cross-referenced. Steering wheel controls require an additional interface (Axxess ASWC-1); wire it to pin 8 (purple/white) for CAN bus signals. Avoid twisting wires together–use solder and heat-shrink tubing or crimp connectors with dielectric grease to prevent oxidation. If the display flickers, check the ground wire (pin 5) for corrosion at the chassis mount point.
Aftermarket Stereo Harness Guide for GM Full-Size Pickup
Locate the factory harness behind the dash panel–typically a 24-pin gray plug with three adjacent 4-pin connectors. Pin 1 (dark blue/white) carries retained accessory power; splice it to your aftermarket unit’s red ignition wire using a crimp connector, not a twist-and-tape. Pins 2–4 (light blue, orange, dark green) deliver 2.8V preamp outputs for front left, right, and rear channels; match these directly to corresponding RCA inputs on any amplifier rated for at least 30 watts RMS.
| Factory Connector | Wire Color | Function | Aftermarket Equivalent |
|---|---|---|---|
| A6 | Gray/Black | Ground | Black |
| B2 | Pink | Constant 12V | Yellow |
| C3 | Yellow/Black | Dimmer | Orange/White (illumination) |
Remove the climate-control duct by releasing two 7 mm screws at the base of the ashtray assembly; this exposes the antenna lead (coaxial RG-59, black outer sheath). Route the new coaxial cable through the same duct channel, securing it with a single Ty-wrap at the firewall grommet. Failure to secure often causes signal loss at speeds above 45 mph due to engine-vibration chafing.
Finding the Audio System Connector in Your Pickup
Start by removing the center console trim panel below the climate controls. Use a flathead screwdriver to gently pry the plastic cover starting from the lower edge near the gear shifter. Work your way around the perimeter, releasing the clips holding it in place. The connector bundle hides directly behind this panel, secured by a 7mm bolt near the bottom.
For crew cab models, the access point requires removing the storage compartment beneath the front seats. Slide the seat forward and locate two 10mm bolts at the rear of the compartment. After removal, tilt the compartment upward to reveal the main harness routing toward the dashboard. The audio interface bundle connects via a 12-pin white plug positioned near the transmission tunnel.
- Regular cab variants have the connection point behind the glove box. Remove the two Torx T20 screws inside the glove box, then squeeze the sides to release it from the dashboard.
- The bundle appears as a 14-pin gray connector with staggered pins. Trace the wires toward the firewall–this path avoids interference with HVAC components.
- Extended cab models feature an additional harness near the rear seat release mechanism. Disconnect the battery before probing this area due to proximity to airbag wiring.
Color codes for the factory harness follow GM’s standard:
- Dark green: front left speaker (+)
- Gray: front left speaker (–)
- Light blue: front right speaker (+)
- White: front right speaker (–)
- Violet: rear right speaker (+)
- Brown: rear right speaker (–)
- Black: ground
- Yellow: constant 12V
- Red: switched 12V (key-on)
- Orange: illumination (dimmer control)
If the main connector lacks color-coded labels, use a multimeter to test voltages. Set it to 20V DC and probe the yellow wire–it should read battery voltage (12-14V) at all times. The red wire registers voltage only when the ignition switch is turned to ACC or ON. Avoid testing the black wire directly–attach the multimeter’s negative lead to a known chassis ground first.
Aftermarket installations often require splicing into the harness. Cut wires 2-3 inches from the factory connector to preserve length for future repairs. Use solder-seal connectors or heat-shrink tubing to prevent moisture intrusion. Route new wires away from sharp edges or moving components like the steering column tilt mechanism.
Decoding Harness Colors for Aftermarket Audio System Integration
Locate the solid yellow conductor in the factory harness–this is the constant 12V power line, essential for preserving memory settings in newer head units. Verify its voltage with a multimeter while the ignition is off; a reading below 11.5V indicates a weak battery or corroded connection at the fuse box.
Trace the red wire, which delivers switched power activated by the ignition. Connect this to the aftermarket unit’s red lead to ensure the stereo powers on only when the vehicle’s engine is running. Avoid splicing into the orange wire reserved for dimmer control–this adjusts display brightness in sync with dashboard lights.
Identify the black ground cable, often clustered with other dark-colored strands. Secure it to a bare metal surface near the installation site, scraping off paint or rust for a solid electrical contact. A poor ground causes interference, static, or sporadic operation, so test continuity before finalizing the connection.
The front speaker outputs typically pair as light green/light blue (left positive/negative) and gray/light gray (right positive/negative). Match these to the new system’s harness, ensuring polarity isn’t reversed–swapped leads will invert sound staging, making instruments feel distant or unbalanced.
For vehicles with factory amplified systems, the dark blue/white striped wire (remote turn-on) triggers external amplifiers. Omitting this connection leaves subwoofers or rear-door speakers silent. Confirm this wire’s function by probing with the multimeter while the ignition cycles–it should spike to 12V during startup.
Lastly, handle the purple and purple/black twisted pair cautiously; these often carry data for steering-wheel controls or chimes. Interrupting them may disable integrated features like speed-compensated volume. Use a wiring adapter or retain the original plug to maintain compatibility with non-audio modules.
How to Properly Attach Audio System Speaker Leads for Front and Rear Channels

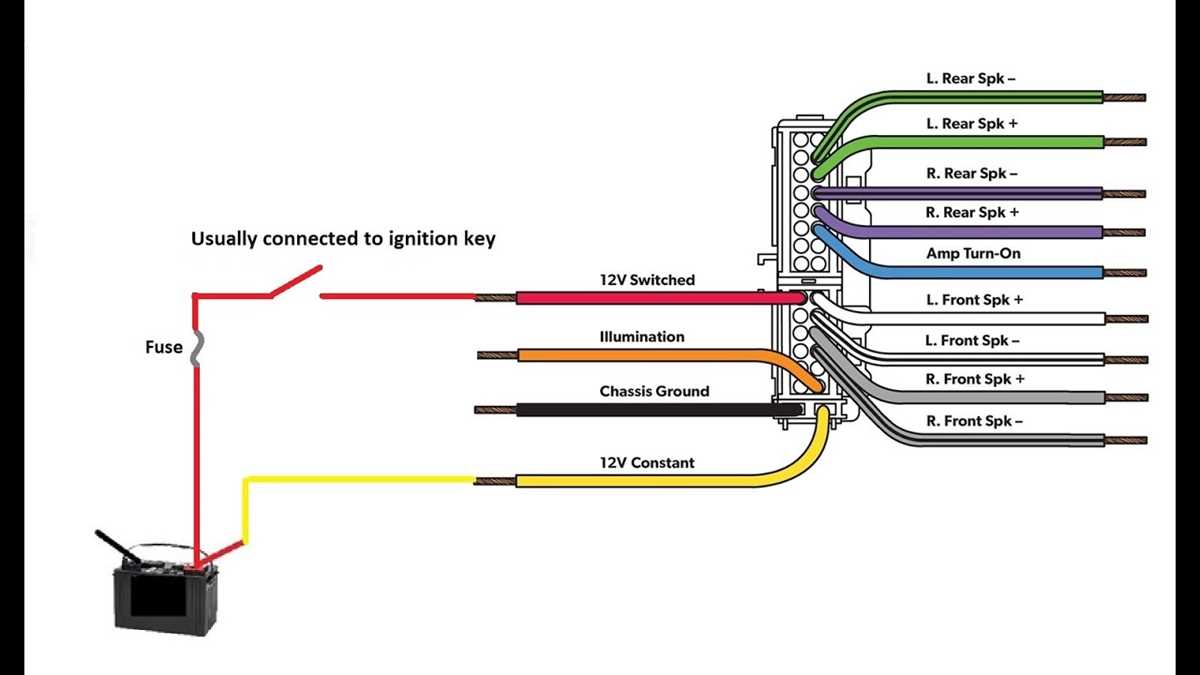

Identify the color-coded wires on your aftermarket head unit. The front left positive lead is typically white with a colored stripe, while the front right positive uses gray with a stripe. Rear left and right positives follow green and purple with stripes, respectively. Negative leads mirror these colors without stripes. Verify this against the manual to avoid errors–manufacturers occasionally deviate, especially in older models.
Use a multimeter to test each speaker wire before connecting. Set it to DC voltage mode (200mV range) and probe each wire while a low-volume test tone plays. A positive reading confirms the correct channel; no reading or reversed polarity suggests a ground issue. Cross-check with the factory harness adapter if available–skipping this step risks damaging tweeters due to incorrect phase alignment.
Strip 5mm of insulation from each wire, twist strands tightly, and apply solder for secure connections. Heat-shrink tubing or electrical tape prevents shorts. For factory systems with high-impedance outputs, avoid twisting multiple speaker wires together–this creates impedance mismatches, distorting sound quality. If soldering isn’t an option, use crimp connectors, but ensure firm pressure to prevent intermittent failures.
Route front channel leads through the dash harness conduit to avoid pinching. Rear channels should follow existing loom paths beneath carpets or along body seams. Secure wires with zip ties every 15cm to prevent rattles or chafing. Avoid routing near power cables (e.g., ignition or amplifier feeds) to minimize interference–even small gaps in shielding can introduce engine noise.
Match the head unit’s output impedance to the speakers (typically 2-4 ohms). Factory systems often include inline resistors for dashboard tweeters–bypassing these alters crossover points, risking tweeter burnout. If upgrading speakers, measure their impedance first; mismatches cause amplifier clipping or overheating. For component systems, separate tweeter and woofer leads at the crossover, never combine them.
Ground issues manifest as buzzing or weak bass. Attach all negative leads to a single, clean chassis point–bolted directly to the vehicle’s frame near the stereo. Avoid sheet metal screws; use a ring terminal with a star washer for proper contact. If noise persists, add a 100-ohm resistor in series with the ground wire to decouple interference. Test each connection with the engine running to catch alternator whine early.
Finalize connections by powering on the system at low volume, testing each channel individually. Use a sine wave test track (1kHz for midrange, 100Hz for bass) to verify clarity. If rear channels lack bass response, check for inverted polarity–flipping the leads often resolves this. For systems with fader controls, ensure the balance isn’t adjusted toward the front speakers, which can mask insufficient rear wiring.
