Begin troubleshooting with the main fuse (20A) located beneath the left side cover. Verify continuity across the ignition switch terminals–corrosion on the pink wire often disrupts starting. Replace the switch if resistance exceeds 0.5 ohms when actuated.
The CDI unit connects via a five-pin harness; pin 1 (white/red) delivers 12V during cranking, while pin 3 (black/yellow) grounds the ignition coil. Probe these with a multimeter–voltage should spike to 200V AC during spark testing. If absent, inspect the pickup coil (resistance: 100–200 ohms) behind the stator cover.
For lighting circuits, the regulator/rectifier (four-wire connector) bridges the stator’s yellow leads. Overheating here indicates failed diodes–desolder and replace with 35A Schottky components. Check headlight wiring: the brown wire powers low beam (6V nominal), while the yellow/green handles high beam (ground through the handlebar switch).
Critical connectors include the ECU plug (gray, 6-pin) and the kill switch (black/white wire). Test the latter for a clean ground path when engaged. If the engine cuts erratically, isolate the charging system by unplugging the stator–idle RPM drop confirms stator output. Use heat-shrink tubing on splices; fabric tape degrades under vibration.
Reference the official service manual’s page 8-4 for pin assignments, but cross-check every wire color against your model–aftermarket harnesses often deviate. Label each wire with masking tape during disassembly to prevent misrouting.

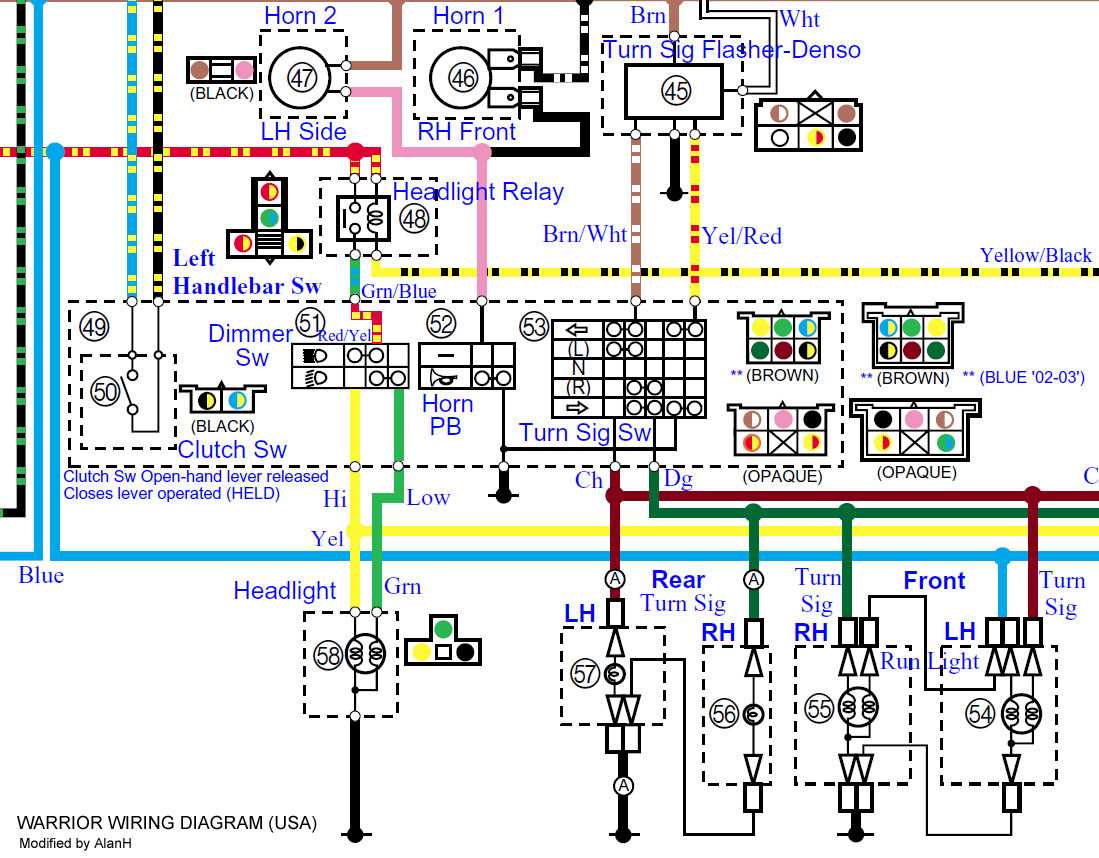

Electrical Schematic for the 2002 Model ATV: Key Connections
Locate the CDI unit near the left side of the engine bay–pin 1 connects to the stator’s white/red wire, handling AC input. Pin 2 links to the ignition coil’s black/yellow lead, while pin 3 grounds via the engine case. Swap any corroded terminals with 16-gauge tinned copper wire to prevent voltage drop under load. Test resistance between the stator’s yellow wires (0.5–1.5 ohms); values outside this range indicate burnt windings requiring replacement.
Trace the main harness from the handlebar controls: the kill switch (black/white) interrupts the CDI’s ground, forcing shutdown. Verify continuity in the starter relay–clicking without engagement signals a faulty solenoid or weak battery (minimum 12.4V for reliable starts). Replace the relay if voltage at terminal 85 drops below 11V during cranking. For the lighting circuit, the regulator/rectifier’s red wire (ignition feed) should read battery voltage; deviations suggest a bad connection at the fuse block (20A fuse).
Inspect the fuel pump circuit–pin 4 on the ECM (gray connector) must receive 12V from the brown/green wire when the key is on. Low pressure (below 35 psi) often stems from chafed wires near the tank; reroute with split loom tubing if insulation is compromised. The neutral switch (light blue) grounds through the transmission case; intermittent operation points to worn contacts inside the switch. Clean or replace if resistance exceeds 0.2 ohms.
Check the radiator fan: the black/yellow wire activates at 212°F via the temperature sender (resistance drops from 1.5k ohms to 100 ohms as heat rises). Substitute a mechanical switch temporarily to isolate sender failures. For turn signals, the flasher unit’s ground (green) must be solid–loose mounting bolts cause erratic blinking. Upgrade to LED bulbs only after installing a load equalizer; stock components overheat with lower current draw.
Final step: probe the ignition coil’s primary side (black/yellow to ground) with a multimeter–expect 0.5–1.5 ohms. Secondary resistance (spark plug cap to coil terminal) should read 8–15 kOhms. Replace coils if readings vary by more than 10%, as inconsistent spark triggers erratic idle or stalling. Store printed schematics in a ziplock bag under the seat for reference during trail repairs.
Finding Key Electrical Connector Points on Your Off-Road ATV
Start beneath the seat–the primary harness bundle splits behind the fuel tank. Trace the thickest loom emerging from the battery compartment toward the rear frame. Two multi-pin sockets sit adjacent to the ECU: the larger one (16-pin, black) handles ignition and sensor feeds, while the smaller (6-pin, gray) links to lighting controls.
- Unclip the plastic cover near the rear shock mounts to reveal the third major connector–a 4-pin white plug interfacing with the speedometer and reverse gear sensor.
- Follow the sub-harness branching toward the handlebars: a 3-pin orange connector secures the kill switch circuit just below the throttle assembly.
- Check the underside of the engine block for a 2-pin brown plug connecting the stator to the regulator-rectifier unit.
Mid-frame, near the CDI box, locate the 8-pin brown connector (labeled “MAIN”)–this routes power to all auxiliary systems. Disconnecting this first simplifies troubleshooting for starter relays or fuel pump issues. Push aside the left-side plastic panel to access the last major junction: a 9-pin blue socket that merges instrument cluster wiring with brake light circuits.
Label each connector with masking tape before disassembly to prevent cross-reconnection. Store detached plugs in zip-lock bags if working in humid conditions to avoid corrosion on terminal pins.
Examine wire color codes at split points–solid red lines carry switched voltage, while black/yellow stripes indicate ground returns. Cross-reference any non-standard colors (e.g., green/purple) with the factory service manual to identify OEM customizations.
Test continuity on suspect circuits using a multimeter before reassembly. Probe pins with the ignition off to isolate parasitic draws or intermittent shorts–common failures occur at vibration-prone joints near the swingarm pivot.
Step-by-Step Guide to Tracing the Ignition System Circuit Path
Locate the battery terminals first–positive (red) and ground (black)–as all power originates here. Use a multimeter set to DC voltage (20V range) to confirm 12.6V or higher at the terminals before proceeding. If voltage drops below this, charge or replace the battery immediately to avoid false diagnostics.
Identify the ignition switch connector, typically a 4- to 6-pin plug near the handlebar or beneath the seat. Disconnect it and probe the input pins with the multimeter while turning the key to “ON.” Pin voltages should match the service manual’s specifications–usually 12V on one pin and 0V on others. Any discrepancy indicates a faulty switch or corroded contacts.
- Trace the red ignition feed wire from the switch to the ignition coil. Follow it visually or with a continuity tester, checking for breaks, exposed copper, or pinched sections under the frame or fairings.
- Inspect the coil’s primary and secondary connections. The primary side (thicker wires) receives 12V from the switch; the secondary (thinner wires) leads to the spark plug. Measure resistance: primary should read 0.5–2.0 ohms, secondary 6,000–15,000 ohms. Values outside this range require coil replacement.
Examine the stator output if the engine cranks but won’t start. Unplug the stator’s 3- or 4-pin connector near the alternator. Test AC voltage while cranking: each pair of pins should produce 15–30V AC. Low or zero output means a failed stator, often from burnt windings or broken magnets.
- Disconnect the CDI unit’s connectors. Test each incoming wire for voltage:
- Battery feed: 12V constant.
- Ignition pulse: 0.5–5V AC during cranking.
- Ground the CDI’s black wire to the frame if readings are normal but the engine still won’t start. Replace the CDI if the spark returns–internal failure is common.
Reconnect all components and perform a spark test. Remove the spark plug, reattach its cap, and ground the plug body to the engine block. Crank the engine–bright blue spark confirms a functional system. Orange or weak spark indicates a persistent issue: recheck connections, coil resistance, or CDI output.
Understanding Charging System Color Codes for ATV Electrical Circuits
Locate the stator’s output wires immediately–typically three yellow leads on this model. These carry AC voltage from the alternator and must connect directly to the regulator-rectifier. If resistance readings between any pair exceed 0.5 ohms, replace the stator. Below is the standard mapping for key charging components:
| Wire Color | Function | Voltage (Engine Running) |
|---|---|---|
| Yellow (3x) | Stator AC output | 30–50V AC |
| Red (thick) | Battery positive | 13.8–14.4V DC |
| Green | Ground | 0V |
| White/Red | Voltage sense wire | 13.2–14.8V DC |
Check the red primary cable first–it should measure battery voltage at all times when the ignition is on. A voltage drop below 12.6V indicates a failing regulator-rectifier or poor ground connection. Use a multimeter with the engine off to verify resistance between the green ground wire and the frame. Readings above 0.2 ohms require cleaning or replacing the ground point.
Trace the white/red sensing lead to its termination at the regulator. This wire regulates output by monitoring battery voltage. If the bike runs but the battery drains, probe this wire–it should mirror red wire voltage exactly. A discrepancy suggests internal regulator failure. Disconnect the connector and inspect for corrosion, which disrupts signal integrity. Apply dielectric grease before reassembling.
Examine yellow wire continuity next. With the engine off, measure resistance between each pair. Consistent readings confirm a healthy stator. If values vary drastically, the alternator windings are shorted or open. Swap out the entire stator assembly–partial repairs rarely hold. Insulate all yellow connections with heat-shrink tubing to prevent grounding against the engine block.
For voltage testing, attach the multimeter’s negative lead to the frame and positive to each yellow wire while running. Expect near-identical AC readings across all three. Unequal outputs indicate a failing phase. Confirm DC output at the battery terminals–13.8–14.4V under load. Anything lower points to a compromised voltage regulator or rectifier bridge. Replace the unit if on-load voltage dips below 13.0V.
